SmallHD Cine 7 Moniteur

Name: SmallHD Cine 7 Moniteur
Brand: SmallHD
SKU: SHD-MON-CINE7
Price: 2149.00 EUR
Availability: InStock

MPN: SHD-MON-CINE7

Prix : 2 149,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

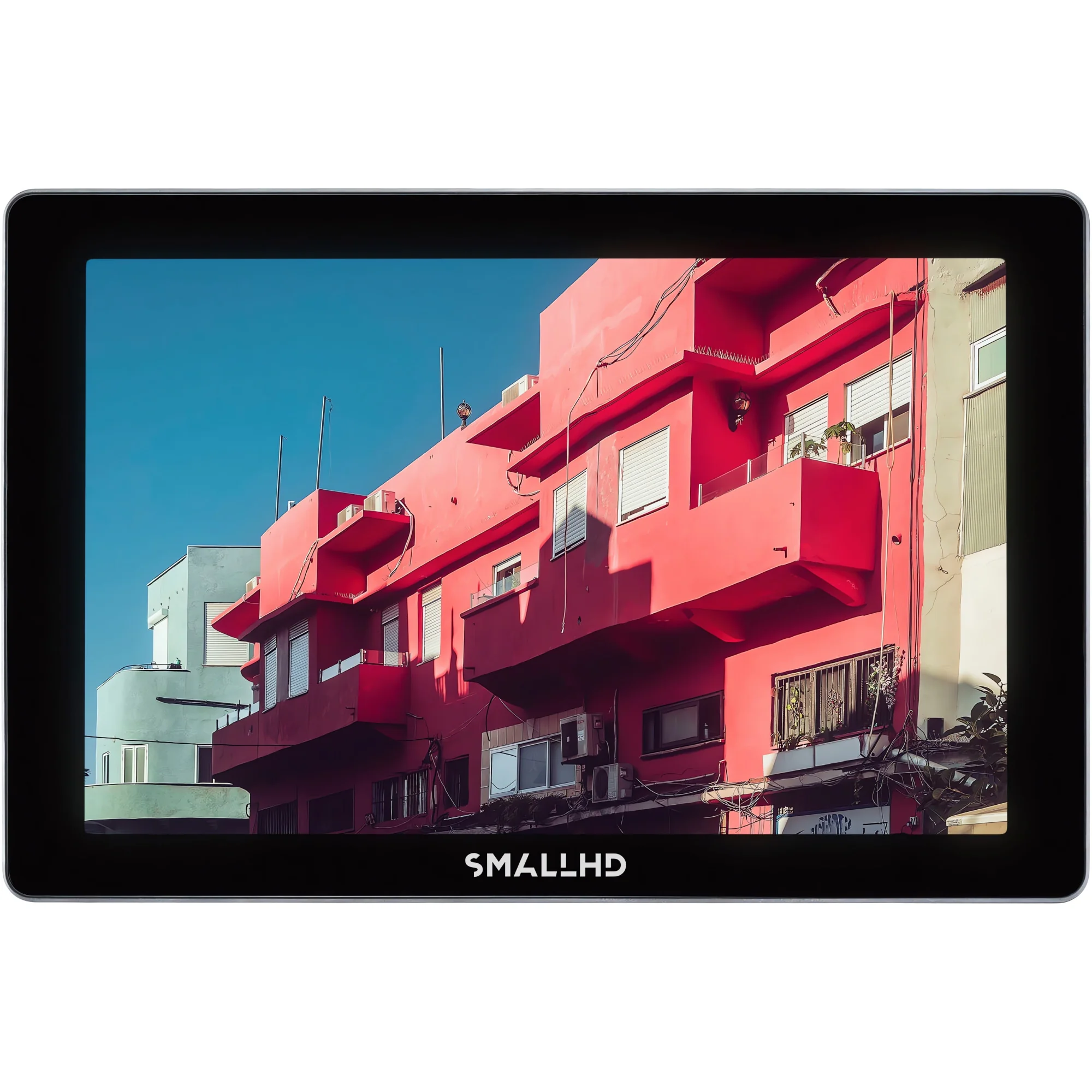

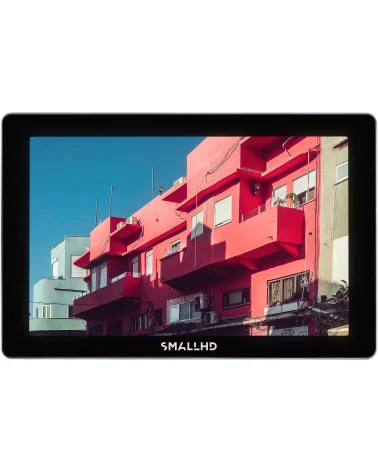

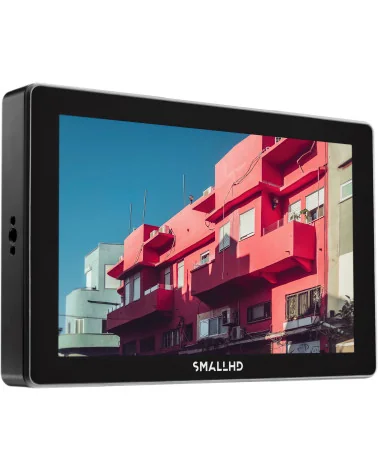

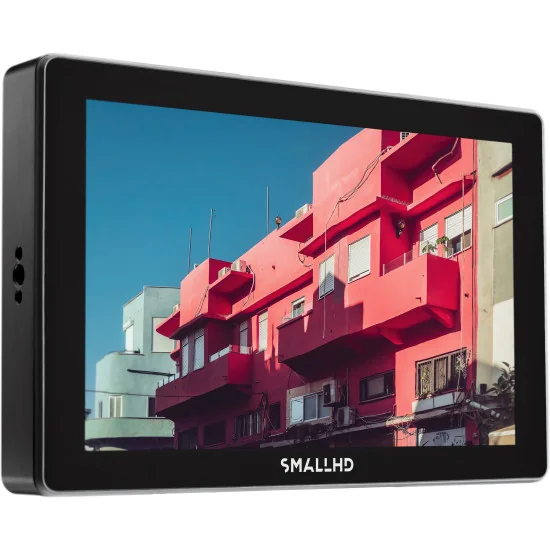

Le SmallHD Cine 7 redéfinit la référence des moniteurs embarqués en associant une luminance intense à un traitement vidéo de niveau cinéma. Son écran IPS 10 bits de 7″ affiche nativement 1920 × 1200 à 322 ppi et délivre 1800 nits, parfaitement lisibles en plein soleil. Avec une couverture 100 % DCI-P3, un contraste 1000:1 et un mapping HDR matériel, il restitue fidèlement la latitude d’exposition et les couleurs sur le plateau.

Pensé pour les workflows exigeants, il propose deux ports 3G-SDI (entrée + entrée/sortie) et un HDMI plein format gérant jusqu’au UHD 4K30 avec conversion croisée SDI ↔ HDMI en temps réel, réduisant le câblage. L’audio 8 canaux est affiché à l’écran, un jack 3,5 mm assure l’écoute sans latence. L’alimentation passe par LEMO-2 6–16 V/2,5 A ou par la double platine Sony L-Series échangeable à chaud pour des tournages sans interruption.

Avec PageOS 4, Cine 7 offre waveform, parade RGB, vectorscope, double zebra, fausses couleurs, aide à la mise au point et zoom pixel jusqu’à 8×, tous accessibles au toucher. Les LUT 3D se chargent par SD ou USB puis se mémorisent dans des pages utilisateur. Des licences optionnelles activent le contrôle tactile direct des caméras ARRI, RED RCP/RCP2 et Sony VENICE/BURANO/FX6 pour piloter REC, EI, obturateur, look et lecture depuis le même écran.

Usiné en aluminium et pesant seulement 567 g, le châssis intègre quatre pas ¼-20, fonctionne de –1 °C à 37 °C et est livré avec carte SD 8 Go, pare-soleil et protection d’écran. Ajoutez les modules Teradek Bolt 6 pour un monitoring 4K sans fil à latence nulle. Pour les équipes exigeant une fiabilité absolue, le Cine 7 est la fenêtre professionnelle indispensable du pipeline image.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Cine 7 - Versatile. Intelligent. Precise.
For the production professional who demands performance, brightness, and intuitive control options in a touchscreen 7-inch monitor.

Cine 7 is slim, lightweight, and offers 1800nits of brightness – plus control license options for a variety of RED®, ARRI and Sony cameras. Experience all your favorite PageOS tools, functions, and settings pages on our premium 7-inch touchscreen monitor.

Zero-Delay Wireless Video: Cine 7 + Bolt 6 TX/RX Module
Receive pristine wireless video from any Bolt 6 or Bolt 4K transmitter at a distance of up to 750ft (228m) or 1500ft (457m). This hardware addition to Cine 7 attaches to the back of the monitor for integrated, cable-free workflows. Included with Gold or V-Mount power options.

QD-LED Edge-Lit LCD Panel Technology
SmallHD LEDs for Cine 7 panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring the purest color accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.

PageOS - Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 7 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

SPECS

Environmental
Item Weight (oz): 20
Package Weight (oz): 32
Height (in): 4.67
Width (in): 1.32
Length/Depth (in): 7.09
Compliance: FCC, IC, CE, RoHS
Operating Temperature: 30F to 100F
Storage Temperature: 0F to 120F
Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized aluminum chassis

Display
Panel Type: IPS LCD
Diagonal Size: 7.02
Resolution: 1920x1200
Pixel Density: 322 ppi
Aspect Ratio: 16:9
Active Area: 5.95 x 3.72
Max Brightness: 1800 NITs
Contrast: 1000:1
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes

Input Signal

3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

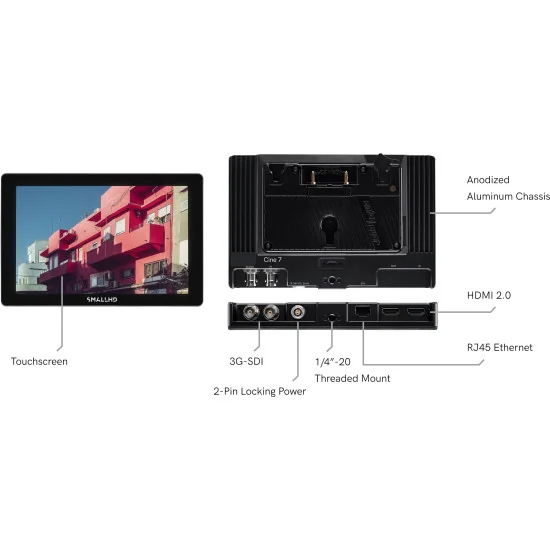

Connector Type
SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Power In: 2-pin Locking
USB: 1x USB 2.0 Micro-B receptacle

Controls
Primary: Touch Screen
Record Capture: Image Capture Tool

Power
Connector: LEMO
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater

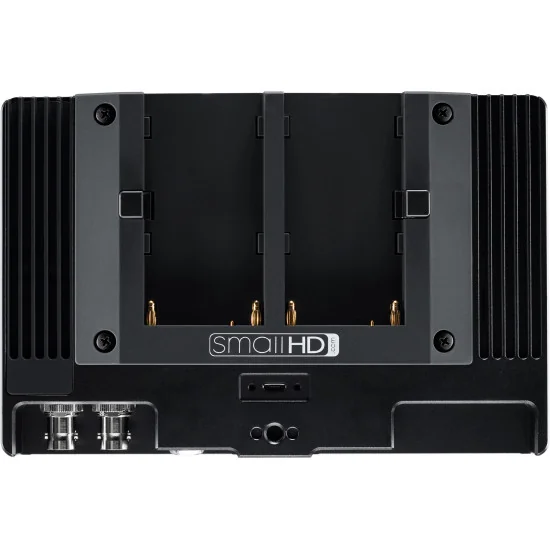

Battery Types: L-Series, (Optional V Mount, Gold Mount)
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batteries

Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
