SmallHD Vision 17" 4K HDR Moniteur de studio

SmallHD Vision 17" 4K HDR Moniteur de studio

Name: SmallHD Vision 17" 4K HDR Moniteur de studio
Brand: SmallHD
SKU: SHD-MON-VISION-17
Price: 9190.00 EUR
Availability: InStock

MPN: SHD-MON-VISION-17

Prix : 9 190,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

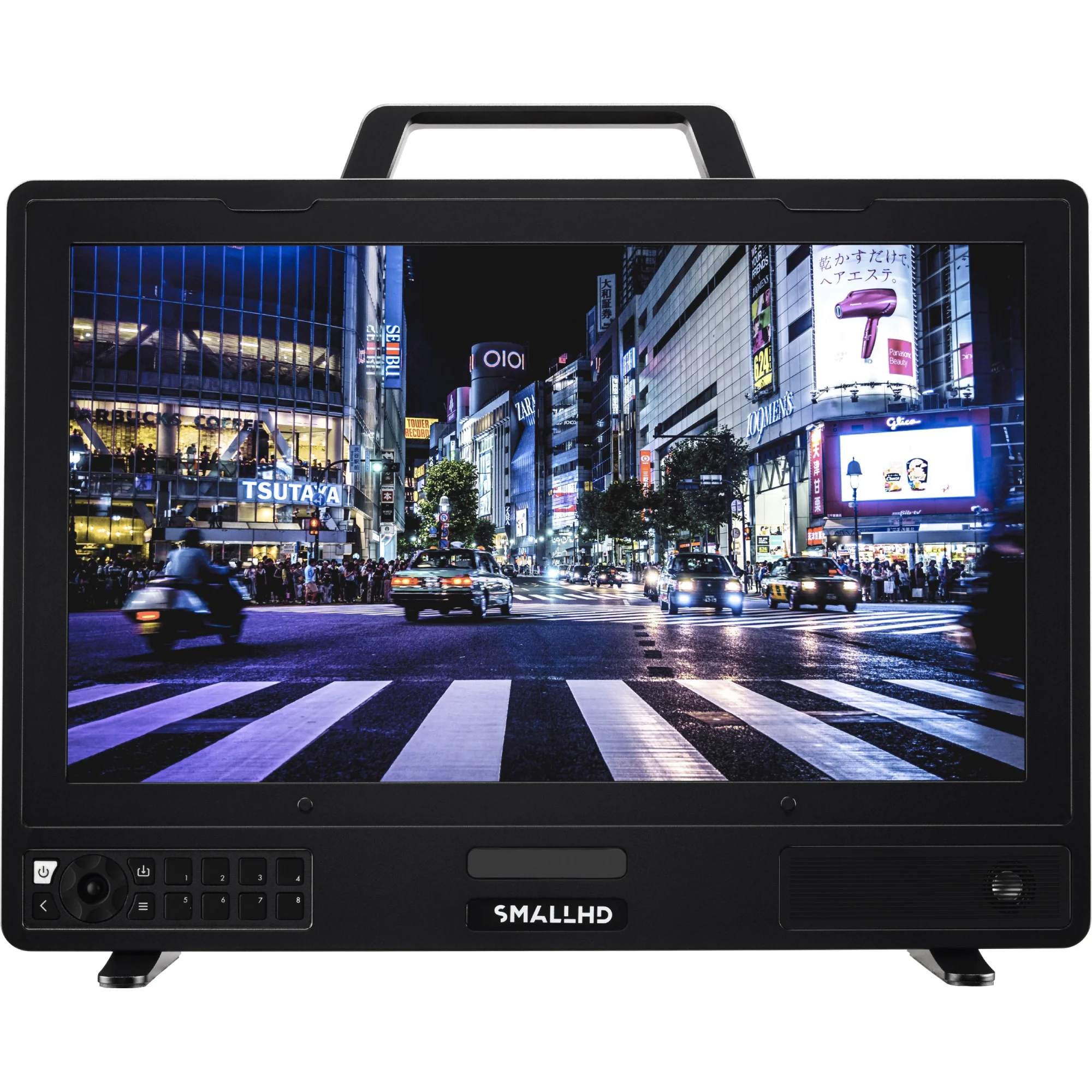

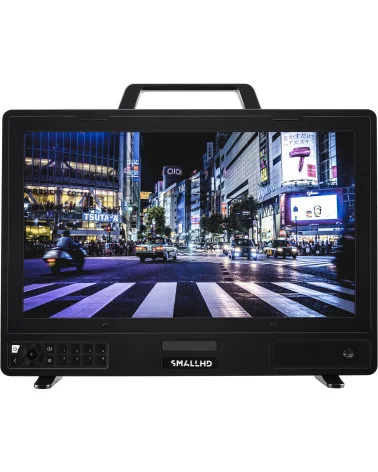

Le SmallHD Vision 17 moniteur 4K HDR offre une référence d’image sans concession dans un châssis de 17,3 po (43,9 cm) taillé pour les tournages itinérants. Son LCD IPS doté d’un rétro-éclairage FALD de 1 792 zones atteint 1 000 000 : 1 de contraste et 1 000 cd/m². La dalle 3840 × 2160 10 bits couvre 115 % du DCI-P3 et restitue HDR10, HLG et PQ, répondant au cahier Netflix. Un angle de 178° et un algorithme anti-halo maintient le contraste uniforme sur toute la surface.

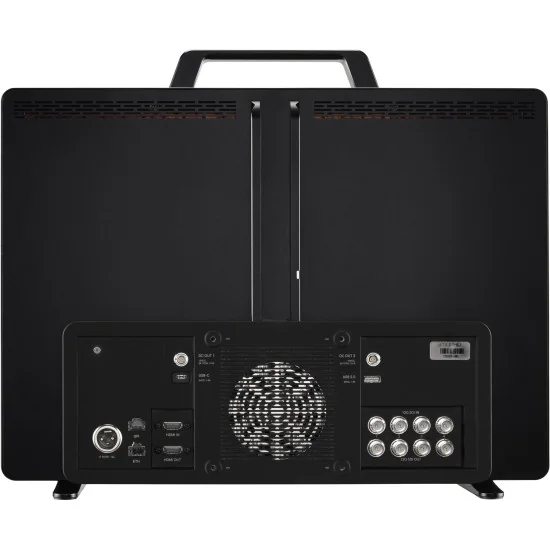

La connectique suit la cadence : 4 entrées et 4 sorties 12G-SDI transportent le 4K 60 p sur un BNC, tandis que l’HDMI 2.0 I/O gère caméras ou mélangeurs. Le lecteur SD accepte des LUT 3D 33 points, deux ports RJ-45 assurent LAN & GPI, et PageOS 4.1 propose waveform 4K, vectorscope, fausses couleurs, zoom pixel, outil focus, assistant d’étalonnage, mémoires utilisateur et futures mises à jour. L’audio intégré se contrôle via la prise casque 3,5 mm.

Usiné en aluminium, le boîtier pèse seulement 4,85 kg, tout en offrant 36 filets ¼-20, un VESA 100 × 100 mm et des rails cheese livrés pour un montage express. Gabarit panneau : 44,2 × 31,5 × 6,1 cm, 45 × 36,6 × 11,9 cm avec poignée. Alimentation par XLR 12 – 34 V ou plaque double V-/Gold-mount ; deux sorties LEMO 2 broches 12 V/2 A et USB-A/C distribuent la puissance, consommation 127 W. Plage 0-37 °C et refroidissement passif garantissent le silence.

Inclus : protecteur d’écran, poignée, pieds, câble HDMI 4K, carte SD 8 Go et rails cheese. Dès l’ouverture du flight-case, Vision 17 assure la cohérence HDR d’une série, d’un plateau multicam ou d’un car régie sportif, pour que chaque écran suive la vision voulue.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Vision Series - Set-to-Suite Monitoring in 4K HDR
Set-ready construction meets suite-ready performance in Vision Series 4K Monitors. Experience true PQ1000 HDR in DCI 4K resolution, whether you’re shooting on location or finishing in post.

PageOS - A Dedicated OS Designed for Production Monitors
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS features highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

Color Pipe
Easily configure each of the five independent 4K video inputs on SmallHD 4K Production monitors with a custom input and output display configuration. Convert camera log signals into multiple HDR or SDR display setups, and switch effortlessly between these presets with the click of a function button on any page.

Multi-View
View up to four camera feeds at once on our Cine, OLED, and Quantum Series or up to two camera feeds on Vision Series. Select from several options for multi-view configuration, and assign scopes and other video engineering tools for an endless variety of customizable layouts.

Integrated Calibration
SmallHD monitors are Calman® Ready, with a seamless integration tool for Cine and OLED 4K Series Production Monitors. Connect your 4K monitor via ethernet to a computer with a calibration probe running Portrait Displays® Calman®, and a calibration LUT will be uploaded directly into your monitor when finished.

EL Zone
The stop-based exposure map tool—developed in collaboration with legendary cinematographer, Ed Lachman, ASC—that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-purpose color grading tool.

Video Engineering Tools

4K WAVEFORM
Robust exposure tool plotting your images luminance and chrominance to a graph that matches your screen left to right.

VECTORSCOPE
Plots the hue + saturation onto a color wheel, so to help gauge complimentary color.

HISTOGRAM
High resolution, low latency histogram is perfect for determining the overall exposure balance of your image.

EXPOSURE MEASUREMENT
Choose from industry-standard options or create your own custom False Color mapping.

Lightweight. Durable. 4K HDR.
A Unibody Smart Chassis with a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.

Mini-LED Local Dimming (FALD) Panel Technology
The Vision Series Monitors feature a mini-LED local dimming array, with over 2000 individual zones behind the panel. This high-density of zones allows for excellent handling of high-contrast areas across the screen. SmallHD’s FALD controls the light behind the LCD array by modulating each individual LED dynamically. This rapid-fire on/off is controlled by a proprietary algorithm designed by SmallHD, with the goal of achieving HDR contrast ratios.

SPECS

Environmental
Item Weight (oz): 10.7lbs/4.8kg
Height (in): 12.4 (w/out feet and handle) 14.4 (w/ feet and handle)
Width (in): 17.4 (w/out feet and handle) 17.7 (w/ feet and handle)
Length/Depth (in): 2.4 (w/out feet and handle) 4.7 (w/ feet and handle)
Compliance: FCC, IC, CE, RoHS, SRRC, MIC
Operating Temperature: 32 F - 100 F
Storage Temperature: 0 F - 105 F
Screen Protection: Basic and Hardened
Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized aluminum chassis with plastic accents

Display
Panel Type: IPS LCD
Diagonal Size: 17.3
Resolution: 3840x2160
Max Brightness: 1000nits
Contrast: 1,000,000:1
Gamut: Rec709 coverage 100% DCI_P3 coverage 99.89%
Color Depth: 10-bit (8+2)
Viewing Angle: 90 Degrees
Backlight Type: Full-Array Local Dimming
Backlight Zones: 1792
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type
Component: Not Supported
Composite: Not Supported
Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O
Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power
Input: 1x 3-pin XLR (210W max, 12V-34V, 18A max)
Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Consumption: 127w (monitor only) 208w (w/max access. power draw)
Battery Plate Included: No
Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
