SmallHD Vision 17" 4K HDR Studio Monitor

SmallHD Vision 17" 4K HDR Studio Monitor

Name: SmallHD Vision 17" 4K HDR Studio Monitor
Brand: SmallHD
SKU: SHD-MON-VISION-17
Price: 9190.00 EUR
Availability: InStock

MPN: SHD-MON-VISION-17

Price: €9,190.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

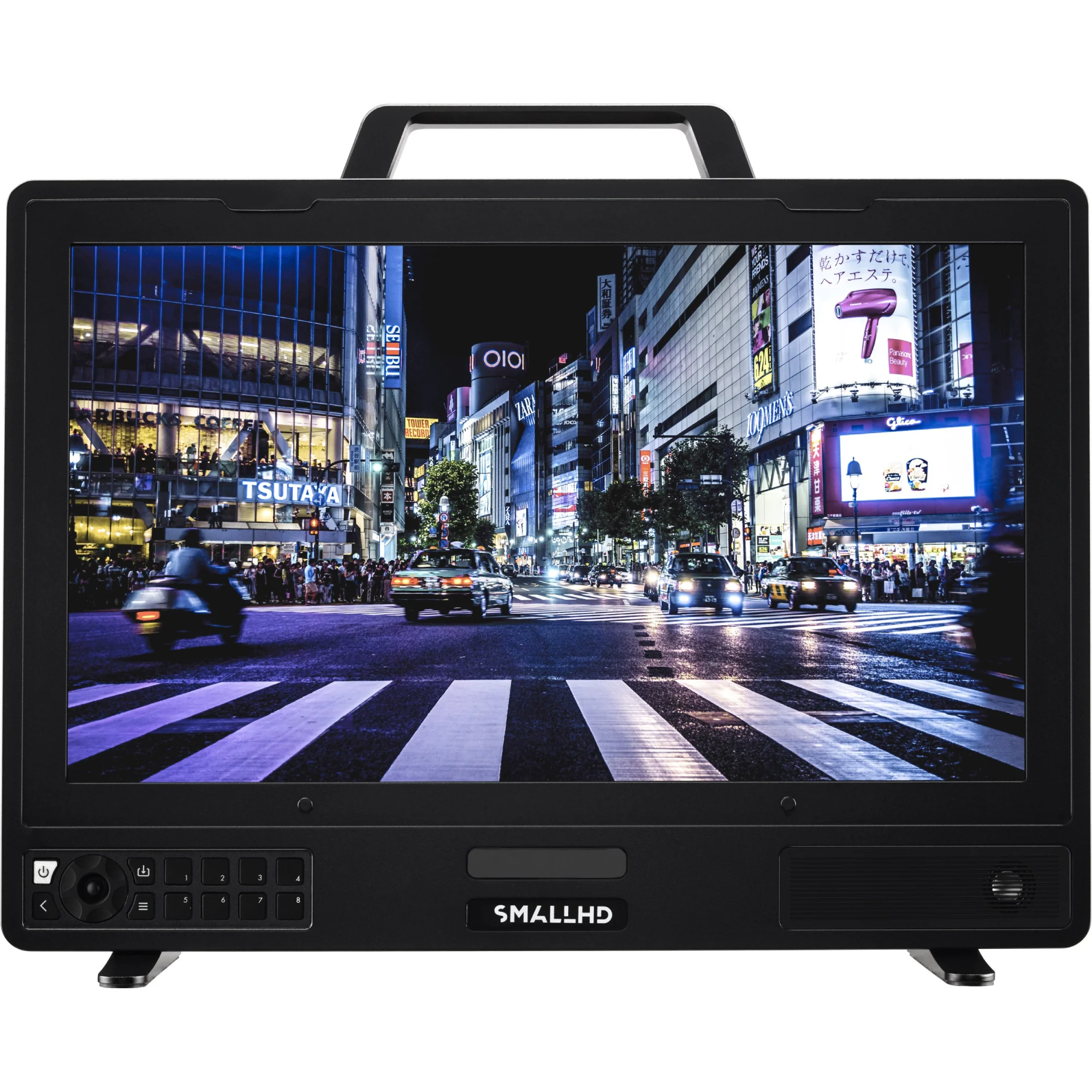

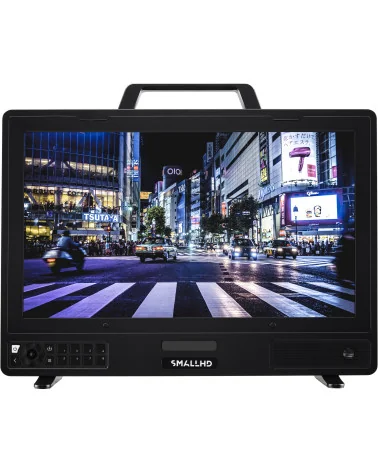

SmallHD Vision 17 4K HDR Monitor delivers uncompromising reference in a portable 17.3 inch (43.9 cm) chassis. The IPS LCD is powered by a Full-Array Local Dimming backlight with 1 792 LED zones, achieving 1 000 000 : 1 contrast and 1 000 cd/m² peak luminance. Native 3840 × 2160 pixels, 10-bit processing and 115 % DCI-P3 coverage enable accurate HDR10, HLG and ST-2084 playback that meets Netflix on-set standards. A wide 178° viewing cone and anti-halo algorithm keep contrast uniform across the frame.

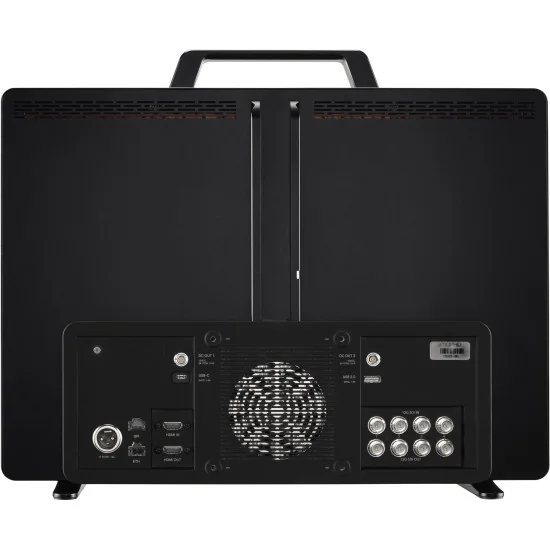

Connectivity keeps pace. Four 12G-SDI inputs and four outs pass 4K 60 p over single BNC, while HDMI 2.0 I/O links cameras, routers or graphics. An SD slot loads 33-point LUTs, dual RJ-45 carry LAN or tally/GPI, and PageOS 4.1 offers 4K waveform, vectorscope, false colour, focus tools, calibration wizard and user-preset page tabs. PageOS also supports upcoming firmware functions, protecting your investment. Embedded audio is available through the 3.5 mm jack.

The milled-aluminium body weighs just 4.85 kg, yet provides 36 × ¼-20 threads, a 100 × 100 mm VESA pattern and supplied cheese rails for rapid rigging. Dimensions are 44.2 × 31.5 × 6.1 cm (panel) or 45 × 36.6 × 11.9 cm with handle and feet. Power via 12 – 34 V XLR or an optional dual V-/Gold-mount plate; two 2-pin LEMO (12 V/2 A) plus USB-A/C ports feed accessories, while typical draw stays at 127 W. Operating range 0-37 °C and fan-less cooling keep the monitor silent on set.

Transport protector, handle, feet, 4 K HDMI cable, 8 GB SD card and cheese sticks are included, so Vision 17 is ready for drama sets, multicam studios or live-sports OB trucks. Wherever you work, SmallHD Vision 17 locks HDR colour pipeline from lens to grading suite, ensuring monitors align with the colourist’s intent.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Vision Series - Set-to-Suite Monitoring in 4K HDR
Set-ready construction meets suite-ready performance in Vision Series 4K Monitors. Experience true PQ1000 HDR in DCI 4K resolution, whether you’re shooting on location or finishing in post.

PageOS - A Dedicated OS Designed for Production Monitors
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS features highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

Color Pipe
Easily configure each of the five independent 4K video inputs on SmallHD 4K Production monitors with a custom input and output display configuration. Convert camera log signals into multiple HDR or SDR display setups, and switch effortlessly between these presets with the click of a function button on any page.

Multi-View
View up to four camera feeds at once on our Cine, OLED, and Quantum Series or up to two camera feeds on Vision Series. Select from several options for multi-view configuration, and assign scopes and other video engineering tools for an endless variety of customizable layouts.

Integrated Calibration
SmallHD monitors are Calman® Ready, with a seamless integration tool for Cine and OLED 4K Series Production Monitors. Connect your 4K monitor via ethernet to a computer with a calibration probe running Portrait Displays® Calman®, and a calibration LUT will be uploaded directly into your monitor when finished.

EL Zone
The stop-based exposure map tool—developed in collaboration with legendary cinematographer, Ed Lachman, ASC—that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-purpose color grading tool.

Video Engineering Tools

4K WAVEFORM
Robust exposure tool plotting your images luminance and chrominance to a graph that matches your screen left to right.

VECTORSCOPE
Plots the hue + saturation onto a color wheel, so to help gauge complimentary color.

HISTOGRAM
High resolution, low latency histogram is perfect for determining the overall exposure balance of your image.

EXPOSURE MEASUREMENT
Choose from industry-standard options or create your own custom False Color mapping.

Lightweight. Durable. 4K HDR.
A Unibody Smart Chassis with a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.

Mini-LED Local Dimming (FALD) Panel Technology
The Vision Series Monitors feature a mini-LED local dimming array, with over 2000 individual zones behind the panel. This high-density of zones allows for excellent handling of high-contrast areas across the screen. SmallHD’s FALD controls the light behind the LCD array by modulating each individual LED dynamically. This rapid-fire on/off is controlled by a proprietary algorithm designed by SmallHD, with the goal of achieving HDR contrast ratios.

SPECS

Environmental
Item Weight (oz): 10.7lbs/4.8kg
Height (in): 12.4 (w/out feet and handle) 14.4 (w/ feet and handle)
Width (in): 17.4 (w/out feet and handle) 17.7 (w/ feet and handle)
Length/Depth (in): 2.4 (w/out feet and handle) 4.7 (w/ feet and handle)
Compliance: FCC, IC, CE, RoHS, SRRC, MIC
Operating Temperature: 32 F - 100 F
Storage Temperature: 0 F - 105 F
Screen Protection: Basic and Hardened
Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized aluminum chassis with plastic accents

Display
Panel Type: IPS LCD
Diagonal Size: 17.3
Resolution: 3840x2160
Max Brightness: 1000nits
Contrast: 1,000,000:1
Gamut: Rec709 coverage 100% DCI_P3 coverage 99.89%
Color Depth: 10-bit (8+2)
Viewing Angle: 90 Degrees
Backlight Type: Full-Array Local Dimming
Backlight Zones: 1792
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type
Component: Not Supported
Composite: Not Supported
Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O
Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power
Input: 1x 3-pin XLR (210W max, 12V-34V, 18A max)
Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Consumption: 127w (monitor only) 208w (w/max access. power draw)
Battery Plate Included: No
Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
