High-Performance Sensor and Image Processor
Explore's Sony 1-inch CMOS sensor delivers broadcast-grade imaging. Engineered for low-light excellence, it captures vivid detail with minimal noise while achieving cinematic depth of field. Enhanced light sensitivity ensures razor-sharp subject focus with artful background blur - the ultimate choice for professional production.

PDAF (Phase Detection Auto Focus)
Experience seamless and precise focusing with our PTZ camera's advanced AI Auto Focus. Whether for live events or VR production, Telycam’s PDAF auto-focus empowers you with fast and accurate focus for premium-quality footage.

Versatile Output Options with Robust Audio Capabilities
The Explore offers diverse output options including 4K60p through NDI®, NDI®HX3, 12G-SDI, HDMI, and SFP+, along with 3.5mm line-in and Mini XLR with Phantom power for compatibility with various microphones and audio equipment, ensuring great flexibility and compatibility for Telycam users.

Genlock Functionality
The Explore features Genlock for better synchronization. This allows it to function as the main camera, ensuring precise video synchronization with sub-cameras in broadcasting and live streaming setups.

Built-in ND Filters for Light Management
Explore features a built-in variable ND filter adjustable to 1.6%, 6.3%, 25%, and 100%, with the option to attach custom ND filters for precise lighting control.

Native AI-Based Auto-Tracking
The Explore features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.

FreeD Technology Integration
The Explore integrates FreeD technology for versatile shooting angles, ideal for both real-world and virtual applications.

MicroSD Card Slots
The Explore features two MicroSD card slots – one for firmware upgrades and the other for local recording. Record directly onto the camera for instant backup during network issues or quick access, ideal for prompt event review.

Specifications

Camera
Part NO. TLC-900-IP-20-4K(NDI)-AB
1 inch, 9MP UHD CMOS sensor
20X optical zoom
Lens: f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle: 71°(Wide)~4.05°(Tele)
Vertical Viewing Angle: 39.6°~2.2°
Diagonal Viewing Angle: 78.5°~4.6°
Minimum Working Distance: Wide: 15cm; Tele: 150cm
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip/Mirroring: Supported
Focus/Iris/Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported

Video Format
12G-SDI: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
3G-SDI(Crop Only): 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
HDMI2.0: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
NDI® / NDI®HX3: Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
SFP+: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB Type-C: NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~122800Kbps
Network Port Speed: 1000M
Protocol: NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy：0.1°
Pan Rotation Angle: -176°~+176°
Tilt Rotation Angle: -90°~+90°
Pan Rotation Speed: 0.1°~80°/s
Tilt Rotation Speed: 0.1°~60°/s

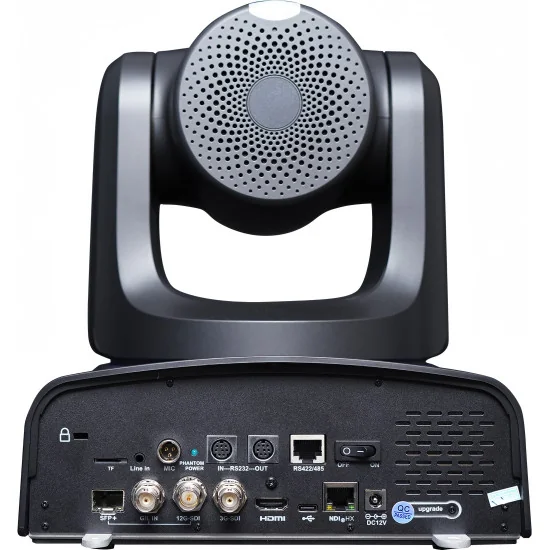

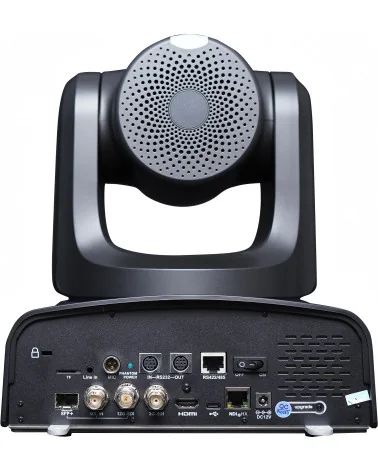

I/O Interface
Control Port: RS232, RS485, RS422, RJ45, USB, NDI®HX3
Video Port: NDI®, NDI®HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
Audio Port: Mini XLR(with phantom power), stereo 3.5mm line in
Tally: Supported
POE++: Supported
Daisy Chain: Supported

General
Input Voltage: DC12V, POE++(IEEE802.3bt)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 232.5 mm×264mm×269mm
Net Weight: 4.6kg(10.15LBS)
Color: Black/White
