High-Performance Sensor and Image Processor
The Explore SE boasts a Sony 1/1.8-inch 9MP CMOS sensor and a state-of-the-art image processor, to deliver stunning UHD images that capture realistic colors and maintain rapid focus.

Versatile Output Options
This Explore SE offers diverse output options, delivering 4K60p output through NDI®, NDI®HX3, 12G-SDI, HDMI, and SFP+. It provides great flexibility and compatibility to Telycam users.

Genlock Functionality
The Explore SE features Genlock for better synchronization. This allows it to function as the main camera, ensuring precise video synchroniza tion with sub-cameras in broadcasting and live streaming setups.

Robust Audio Capabilities
The Explore SE features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.

Native AI-Based Auto-Tracking
The Explore SE features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.

FreeD Technology Integration
The Explore SE integrates FreeD technology for versatile shooting angles, ideal for both real-world and virtual applications.

MicroSD Card Slots
The Explore features two MicroSD card slots – one for firmware upgrades and the other for local recording. Record directly onto the camera for instant backup during network issues or quick access, ideal for prompt event review.

Specifications

Camera
Part NO. TLC-900-IP-30-4K(NDI)-AB
1/1.8 inch, 9MP UHD CMOS sensor
30X optical zoom
Lens: f=6.91~214.64mm, F1.35~F4.6
Horizontal View Angle: 63°(Wide)~2.1°(Tele)
Vertical Viewing Angle: 34.14°~1.12°
Diagonal Viewing Angle: 67.08°~2.27
Minimum Working Distance: Wide: 30cm; Tele: 150cm
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip/Mirroring: Supported
Focus/Iris/Electronic-shutter : Auto/Manual
Gamma: Supported
Backlight Compensation: Supported

Video Format
12G-SDI: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
3G-SDI(Crop Only): 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
HDMI2.0: 3840*2160 P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
NDI® / NDI®HX3: Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
SFP+: 3840*2160 P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB Type-C: NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~122800Kbps
Network Port Speed: 1000M
Protocol: NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
Pan Rotation Angle: -176°~+176°
Tilt Rotation Angle: -90°~+90°
Pan Rotation Speed: 0.1°~80°/s
Tilt Rotation Speed: 0.1°~60°/s

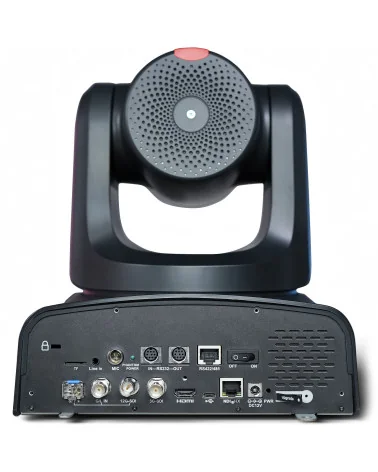

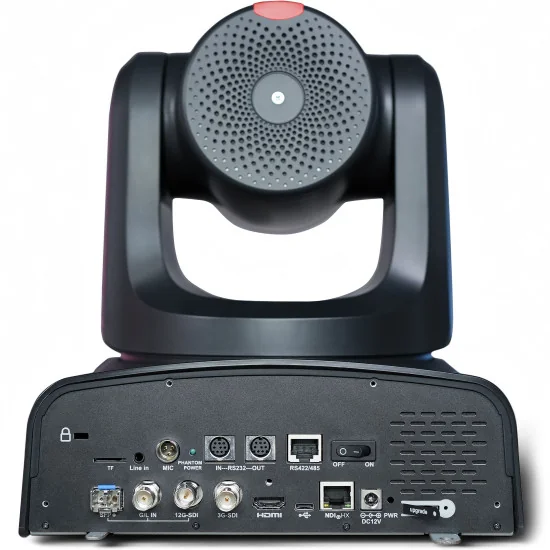

I/O Interface
Control Port: RS232, RS485, RS422, RJ45, USB, NDI®HX
Video Port: NDI®, NDI®HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
Audio Port: Mini XLR(with phantom power), stereo 3.5mm line in
Tally: Supported
POE++: Supported
Daisy Chain: Supported

General
Input Voltage: DC12V, POE++(IEEE802.3bt)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 232.5mm×264mm×269mm
Net Weight: 4.6kg(4.2LBS)
Color: Black/White
