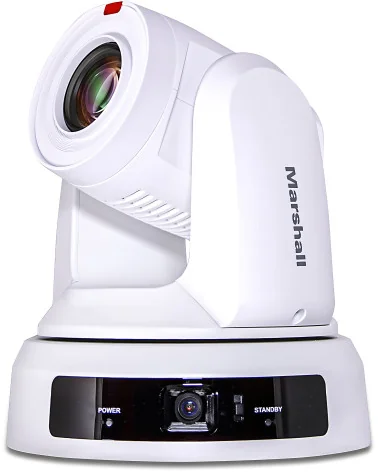

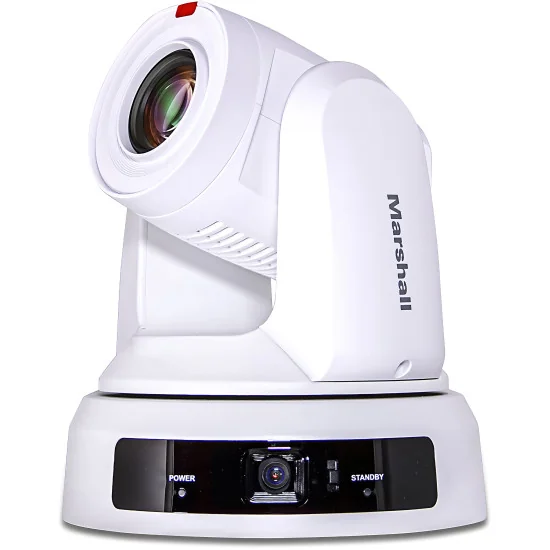

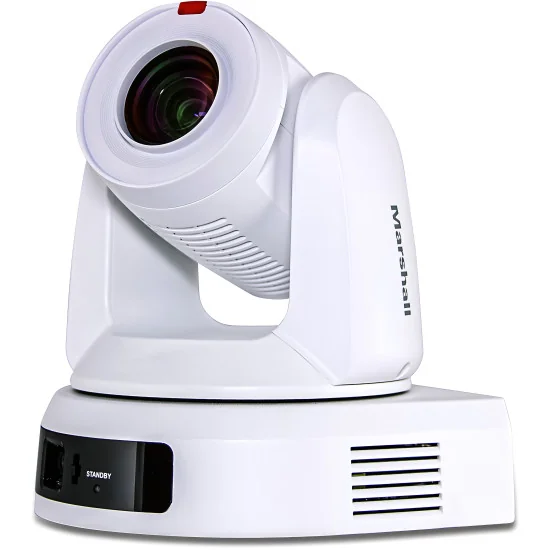

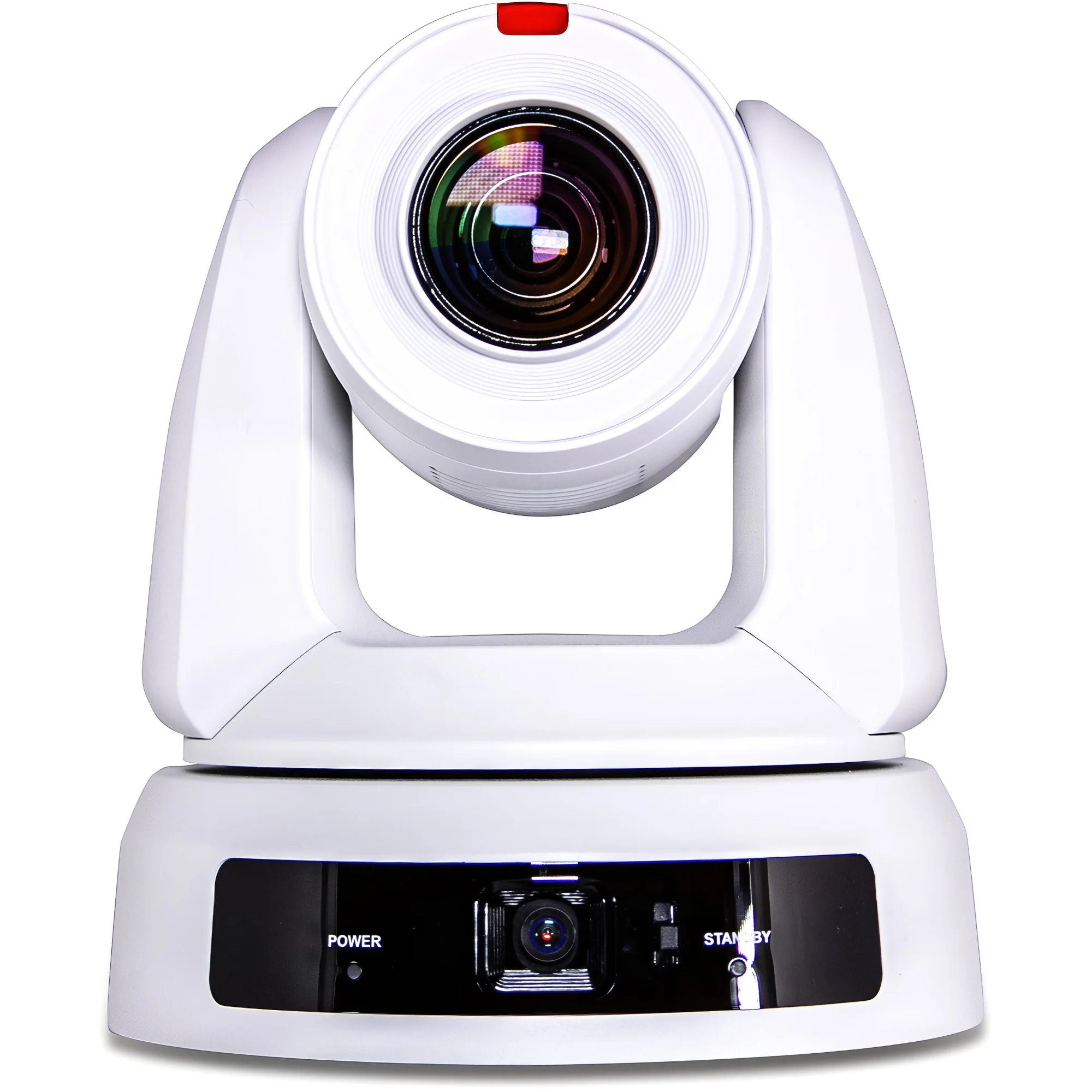

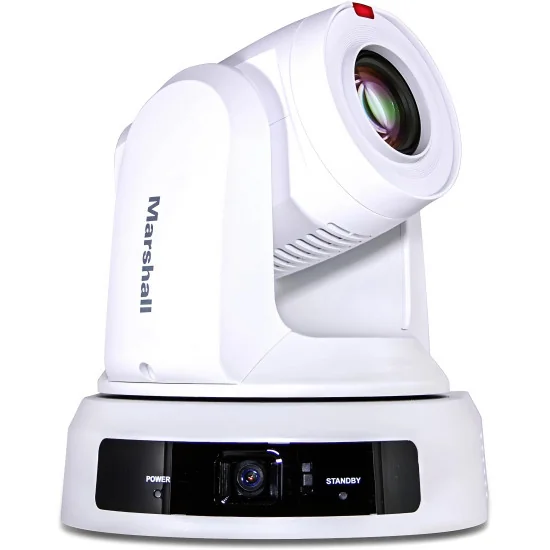

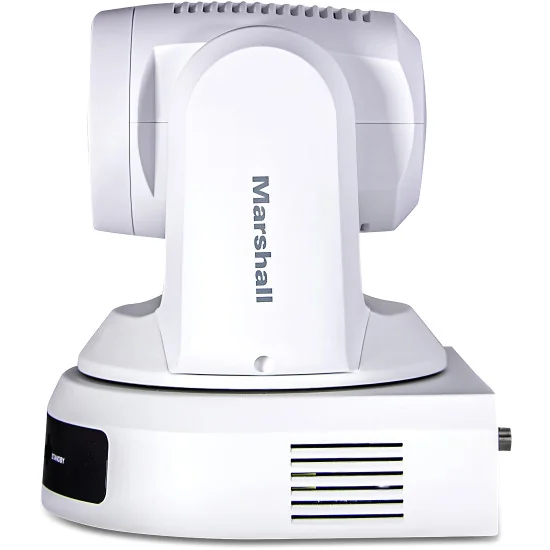

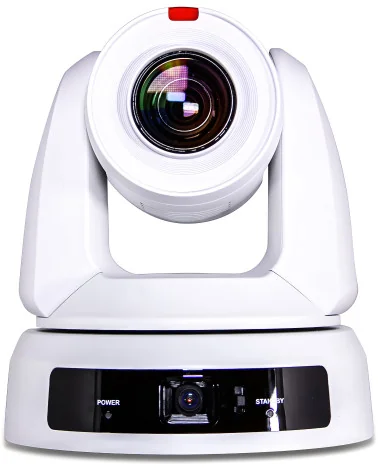

Marshall CV625-TB/TW PTZ cameras feature the ability to automatically AI track, follow, and frame presenters for a more accurate and smoother self-adjusting presentation. The CV625 4k UHD cameras feature a high-performance 8-Megapixel 1/1.8-inch sensor to capture crisp, high-quality UHD video. The camera delivers up to 3840 x 2160 resolution at 60 frames per second (fps) with an 60-degree horizontal angle of view. The second static camera is a wide-angle view camera made for that panoramic angle of view. The CV625 offers versatility for various applications with its range of outputs, including 4K HDMI/RTSP streaming, Full HD 3G-SDI, Ethernet, and USB 3.0. Combining a 2-camera featured set for both remote and live installations, with a long range 4K motion tracking - and auto framing up 18 meters where the versatility of having a panoramic view of the area and a focused view of the subject or content is vital.

AI Auto Track, Follow and Frame
Take the reins of your production with our AI auto-tracking system, designed to be proactive and predictive. This cutting-edge technology allows you to follow and frame presenters with natural and smooth maneuvers. Use the auto-tracking feature along with the panoramic camera to capture the perfect presentation. With the ability to pan, tilt, and zoom, the system uses AI to recognize faces and learn the movement dynamics of the subject, thereby anticipating motion and ensuring accurate following and framing with smooth transitions.

Two Camera Production
The CV625-TB/TW 4K UHD is equipped with a two-camera set featuring a perfect combination for both your remote and live presentations. With an optical 25X zoom lens, auto-framing up to 18 meters, ideal for capturing the presenter or a focused presentation in 4K, while providing a fixed panoramic wide view of the audience, and the capability to display a head count.

Control Features Made Simple
With the two-camera feature in one unit, you can switch between two cameras or have a picture-in-picture as your output.

Crisp Full-HD Video Output
The CV625-TB/TW 4K UHD are built around a professional-grade 8-Megapixel 1/1.8-inch Sony sensor with smooth 25x Optical Zoom (7.1 mm ~ 171.95 mm) producing clear UHD video up to 3840X2160p60. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.

Key features
Accurate auto-track, follow and frame
8 Megapixel FHD Sensor (1/1.8") – 2160p, 1080p, & 720p (progressive), and 1080i (interlaced HDMI Output only)
3G-SDI, HDMI, Ethernet and USB outputs
25x optical zoom (7.1 mm ~ 171.95mm) starting at 60° H.AOV, and fixed base M12 lens camera at 83° H.AOV
340° pan and 120° tilt range with selectable PTZ maneuver speeds
IP Protocols: RTSP, RTMP, RTMPS, SRT, Dante AV-H (Dante Ready)
3.5mm TRS Stereo Audio Input (Mic/Line) embedding on all available outputs
PoE+ (IEEE802.3at), DC: 23.5W (max), PoE: 24.5W (max)

Camera Applications:
Higher Education, Courtroom, Government, Broadcast, Production, Interview, Learning, Lecture, Sportscast, Newscast, Weathercast, Podcast, and anywhere high-quality PTZ cameras are used.

CV625-TB / CV625-TW Specifications:

Item Spec
Sensor: 1/1.8" 8MP (IMX678)
Video Format: 2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50  / 29.97 / 25
1080i : 59.94 / 50
Video Output (HD) Interface: HDMI / 3G-SDI / Ethernet / USB3.0
Optical Zoom: 25X
Horizontal Viewing Angle: 60° (±5%)
Focal Length: 7.1mm~171.95mm ±5%
Minimum Object Distance: Tele：1.5m，Wide：1.5M
Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)

Panoramic Lens
Sensor: 1/2.8" 8M (IMX415)
Video Format: 2160p 60fps
Horizontal Viewing Angle: 83.1°
People Counting: Yes
Tracking Distance: 2~18m

PTZ Pan & Tilt
Panning Angle: +170 ~ 170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~60°/sec
Tally Light: Yes

Software Spec
Preset Positions: 256
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Gesture Control: Yes

Tracking
Auto Tracking: Yes
Auto Framing: Yes
SNR: ≥ 50dB
Minimum illumination: 10 Lux

Hardware Spec
Power supply: DC , 12V@3A
Power consumption: DC Input  ≦ 23.5W  PoE(802.3at) ≦ 24.5W

Interface
Video Output
HDMI: 2160p : 59.94 / 50 / 29.97 / 25
1080p :  59.94 / 50 / 29.97 / 25
720p : 59.94 / 50  / 29.97 / 25
1080i : 59.94 / 50
3G-SDI: 1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50  / 29.97 / 25
1080i : 59.94 / 50
Stream Protocol: RTSP / RTMP / RTMPS / SRT / Dante AV-H (Dante ready)
IP Stream PTZ Camera :
Stream 1 : H.264/HEVC 2160p 60fps
Stream 2 : H.264/1080p 30fps
Panoramic Camera : H.264 2160p 60fps
IP Compression: H.264, HEVC
USB: H.264 2160p 30 fps
MJPEG 1080p 60 fps
YUV2 480p 60fps
HEVC 1080p 60 fps
NV12 480p 60 fps
UVC Video Compression: H.264 / MJPEG / YUV2/ NV12 / HEVC
Video Latency: HDMI/SDI  ≦ 67ms
Stream: ≦ 150ms
UVC 4K@30: ≦ 160ms
UVC 1080P@60: ≦ 160ms

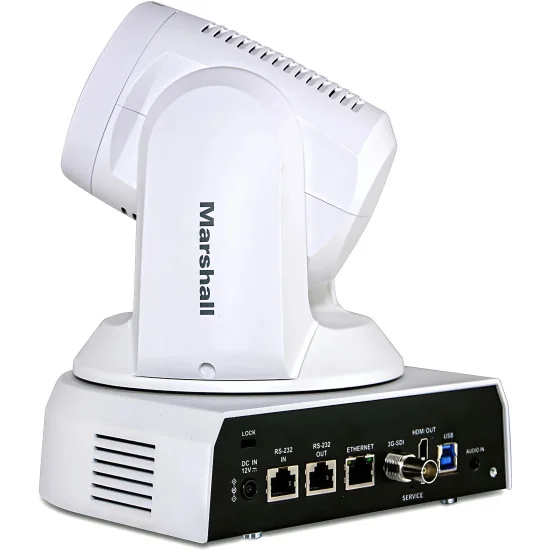

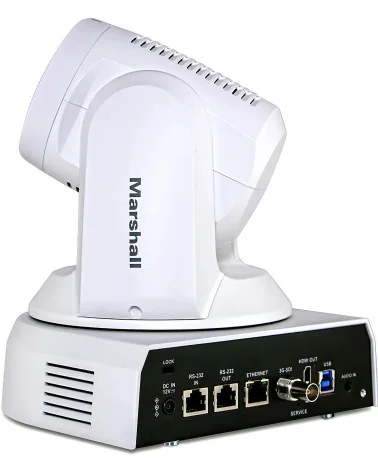

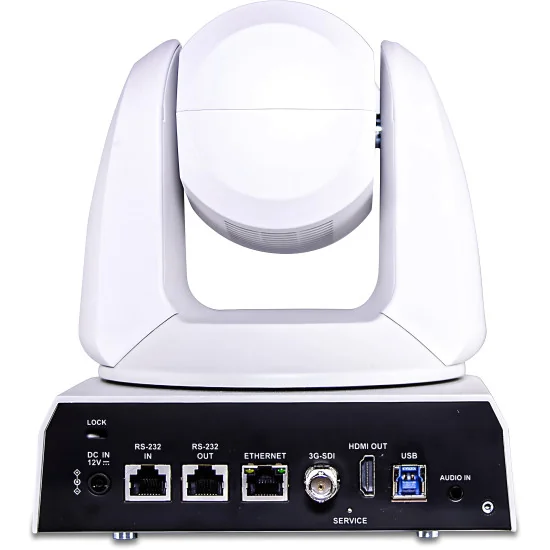

Input: 3.5mm*1  Line In
Output: HDMI / 3G-SDI / USB / Ethernet
Compression Format: AAC
USB port: USB 3.0*1 Type-B
HDMI out: HDMI*1
SDI out: 3G-SDI*1
Network: RJ45*1 10M/100M/1G

Camera Control
Interface: RS-232 / Ethernet  / Remote / USB
Protocol: VISCA  / VISC Aover IP / ONVIF
Communication baud rate: 9600 (default)& 38400
HTTP API command: Yes

Human Machine Interface
Remote Controller: Infrared remote control
Infrared remote control distance: 15m
Remote control angle: ±15°
Remote Control: Yes, 40KHz
OSD Menu: English
Webpage: English

Environmental Spec
Operating Temperature: 0~40˚C
Operating Humidity: 10% ~ 90 %
Storage Temperature: -20°C ~ +60°C
