Telycam Explore WH Caméra PTZ

Name: Telycam Explore WH Caméra PTZ
Brand: Telycam
SKU: Explore WH
Price: 5390.00 EUR
Availability: InStock

MPN: Explore WH

Prix : 5 390,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

Telycam Explore WH est une caméra PTZ broadcast équipée d’un capteur CMOS 1 pouce 9 MP délivrant de l’UHD 4K60 via 12G-SDI, HDMI 2.0, NDI®|HX3 et SFP+. L’optique à zoom 20× (f=9,79–186,5 mm, F2.8–F4.5) couvre 71°–4,05° horizontal, 39,6°–2,2° vertical et 78,5°–4,6° diagonal. L’PDAF assure une MAP rapide et stable; l’éclairement minimal atteint 0,5 lx (50 IRE, 1/30, F1.8). La distance de travail est de 15 cm en grand-angle et 1,5 m en télé pour des cadrages serrés.

La mécanique est précise : panoramique −176° à +176° et inclinaison −90° à +90°, aux vitesses 0,1–80°/s et 0,1–60°/s; précision de preset 0,1° et jusqu’à 256 mémoires. Un filtre ND variable (1,6 %, 6,3 %, 25 %, 100 %) stabilise l’exposition. Le Genlock maintient la synchro image pour les plateaux multicam (OB, XR, studios). Côté contrôle : VISCA over IP, VISCA, PELCO-P/D, ONVIF et FreeD pour pipelines AR; tally et suivi automatique IA intégrés.

La connectique couvre les flux actuels : PoE++ sur Ethernet gigabit, audio Mini-XLR avec alimentation fantôme plus entrée ligne 3,5 mm, double microSD (firmware et enregistrement local), USB-C UVC/UAC. Les encodeurs gèrent H.264/H.265 en CBR/VBR jusqu’à 122,8 Mbit/s. Transport sur SRT, RTSP, RTMP, HTTP, NDI, WebRTC et RTP multicast IP. Des formats concordants 2160p60 4K, 1080p et 720p sont exposés en parallèle sur SDI/HDMI/SFP+/IP pour programme, clean et retour.

Les réglages d’image incluent réduction de bruit 2D/3D, gamma, modes de balance des blancs (Auto/Manuel/ATW/Push/Intérieur/Extérieur/Temp. de couleur), compensation de contre-jour et anti-scintillement 50/60 Hz. Rapport S/B ≥50 dB. Plage service −10 °C à 50 °C; dimensions 232,5 × 264 × 269 mm; masse 4,6 kg (10,15 lb). Pour studios, live et télévision, Telycam Explore WH réunit optique ciné, synchro fiable et IP multi-protocoles dans une tête compacte prête à l’antenne.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

High-Performance Sensor and Image Processor
Explore's Sony 1-inch CMOS sensor delivers broadcast-grade imaging. Engineered for low-light excellence, it captures vivid detail with minimal noise while achieving cinematic depth of field. Enhanced light sensitivity ensures razor-sharp subject focus with artful background blur - the ultimate choice for professional production.

PDAF (Phase Detection Auto Focus)
Experience seamless and precise focusing with our PTZ camera's advanced AI Auto Focus. Whether for live events or VR production, Telycam’s PDAF auto-focus empowers you with fast and accurate focus for premium-quality footage.

Versatile Output Options with Robust Audio Capabilities
The Explore offers diverse output options including 4K60p through NDI®, NDI®HX3, 12G-SDI, HDMI, and SFP+, along with 3.5mm line-in and Mini XLR with Phantom power for compatibility with various microphones and audio equipment, ensuring great flexibility and compatibility for Telycam users.

Genlock Functionality
The Explore features Genlock for better synchronization. This allows it to function as the main camera, ensuring precise video synchronization with sub-cameras in broadcasting and live streaming setups.

Built-in ND Filters for Light Management
Explore features a built-in variable ND filter adjustable to 1.6%, 6.3%, 25%, and 100%, with the option to attach custom ND filters for precise lighting control.

Native AI-Based Auto-Tracking
The Explore features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.

FreeD Technology Integration
The Explore integrates FreeD technology for versatile shooting angles, ideal for both real-world and virtual applications.

MicroSD Card Slots
The Explore features two MicroSD card slots – one for firmware upgrades and the other for local recording. Record directly onto the camera for instant backup during network issues or quick access, ideal for prompt event review.

Specifications

Camera
Part NO. TLC-900-IP-20-4K(NDI)-AB
1 inch, 9MP UHD CMOS sensor
20X optical zoom
Lens: f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle: 71°(Wide)~4.05°(Tele)
Vertical Viewing Angle: 39.6°~2.2°
Diagonal Viewing Angle: 78.5°~4.6°
Minimum Working Distance: Wide: 15cm; Tele: 150cm
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip/Mirroring: Supported
Focus/Iris/Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported

Video Format
12G-SDI: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
3G-SDI(Crop Only): 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
HDMI2.0: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
NDI® / NDI®HX3: Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
SFP+: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB Type-C: NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~122800Kbps
Network Port Speed: 1000M
Protocol: NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy：0.1°
Pan Rotation Angle: -176°~+176°
Tilt Rotation Angle: -90°~+90°
Pan Rotation Speed: 0.1°~80°/s
Tilt Rotation Speed: 0.1°~60°/s

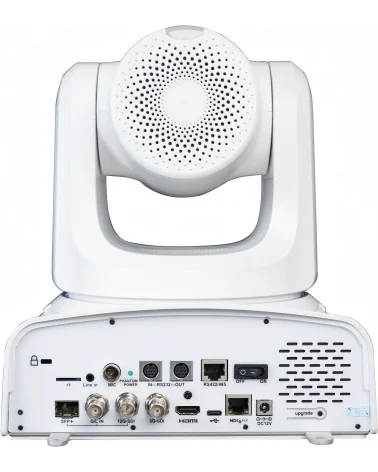

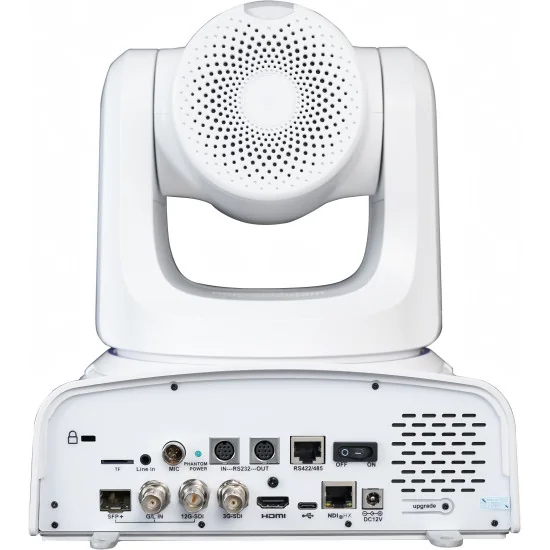

I/O Interface
Control Port: RS232, RS485, RS422, RJ45, USB, NDI®HX3
Video Port: NDI®, NDI®HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
Audio Port: Mini XLR(with phantom power), stereo 3.5mm line in
Tally: Supported
POE++: Supported
Daisy Chain: Supported

General
Input Voltage: DC12V, POE++(IEEE802.3bt)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 232.5 mm×264mm×269mm
Net Weight: 4.6kg(10.15LBS)
Color: Black/White

Référence Explore WH

Fiche technique

Sortie vidéo: HDMI
NDI
RJ-45 (IP)
SDI
SFP+
USB
Entrée audio: Mini Jack 3.5mm
Mini XLR
Sortie audio: HDMI Embedded
NDI Embedded
RJ-45
SDI Embedded
USB
Résolution maximale de sortie: 4K UltraHD (3840 x 2160) 50/60 fps
Protocole d'inspection pour les caméras PTZ: NDI
ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP
Connexion Newtork: Ethernet
Taille du capteur: 1"
Zoom optique: 20x
Prise en charge PoE: Oui
Auto-Tracking: Oui
Tally Light: Oui
