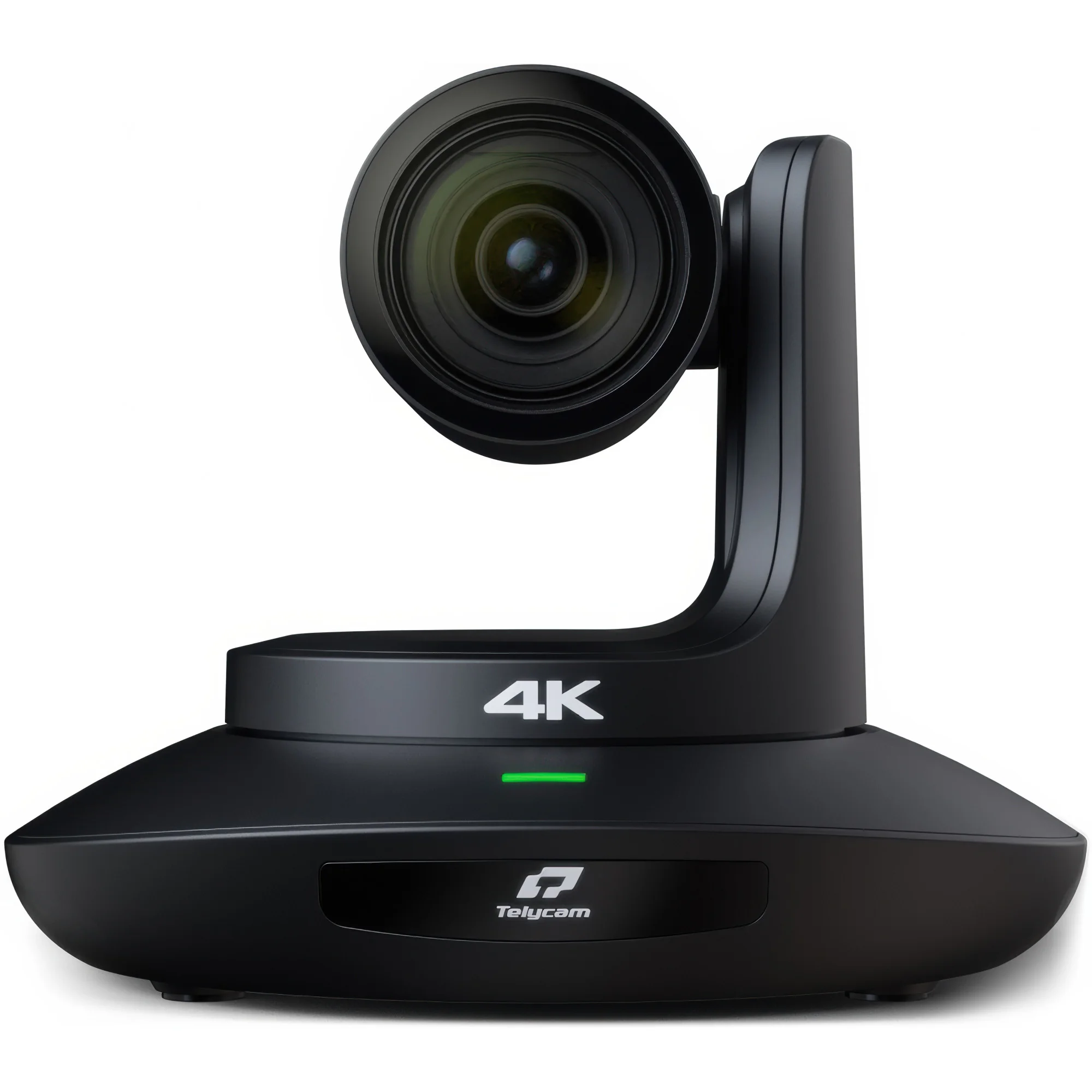

Unparalleled 4K UHD Brilliance
Equipped with cutting-edge image processor, Vision+ SE outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.

One-Touch Auto-Tracking Precision
The Vision+ SE offers AI-powered auto-tracking with no third-party tools required. The auto-tracking can be instantly activated with a simple click in the Web UI, remote control, or Telycam V-Joy+ keyboard. Tracking can be customized effortlessly for specific people, areas or sizes.

Enhanced Reality with FreeD
Bridging worlds with the embedded FreeD protocol. Easily sync PTZF data with your VR/AR systems, expanding your creative possibilities.

Magnify with 12x Optical Mastery
With a 4K 12X optical zoom and an expansive 80.5-degree FOV, coupled with a custom focusing algorithm, every zoom and pan translates to a journey through intricate details.

Adaptable Streaming Elegance
Our camera adapts seamlessly with NDI®HX3 output at 4Kp60/59.94, 3G-SDI(A/B levels), and USB-C up to 1080p60/59.94, enhancing streaming versatility.

Integrated NDI® Ecosystem
Integrated with Newtek's NDI® SDK, our camera is a cornerstone in the plug-and-play live streaming universe.

Intuitive Tally Indication
The camera's indicator doubles as a Tally light, synchronizing with NDI® device notifications and monitoring your live stream's status.

Specifications

TLC-300-IP-12-4K(NDI)-AB-SE-HDMI
1/2.8 inch, 9MP UHD CMOS sensor
12X optical zoom
Lens: f=3.4mm~40.3 mm, F1.8~F3.6
Horizontal View Angle: 80.5°(Wide)~7.6°(Tele)
Minimum Working Distance: Wide: 1m Tele: 1.5m
Vertical Viewing Angle: 50.0°~4.4°
Diagonal Viewing Angle: 88.9°~8.7°
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip: Supported
Mirroring: Supported
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported

Video Format
NDI®HX3: Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60; Sub Stream: 640*360P15~30
HDMI: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;
USB Type-C: NV12: 1920*1080P5;1280*720P15; 1024*576P25;800*448P30; YUYV: 1920*1080P5;1280*720P15; 1024*576P25;800*448P30; MJPG: 3840*2160P30;1920*1080P60; 1280*720P60;1024*576P60; 800*448P60; H264/H265:3840*2160P30; 1920*1080P60; 1280*720P60;1024*576P60; 800*448P60

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~122800Kbps
Network Port Speed: 1000M
Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
Pan Rotation Angle: -170°~+170°
Tilt Rotation Angle: -30°~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s

I/O Interface
Control Port: RS232(RS485), NDI®HX
Video Port: NDI®HX3, HDMI, USB Type-C
Audio Port: stereo 3.5mm linear inputs
Tally: Supported
POE+: Supported
Daisy Chain: Supported

General
Input Voltage: DC12V, POE+(IEEE802.3at)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 220mmx190mmx173mm
Color: Black/White
