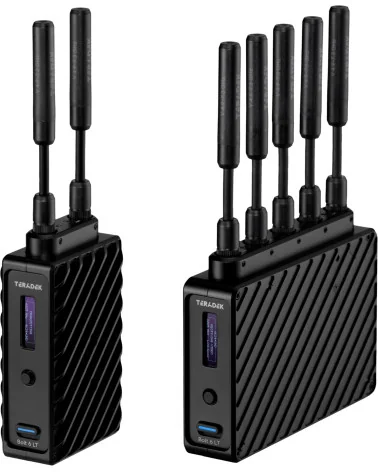

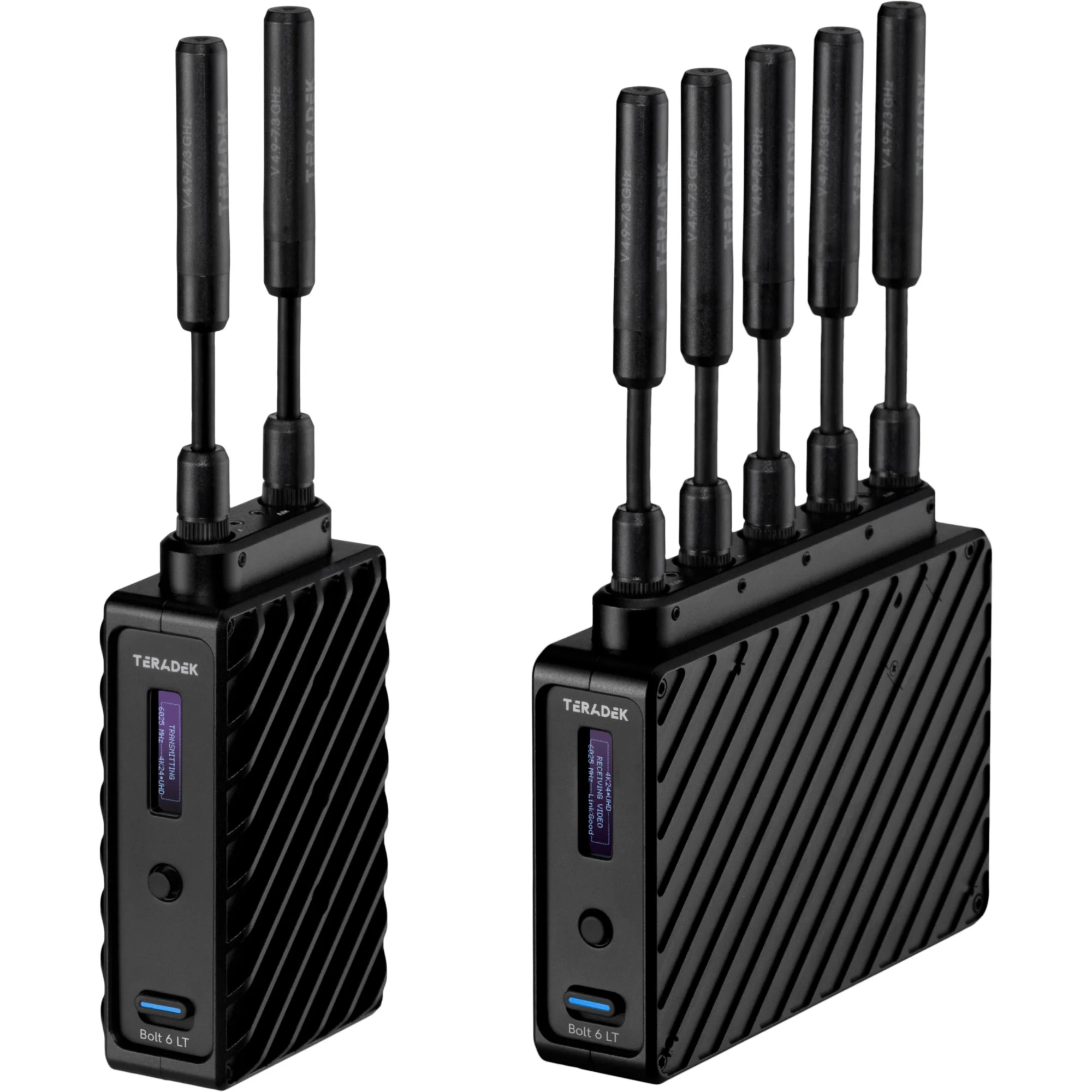

Le Teradek Bolt 6 LT MAX TX/RX assure une vidéo sans latence sur la bande 6 GHz, écartant la congestion Wi-Fi. L’émetteur prend UHD 4K 30 p HDMI ou 1080p60 3G-SDI, conserve le HDR 10 bits 4:2:2 et livre le flux au récepteur en moins de 1 ms ; audio 48 kHz, time-code et flags restent synchrones.

La portée atteint 1 524 m / 5 000 ft avec l’antenne Array optionnelle ; lesfouets RP-SMA et trois antennes “mushroom” incluses couvrent plateaux, grues et cars régie. En mode Broadcast un TX diffuse vers un nombre illimité de RX ; en mode Standard six RX suffisent aux moniteurs réalisateur, focus et DIT. Saut de fréquence adaptatif, conformité DFS et analyseur de spectre mobile maintiennent un signal net même dans les halls bondés.

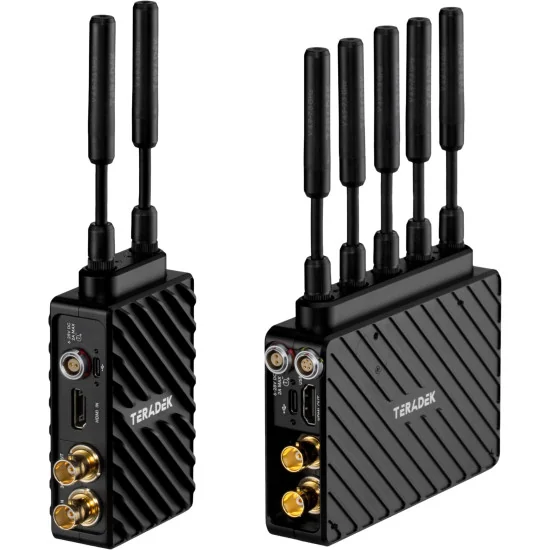

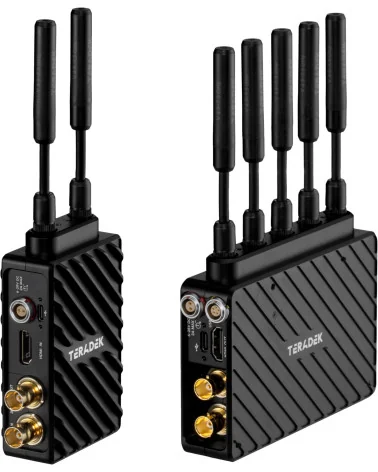

Connectique : HDMI 1.4b, 3G-SDI E/S + boucle SDI avec conversion descendante automatique vers 1080p. Processeur LUT 17 × 17 × 17 et test Eye-Pattern SDI pour vérifier le câblage. Sécurité AES-256 / RSA-1024 ; identifiant unique évite la diaphonie.

Boîtiers aluminium : 206 g (TX) / 292 g (RX). Consommation 9 W / 11 W via LEMO 2 broches 6–28 V ou D-Tap. Filetages ¼-20 & ⅜-16 pour montage rapide. Bluetooth® + Bolt Manager met à jour firmware, LUT et plan de fréquences sans arrêter le tournage. Spécifications RF : 40 MHz, 23 dBm EIRP ; non-DFS 5,19-5,23 GHz, 5,75-5,79 GHz, 5,945-6,425 GHz et DFS 5,27-5,67 GHz. Plage 0-40 °C. Compatibilité Bolt 4K (5 GHz) et HDR-10/PQ/HLG font du Bolt 6 LT MAX la solution pour le sport live, les murs LED et les tournages multi-caméras.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Technical Specs

Bolt 6 LT MAX RX
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 122mm x 94mm x 27mm
Weight: 292g (10.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

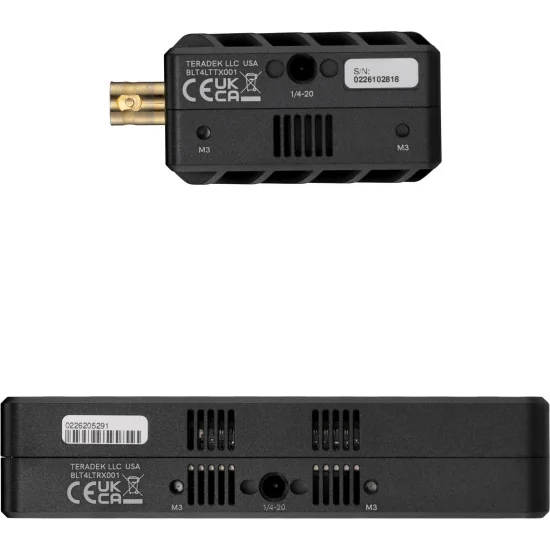

Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz

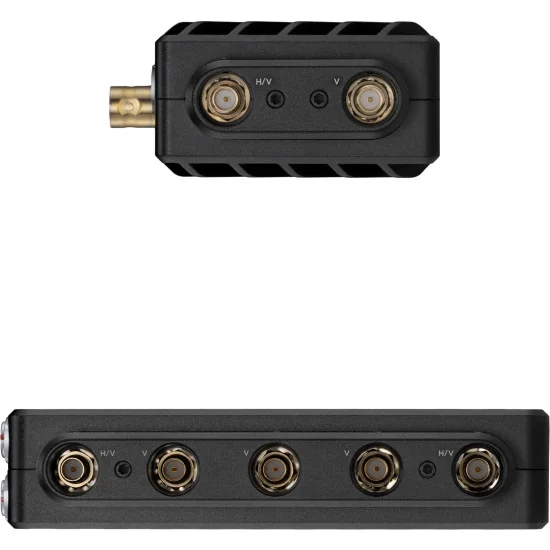

Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Bolt 6 LT MAX TX
Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 60mm x 103mm x 33mm
Weight: 206g (7.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 2 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Sony/Canon dual battery plate
Nominal Power Consumption: 9 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

In the Box
1x Bolt 6 LT MAX TX
1x Bolt 6 LT MAX RX
1x Light stand adapter ¼-20 inch
1x Hot shoe adapter
1x (Bit 118) 2-pin plug to PowerTap - 18in/46cm cable
2x SDI - BNC to BNC cable, 10 inch
1x power supply 2-pin to 18W AC adapter - 1.8m cable
1x 1 x USB type A plug to USB type B plug - 0.9m cable
