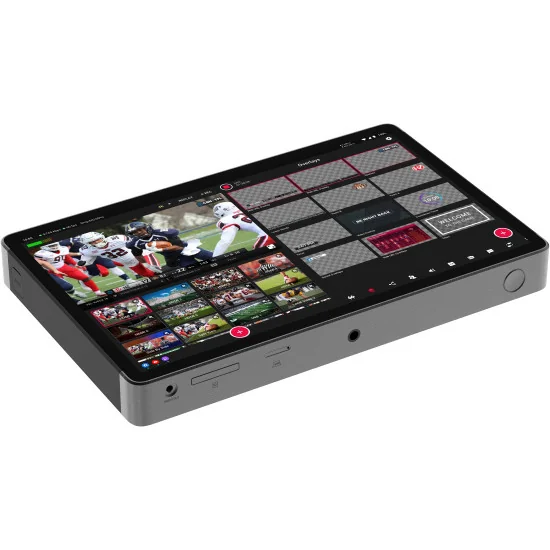

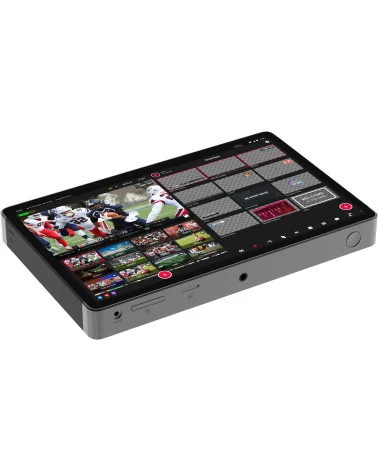

YoloBox Extreme
A True Powerhouse 4K60 Streaming & 4K ISO Recording

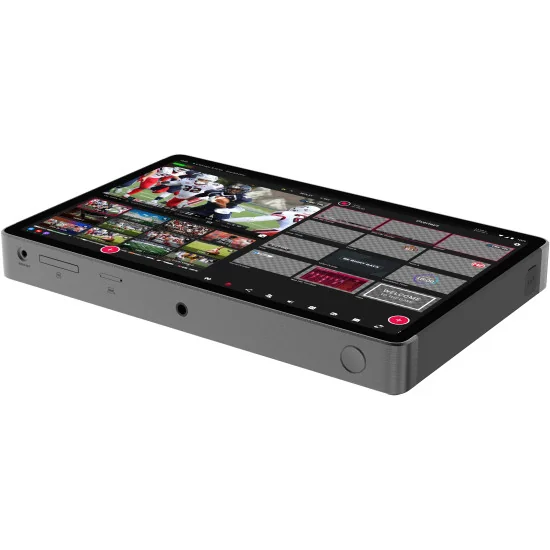

Portability & Mobility
Compact size, fit into your backpack, live On the Go.

All-In-One
Encoder, switcher, recorder, monitor, in One

Unrivaled Ease of Use
Operate like your iPad, uniquely beginner-friendly.

Multi-Cam Production

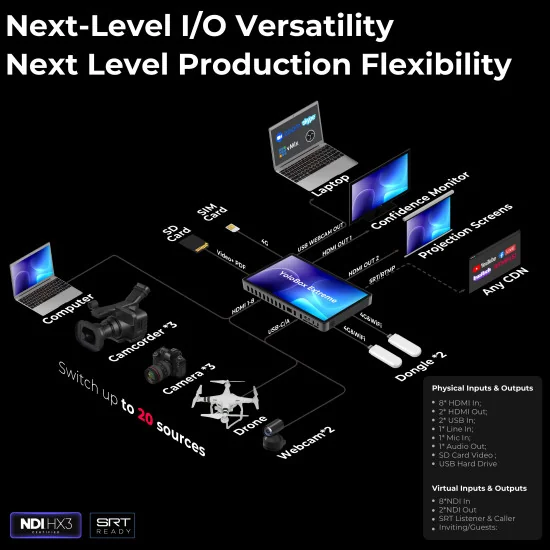

Connect multiple HDMI & USB cameras + NDI, SRT, and RTMP.

Setup in Minutes, vs. Hours
No computer required. Save hours of setup.

Built-in Battery & 4G LTE
10 Hour Battery Life with 4G LTE, WiFi, Ethernet, and Dongles.

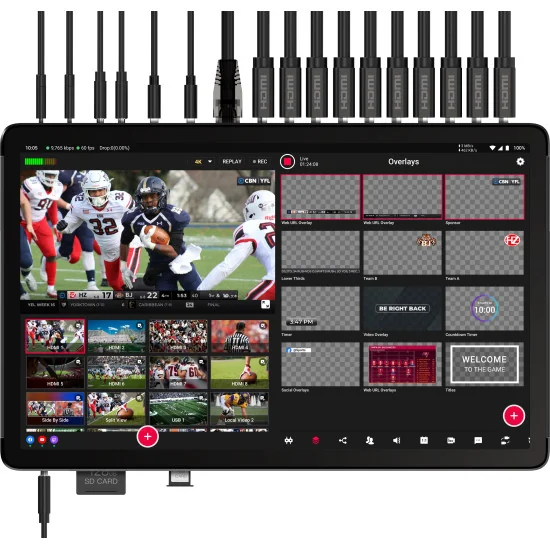

8 HDMI Input - More is Better
Connect Cameras, Laptops, Media Players, and More, Offering Unmatched Flexibility for Any Scenario. Future-Proof Your Setup Without Worrying About Running Out of Ports.

Dual Assignable HDMI Outputs
Allowing You to Output Different Video Feeds( Preview, Multiview or Program) Simultaneously.

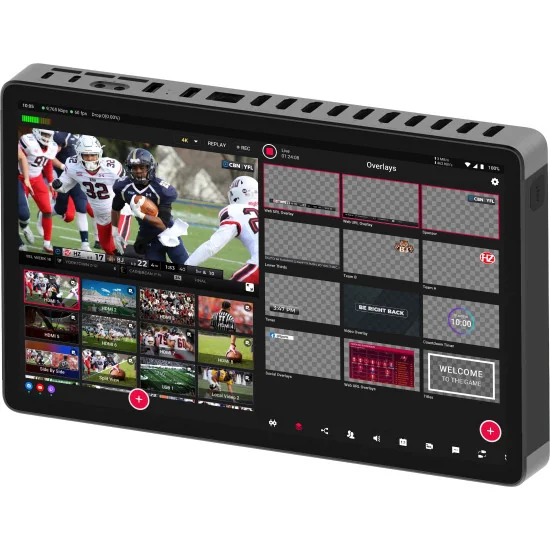

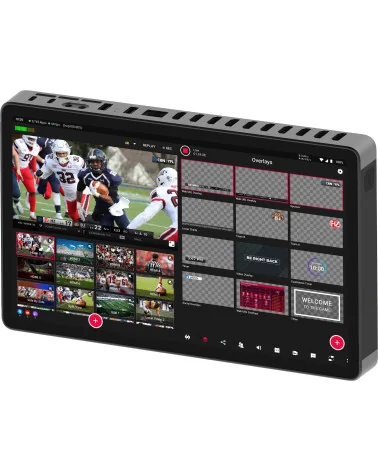

More Space to Explore
The all-new 11.2-inch OLED screen brings a larger, more immersive display, redefining how you see and interact with content.

Shine in Any Light
With a peak brightness of up to 800-1,000 nits, every detail remains vivid and clear, even under direct sunlight.

Effortlessly Responsive
Enjoy ultra-fast touch feedback for a silky-smooth experience, making every interaction seamless and intuitive.

Configure Directly & Intuitively from YoloBox

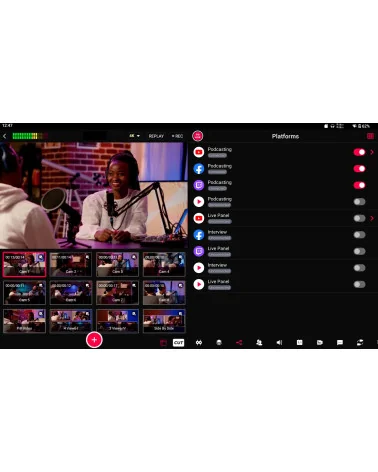

Live Switch
Easily switch between multiple video sources or fully customized scenes with a touch.

Audio Mixing
Built-in audio mixer with easy setup. Individual level control of multiple audio sources.

ISO Recording
Capture all the video inputs as well as the program video and save them separately.

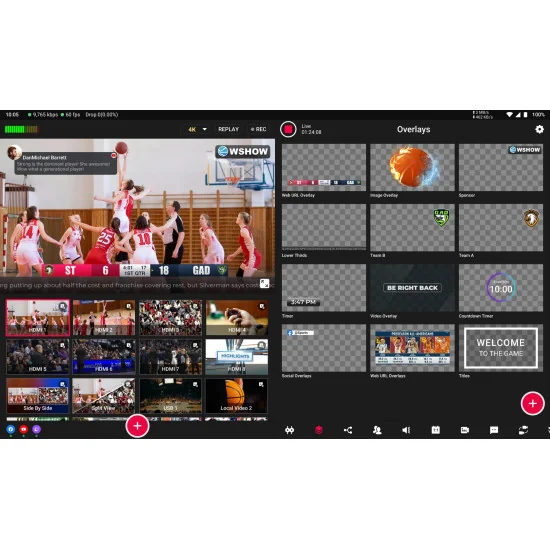

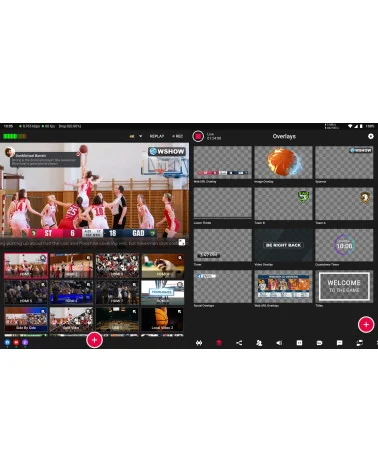

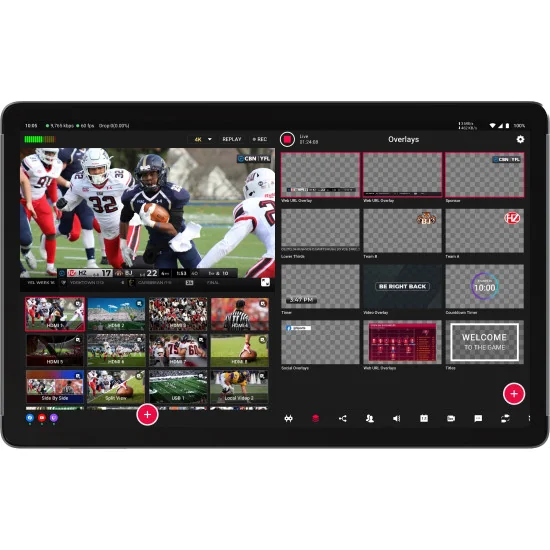

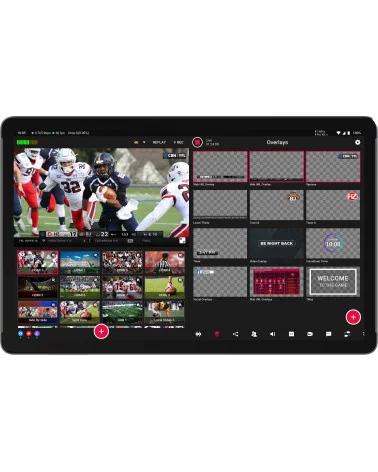

Graphic Overlays
Add logos, lower thirds, titles, countdown timer and more to look professional.

MultiViews
Customize live stream layout with built-in multiviews and level up production with ease.

Scoreboard
YoloBox’s built-in scoreboards allow you to keep the score in real-time, display game progress, add game/team logos, and more.

MultiCam Replay
Create highlight clips with preset video duration, intros, outro and more with a few clicks.

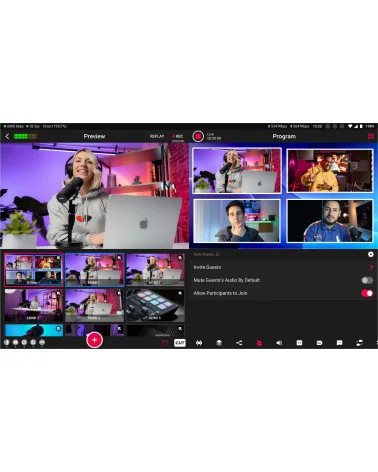

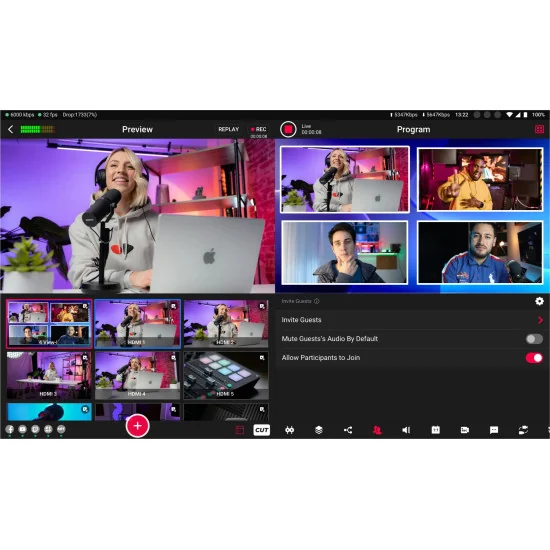

Inviting Guests
Create a real-time conversation with remote guests from a web browser on mobile devices.

PTZ Control
With PTZ control, you can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.

Crop Video
Video cropping serves various needs such as margin removal, game capture resizing, conferencing zooming, and close-up view creation.

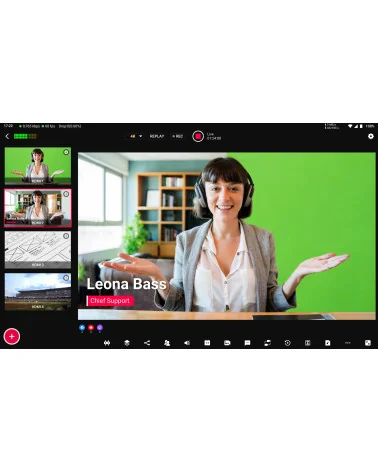

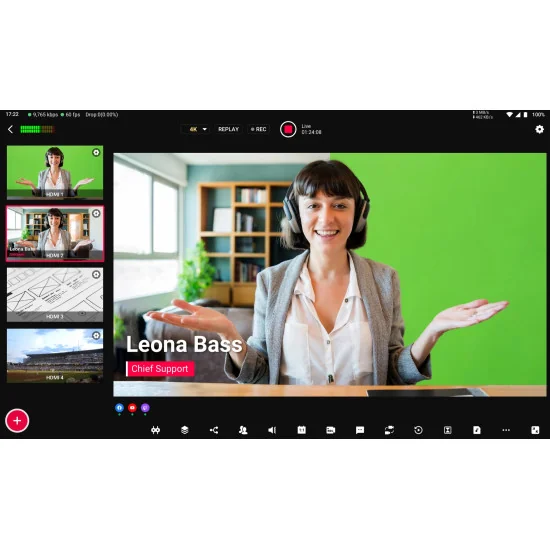

Chroma Key
Seamlessly add a different background of a design or a different location for your live productions with the magic of chroma key in a few taps.

AutoSwitch
Seamless Transition between pre-set camera angles with defined order and duration. Frees you from manual camera control to focus on the video.

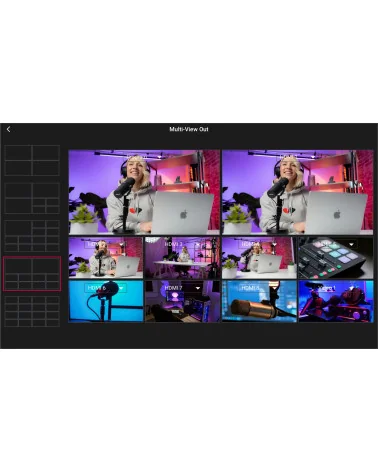

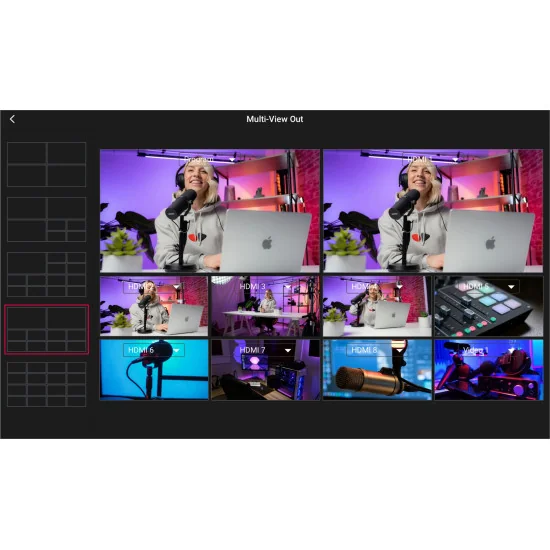

Create Multiview Layouts in Seconds, Not in Hours
Quickly add multiviews to enhance your workflow with the built-in templates like Side By Side, Picture in Picture, 3 Views, and customized Layout. Boost your productivity right at your fingertips!

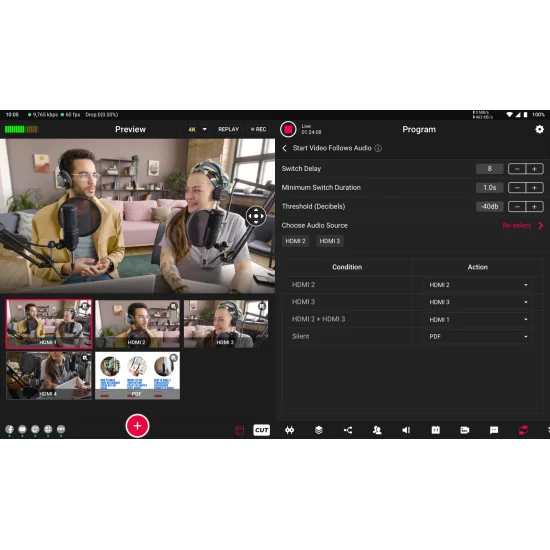

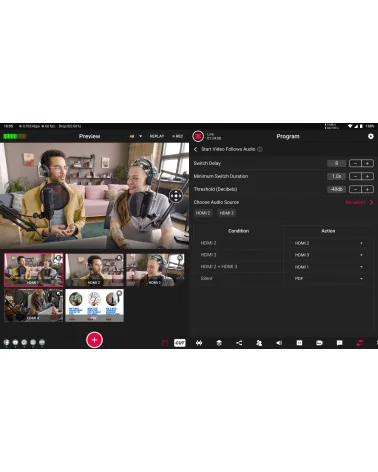

Smart Switching with Video Follows Audio
Let your audio take the lead. With VFA on YoloBox Extreme, your video source automatically switches to whoever is speaking — perfect for podcasts and live interviews. It's seamless, hands-free, and keeps your audience focused on the conversation that matters.

Audio Investment Evolved.

Assignable AFV
Each audio channel automatically switches as the video changes, ensuring perfect synchronization.
Mix Minus
Easily solo monitor a specific audio channel or mute it entirely, giving you full control.
Audio Delay
For any sync issues between audio and video, simply adjust the timing to ensure synchronization.

Director Mode
The newly added "Director Mode" features full-size Preview & Program, making it easier to check video sources before switching. It also allows quick customization of transitions and durations.

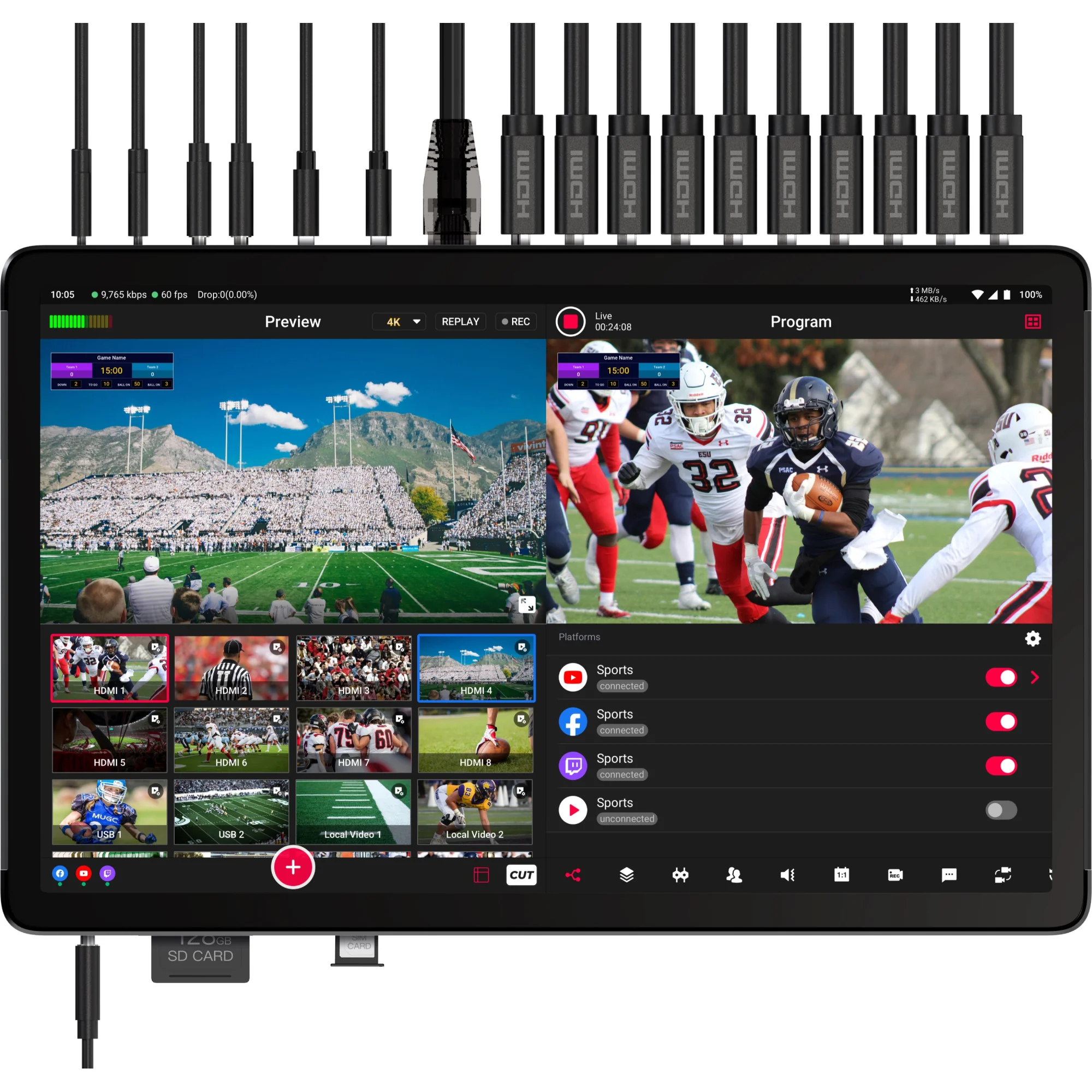

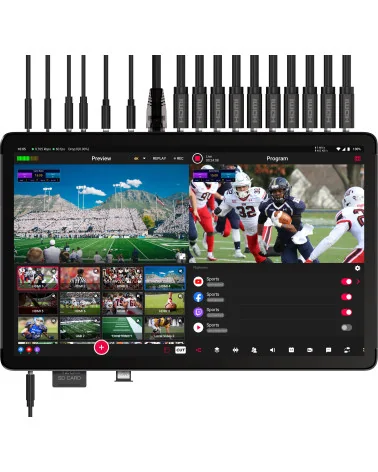

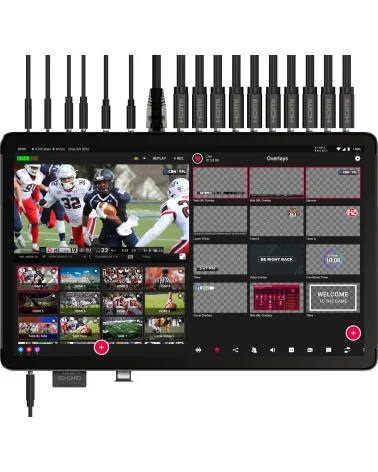

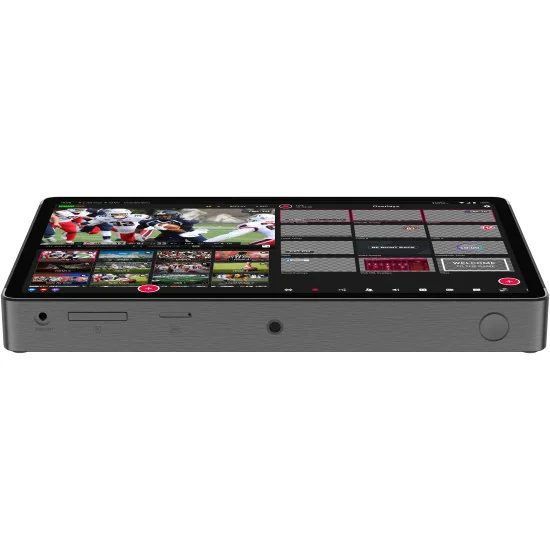

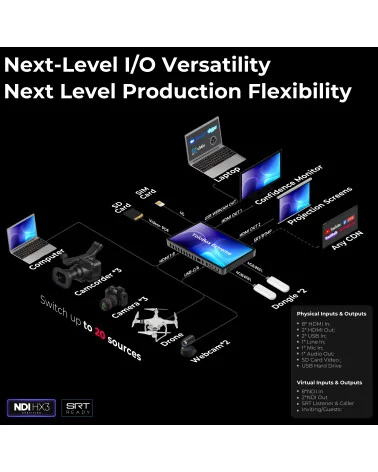

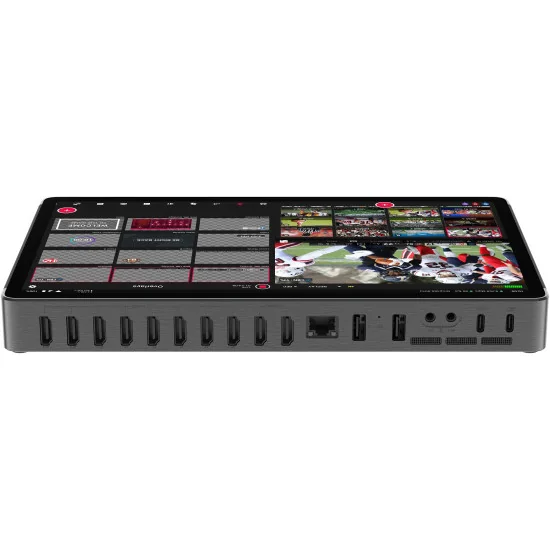

Ports
HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler
HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
Ethernet Connection: Wired Stable internet connection
USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles
Mic In (3.5mm): Mono, connect to wired microphone
Line In (3.5mm): Stereo, connect to external audio mixer
USB Type-C: A fully functional interface supports input
USB Type-C: Only for Charging
Audio Out (3.5mm): Connect to headphones for monitoring
SD Card Holder: Save files; Load videos & graphics
Nano-SIM Card Holder: Insert SIM card for 4G network
1/4'' Screw Hole: Mount with other cameras & tripods
Power Button: Turn on & off, Sleep Mode

Tech Specs

Input Power: 9V / 12V / 15V⎓3A
Power Consumption: 45W
Power Supply: USB Type-C
USB Rated Output: USB-A:5V/1A
Battery Capacity/Power: 10000mAh/90Wh
Dimensions: 264*167*29mm
Power Consumption: ＜45W
Monitor Screen Size: 11.2inch 2K OLED; Resolution: 2560x1530; Brightness: 450nits ( ≈ LCD 800-1000nits); Frequency: Fre =120Hz; Contrast ratio (1500:1); Viewing Angle (full viewing Angle); NTSC 108%
Local Video Inputs: HDMI USB-A
Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP
Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
Video Input Aspect Ratios: 16:9, 4:3, 1:1
Video Input Deinterlacing: No
Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
Video Encoded Format: H.264 H.265
Video Processing Bitrate Control: CQ, VBR, CBR
Hardware-accelerated Video Encoding: Optional
Video Output Signal Types: FLV-RTMP, HDMI, UVC
Video Output Connectors: HDMI OUT, USB-C
Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
Analog Audio Input Connectors: Line In; Mic In; 3.5mm
Digital Audio Outputs: USB; HDMI; RTMP (From internet); Local video (From SD card)
Digital Audio Input Connectors: USB-A, HDMI, USB-C
Audio Input Mute: Yes
Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output: 3.5mm Headphone Jack
Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
Record Formats: MP4
Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
USB Communication Standard: USB 2.0 and USB 3.0
Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
SIM Card Size: Nano-SIM Card

4G Network:
4G Network Countries & Frequency Band For
Users: [Variant for North Americao (US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.

SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
Operating Temperature: 0℃-40℃
Operating Humidity: 15%-85%; No Condensation
