Key features:
Super 35mm CMOS 6K 60FPS & 4K 100 FPS Max
3G-SDI + HDMI Connectivity
BNC Connector Timecode Interface
Built-in Gyroscope Sensor
PoE+ Power Over Ethernet
Genlock

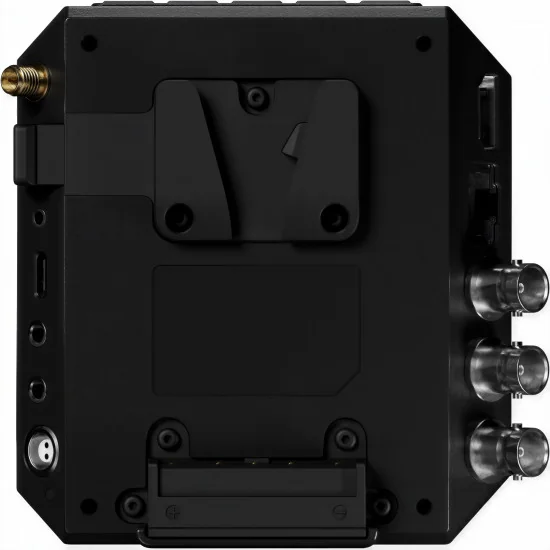

Mini V-Lock Battery Plate
CF Express Type B Storage Media Slot

Probably the Most Versatile Camera
You might not have seen the Z CAM E2 at these venues, but you've likely watched the stunning images captured by it.

Multiple Camera Synchronization
Z CAM has been widely adopted in many multiple camera applications worldwide due to its high sync precision, open API and reliability.

Z CAM EzLink Sync
All cameras are connected to a network switch for Z CAM EzLink Sync.
Once connected, one camera must be designated as the master, with the others set as slaves.
Z CAM EzLink ensures precise synchronization, maintaining a tolerance of no more than 0.5ms.

Z CAM PixelLink*
Z CAM PixelLink Sync (Master/Slave) requires all cameras to be connected in a daisy chain using Z CAM sync cables.
Cameras are interconnected using Cat 6 Ethernet cables.
Ensuring perfect line sync precision.
* Only available on Z CAM E2 model

IP Streaming is the Future
Z CAM supports a number of streaming protocols. Easily accessible through the built-in web client.

Open API & SDK
Full set open API.
Facilitates easier secondary development.

Compact & Robust
Compact form factor.
Full metal body construction.
Weighted 1060g only*.
* measured on Z CAM E2-M4 Mark II model (without lens and battery)

Durability & Reliability
Both the Z CAM E2 and the Z CAM E2 Mark II series are engineered for sustained, long-term recording and streaming.
Fanless design. No active cooling.

Interchangeable Mounts

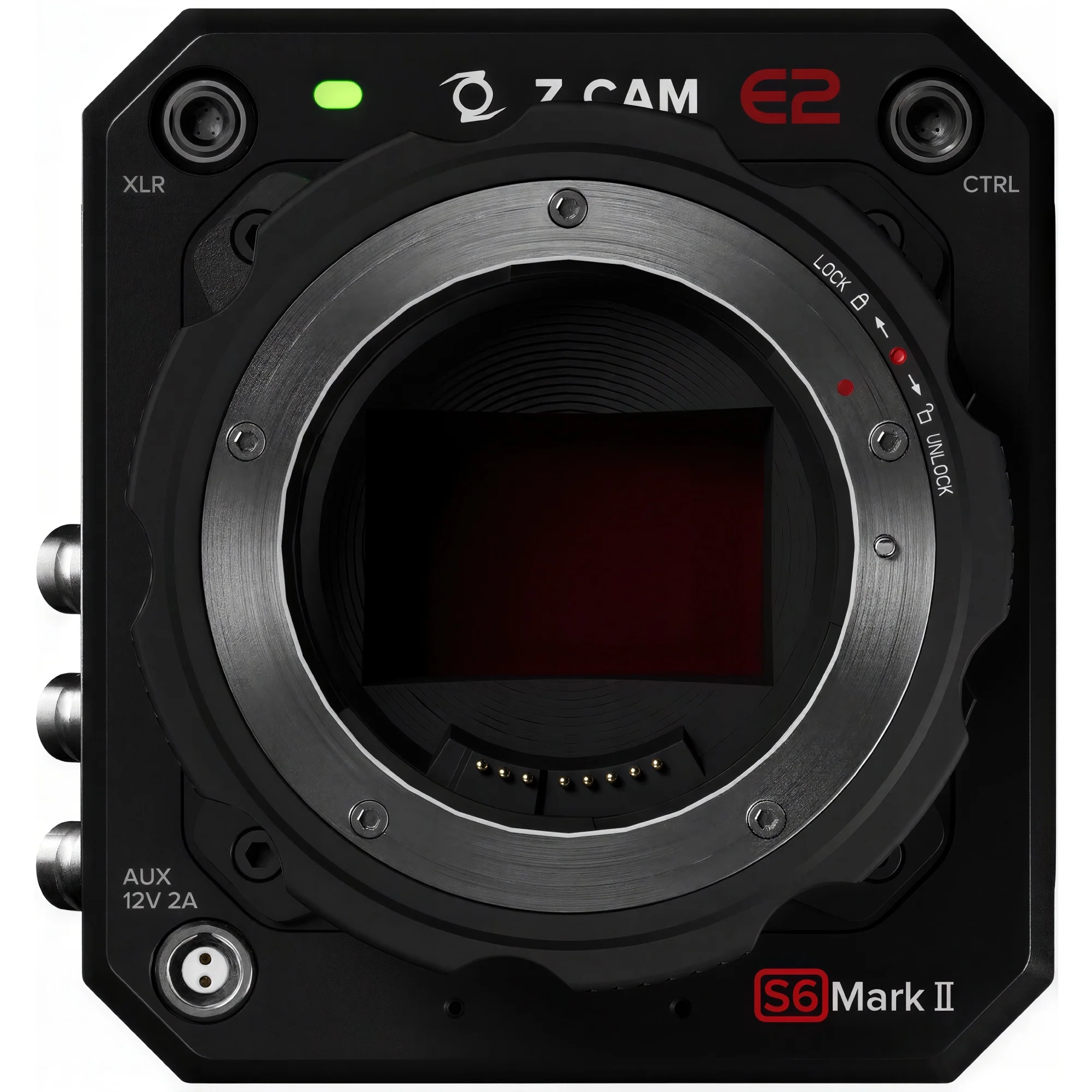

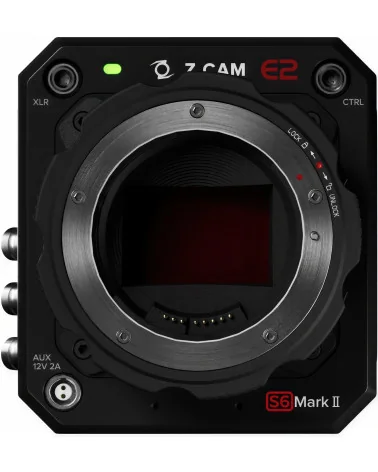

Z CAM E2-S6 Mark II : EF Mount (Active Lock)

Optional Z CAM Interchangeable lens mount:
Z CAM PL Mount (Active Lock)
Z CAM LPL Mount (Active Lock)
Z CAM M Mount (Active Lock)

Stunning Image Quality
Go-to camera for many big film and documentary productions.
Entrusted by many well-known DOPs and Directors.
Qualified as A camera.
Perfect for B camera.

Technical Specifications

Camera
Sensor Type: Super 35mm CMOS Sensor
Sensor Size: 23.5 x 15.7 mm (Diagonal 28.3mm)
Effective Pixels: 26.11M
Dynamic Range: 14 stops
Lens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone: Built-in Stereo Microphone

Recording
Resolution & Max Frame Rate:
30fps max @ Open Gate (6244x4168)
48fps max @ C6K (6144x3240)
60fps max @ 6K 2.4:1 (6144x2592)
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5552x4164)
50fps max @ 5528x3112
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4992x4160)
60fps max @ 5K (4800x2700)
30fps max @ C4K 3:2 (4096x2732)
30fps max @ C4K Low Noise (4096x2160)
75fps max @ C4K (4096x2160)
100fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4000x4000
30fps max @ 3840x3840
30fps max @ 4K Low Noise (3840x2160)
75fps max @ 4K (3840X2160)
50fps max @ 3456x3456
90fps max @ S16 16:9 (3392x1908)
120fps max @ 2.8K (2868x1512)
120fps max @ 1920x1080
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.
Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 1250
Shutter: Shutter Speed: Auto, Manual (1”~ 1/8000”) , Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF / AF / CAF
Image: Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config: Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code: Current Time / Manual Input / External Input

Connectivity
HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI: 3G-SDI
Timecode In: LTC Timecode Input via BNC
Genlock: BB/Tri-Level Genlock Input via BNC
USB: USB 3.0 Type C for camera control & data transfer only
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external antenna port
CTRL: Serial port
Ethernet: Gigabit Ethernet port

Power
Battery: Mini V-Lock 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
Power Consumption: 50W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminum Alloy
Weight - Camera (w/o Lens): 1.21kg (with EF mount)
Weight - Full Package: 1.55kg
Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch

Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C
