iriz PT230 Trépied Caméra PTZ
499,00 €
Positionner une caméra PTZ en hauteur au-dessus d'un public assis, puis la redescendre pour un changement de salle, demande un trépied qui ne...
Garder l'intervenant au centre du cadre sans mobiliser un cadreur : le suivi automatique par IA de la caméra PTZ Atomos A-Eye 4K-12X s'en charge, appuyé par une tourelle motorisée couvrant ±170° en panoramique et de -30° à +90° en inclinaison, à vitesses réglables. Le capteur CMOS 1/2,5 pouce de 8,51 mégapixels délivre un signal UHD 3840 x 2160 jusqu'à 60 i/s, tandis que le zoom optique 12x, secondé par un zoom numérique 16x, conserve le piqué du plan large au plan serré.
Côté réseau, la licence NDI|HX3 est préinstallée en usine. Branchée sur un commutateur, la caméra apparaît aussitôt comme source à faible latence dans vMix, TriCaster ou OBS ; les protocoles RTSP, RTMP, SRT et ONVIF complètent la panoplie IP, et la compression H.265, H.264 ou MJPEG maintient la bande passante d'une régie multicaméra dans des limites prévisibles.
Quatre sorties travaillent en parallèle : HDMI vers un moniteur, 3G-SDI vers le mélangeur, USB en mode webcam UVC pour Zoom ou Teams, flux IP vers la régie distante. L'alimentation PoE+ (802.3at) fait transiter courant, vidéo et pilotage par un seul câble Cat6 — argument décisif lorsqu'un montage au plafond d'amphithéâtre s'impose. Quant à l'enregistrement ISO sur support USB, il constitue une copie de secours indépendante du mélangeur, précieuse dès qu'un direct ne tolère aucune perte.
Le pilotage s'effectue en VISCA, VISCA sur IP, RS-232 ou RS-485 ; télécommande IR, support mural et adaptateur secteur multi-prises figurent dans le carton, le hub A-Eye Control assurant en option la gestion multicaméra avec rappels de position. Entrée et sortie ligne stéréo 3,5 mm, audio embarqué en HDMI, SDI et IP, voyant tally : l'Atomos A-Eye 4K-12X trouve sa place dans une captation de conférence, un événement hybride, une salle de réunion équipée ou un plateau de streaming professionnel.
Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.
Boutique B2B réservée aux professionnels, prix HT.
Distribution et garantie officielles de l'UE.
Paiements en ligne sécurisés via Stripe.
Demande de devis via formulaire ou e-mail: avgear@avgear.shop

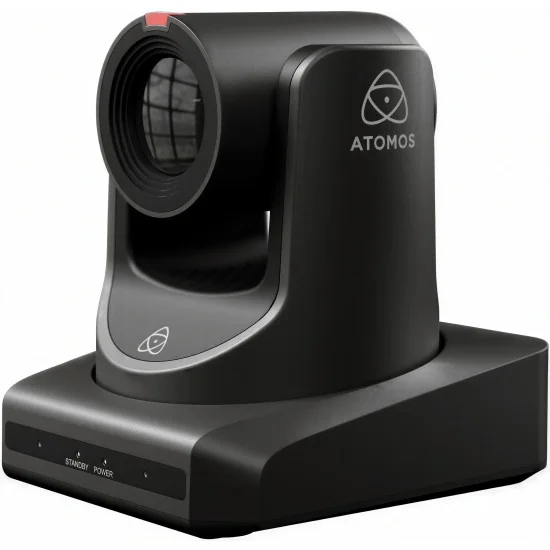

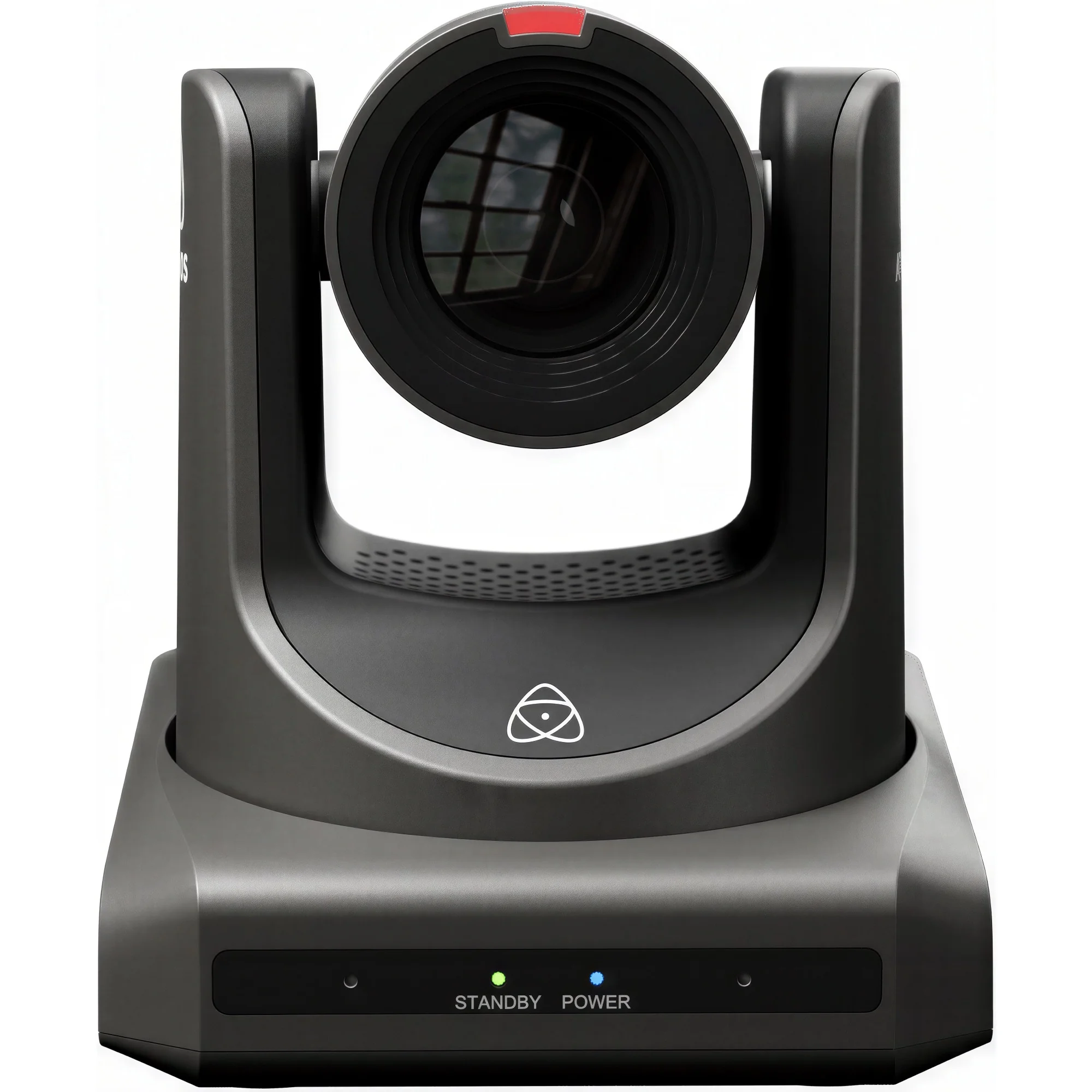

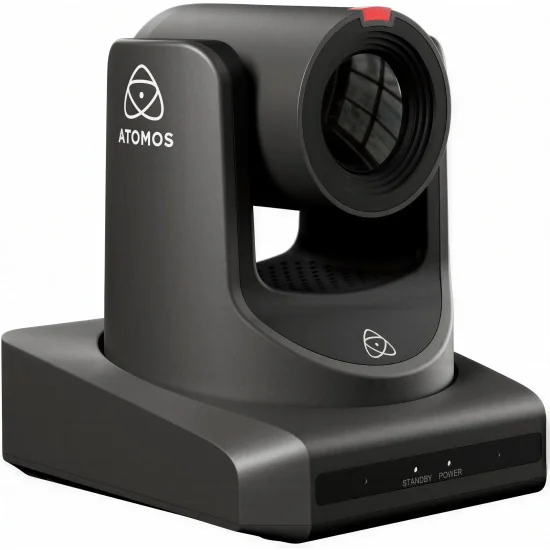

Atomos A-Eye 4K-12X
The A-Eye HD-12X PTZ Camera is a compact, versatile solution designed to deliver professional-quality video in almost any environment. Featuring a powerful 1/2.5-inch UHD CMOS sensor and 12x optical zoom, this camera ensures sharp, detailed images whether you’re capturing a lecture, presenting in a boardroom, or streaming creative content.
Powerful 4K Optics with 12x Zoom
Get closer to the action without losing quality. Perfect for classrooms, meeting spaces, or creative projects where you need both wide shots and close-ups.
NDI® | HX3 and IP-Based Production
With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.
Effortless Control and Deployment
The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.
Key Features:
Who is it for?
The A-EYE 4K 12x PTZ Camera is designed for creators and professionals who need high-quality remote video capture without complexity. From livestreamed performances and church services to multi-camera conferences and hybrid broadcasts, A-EYE delivers exceptional performance in a compact, cloud-ready package.
| Physical | |
|---|---|
| Dimensions (W x H x D mm) | 146mm x 169mm x 168mm |
| Weight | About 1.6Kg |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | ABS |
| Power | |
| Input voltage | DC 12V/PoE+ (802.3at) |
| Operating power | Max 18W |
| Power on indicator | Yes |
| Video | |
| Sensor | 1/2.5 inch, CMOS |
| Effective pixels | 8.51M |
| Lens | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Scanning mode | Progressive |
| Resolutions supported | HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 |
| Color system / compression | YUY2/H.264/MJPEG/H.265 |
| Video format | YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps |
| Digital zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Image flip | Supported |
| Image freeze | Supported |
| White balance | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight compensation | Support |
| Digital noise reduction | 2D & 3D Digital Noise Reduction |
| SNR | ≥55dB |
| Mechanical | |
| Horizontal FOV | 71° ~ 8.2° |
| Vertical FOV | 42.7° ~ 4.5° |
| Pan angle | ±170° |
| Tilt angle | -30° ~ +90° |
| Pan speed | 1.7° ~ 100°/s |
| Tilt speed | 1.7° ~ 69.9°/s |
| Preset position | 255 |
| Preset accuracy | 0.1° |
| USB | |
| Operating system | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB audio | Supported |
| USB video protocol | UVC 1.1/UVC 1.5 |
| USB PTZ control | Supported |
| Network | |
| Video compression | H.264/H.265/MJPEG |
| Video stream | First Stream, Second Stream |
| First stream resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
| Second stream resolution | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
| Video bit rate | First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps |
| Bit rate control | CBR, VBR |
| Frame rate | 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| Audio | |
| Microphone | No built-in mic |
| Audio input | Line In |
| Audio output | Line Out, HDMI, USB |

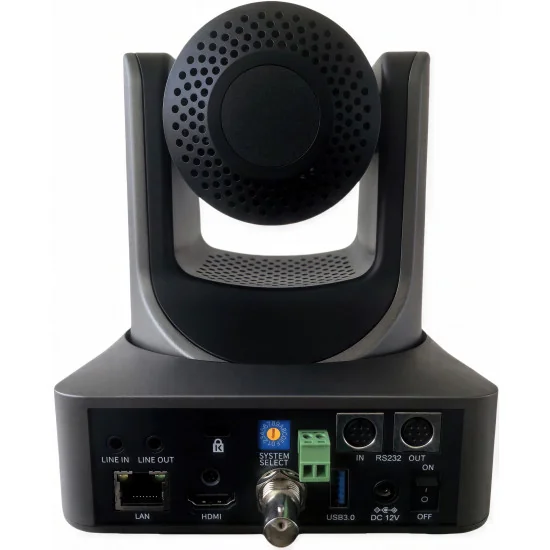

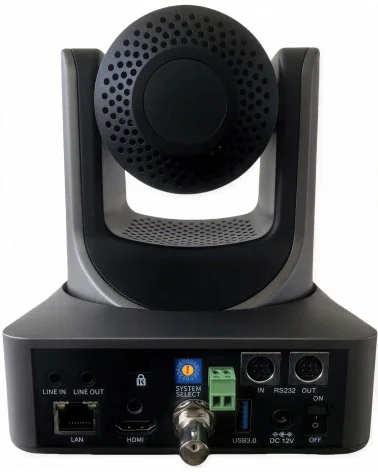

| Input/Output Interfaces | |
| Line In | 3.5mm audio interface |
| Line Out | 3.5mm audio interface |
| RS-485 | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network | 10M/100M Adaptive Ethernet Port |
| USB | USB 2.0: Type A |
| SDI | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI | HDMI version 1.3 |
| Power jack | JEITA type (DC IN 12V) |
| Tally indicator | Yes |
| Box Contents | |
| Box Contents | A-Eye 4K-12X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide |
