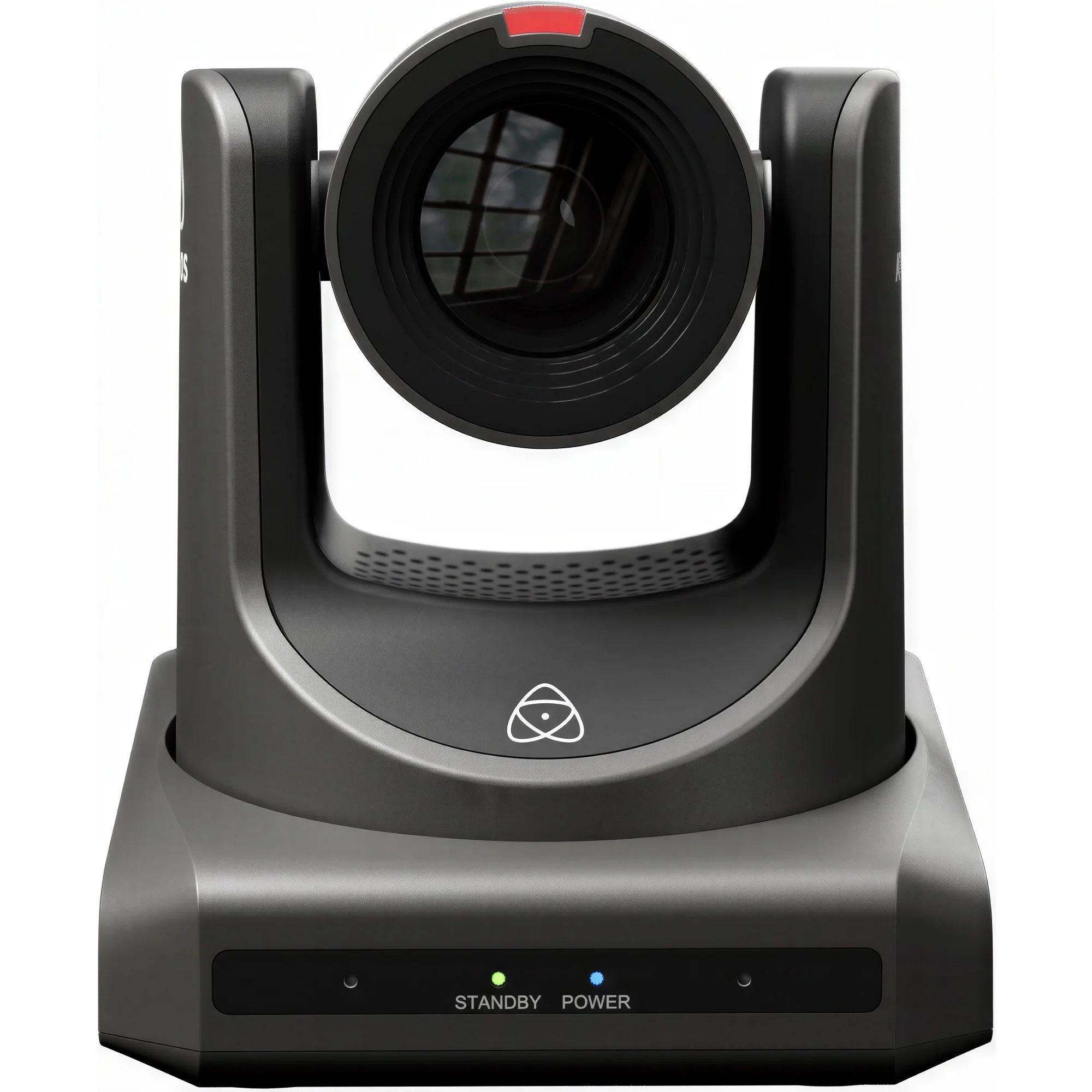

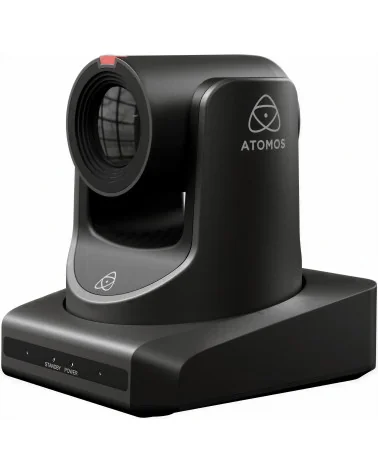

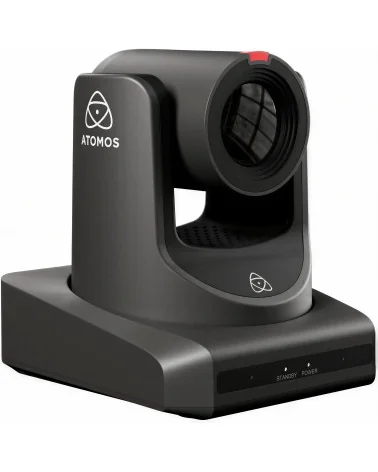

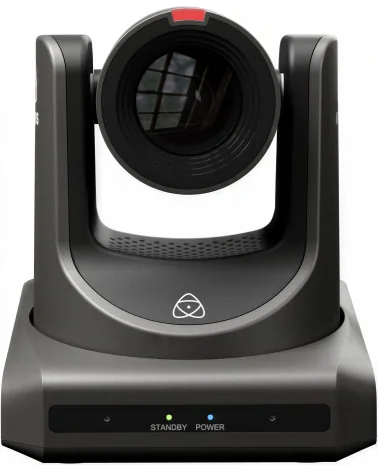

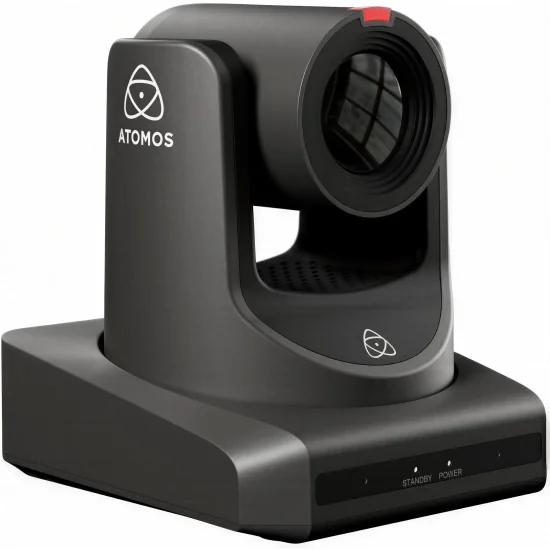

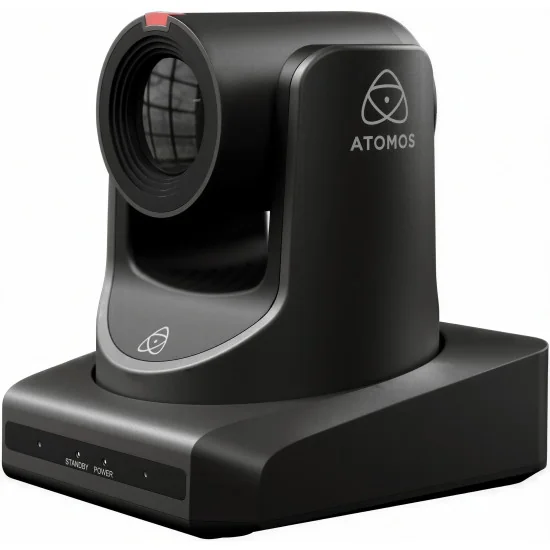

Atomos A-Eye 4K-12X PTZ Camera

    ATOMAE4K12
    Price: €1,859.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

    One network cable can put a complete remote head into service. Drawing power, video and control through PoE+ (802.3at), the Atomos A-Eye 4K-12X keeps ceiling or wall installations free of separate supply lines — a detail integrators appreciate in lecture theatres and boardrooms. Behind the 12x optical zoom (extended by a 16x digital stage) sits a 1/2.5-inch CMOS sensor with 8.51 megapixels that delivers UHD 3840 x 2160 at up to 60 frames per second, with a base field of view wide enough for mid-sized rooms and compact studio sets.

    An NDI|HX3 licence ships pre-installed, so the camera registers as a low-latency IP source in vMix, TriCaster or OBS the moment it joins the network. RTSP, RTMP, SRT and ONVIF sit alongside it, allowing direct pushes to YouTube Live or integration with camera-management platforms, while H.265, H.264 and MJPEG compression keep bandwidth calculable across a multi-camera NDI installation.

    HDMI, 3G-SDI and USB run simultaneously with the IP stream: one feed to the vision mixer, one to a local monitor, one as a UVC webcam signal for Teams or Zoom sessions that need no capture card. AI auto-tracking holds a presenter in frame across ±170° of pan and -30° to +90° of tilt, so a single technician can supervise several rooms at once. ISO recording straight onto a USB drive adds a failsafe copy that never loads the switcher — if the stream drops, the local file keeps rolling.

    Remote operation runs over VISCA, VISCA-over-IP, RS-232 or RS-485; an IR remote and wall bracket come in the box, and the optional A-Eye Control hub scales the system to preset-driven multi-camera production. With embedded audio over HDMI, SDI and IP, a 3.5 mm stereo line input and output, and a tally light for on-set clarity, the Atomos A-Eye 4K-12X reads as a rational line item: one head covering lecture capture, hybrid events, corporate AV and unattended broadcast positions.

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Atomos A-Eye 4K-12X
    The A-Eye HD-12X PTZ Camera is a compact, versatile solution designed to deliver professional-quality video in almost any environment. Featuring a powerful 1/2.5-inch UHD CMOS sensor and 12x optical zoom, this camera ensures sharp, detailed images whether you’re capturing a lecture, presenting in a boardroom, or streaming creative content.

    Powerful 4K Optics with 12x Zoom
    Get closer to the action without losing quality. Perfect for classrooms, meeting spaces, or creative projects where you need both wide shots and close-ups.

    NDI® | HX3 and IP-Based Production
    With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.

    Effortless Control and Deployment
    The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.

    Key Features:

    • 1/2.5 UHD CMOS sensor delivers crisp, professional-quality 4K video
    • Supports UHD 4K60 & 1080p60 output for flexible streaming and recording
    • 12× optical zoom + 16× digital zoom for wide shots and close-ups without losing detail
    • AI auto-tracking keeps the subject centered and in focus automatically
    • Multiple outputs — HDMI, 3G-SDI, USB-A 3.0, and IP/NDI|HX3 streaming
    • Local recording via USB drive for direct, hassle-free capture
    • Flexible remote control through UVC, VISCA over IP, RS-232, or RS-485
    • Smooth motion range with 340° pan and –30° to +90° tilt, adjustable speeds
    • Audio options: 3.5 mm stereo line in/out plus embedded audio via HDMI, SDI, and IP
    • Dual power options — 12 VDC or PoE+ (Power over Ethernet) for streamlined cabling
    • Compact, versatile design ideal for classrooms, corporate environments, worship services, and content creation

    Who is it for?
    The A-EYE 4K 12x PTZ Camera is designed for creators and professionals who need high-quality remote video capture without complexity. From livestreamed performances and church services to multi-camera conferences and hybrid broadcasts, A-EYE delivers exceptional performance in a compact, cloud-ready package.

    Physical
    Dimensions (W x H x D mm)146mm x 169mm x 168mm
    WeightAbout 1.6Kg
    Environmental
    Ambient operating temperatureUp to 40 degrees Celsius
    Construction
    BodyABS
    Power
    Input voltageDC 12V/PoE+ (802.3at)
    Operating powerMax 18W
    Power on indicatorYes
    Video
    Sensor1/2.5 inch, CMOS
    Effective pixels8.51M
    Lens12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
    Scanning modeProgressive
    Resolutions supportedHDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
    3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
    Color system / compressionYUY2/H.264/MJPEG/H.265
    Video formatYUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps
    Digital zoom16x
    Minimum Illumination0.5 Lux @ (F1.8, AGC ON)
    Shutter1/30s ~ 1/10000s
    Image flipSupported
    Image freezeSupported
    White balanceAuto, VAR, Manual, One Push, Indoor, Outdoor
    Backlight compensationSupport
    Digital noise reduction2D & 3D Digital Noise Reduction
    SNR≥55dB
    Mechanical
    Horizontal FOV71° ~ 8.2°
    Vertical FOV42.7° ~ 4.5°
    Pan angle±170°
    Tilt angle-30° ~ +90°
    Pan speed1.7° ~ 100°/s
    Tilt speed1.7° ~ 69.9°/s
    Preset position255
    Preset accuracy0.1°
    USB
    Operating systemWindows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
    USB audioSupported
    USB video protocolUVC 1.1/UVC 1.5
    USB PTZ controlSupported
    Network
    Video compressionH.264/H.265/MJPEG
    Video streamFirst Stream, Second Stream
    First stream resolution3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
    Second stream resolution720x480, 720x408, 640x480, 640x360, 480x320, 320x240
    Video bit rateFirst Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps
    Bit rate controlCBR, VBR
    Frame rate50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
    Audio compressionAAC
    Audio bit rate96Kbps, 128Kbps, 256Kbps
    ProtocolsNDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
    Audio
    MicrophoneNo built-in mic
    Audio inputLine In
    Audio outputLine Out, HDMI, USB

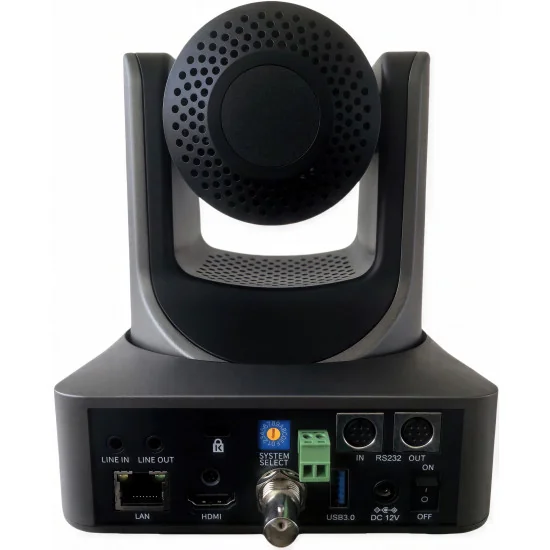

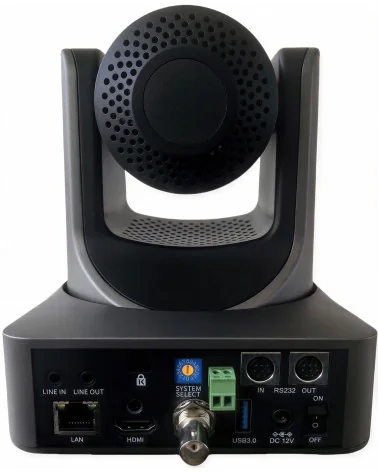

    Input/Output Interfaces
    Line In3.5mm audio interface
    Line Out3.5mm audio interface
    RS-4852-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
    RS-232 IN8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
    RS-232 OUT8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
    Network10M/100M Adaptive Ethernet Port
    USBUSB 2.0: Type A
    SDI3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
    HDMIHDMI version 1.3
    Power jackJEITA type (DC IN 12V)
    Tally indicatorYes
    Box Contents
    Box ContentsA-Eye 4K-12X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide
    ATOMAE4K12
    4 Items

    Data sheet

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    USB
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    SDI Embedded
    USB
    Max Output Resolution
    4K UltraHD (3840 x 2160) 50/60 fps
    Control protocol for PTZ cameras
    NDI
    PELCO-D
    PELCO-P
    UVC
    VISCA
    VISCA IP
    Network Connection
    Ethernet
    Sensor Size
    1/2.5"
    Optical Zoom
    12x
    PoE Technology
    Yes
    Auto-Tracking
    Yes
    Tally Light
    Yes

    Specific References

    ean13
    814164023245
    mpn
    ATOMAE4K12
