The compact SDI routing switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s, and passes all SDI embedded audio/ancillary data. It can conveniently controlled by front panel button, keyboard via USB and PC software via LAN/RS-232.

Model NO.: MSS0811 3G-SDI 8×8 MATRIX SWITCHER
8×3G-SDI inputs, 8×3G-SDI outputs
SDI input signal auto detection & equalization
Level A and level B singal supported
Pass all ancillary data and embedded audio
DVB-ASI interface compatible
Free PC software control: LAN, RS-232
Front panel buttons control & USB keyboard
Redundant power design

Powerful Signal Routing
This matrix includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate.

1080 HD Signal In - 1080 HD Signal Out
720P HD Signal In - 720P HD Signal Out
NTSC/PAL Signal In - NTSC/PAL Signal Out

Multiple Control Methods

Front Panel

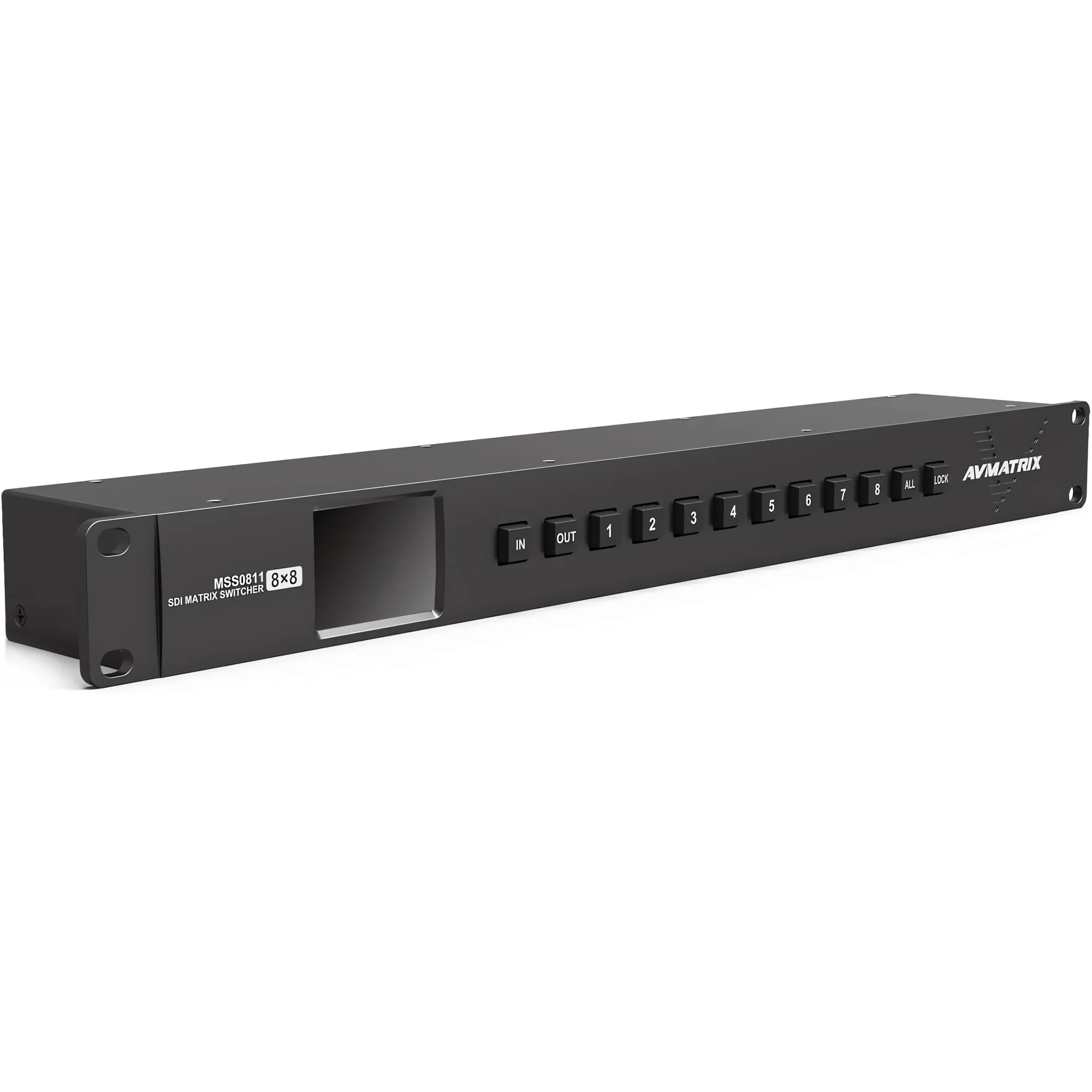

MSS0811 matrix switcher enables full control from the front panel. The current channel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident.

PC Software
The matrix switcher coming with a free PC control software, you can connect a computer via Ethernet to realise the network router control on a Windows PC. Also you can use the software control via the serial port RS-232 connecting your PC.

USB Keyboard
There is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration.

Redundant Power
The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.

Compact Design
The super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical AV rigs.

Technical specification

CONNECTIONS
Input: SD/HD/3G-SDI/DVB-ASI × 8
Output: SD/HD/3G-SDI/DVB-ASI x 8

FORMATS
SDI Input Format Support: (2K) 2048×1080p 30/29.97/25/24/23.98 , (2K) 2048×1080PsF 30/29.97/25/24/23.98 , (HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98 (HD) 1920×1080PsF 30/29.97/25/24/23.98 , (HD) 1920×1080i 60/59.94/50 , (HD) 1280×720p 60/59.94/50 , (HD) 1280×720p 30/29.97/25/24/23.98 , (SD) 625i 50 , (SD) 525i 59.94
SDI Video Rate: SD/HD/3G-SDI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Color Space and Precision: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit
SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input

CONTROLS
Control: Front panel buttons, LAN (software control), RS-232 (software control), USB Type A (USB keyboard control)

POWER
Power Connector: Threaded locking connector
Voltage Range: DC 6~24V
Power Supply: PS-1, PS-2, power redundancy

ENVIRONMENT
Power Consumption: 7W
Operating Temperature: -20°C~60°C
Storage Temperature: -30°C~70°C
Relative Humidity: 0%~90% non-condensing

SIZE
Size: Standard 19" 1 rack unit
Weight: 1.1Kg

PACKING
What's Included: MSS0811 (8×8 3G-SDI matrix switcher) , DC 12V 2A power adapter x 2

WARRANTY
Warranty: 3 year limited warranty
