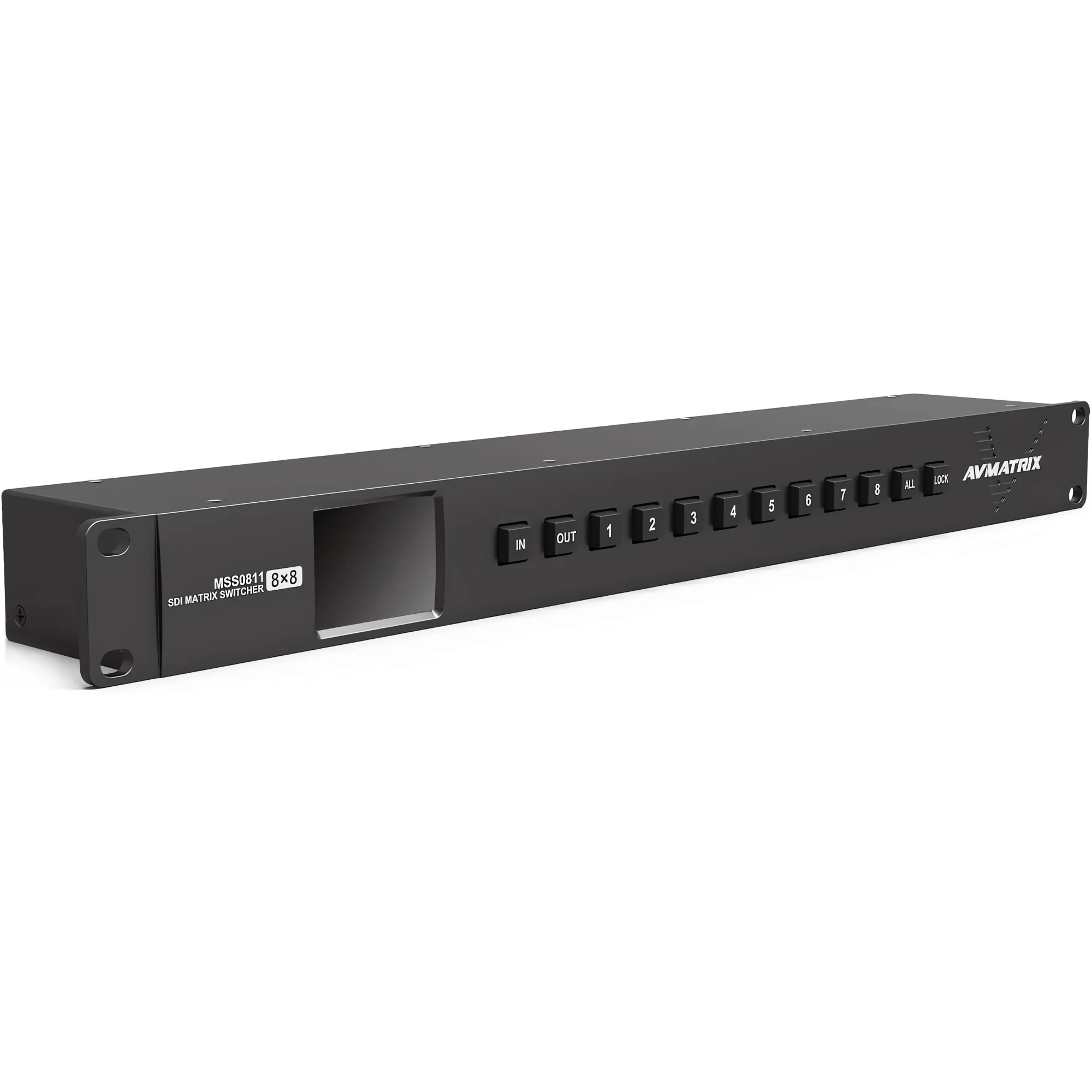

AVMATRIX MSS0811 SDI Video Matrix Switcher

AVMATRIX MSS0811 SDI Video Matrix Switcher

Name: AVMATRIX MSS0811 SDI Video Matrix Switcher
Brand: AVMATRIX
SKU: MSS0811
Price: 729.00 EUR
Availability: InStock

MPN: MSS0811

Price: €729.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

When eight SDI sources need to reach eight separate destinations without signal degradation, the AVMATRIX MSS0811 delivers a dependable 8×8 routing matrix in a single rack unit. This 3G-SDI matrix switcher handles bit rates from 270 Mbps up to 2.97 Gbps, covering SD-SDI, HD-SDI, and 3G-SDI standards — including both Level A and Level B — as well as DVB-ASI transport streams. Every input accepts a different format simultaneously: one channel can carry a 1080p60 camera feed while another passes a 720p graphics source and a third routes a DVB-ASI stream from a satellite receiver, all without manual reconfiguration.

Signal integrity remains solid across the entire chain. The MSS0811 applies automatic input equalization and detection, compensating for cable-length losses before re-clocking and distributing each output at full amplitude (800 mV ±10%, 75 Ω, BNC connectors to IEC 169-8). Embedded SDI audio and ancillary data pass through untouched, which matters in broadcast trucks and live event rigs where a separate audio router would add unnecessary complexity. Switching between routes happens cleanly — no black frames, no snow — so operators can change sources during a live transmission without visible glitches on programme output.

Four distinct control paths give integration teams room to choose. The front-panel buttons and built-in 2.2-inch LCD handle quick changes on location or in an edit suite; RS-232 allows third-party automation systems to trigger presets; the Ethernet port works with the included Windows routing software for centralized management across a facility network; and a USB Type-A port accepts a standard keyboard for rapid one-person operation in confined spaces like fly-pack cases or outside-broadcast vehicles. Dual redundant DC power inputs (6–24 V, locking connectors, two 12 V adapters shipped in the box) keep the router online if one supply fails — a genuine requirement in 24/7 broadcast environments, live theatre backstage operations, and house-of-worship installations where downtime is not an option.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The compact SDI routing switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s, and passes all SDI embedded audio/ancillary data. It can conveniently controlled by front panel button, keyboard via USB and PC software via LAN/RS-232.

Model NO.: MSS0811 3G-SDI 8×8 MATRIX SWITCHER
8×3G-SDI inputs, 8×3G-SDI outputs
SDI input signal auto detection & equalization
Level A and level B singal supported
Pass all ancillary data and embedded audio
DVB-ASI interface compatible
Free PC software control: LAN, RS-232
Front panel buttons control & USB keyboard
Redundant power design

Powerful Signal Routing
This matrix includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate.

1080 HD Signal In - 1080 HD Signal Out
720P HD Signal In - 720P HD Signal Out
NTSC/PAL Signal In - NTSC/PAL Signal Out

Multiple Control Methods

Front Panel
MSS0811 matrix switcher enables full control from the front panel. The current channel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident.

PC Software
The matrix switcher coming with a free PC control software, you can connect a computer via Ethernet to realise the network router control on a Windows PC. Also you can use the software control via the serial port RS-232 connecting your PC.

USB Keyboard
There is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration.

Redundant Power
The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.

Compact Design
The super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical AV rigs.

Technical specification

CONNECTIONS
Input: SD/HD/3G-SDI/DVB-ASI × 8
Output: SD/HD/3G-SDI/DVB-ASI x 8

FORMATS
SDI Input Format Support: (2K) 2048×1080p 30/29.97/25/24/23.98 , (2K) 2048×1080PsF 30/29.97/25/24/23.98 , (HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98 (HD) 1920×1080PsF 30/29.97/25/24/23.98 , (HD) 1920×1080i 60/59.94/50 , (HD) 1280×720p 60/59.94/50 , (HD) 1280×720p 30/29.97/25/24/23.98 , (SD) 625i 50 , (SD) 525i 59.94
SDI Video Rate: SD/HD/3G-SDI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Color Space and Precision: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit
SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input

CONTROLS
Control: Front panel buttons, LAN (software control), RS-232 (software control), USB Type A (USB keyboard control)

POWER
Power Connector: Threaded locking connector
Voltage Range: DC 6~24V
Power Supply: PS-1, PS-2, power redundancy

ENVIRONMENT
Power Consumption: 7W
Operating Temperature: -20°C~60°C
Storage Temperature: -30°C~70°C
Relative Humidity: 0%~90% non-condensing

SIZE
Size: Standard 19" 1 rack unit
Weight: 1.1Kg

PACKING
What's Included: MSS0811 (8×8 3G-SDI matrix switcher) , DC 12V 2A power adapter x 2

WARRANTY
Warranty: 3 year limited warranty
