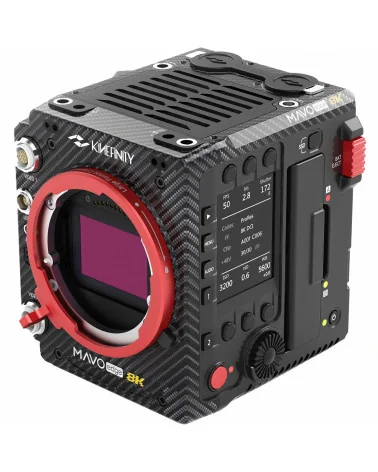

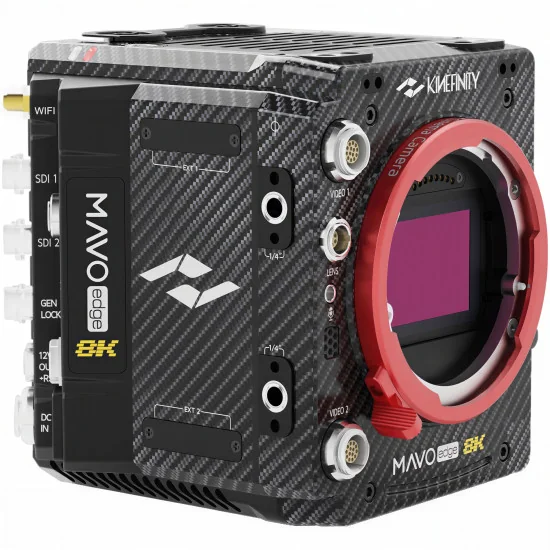

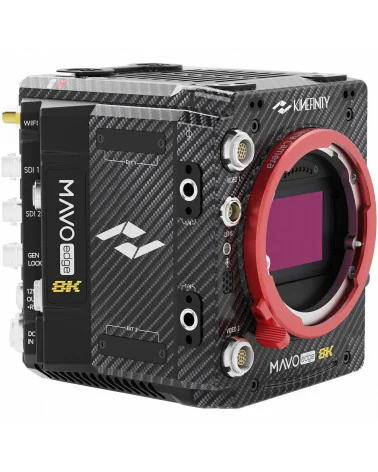

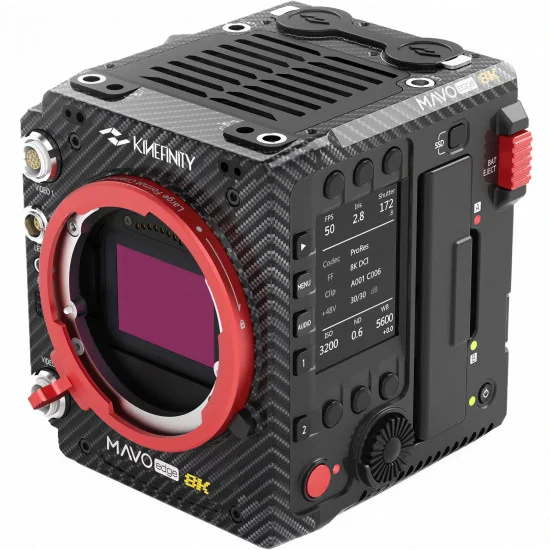

MAVO Edge 8K Full-Frame 8K Cinema Camera
MAVO Edge is a brand-new large-format 8K cine camera. With a whole-new carbon fiber camera body, MAVO Edge is equipped with a stunning 8K 70P CMOS imaging sensor and cutting-edge image processing engine. Featuring internal motorized full-spectrum e-ND, more industry-standard ports and dual SSD media slots. Recognized by Hollywood's filmmaking industry, ProRes is an universal intermediate codec. MAVO Edge integrated the functions of KineBACK-W into the camera body with numerous professional ports.

Stunning 8K 70P Imaging Sensor

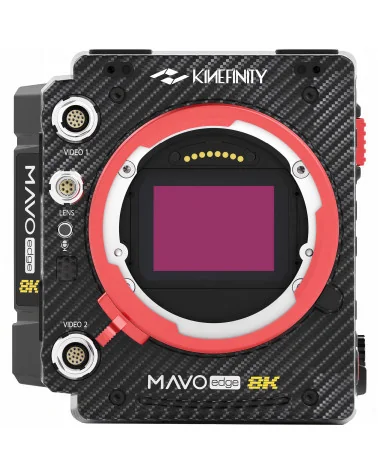

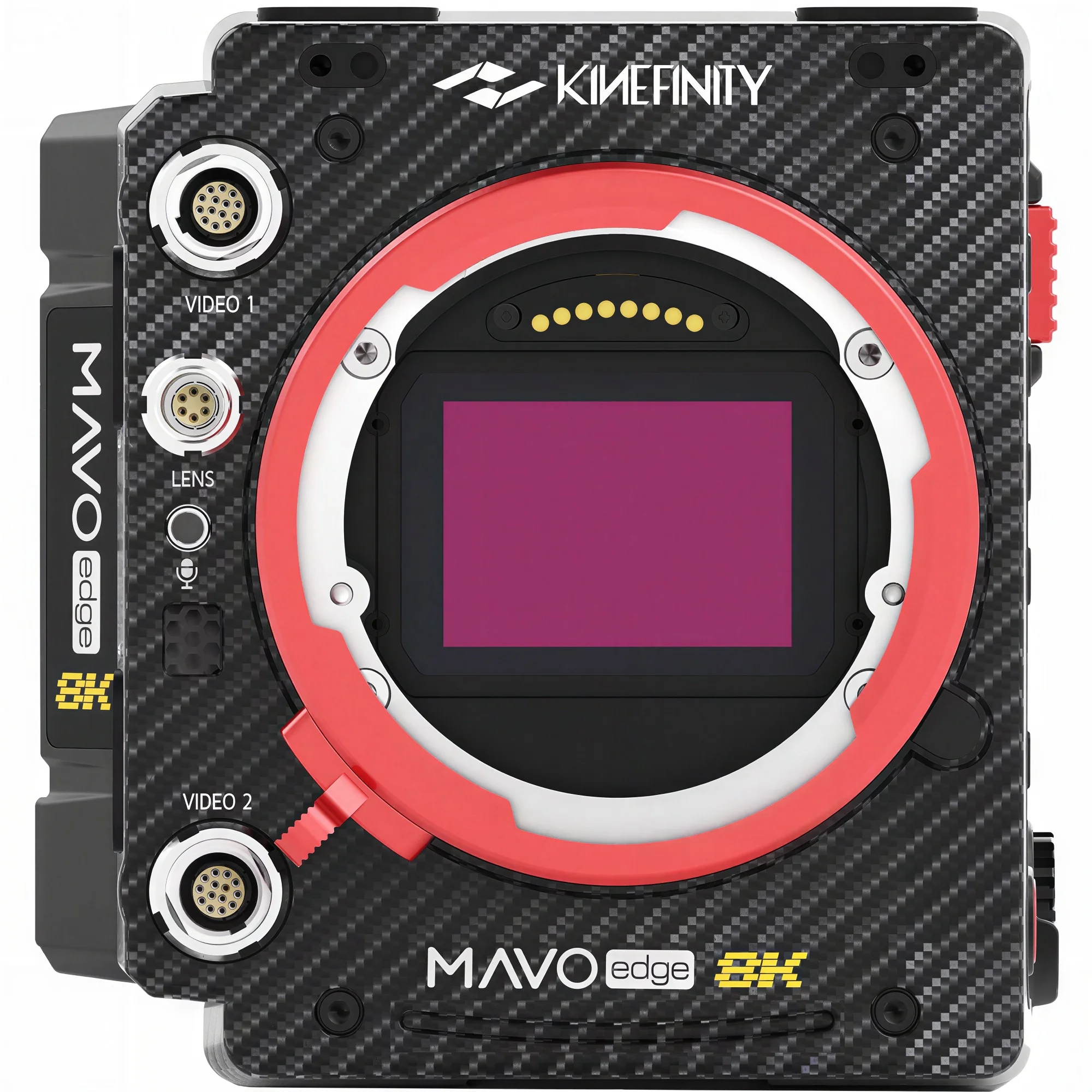

The new 8K imaging sensor on the MAVO Edge is an amazing canvas with 45 million pixels on a 36x24mm full-frame CMOS sensor featuring 640/2560 dual native ISO, 8K Wide up to 70fps and latitude up to 14+ stops. Even at open gate 3:2, surprisingly this beast can still deliver a gorgeous image of 45 million pixels at up to 45 frames per second.

In-camera 8K ProRes4444
MAVO Edge can directly record Apple's ProRes4444/XQ codec which has been highly expected by the video industry. From the capture of its 8K CMOS image over the delicate color processing to the 8K ProRes4444 encoding and storage, these complex processes and the ultra-high bandwidth bitrate processing all happen within the compact MAVO Edge body.

Integration, Convenient to Use

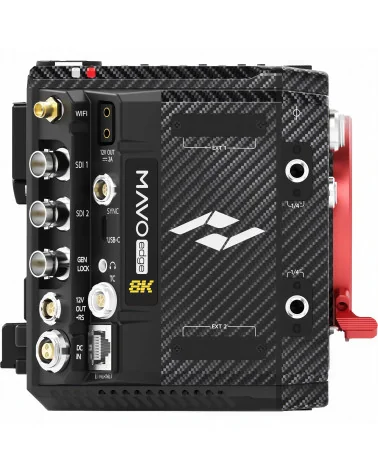

The whole-new integrated carbon fiber body has incorporated the full-spectrum e-ND system, dual SSD slots with blazing-fast NVMe M.2-based KineMAG Nano, comprehensive networking and creative power solution. Features dual XLR ports for Phantom-powered 48V MIC, dual 1.5G/3G-SDI monitoring outputs, time code input and output, SYNC, DC Power output, innovative hybrid battery plate with D-Tap port.

Internal Motorized Full-Spectrum e-ND
The built-in motor-driven full-spectrum e-ND filter ranges from 0.6 to 2.1 (2-7 stops neutral density) and can be adjusted seamlessly over all ranges.

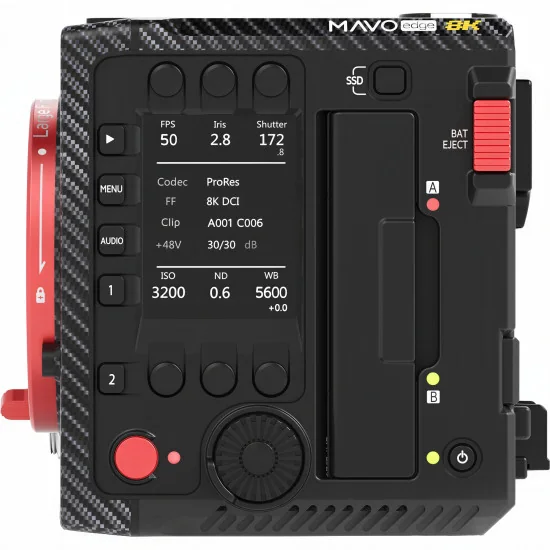

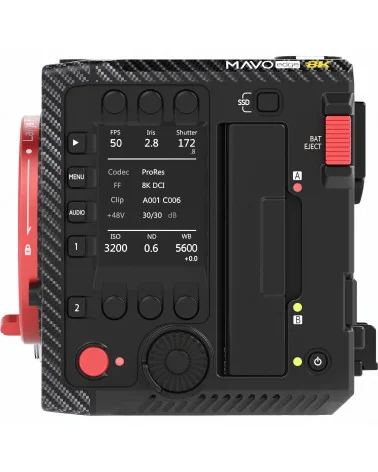

Dual SSD Media Slots
Dual SSD slots with blazing-fast NVMe M.2-based KineMAG Nano for high-bandwidth recording and storage.

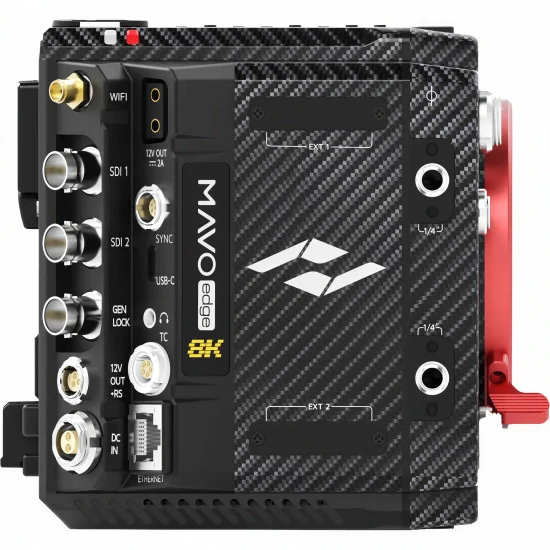

Dual SDI & Independent Monitoring
Dual 1.5G/3G SDI outputs with embedded metadata for enhanced compatibility with third-party accessories. Independent Video ports for Kinefinity touchscreen monitors and EVF.

Timecode & SYNC
Linear timecode input and output, SYNC multi-camera synchronization port for seamless integration with professional production setups.

Dual XLR Phantom Power Audio
Two independently controlled 48V phantom-powered XLR inputs for professional audio recording with in-camera reference microphone and 3.5mm stereo input.

Dual XLR Phantom Power Audio
Two independently controlled 48V phantom-powered XLR inputs for professional audio recording with in-camera reference microphone and 3.5mm stereo input.

Comprehensive Power Solution

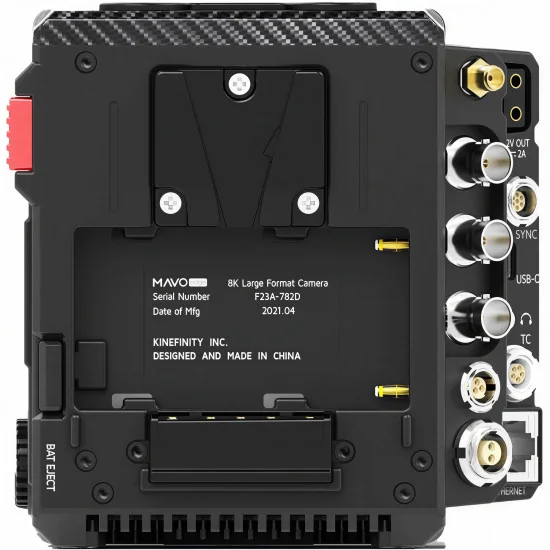

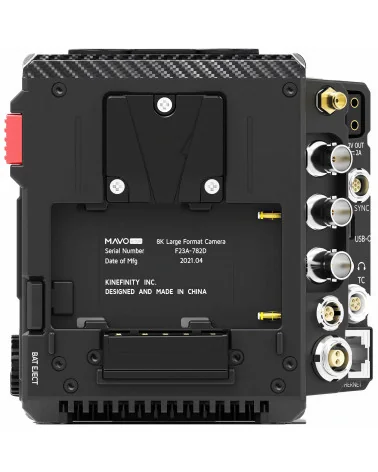

Innovative hybrid battery plate supports standard V-mount and BP-U batteries. D-Tap, RS, and Lens ports for powering third-party accessories directly.

Networking & Connectivity
Gigabit Ethernet, WiFi 5, and USB-C for flexible connectivity, live streaming, and camera control. Internal H.264 encoding for live output.

Integrated Body Design of the iF Industrial Design Award
MAVO Edge inherits the integrated carbon fiber body design which won the prestigious iF DESIGN AWARD 2021. Its carbon fiber and aircraft aluminium body has superior strength and toughness to meet a wide range of photographic needs. Awarded in Germany since 1953, the iF DESIGN AWARD is annually conferred by iF International Forum Design GmbH, which is the local oldest truly independent design institution. It rests on independence, rigor, and reliability, aiming to raise public awareness of design.
