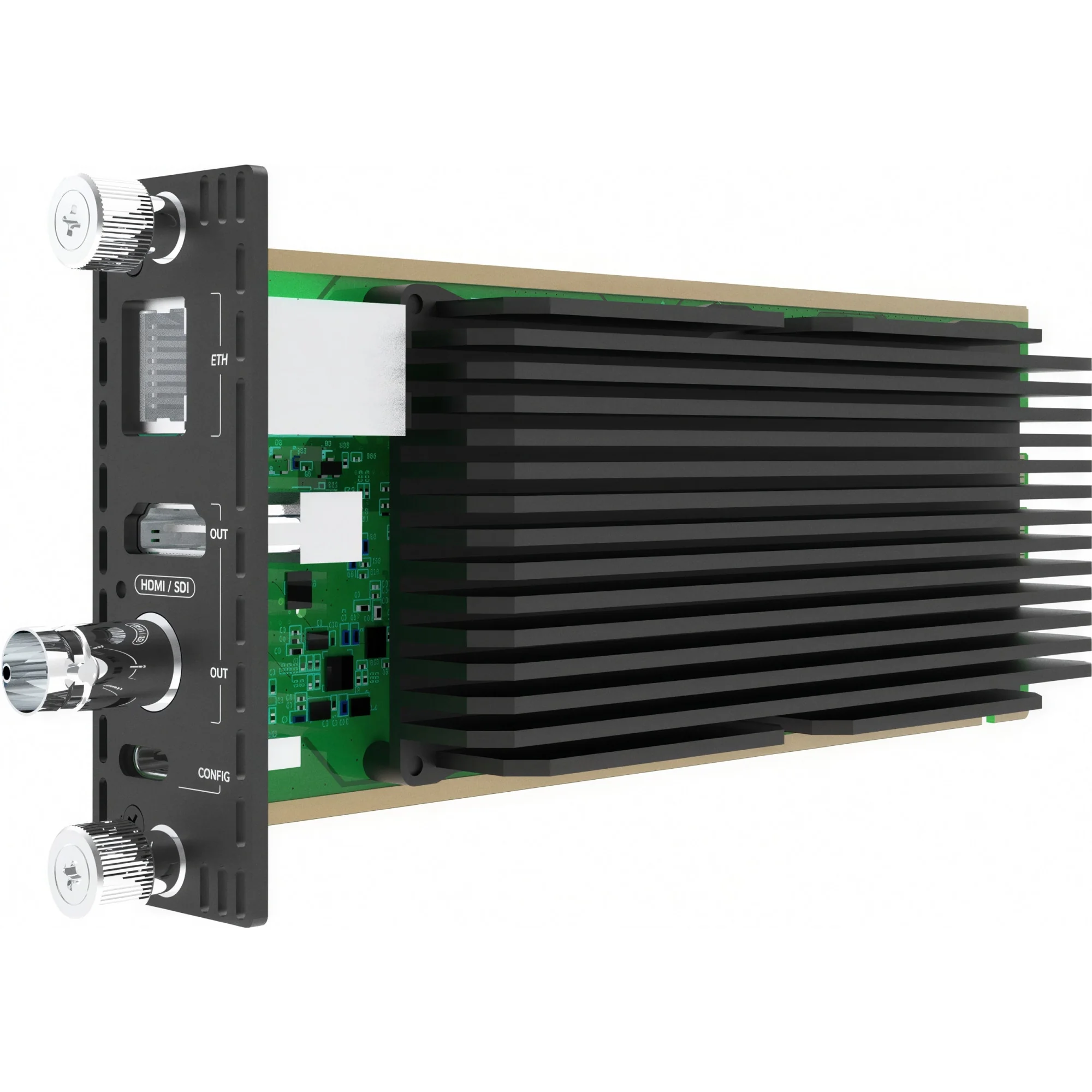

The Pro Convert for NDI to AIO Module is a hot-swappable module designed for use within the Magewell Modator chassis. It allows for the conversion of high-bandwidth NDI and NDI|HX streams into HDMI and SDI outputs, making it ideal for integrating NDI-based IP workflows with traditional baseband systems. The module is easily manageable via the Magewell Modator chassis, Web GUI, or Control Hub, providing centralized monitoring and control. It supports decoding of up to 2Kp60 NDI streams and offers compatibility with a variety of streaming protocols, including RTSP, HLS, RTMP, and MPEG-TS over UDP/SRT/RTP.

This module also features low-latency performance, which is essential for live production environments. It supports multi-channel audio output and can handle H.264/H.265 streams for additional flexibility. Whether used in high-density video workflows or for custom integrations, the Pro Convert for NDI to AIO Module ensures efficient, real-time video conversion with seamless interoperability across different video standards.

Features & Advantages:
Very low latency ensures real-time, high-quality conversion, making it ideal for live production applications.
Configuration and management are facilitated via the Modator chassis' touch screen, a Web GUI, or the Magewell Control Hub, enabling intuitive control and monitoring.
HTTP-based APIs allow for custom integrations, offering users flexibility in how they control and monitor the system.
Image flip for inverted projector installations and safe area controls to adjust and optimize video outputs for different display and installation setups.

Pro Convert for NDI to AIO Module Specifications

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* SDI output port
1* HDMI 1.4 output port
1* Modator interface for connecting to Modator 2U (hot-swappable)

Decoding Features
Decode up to 2Kp60 streams of NDI High Bandwidth®, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
Simultaneously decode and output HDMI and SDI signals
Decode SpeedHQ/H.264/H.265 video
Decode AAC/MP3 audio
Supports NDI® 6.3

HDMI Output Features
Max. output: 1920x1080p60
Supports YUV BT.601/709 signals
Supports 48KHz 8-channel audio output

SDI Output Features
Max. output: 1920x1080p60. Supported output formats are:
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 50/59.94/60
1280x720p 24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480i59.94
Supports YUV BT.601/709 signals
Supports 48KHz 8-channel audio output
Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards
Support Native CEA–608/608 over 708 captions
Output 3G-SDI signal with a transmitted distance greater than 150m

Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

LED Indicators
Decode status indicator
On: decoding
Blinks: decoding error
Off: source unselected

Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈300g

Power Consumption
Max power consumption: 5.2W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
