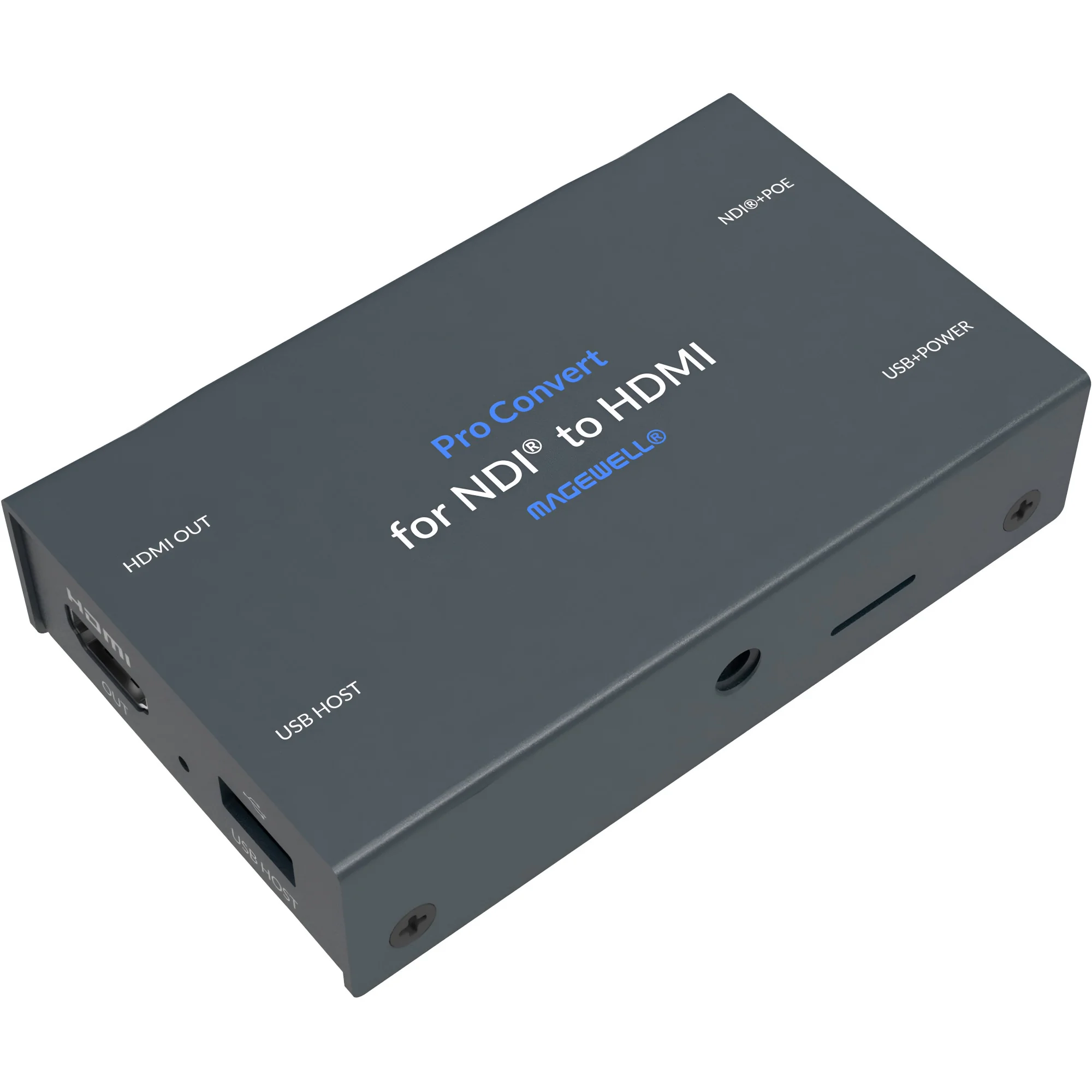

The Magewell Pro Convert for NDI® to HDMI converts a live NDI® stream with embedded audio into HD HDMI signal. Decode NDI streams up to 2K 60fps into HDMI output up to 4096x2160 60fps at ultra low latency.

Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, HTTP and HLS, enabling high-quality conversion of full NDI, NDI|HX, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs.

Compatible with a wide variety of hardware and software encoders, Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more.

They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production and video surveillance.

- Converts a live NDI® stream into HD HDMI signal
- Connects baseband presentation or distribution equipment into IP-based media networks
- Decodes Full NDI and NDI|HX including earlier variants into HD HDMI
- Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

Output Features
Max output: 4096x2160 60fps 4:4:4 8-bit
Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60 2560x1440p 60/100
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Support 48KHz 8-channel audio output
HDMI interface: HDMI 1.4/2.0

Decoding Features
Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

On-board Control Buttons
MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
USB3.0 Type A
Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED Indicators
Power LED status indicator
On: power connected
Off: power unconnected
Decode LED status indicator
On: decoding
Blinks: decoding error Off: source unselected

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~1.1A
Max power consumption: ~5W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
