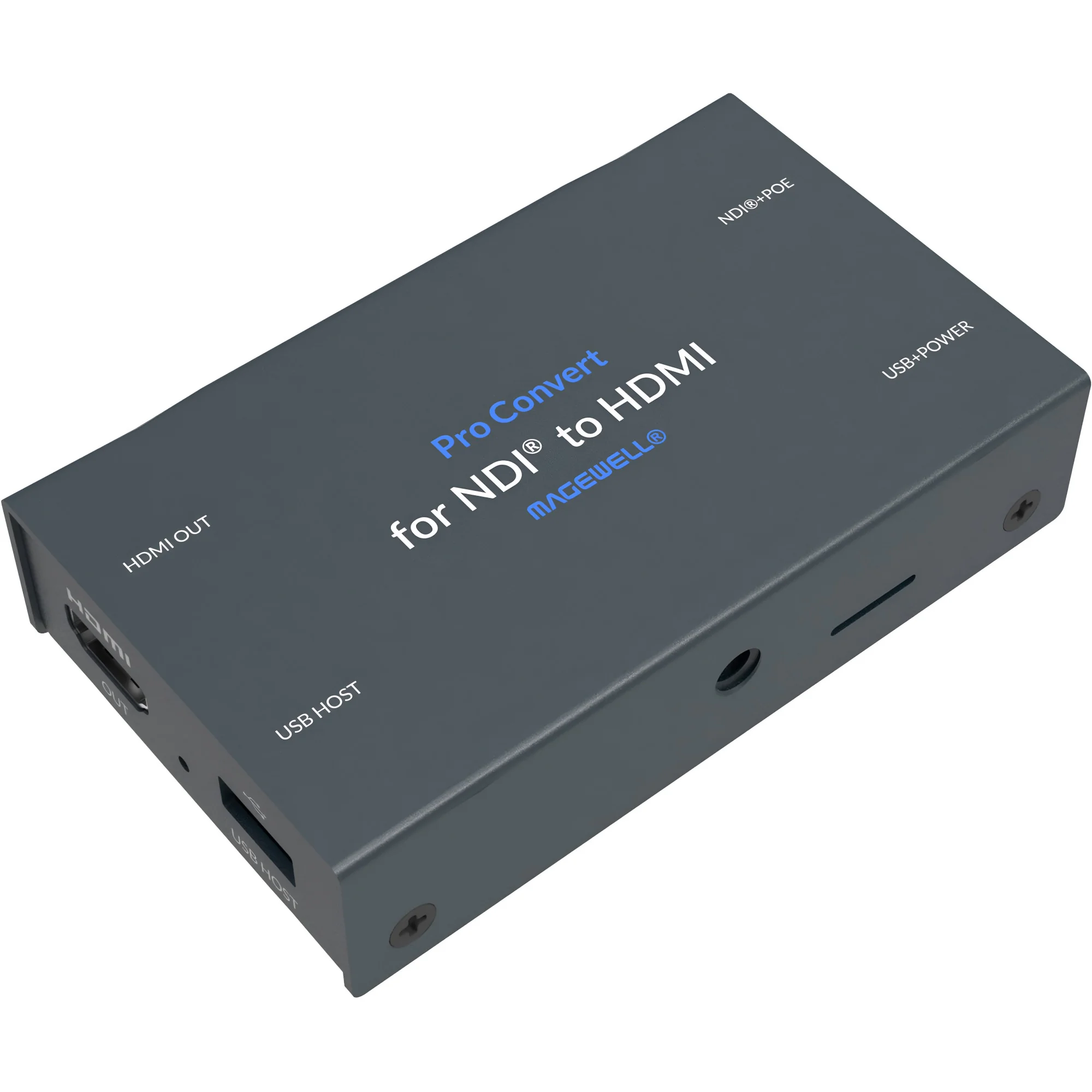

Magewell Pro Convert for NDI® to HDMI (64102) Decoder

Magewell Pro Convert for NDI® to HDMI (64102) Decoder

Name: Magewell Pro Convert for NDI® to HDMI (64102) Decoder
Brand: Magewell
SKU: 641000000
Price: 449.00 EUR
Availability: InStock

MPN: 641000000

Price: €449.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell Pro Convert for NDI to HDMI solves a familiar installation problem: how to take a live NDI stream from the network and feed a dependable HDMI output to a monitor, projector, multiviewer or confidence display without placing a PC at the destination. This compact NDI decoder handles Full NDI and NDI|HX sources up to 2K60, then delivers HDMI up to 4096x2160 60fps with integrated up-conversion from HD sources. In control rooms, studio monitoring, conference spaces, education, digital signage and event production, it turns an IP source into a screen-ready signal with very low latency and consistent audio/video output.

Its value goes beyond basic NDI decoding. The unit supports NDI 6.3, can discover devices across network segments, and also accepts H.264 and H.265 streams over RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP. That makes it useful as a decoder for overflow rooms, remote contribution monitoring, IPTV displays, esports observer positions or houses of worship where several transport methods may coexist. Embedded audio passes through HDMI with support for up to 8 channels, which matters when the destination display, switcher or processor must receive picture and sound together.

Magewell Pro Convert for NDI to HDMI is equally practical at the integration stage. Output follows the connected display’s EDID, helping the decoder select a suitable video format automatically, while image flip, safe area controls, deinterlacing, audio gain and channel mapping allow cleaner deployment on site. Configuration is available through Web GUI, on-board controls or attached keyboard and mouse, and HTTP APIs are available for custom control. PoE on Gigabit Ethernet cuts cable clutter at mounted screens, and support for Crestron plus Q-SYS suits larger managed AV systems. For NDI monitoring points, presentation endpoints and decoder nodes in streaming infrastructure, it is a compact broadcast-grade solution.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell Pro Convert for NDI® to HDMI converts a live NDI® stream with embedded audio into HD HDMI signal. Decode NDI streams up to 2K 60fps into HDMI output up to 4096x2160 60fps at ultra low latency.

Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, HTTP and HLS, enabling high-quality conversion of full NDI, NDI|HX, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs.

Compatible with a wide variety of hardware and software encoders, Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more.

They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production and video surveillance.

- Converts a live NDI® stream into HD HDMI signal
- Connects baseband presentation or distribution equipment into IP-based media networks
- Decodes Full NDI and NDI|HX including earlier variants into HD HDMI
- Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

Output Features
Max output: 4096x2160 60fps 4:4:4 8-bit
Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60 2560x1440p 60/100
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Support 48KHz 8-channel audio output
HDMI interface: HDMI 1.4/2.0

Decoding Features
Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

On-board Control Buttons
MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
USB3.0 Type A
Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED Indicators
Power LED status indicator
On: power connected
Off: power unconnected
Decode LED status indicator
On: decoding
Blinks: decoding error Off: source unselected

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~1.1A
Max power consumption: ~5W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
