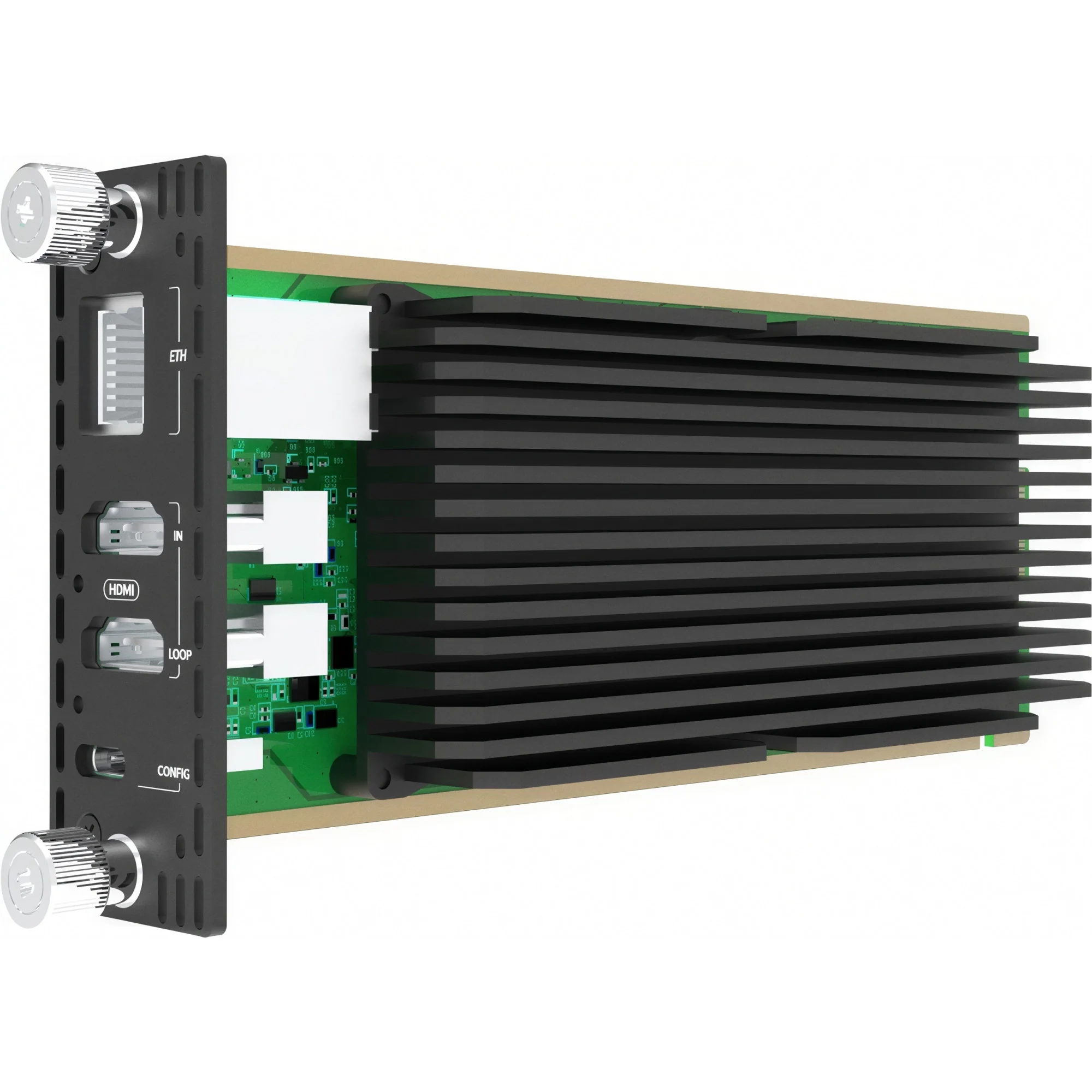

The Pro Convert HDMI Plus Module is a hot-swappable module designed to be installed in the Magewell Modator chassis, allowing you to convert HD HDMI input signals into high-bandwidth NDI streams with support for loop-through. It supports a variety of HDMI input resolutions, including up to 4096x2160 at 60fps (4:2:0) or 30fps (4:4:4), providing flexibility for different types of video sources. The module is centrally manageable via the Modator chassis and Magewell Control Hub, offering ease of integration into your production environment. A standalone version of this module is also available for those who prefer a separate solution.

The Pro Convert HDMI Plus Module delivers high-quality NDI encoding with very low latency, making it suitable for real-time video streaming and live production applications. It supports up to 2048x2160 at 120fps 4:2:2 8-bit NDI encoding and includes the ability to encode 8-channel NDI-embedded audio. It also fully supports NDI 5.x for compatibility with the latest NDI standards. With its intuitive control options, including the Modator chassis touchscreen, Web GUI, or Magewell Control Hub, users can easily configure and manage the module, while HTTP-based APIs enable custom integrations to suit specific workflows.

Features & Advantages:
Very low latency ensures real-time conversion and minimal delay, essential for live production and broadcast applications.
Configuration is simplified through the touch screen of the Modator chassis, Web GUI, or Magewell Control Hub, offering intuitive and user-friendly management options.
HTTP-based APIs provide flexibility for custom integrations, enabling tailored control and monitoring for specific production workflows.

Pro Convert HDMI Plus Module Specifications

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* HDMI 1.4 input port
1* HDMI 1.4 output port
1* Modator interface for connecting to Modator 2U (hot-swappable)

Input & Loop Through Features
Max. input & loop through signal:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
Input videos at any format by customizing the EDID of input port
Supports RGB and YUV BT.601/709 signals
Supports 8-channel HDMI-embedded audio

NDI® Encoding Features
Encode and output real-time streams of NDI High Bandwidth® at up to 2048x2160 120fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
720x480p/720x480i 59.94/60/119.88/120
720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encode 8-channel NDI-embedded audio
Supports NDI® 6.2

Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and signals in real-time
Allow to configure how a signal is encoded and output, including deinterlacing, EDID settings, up/down scale, frame rate, aspect ratio, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

LED Indicators
Input signal:
On: locked
Off: unlocked
Loop through signal:
On: device connected and signal detected
Off: undetected

Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈295g

Power Consumption
Max power consumption: 6.2W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
