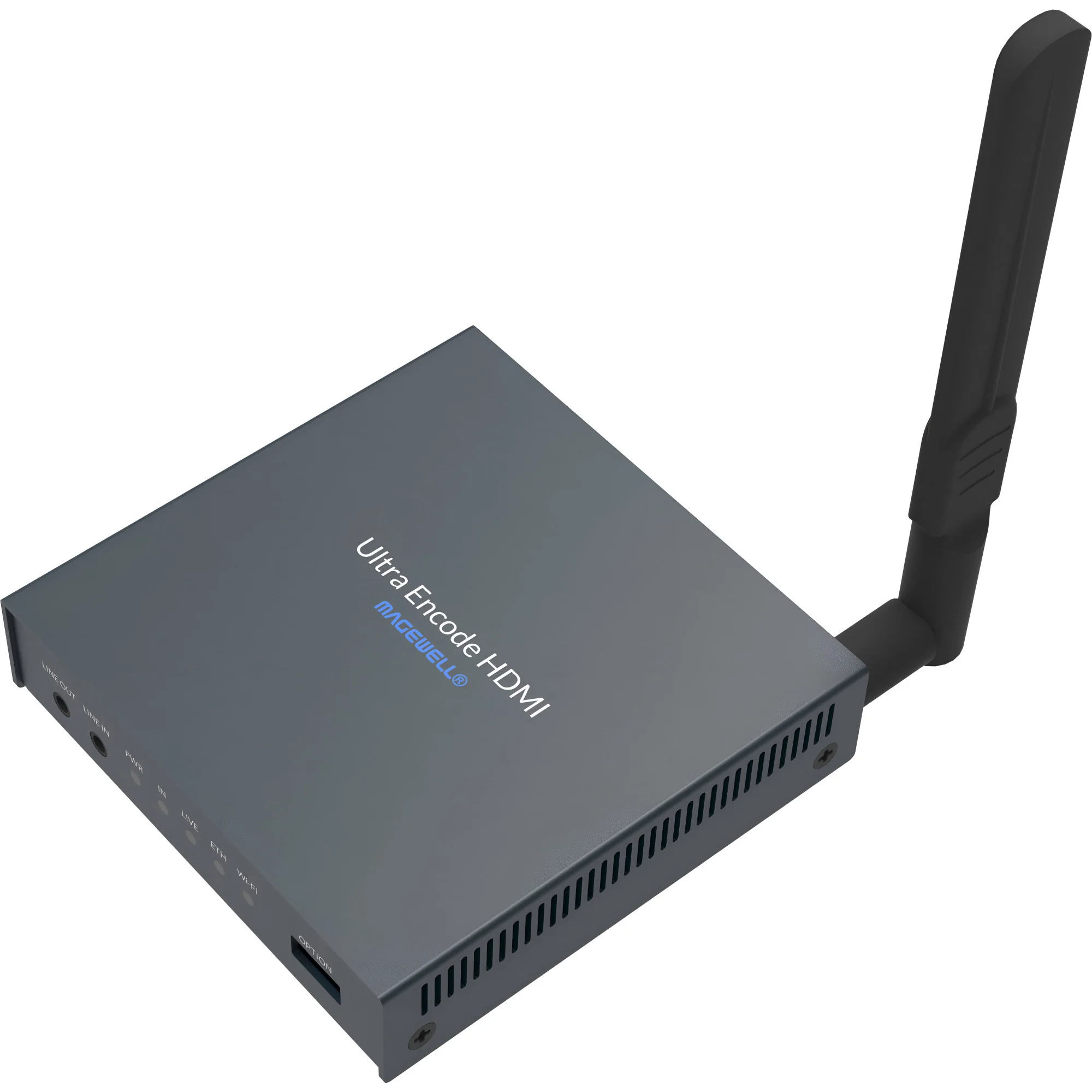

The Magewell Ultra Encode HDMI supports high-quality H.264, H.265 (HEVC), encoding. Stream Full HD video simultaneously to Facebook, YouTube, Twitch and other streaming platforms. This device supports also other streaming protocols such as SRT, NDI|HX, HLS, RTMP, and RTMPS with wired or wireless network connectivity.

HDMI input support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals.

Ultra Encode can be combined with our Pro Convert decoders to form flexible AV over IP infrastructures leveraging NDI®|HX and SRT technology. The devices can be configured and controlled through an intuitive Web GUI or HTTP-based APIs, providing systems integrators with exceptional deployment and integration flexibility.

A Flexible & Affordable Universal Encoder:
- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI|HX, HLS & more
- Suitable for various network environment

Input Features
Max HDMI input & loop-through signals:
4096x2160 60fps 4:2:0
4096x2160 30fps 4:4:4/4:2:2
Custom EDID
Supported inputs include:
4096x2160/3840x2160p 23.98/24/25/29.97/30/59.94/60
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
720x576p 50/100/144
720x576i 25/50
720x480p 59.94/60/144
720x480i 29.97/30
8/10/12-bit color
Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
Input audio from 3.5 mm LINE IN
HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features
Dual stream encoding: main stream and sub stream
Max bitrates:
Main Stream - 16Mbps
Sub Stream - 2Mbps
Support resolutions:
HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions
Encoding 2-channel AAC at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from HDMI signal and output through LINE OUT
Encoding videos after de-interlacing
H.265 (HEVC) SEI message supports carrying interlacing signal mark

Streaming Features
Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
Up to 6 sessions of TS over RTP and TS over UDP simultaneously
Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
Up to 6 sessions of RTMP and RTMPS simultaneously
Stream only 1 session of HLS, RTSP, or NDI|HX2
Total bitrates for different network connection types:
24Mbps for all streams is recommended for a wired network connection
16Mbps for all streams is recommended for a wireless network connection
Specify streaming main stream or sub stream for each session

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the system information of device and working status in real-time
Video thumbnail preview
Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
Update firmware
Export configuration profiles of the device
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

Network Interfaces
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)

Input/Output Interfaces
HDMI 1.4a input and loop-through interfaces
3.5mm LINE IN
3.5mm LINE OUT

LED Indicators
LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

Power Supply and Consumption
DC 5V/2A
Max power consumption: ~9.5 W

Form Factor
106.6mm x 106.2mm x 25mm

Accessories
AC adapter
Wi-Fi antenna
USB 2.0 Type B cable
HDMI cable
T-bracket

Screw Mounting Hole
2 x M3 threaded hole
A standard 1/4"-20 socket provided by T-bracket

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
