mini -edge -2s All-In-One Portable Case for mini-edge

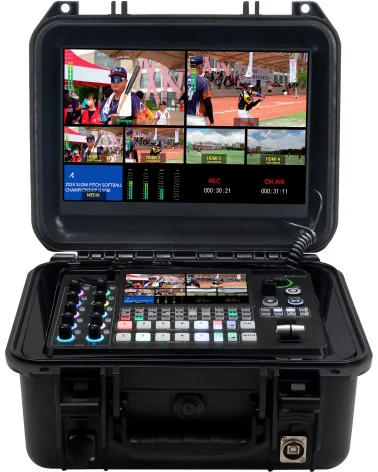

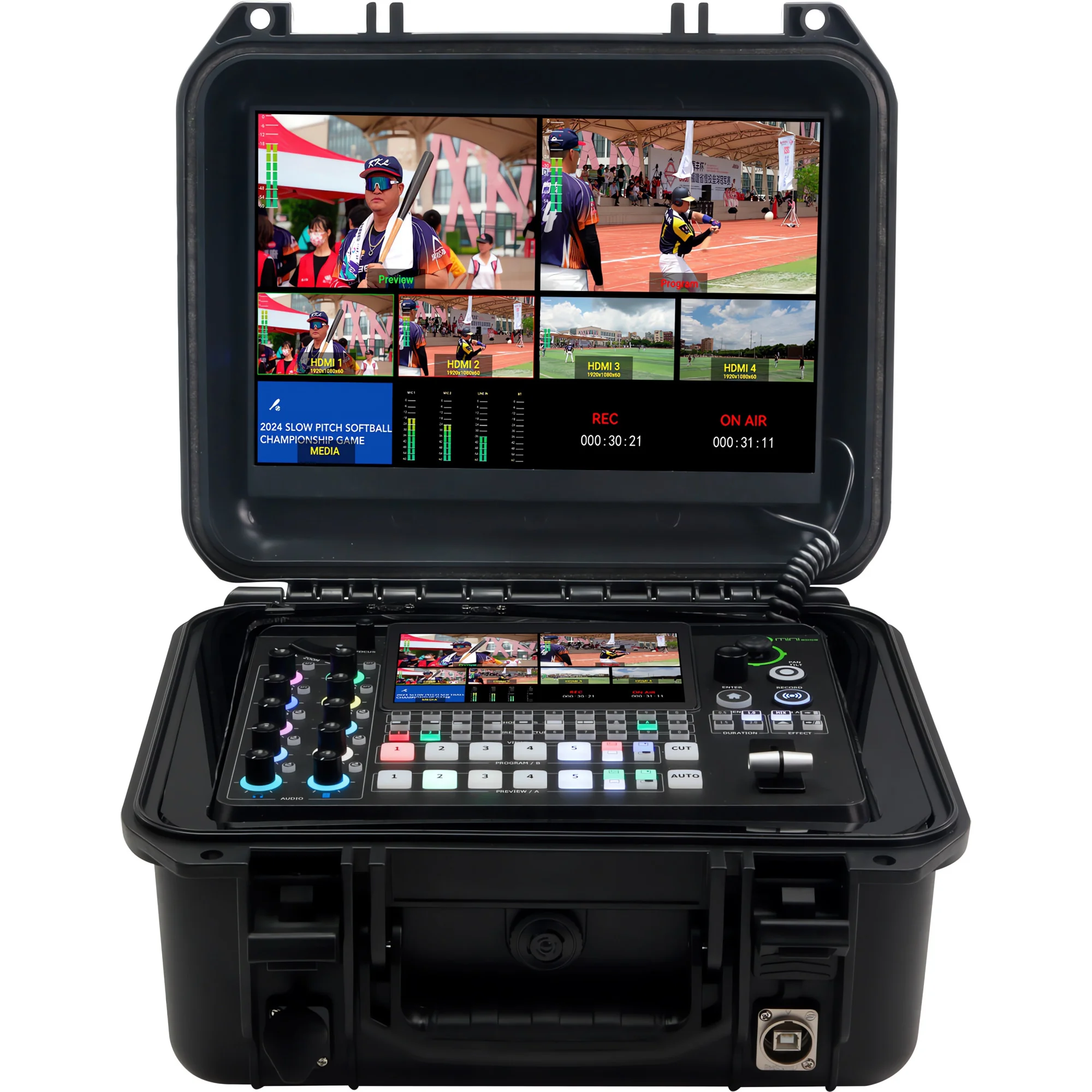

This Dedicated Portable Case made of high-strength PP material is equipped with a 13.3-inch IPS display and a switcher. Integrated audio and video switching, PTZ camera control, multi-view monitoring, and recording in one case, this portable and shock -resistant carry case is perfect for all sites, from music festival to lawn wedding, sports competition and other outdoor activities.

Key Features

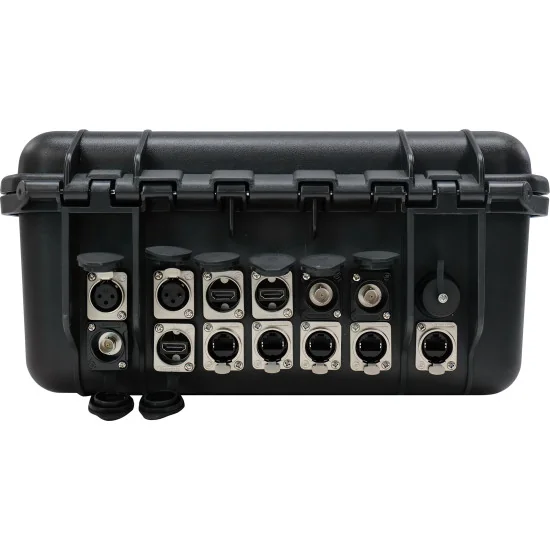

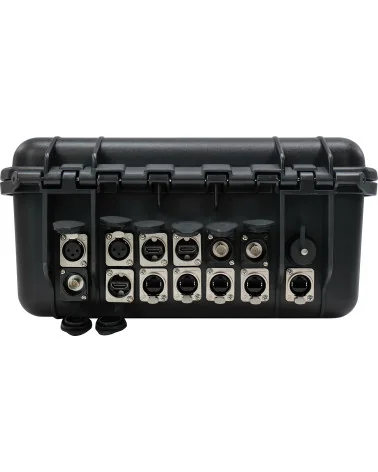

• Professional aviation connector to ensure high-quality performance
• Flexible standard connectors to meet personalized application
• Built-in 13.3" HD IPS monitor

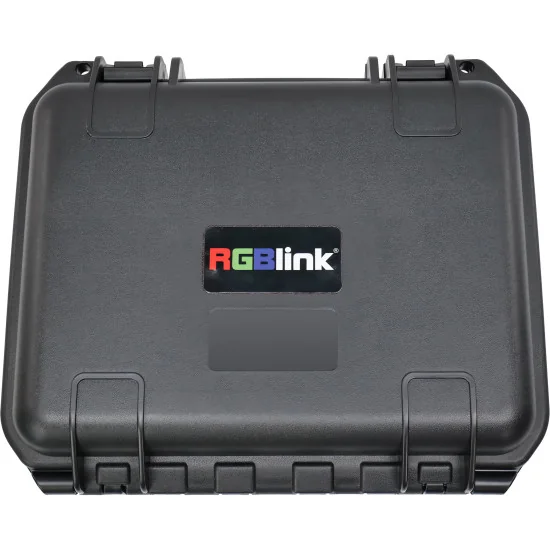

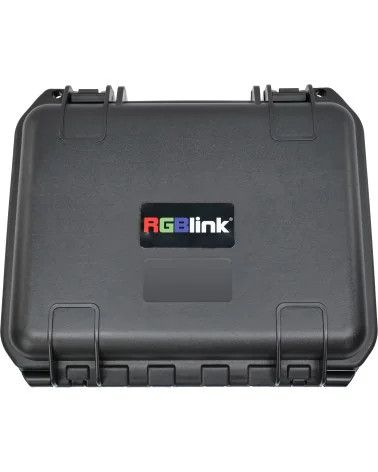

• High strength PP flightcase features long-lasting durability
• hydraulic rod support to enhance the stability
• Powerful air-cooling system designed for outdoor use
• Built-in 5.5 inch LCD screen for mini-edge
• Quad HDMI 2.0 inputs (HDCP compliance), resolutions up to 4K@60
• One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
• Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
• Eight audio inputs allow for output of mixed audio across one or all available channels
• Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGM or AUX
• Dual audio out jacks for listening ·
• One-key recording. Recording capacity of hard drive is up to 2TB
• Support simultaneous streaming to 4 live streaming platforms via RTMP(S)
• Support multi-layer overlay, layer scaling and cropping
• 17 switching effect modes
• 5-direction joystick for controlling up to 4 PTZ cameras
• Support saving up to 10 scene presets and thumbnails for real-time full preview
• Web control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
• Support Chroma Key
• 5G/4G Smartphone Tethering for iOS and Android system
• Air cooling design to ensure 24/7 stable operation

Specification

Connectors
Input:
HDMI 4K: 2×HDMI -A
SDI: 2×BNC
UVC (webcam): 1×USB-C
Output:
HDMI: 2K 1×HDMI -A
SDI: 1×BNC
UVC: 1×USB-C
USB (record): 1×USB-C
LAN (stream): 1×RJ45
Audio In:
MIC: 1×CANNON Jack (XLR)
LINE: 1×6.35mm TRS Jack
Bluetooth: 1×Bluetooth Module
UAC: 1×USB-C
HDMI: 2×HDMI -A
SDI: 2×BNC
Audio Out:
AUDIO: 1×6.35mm TRS Jack, 1×3.5mm mini-Jack
HDMI: 1×HDMI -A
SDI: 1×BNC
UVC: 1×USB-C
LAN: 1×RJ45
USB (record): 1×USB-C

Performance
Input Resolution:
HDMI: 1280×720@50/59.94/60 | 1024×768@60 | 1280×768@60 | 1280 ×800@60 | 1280×1024@60 | 1360 ×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1200@60 | 1920×1080i@50/59.94/60 | 1920×1080p@23.98/24/25/29.97/30/50/59.94/60 | 3840×2160p@30/50/60 | 4096x2160@30/50/60
SDI: 1080P@23.98/24/25/29.97/30/50/59.94/60
Output Resolution:
HDMI: 1280×720@50/60 | 1920×1080@60 | 3840×1080@30
SDI: 1080P@23.98/24/25/29.97/30/50/59.94/60
USB (Webcam): 1920×1080@24/25/30/50/60
Video Video Formats: HDMI 2.0 | HDCP 2.2
Grayscale Processing: 10bit
Video Sampling: 4:4:4 YUV
Video Latency: <4 frames
Audio:
Line In Delay: up to 8 frames
Audio Format: HDMI: Linear PCM, 24 bits/48 kHz, 2 ch, USB: Linear PCM, 16 bits/48 kHz, 2 ch
Record/Storage:
Record Formats: MP4
Disk Formats: FAT32( ≤32 GB) | exFAT(64GB~2T)
Supported Standards:
HDMI: 2.0
USB: 3.0
H.265: ITU-T H.265/ ISO/IEC 23008 -2
13.3'' Display:
Screen Size: 13.3"
Panel Type: IPS
Display Color: 16.7M, 72%NTSC/:16.7M, 100%sRGB
Resolution: 1920×1080 pixels
Contrast: 1000:1
Gamut: 72%
Brightness: 350 cd/m 2
Refresh Rate: 60Hz
View Angle: 85°/85°(L/R) 85°/85°(U/D)

Power:
Input Voltage: PD 12V/5A
Maximum Power: 60W

Physical:
Outer Size: 460mm × 360 mm × 200mm
Material: PP
Color: Black
Packaged Weight: 9.23 kg
Packaged Dimension: 470mm × 370mm × 210mm
