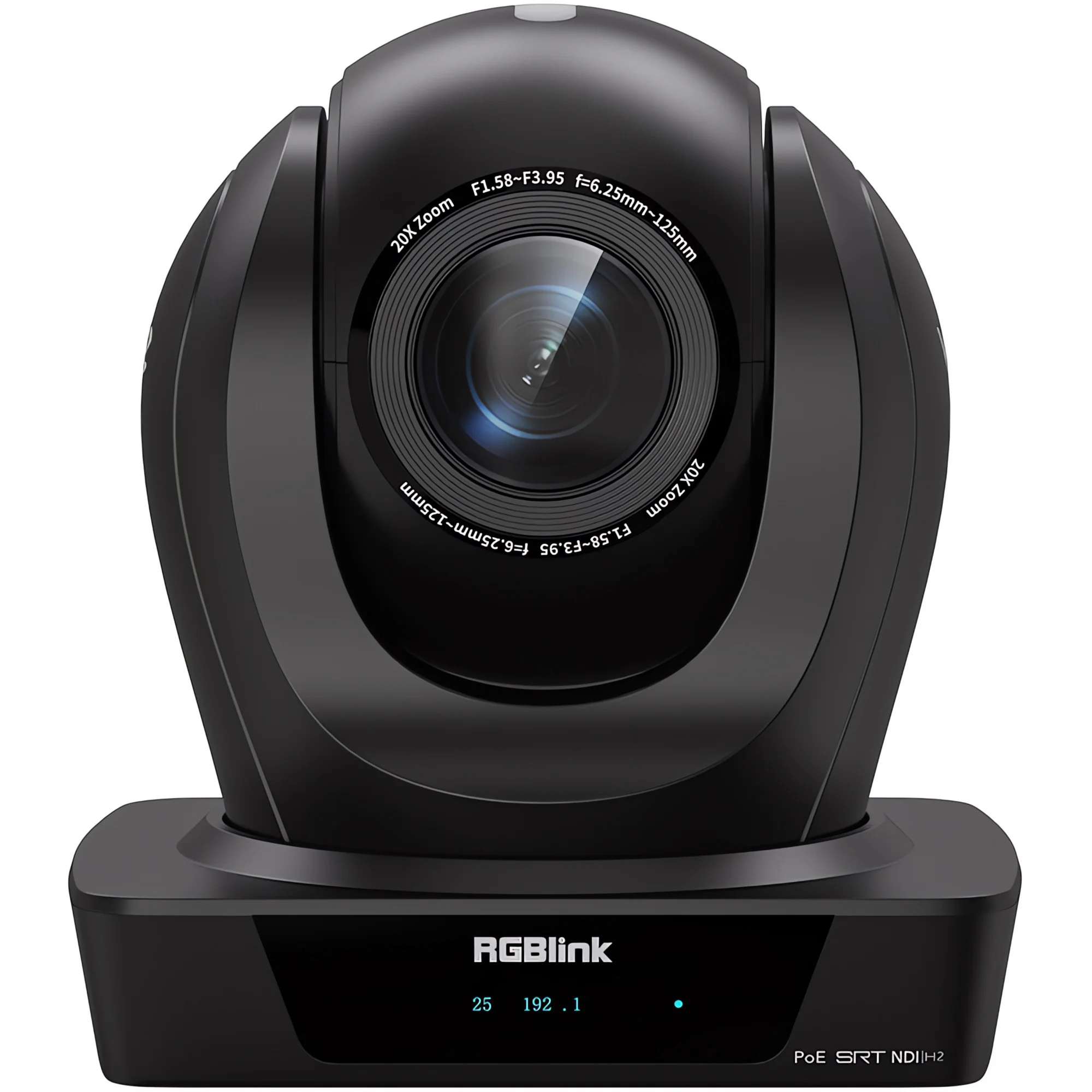

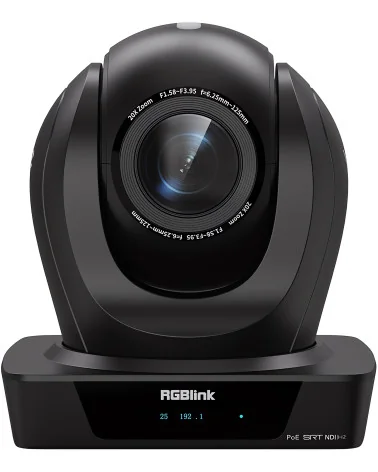

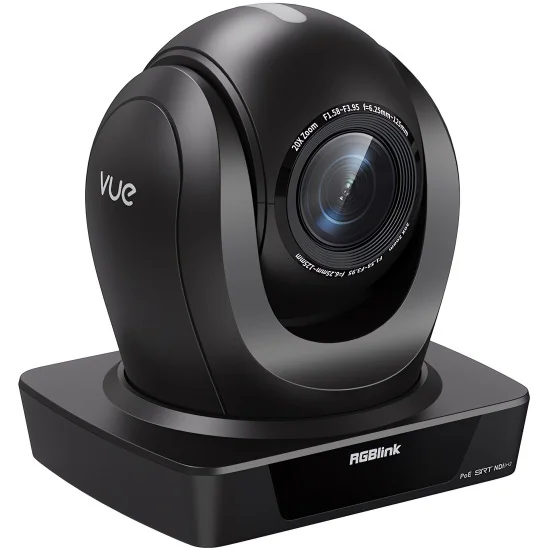

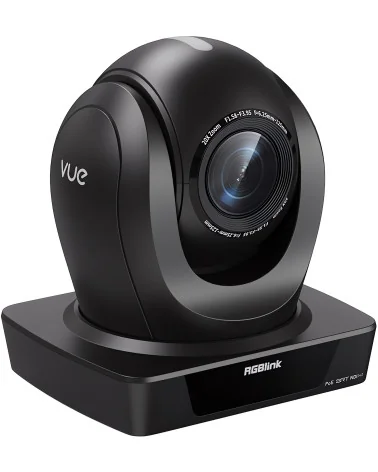

RGBlink 4K vue PTZ camera is designed for professional broadcasting. The 1600TVL resolution lens is equipped with an advanced ISP image processor and 8.51 million pixel sensor (1), providing ultra-clear 4K image quality. Supports 12X/20X optical zoom and a range of outputs from HDMI, 12G-SDI to H.264, H.265, and NDI. It can support a maximum pitch angle of -30°~+210°, truly achieving panoramic vision coverage. Ultra-wide dynamic range provides powerful color performance. vue 4K has a unique TALLY indicator light and identification board, which can be seen from a 360° full viewing angle without fear of device switching. RGBlink 4K vue PTZ camera is suitable for any scene, including radio and television stage design, professional studios, corporate live broadcasts, character interviews, remote conferences, wedding hotels, outdoor live broadcasts, education and training, e-sports live broadcasts, church live broadcasts, etc.

Key Features
- Stable AI Tracking
- Resolution up to 3840x2160@60
- High performance in low light scenarios with Wide Dynamic Range
- H.265/H.264 Dual Stream Output Adapted to Different Network Environments
- 12G-SDI | HDMI2.0 | USB Type-C Multiple Output
- Pan and Tilt Control
- Built-in Dual Microphones
- NDI|HX2 output
- Support TALLY
- Support PoE+
- Low-power Sleep Function
- Wide Application

Specification

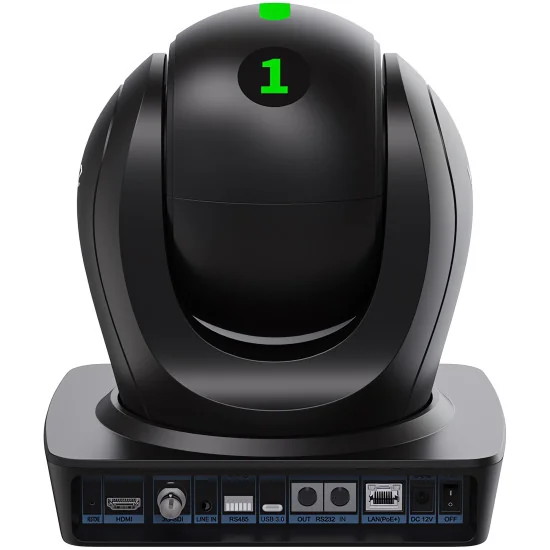

Connectors

Video Output
SDI: 1xBNC
HDMI: 1xHDMI 2.0
USB: 1xUSB Type-C
NDI" 1xRJ45
LAN(PoE+): 1xRJ45

Audio
IN: 1x3.5mm TRS Stereo Jack
Built-in: Dual Microphones

Communication
RS232 In/Out: 1×DIN-8
RS422/485: 1×4-Pin Phoenix Connector (RS485-2PIN | RS422-4PIN)
LAN: 1×1000M LAN Port

Performance

Camera
Optical Zoom: 12X
Focal Length: f = 3.47mm ~ 41.65mm
Aperture: F1.84 ~ F3.72
Horizontal View Angle: 81° ~ 7.5°
Vertical View Angle: 50° ~ 4.3°
CMOS Sensor: 1/2.5 inch
Effective Pixels: 8.51m
Digital Zoom: 16X
Minimum Illumination: 0.5 Lux（@F1.8, AGC ON）
DNR: 3D DNR
White Balance: Auto / Manual/ One Push/ Indoors/ Outdoors/VAR
Focus/Iris/Shutter: Auto / Manual
BLC: ON/OFF
Dynamic Range: OFF/ Dynamic Level Adjustment
Video Adjustment: Brightness/Hue/Saturation/Contrast/Sharpness/B/W Mode/Gamma Curve
Image Flip: Auto / Manual
Image Freeze: Supported
SNR: ≥55dB
Lens Resolution: 1600TVL+ (Central Area)

Pan-and-Tilt Parameter
Pan/Tilt Movement: -170°～+170°/-90°～+210°
Pan/Tilt Control Speed: 1.8～100°/s；1.5～60°/s
Preset Speed/Quantity: Pan:100°/s(max), Tilt:60°/s(max); Up to 255 preset positions (10 remote control)
360° TALLY: Full 360° view of TALLY
TALLY Signboard: (No.1~255)

Output Resolutions
HDMI & SDI
3840x2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
Network
(H.265 / H.264 / MJPEG) 3840x2160, 1920x1080, 1280x720 etc.
(First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps)

Audio Compression Format: AAC | G.711A
Video Compression Format: H.264 | H.265 | Dual Streaming Output
USB Protocol: UVC 1.5 (UVC 1.1 backward compatible)
NDI Protocol: NDI|HX2
Control Protocol: VISCA | Pelco-D | Pelco-P | ONVIF
FreeD Protocal: Support (Network)
Network Protocol: RTSP | RTMP | ONVIF | NDI | VISCA | FreeD
Baud Rate(bps): 115200 | 9600 | 4800 | 2400bps
Synchronous Output: 12G SDI + HDMI2.0 +UVC 1.5+ NDI+Dual RTSP + FreeD

Power
Input Voltage: DC 12V/1.5A
Max Power: 18W

Environment
Temperature: 0℃～40℃
Humidity: 20%～80%

Physical
Weight: 2.27kg
Dimension: 212mm x 176mm x 232mm
