SmallHD Quantum 32 Moniteur de studio

Name: SmallHD Quantum 32 Moniteur de studio
Brand: SmallHD
SKU: SHD-16-3201
Price: 12200.00 EUR
Availability: InStock

MPN: SHD-16-3201

Prix : 12 200,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

Le SmallHD Quantum 32 est un moniteur de référence HDR 4 K QD-OLED destiné à la post-production cinéma, au contrôle DIT et aux régies de diffusion. Sa dalle 32 pouces (31,5 “) allie quantum-dots et OLED auto-émissif pour atteindre 1000 nits, un contraste 1 500 000 : 1 et 99 % DCI-P3 / 80 % BT.2020 en véritable 10 bits, traité en 12 bits internes. La résolution native 3840 × 2160 garantit un contrôle point-par-point des images UHD et DCI.

Quatre ports 12G-SDI bidirectionnels et un couple HDMI 2.0 4 K60 s’intègrent aux matrices, mélangeurs et stations DIT ; le pass-through LUT 3D 33 points préserve la cohérence chromatique du signal. Wi-Fi via l’application Fleet™, Ethernet GPI tally et lecteur SD simplifient la gestion multi-moniteurs.

Le nouveau PageOS 6, animé par un processeur multi-cœur, propose waveform, parade RGB, vectorscope, zoom pixel, fausse couleur haute précision et pages de correspondance caméra, accessibles via encodeurs rétro-éclairés. L’intégration CalMAN assure un calibrage fiable en PQ, HLG ou SDR.

Usiné dans un bloc d’aluminium, le châssis de 8,3 kg accepte un VESA 100 mm ou des accessoires sur rail queue d’aronde. Alimentation 25–34 V XLR ou double plateau Gold/V-mount 26 V, avec sorties 2-broches 12 V, USB-A 2,4 A et USB-C 1,5 A pour les périphériques. Quand la fidélité d’image et l’endurance priment, le SmallHD Quantum 32s’impose.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Quantum 32 - A 31.5" quantum dot OLED monitor that meets the demands of color grading and mastering.

The Best Panel Tech in the World
Quantum 32 is the result of a partnership between SmallHD and Samsung Display Corporation to create a monitor that meets the requirements of motion picture production and post. SDC has pioneered quantum dot OLED, utilizing Nobel Prize-winning nanotechnology to achieve unparalleled color and dynamic range.

Our Most Advanced Display Technology
QD-OLED panels directly emit narrow spectrum RGB light evenly in all directions, providing uniform luminance up to 1000nits, extending color gamut coverage to 97% of DCI-P3, and enabling an exceptionally wide viewing angle.

More Colors, More Color Volume.
Quantum dot OLED enables an exceptionally high volume of color expressions. The results more closely approximate human vision: extremely high color purity and peak luminance.

Advanced Video Processing + PageOS
Quantum 32 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.

Powered by PageOS
PageOS is a customizable, page-based software toolset with an intuitive UI/UX that gives you full control over exclusive integrated tools, color, exposure, camera, LUTs, and so much more.

Improved Color Pipe Controls
Improves contextual understanding with simplified descriptions and layout.

Built-In Calibration
Calibrate Quantum 32 with new PageOS in-monitor auto-calibration tool. No 3rd-party software required.

New Fleet Control App
Provides total remote access to all network connected SmallHD monitors. Control settings, tools, and more.

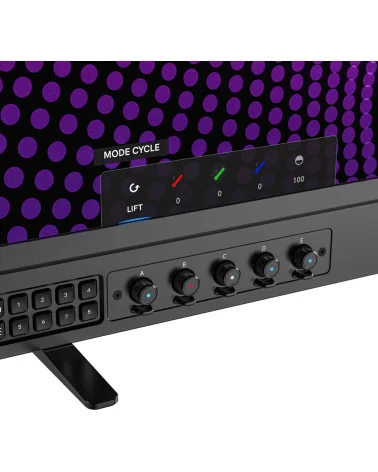

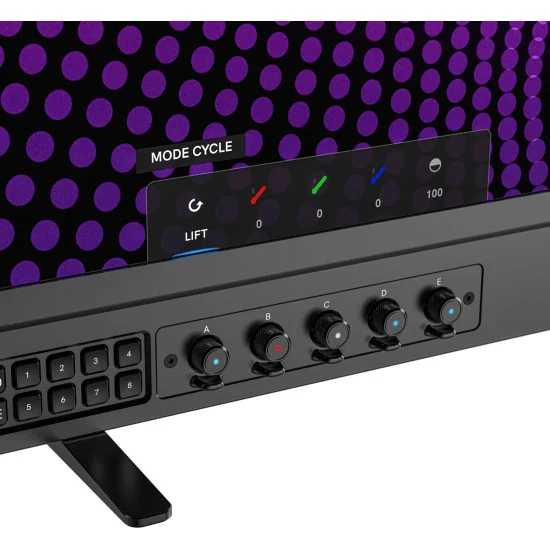

Multi-Function Rotary Dials
One-touch controls with the ability to change different tools, settings, and functions on the fly.

Multi-View EOTFs and LUTS
Simultaneously display up to 4 SDR and HDR feeds with or without LUTs. Compare SDR and HDR feeds.

SDI Output of Processed Signals
Allows 3D LUTs to be applied to output video. Video can be sent downstream to other devices with LUT applied.

QUANTUM 32 SPEC SHEET
MODEL: Quantum 32
CONTRAST: > 1,500,000:1
PANEL TYPE: QD-OLED
GAMUT COVERAGE: 97% DCI-P3
SCREEN SIZE: 31.5” / 80cm
COLOR DEPTH: True 10-bit
RESOLUTION: 3840 x 2160
BACKLIGHT TYPE: QD-OLED
BRIGHTNESS: 1000 nits (peak @3% APL)
BACKLIGHT ZONES: N/A
INPUT SIGNALS: 4x 12G/6G/3G/HD-SDI , 1x HDMI 2.0 (4K60)
OUTPUT SIGNAL: 4x 12G/6G/3G/HD-SDI , 1x HDMI 2.0 (4K60) 1x 3.5mm 3-pin Stereo Headphone Jack
VIDEO RESOLUTION
SDI:
4K: 4096x2160p: 23.98/24/29.97/30/47.95/48/50/59.94/60
UHD: 3840x2160: 23.97/24/25/29.97/30/50/59.94/60
2K: 2048x1080p: 23.97/24/25/30
HD: 1080psf: 23.97/24/25 ; 1080i: 50/59.97/60 ; 1080p: 23,98/24/25/29.97/30 ; 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 ; 480p: 59.94/60/100/119.88/120 ; 576p: 50/100 ; 480i: 59.94/60/119.88/120 ; 576i: 50/100
HDMI:
4:4:4 Up to 4Kp60 Supports YCC 4:2:2 @ 8bits, 8/10/12bit color in RGB & YCC
POWER INPUT: 1x 3-pin XLR (321W max, 27V-34V, 12A-9.4A) , 1x Dual-GM/VM Batt. Plate (26V) sold separately
POWER OUTPUT: 2x 2pin (12V/2A combined) 2x USB (5V/2.4A) (Front/Rear) 1x USB-C (5V/1.5A)
DATA I/O: 1x SD Card Slot 1x RJ45 Ethernet 1x RJ45 GPI, 1x WiFi antenna port
LUTs: 33pt 3D-LUT on output/input
DIMENSIONS: Without Handle and Feet: 77.3 x 49.5 x 7.0 cm
WEIGHT: 8,3kg
SOFTWARE PAGEOS:
* Redesigned Color Pipe UI
* Fleet Control Remote Access App Integration
* Wifi Support for Monitor Control
* Custom Exposure Assist
* Pixel-based Fine Adjustments for Tools
* Integrated CalMAN Calibration Support
* Trigger Tally with GPI
* High Resolution Waveform
SPECIAL FEATURES:
* 31.5 HDR Reference Monitor
* Quantum Dot OLED Display Panel
* 1000 Nits Brightness
* New Rotary Control Dials
* Multiview of EOTFs/LUTs
* Dual-GM/VM Battery Plates
* 2x 2pin LEMO power output
* 1x USB-C power output 2x USB power output
* PageOS 6 Software
