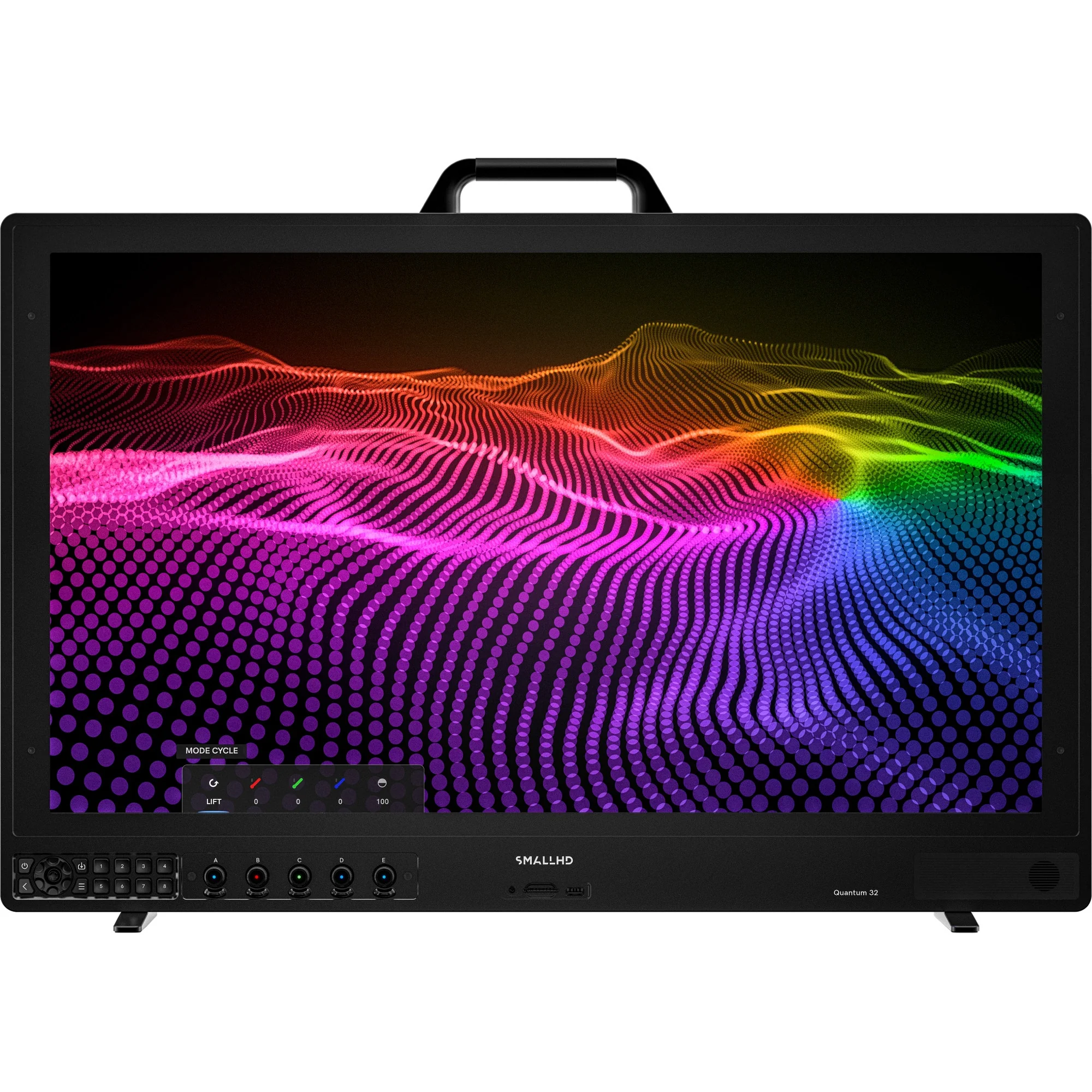

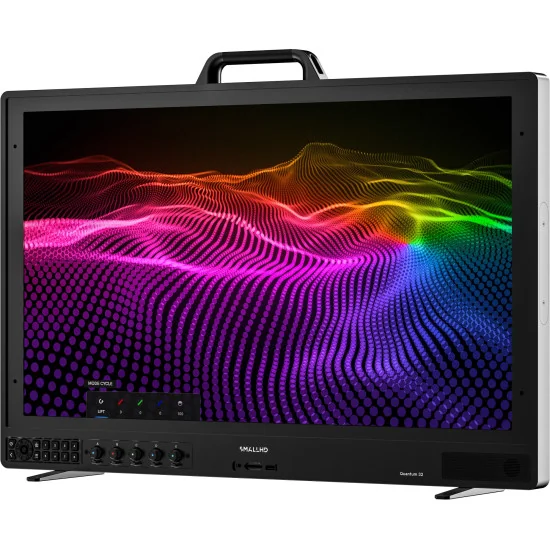

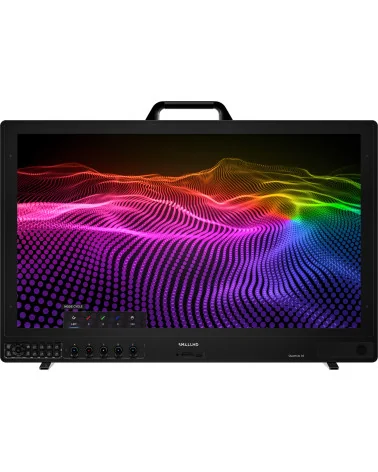

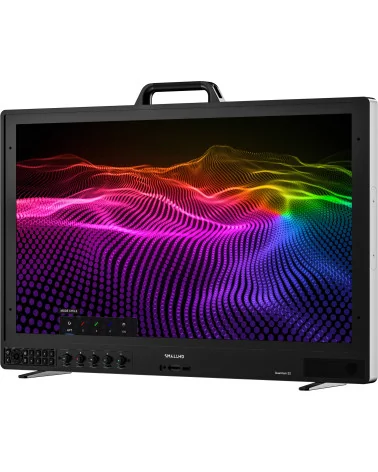

SmallHD Quantum 32 Studio Monitor

Name: SmallHD Quantum 32 Studio Monitor
Brand: SmallHD
SKU: SHD-16-3201
Price: 12200.00 EUR
Availability: InStock

MPN: SHD-16-3201

Price: €12,200.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

SmallHD Quantum 32 is a QD-OLED 4 K HDR reference monitor engineered for colour-critical production, finishing and live broadcast control. Its 32-inch class (31.5 “) panel fuses quantum-dot emitters with self-emissive OLED, achieving uniform 1000 nits, near-infinite 1 500 000 : 1 contrast and 99 % DCI-P3 / 80 % BT.2020 at true 10-bit depth with 12-bit internal processing. The native 3840 × 2160 matrix renders pixel-perfect focus for DCI and UHD work.

Four 12G-SDI inputs/outputs plus HDMI 2.0 4 K60 slot straight into studio routers, switchers and DIT carts, while 33-point 3D-LUT pass-through keeps downstream feeds colour-managed. Wi-Fi with Fleet™ app, Ethernet GPI tally and an SD slot streamline multi-monitor workflows.

The latest PageOS 6 firmware, driven by a custom multi-core CPU, unlocks high-resolution waveform, RGB parade, vectorscope, pixel-zoom, precision false-colour and camera-matching pages—recalled instantly via back-lit encoder dials. CalMAN hooks guarantee repeatable PQ, HLG and SDR alignment.

CNC-milled aluminium keeps weight to 8.3 kg and accepts 100 mm VESA or dovetail accessories. Power via 25–34 V XLR or hot-swap dual 26 V Gold/V-mount plates, with dual 2-pin 12 V, USB-A 2.4 A and USB-C 1.5 A outputs for peripherals. When fidelity and speed are mission-critical, SmallHD Quantum 32 stands alone.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Quantum 32 - A 31.5" quantum dot OLED monitor that meets the demands of color grading and mastering.

The Best Panel Tech in the World
Quantum 32 is the result of a partnership between SmallHD and Samsung Display Corporation to create a monitor that meets the requirements of motion picture production and post. SDC has pioneered quantum dot OLED, utilizing Nobel Prize-winning nanotechnology to achieve unparalleled color and dynamic range.

Our Most Advanced Display Technology
QD-OLED panels directly emit narrow spectrum RGB light evenly in all directions, providing uniform luminance up to 1000nits, extending color gamut coverage to 97% of DCI-P3, and enabling an exceptionally wide viewing angle.

More Colors, More Color Volume.
Quantum dot OLED enables an exceptionally high volume of color expressions. The results more closely approximate human vision: extremely high color purity and peak luminance.

Advanced Video Processing + PageOS
Quantum 32 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.

Powered by PageOS
PageOS is a customizable, page-based software toolset with an intuitive UI/UX that gives you full control over exclusive integrated tools, color, exposure, camera, LUTs, and so much more.

Improved Color Pipe Controls
Improves contextual understanding with simplified descriptions and layout.

Built-In Calibration
Calibrate Quantum 32 with new PageOS in-monitor auto-calibration tool. No 3rd-party software required.

New Fleet Control App
Provides total remote access to all network connected SmallHD monitors. Control settings, tools, and more.

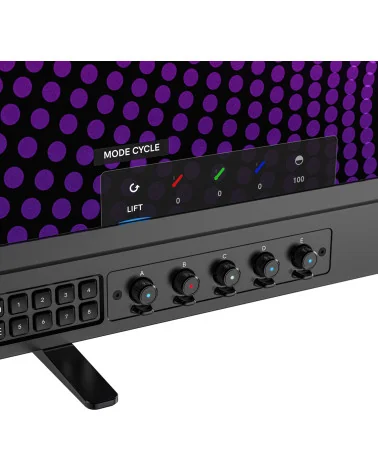

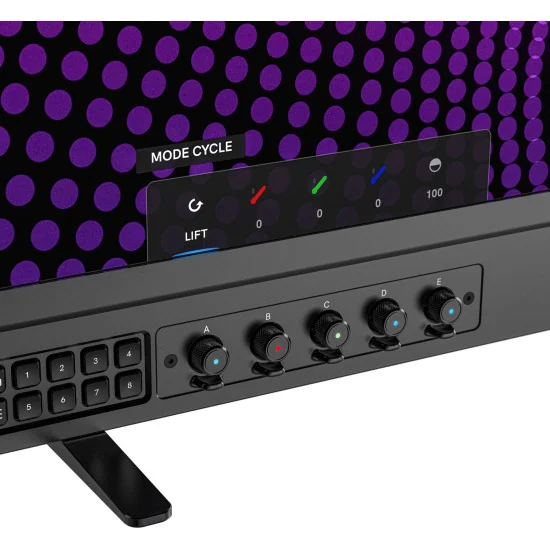

Multi-Function Rotary Dials
One-touch controls with the ability to change different tools, settings, and functions on the fly.

Multi-View EOTFs and LUTS
Simultaneously display up to 4 SDR and HDR feeds with or without LUTs. Compare SDR and HDR feeds.

SDI Output of Processed Signals
Allows 3D LUTs to be applied to output video. Video can be sent downstream to other devices with LUT applied.

QUANTUM 32 SPEC SHEET
MODEL: Quantum 32
CONTRAST: > 1,500,000:1
PANEL TYPE: QD-OLED
GAMUT COVERAGE: 97% DCI-P3
SCREEN SIZE: 31.5” / 80cm
COLOR DEPTH: True 10-bit
RESOLUTION: 3840 x 2160
BACKLIGHT TYPE: QD-OLED
BRIGHTNESS: 1000 nits (peak @3% APL)
BACKLIGHT ZONES: N/A

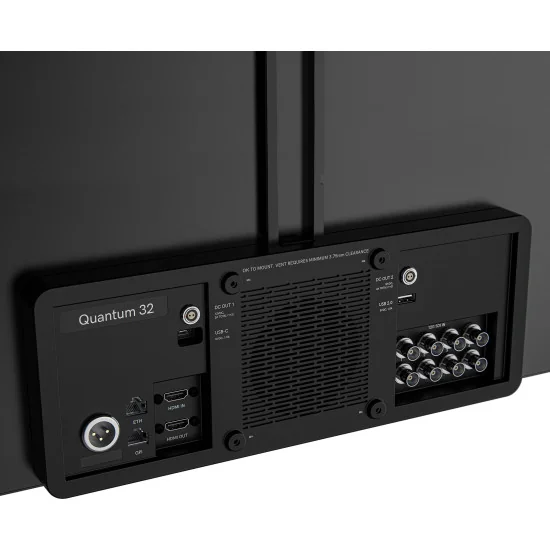

INPUT SIGNALS: 4x 12G/6G/3G/HD-SDI , 1x HDMI 2.0 (4K60)
OUTPUT SIGNAL: 4x 12G/6G/3G/HD-SDI , 1x HDMI 2.0 (4K60) 1x 3.5mm 3-pin Stereo Headphone Jack
VIDEO RESOLUTION
SDI:
4K: 4096x2160p: 23.98/24/29.97/30/47.95/48/50/59.94/60
UHD: 3840x2160: 23.97/24/25/29.97/30/50/59.94/60
2K: 2048x1080p: 23.97/24/25/30
HD: 1080psf: 23.97/24/25 ; 1080i: 50/59.97/60 ; 1080p: 23,98/24/25/29.97/30 ; 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 ; 480p: 59.94/60/100/119.88/120 ; 576p: 50/100 ; 480i: 59.94/60/119.88/120 ; 576i: 50/100
HDMI:
4:4:4 Up to 4Kp60 Supports YCC 4:2:2 @ 8bits, 8/10/12bit color in RGB & YCC
POWER INPUT: 1x 3-pin XLR (321W max, 27V-34V, 12A-9.4A) , 1x Dual-GM/VM Batt. Plate (26V) sold separately
POWER OUTPUT: 2x 2pin (12V/2A combined) 2x USB (5V/2.4A) (Front/Rear) 1x USB-C (5V/1.5A)
DATA I/O: 1x SD Card Slot 1x RJ45 Ethernet 1x RJ45 GPI, 1x WiFi antenna port
LUTs: 33pt 3D-LUT on output/input
DIMENSIONS: Without Handle and Feet: 77.3 x 49.5 x 7.0 cm
WEIGHT: 8,3kg
SOFTWARE PAGEOS:
* Redesigned Color Pipe UI
* Fleet Control Remote Access App Integration
* Wifi Support for Monitor Control
* Custom Exposure Assist
* Pixel-based Fine Adjustments for Tools
* Integrated CalMAN Calibration Support
* Trigger Tally with GPI
* High Resolution Waveform
SPECIAL FEATURES:
* 31.5 HDR Reference Monitor
* Quantum Dot OLED Display Panel
* 1000 Nits Brightness
* New Rotary Control Dials
* Multiview of EOTFs/LUTs
* Dual-GM/VM Battery Plates
* 2x 2pin LEMO power output
* 1x USB-C power output 2x USB power output
* PageOS 6 Software
