SmallHD Ultra 5 Bolt 6 TX 750 Moniteur

Name: SmallHD Ultra 5 Bolt 6 TX 750 Moniteur
Brand: SmallHD
SKU: SHD-16-0529
Price: 3090.00 EUR
Availability: InStock

MPN: SHD-16-0529

Prix : 3 090,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

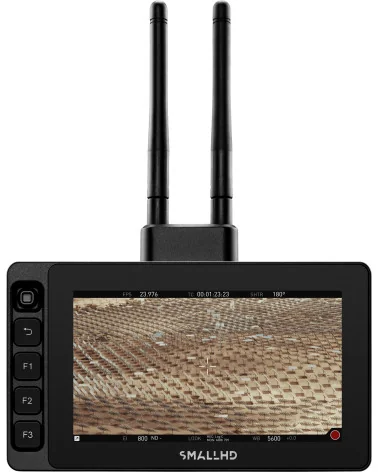

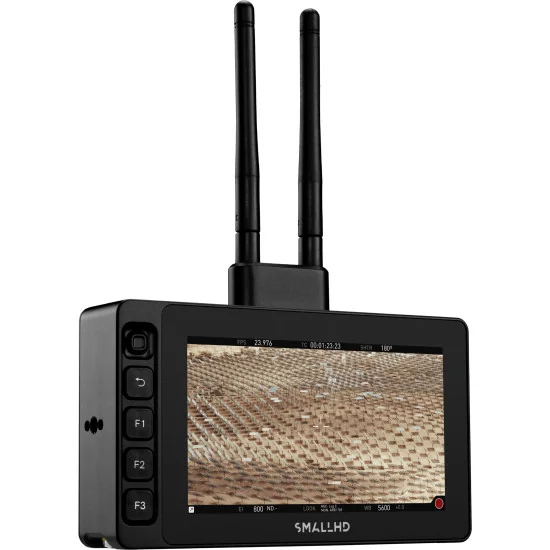

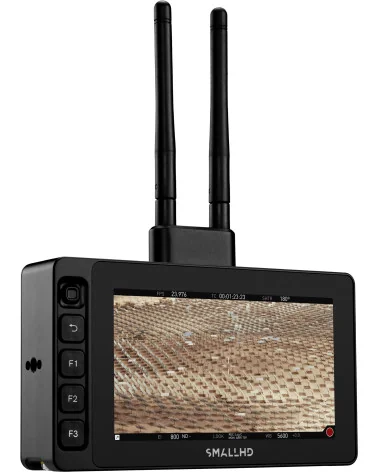

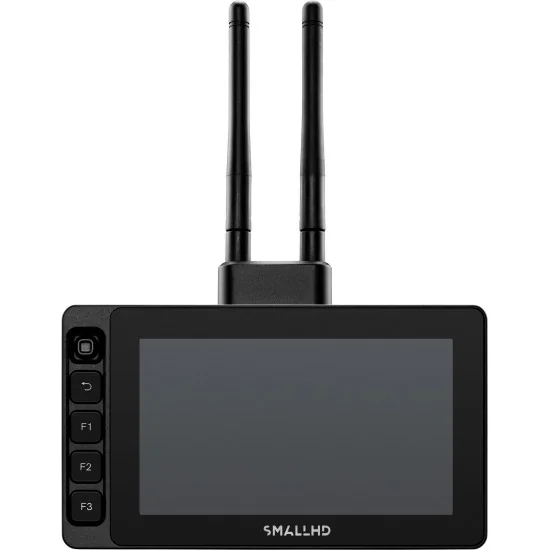

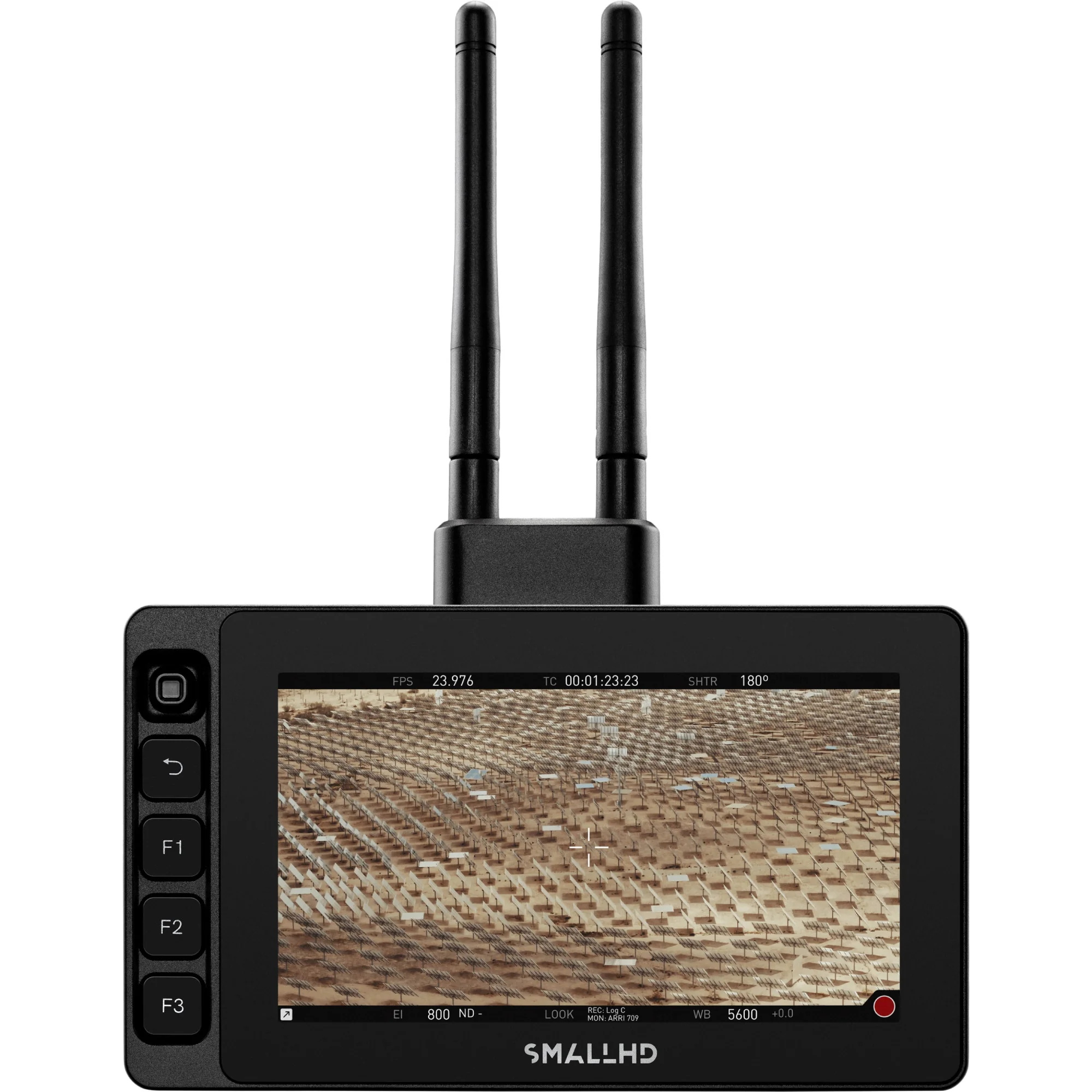

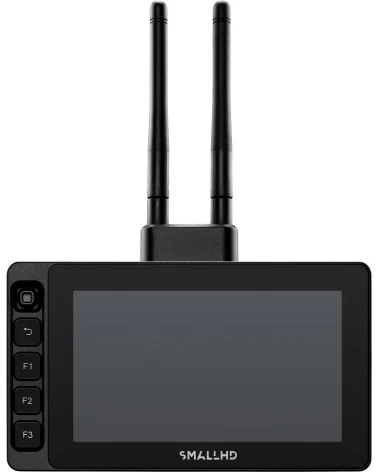

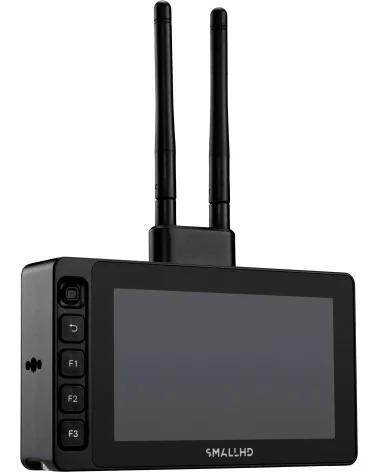

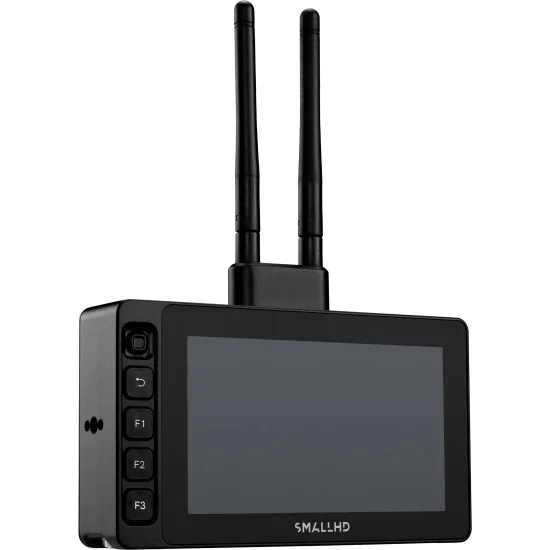

Le SmallHD Ultra 5 Bolt 6 TX 750 est un moniteur professionnel de 5 pouces avec un transmetteur sans fil Teradek Bolt 6 intégré, conçu pour les environnements de production vidéo haut de gamme. Sa luminosité de 3000 cd/m² garantit une visibilité optimale en extérieur, tandis que la résolution de 1920 x 1080 et le traitement des couleurs 10 bits 4:2:2offrent une surveillance d’image précise et détaillée.

Doté d’entrées et de sorties 3G-SDI et HDMI 2.0, l’Ultra 5 prend en charge des signaux vidéo jusqu’à 4Kp30 via HDMI, facilitant l’intégration avec divers systèmes de caméras. Le transmetteur Bolt 6 intégré permet une transmission vidéo sans fil sans délai jusqu’à 750 pieds, fonctionnant sur la bande de fréquence 6 GHz pour une interférence réduite et une compatibilité avec jusqu’à six récepteurs Teradek Bolt 6.

Le moniteur fonctionne avec PageOS 5, offrant des outils de surveillance avancés tels que l’assistance à l’exposition EL Zone, des superpositions de fausses couleurs personnalisables, des formes d’onde, des vecteurscopes et la prise en charge des LUT 3D. Des boutons physiques complètent l’interface tactile, permettant une utilisation fiable dans diverses conditions de tournage. De plus, l’Ultra 5 offre un contrôle de caméra optionnel pour les caméras ARRI, RED et Sony VENICE via des ports et des licences dédiés.

Construit avec un châssis en aluminium durable et doté de plusieurs points de montage 1/4”-20, l’Ultra 5 Bolt 6 TX 750 est conçu pour résister aux rigueurs de l’utilisation sur le plateau. Son design compact et ses options d’alimentation polyvalentes en font un outil précieux pour les professionnels du cinéma, de la télévision et du streaming en direct.

Expédition vers l'UE

Nous livrons dans toute l'Union Européenne pour 20 €, livraison gratuite pour les commandes supérieures à 1 000 €.

Boutique B2B

Notre offre s'adresse uniquement aux clients B to B, tous les prix sont hors taxes.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Envoyez votre demande via le formulaire ou par mail: avgear@avgear.shop

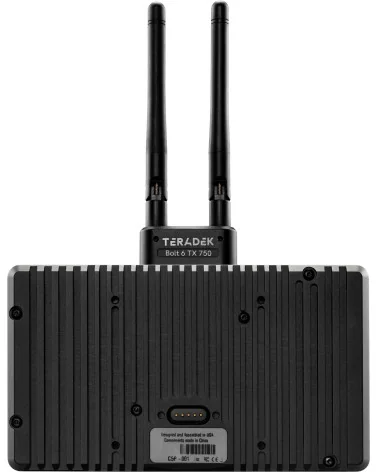

Bringing together SmallHD’s field-ready monitor with Teradek’s wireless transmission technology. Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside an Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750 feet away.

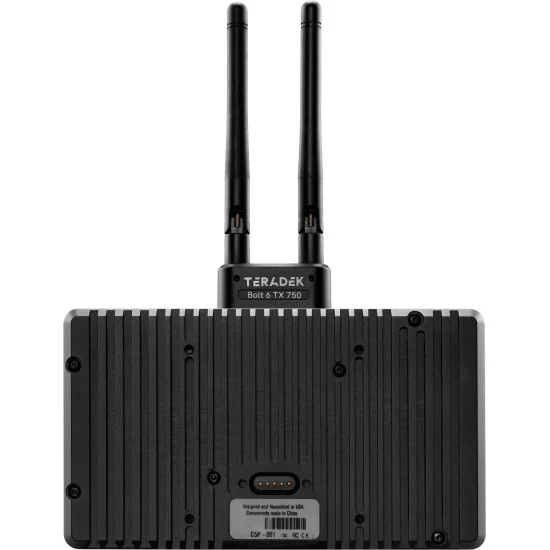

Teradek Bolt 6 750 TX
The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send color accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.

Camera Control for ARRI, RED®, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Ultra 5 - Ultra Bright. Ultra Powerful. Ultra Compact.
Our brightest screen, locking power & USB connectors, touchscreen, and 3x custom function buttons make Ultra 5 the best-in-class 5-inch monitor.

Powerful, portable, and adaptable, the Ultra 5 offers 3000nits of dazzling brightness, a locking power adaptor, an Ethernet port for camera control, plus a full suite of large, front-facing physical buttons for maximum control in all conditions. Experience all your favorite PageOS tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

PageOS - Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

CUSTOM FUNCTION BUTTONS
A Tactile Complement to Touchscreen UI
Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.

SPECS

Environmental
Item Weight (oz): 17.8
Height (in): 3.39
Width (in): 5.28
Length/Depth (in): 1.36
Mount Points: 6x 1/4-20 Mounting Points

Display
Panel Type: Touch-Screen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Max Brightness: 3000nits
Backlight Type: Edgelit

Input Signal

3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

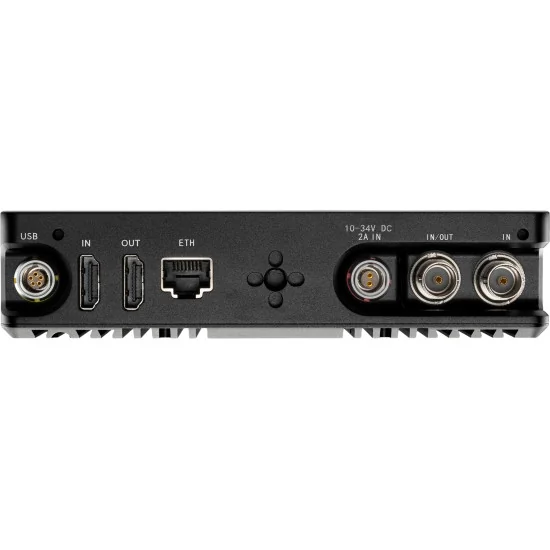

Connector Type
SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O
Connector Type: 1x RJ45 Ethernet
Storage Media: 1x SD Card Slot
USB: 1x Micro USB 1x Locking USB

Power
Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

Software
Pixel Zoom: Yes
Focus Assist: Yes
Peaking: Yes
False Color: Customizable False Color Overlays
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
