High-Performance Sensor and Image Processor

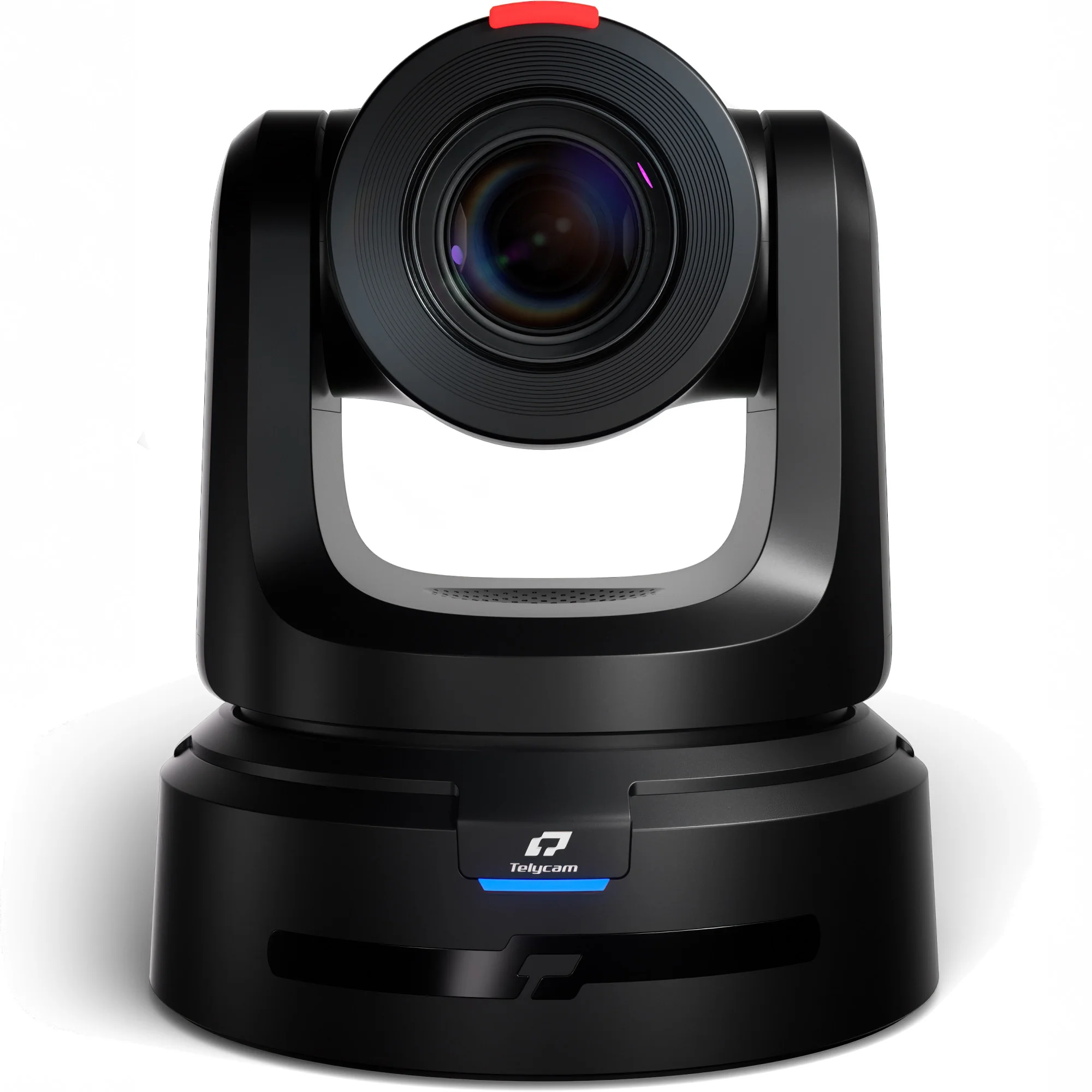

The Explore boasts a Sony 1-inch 9MP CMOS sensor and a state-of-the-art image processor to deliver stunning ultra-high-definition images.

PDAF (Phase Detection Auto Focus)
Experience seamless and precise focusing with our PTZ camera's advanced AI Auto Focus. Whether for live events or VR production, Telycam’s PDAF auto-focus empowers you with fast and accurate focus for premium-quality footage.

Versatile Output Options
The Explore offers diverse output options, including 4K60p resolution through NDI®HX3 and HDMI, connections. Users can choose the output method that best suits their production needs, ensuring flexibility and compatibility.

Robust Audio Capabilities
The Explore features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.

Native AI-Based Auto-Tracking
The Explore features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.

FreeD Technology Integration
The Explore integrates FreeD technology for versatile shooting angles, ideal for both real-world and virtual applications.

MicroSD Card Slots
A MicroSD card slot for local recording. Record directly onto the camera for instant backup during network issues or quick access, ideal for prompt event review.

Specifications

Camera
Part NO. TLC-900-IP-20-4K(NDI)-AB-XE
1 inch, 9MP UHD CMOS sensor
20X Optical Zoom
Lens: f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle: 71°(Wide)~4.05°(Tele)
Vertical Viewing Angle: 39.6°~2.2°
Diagonal Viewing Angle: 78.5°~4.6°
Minimum Working Distance: Wide: 15cm; Tele: 150cm
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip/Mirroring: Supported
Focus/Iris/Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported

Video Format
3G-SDI: 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
HDMI2.0: 3840*2160P60/50/30/25/59.94/29.97/24/23.98;
1920*1080P60/50/30/25/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
NDI®HX3: Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
USB Type-C: NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~122800Kbps
Network Port Speed: 1000M
Protocol: NDI®HX3, SRT, HTTP, HTTPS, RTSP, RTMP, RTMPS, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC, MPEG-TS

Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy：0.1°
Pan Rotation Angle: -176°~+176°
Tilt Rotation Angle: -90°~+90°
Pan Rotation Speed: 0.1°~80°/s
Tilt Rotation Speed: 0.1°~60°/s

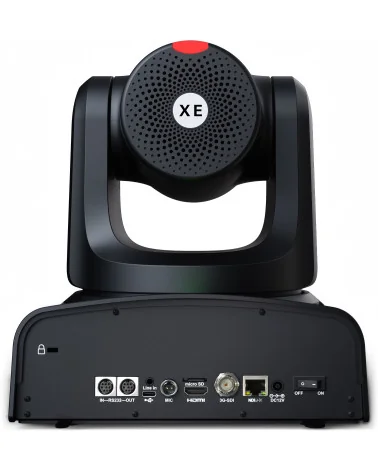

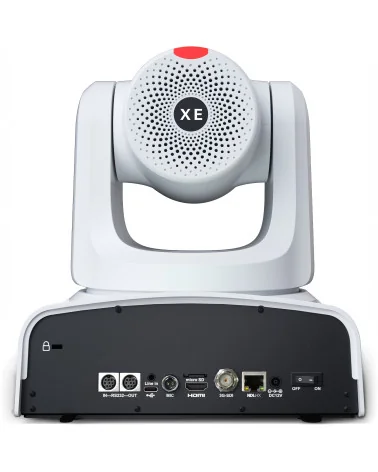

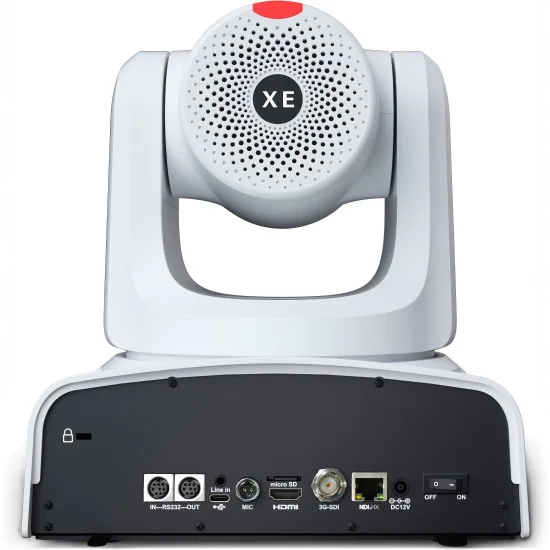

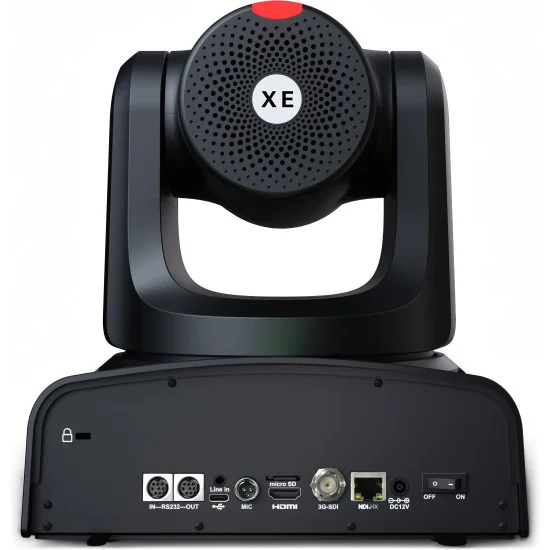

I/O Interface
Control Port: RS232, RS485, USB, NDI®HX3
Video Port: NDI®HX3, HDMI 2.0, 3G-SDI, USB Type-C
Audio Port: Mini XLR(with phantom power), stereo 3.5mm line in
Tally: Supported
POE+: Supported
Daisy Chain: Supported

General
Input Voltage: DC12V, POE+(IEEE802.3bt)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension (L×W×H): 232.5 mm×264mm×269mm
Net Weight: 4.6kg(10.15LBS)
Color: Black/White
