Key features:

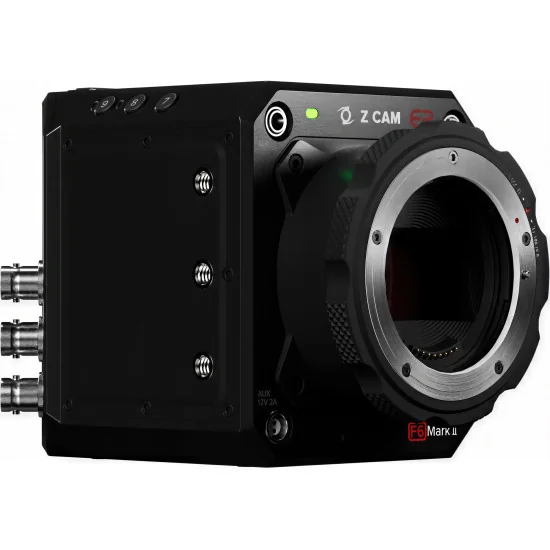

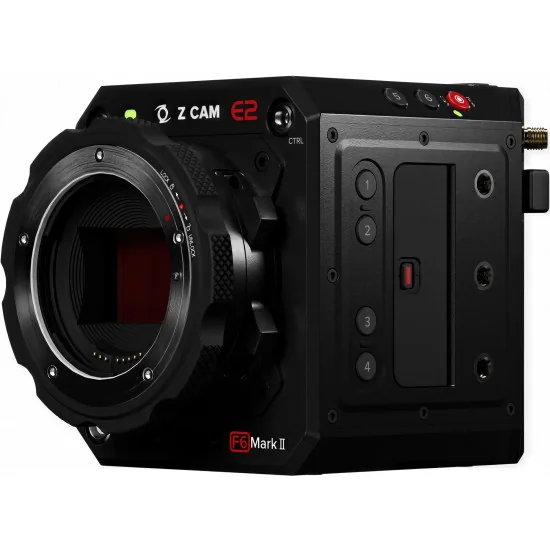

• 6K full-frame cinema camera with NDI|HX3 support
• Manufacturer SKU: E1903N
• Full-frame CMOS sensor with 15 stops of dynamic range
• Up to 6K 60p in 2.4:1 format and up to 4K 120p in C4K 2.4:1 format
• Streaming via Gigabit Ethernet with NDI|HX3, RTSP, RTMP and SRT
• EF Active Lock Mount, optionally convertible to PL, LPL or M Mount
• Internal recording to CFexpress Type B media
• Supports H.264, H.265, ProRes 422 variants and ZRAW
• RAW output via HDMI with compatible external recorders
• HDMI 2.0, 3G-SDI, Timecode In, Genlock, USB-C, LANC and Serial CTRL
• PoE+ support for power delivery via compatible network infrastructure
• Integrated gyroscope for stabilisation-related workflows
• Robust aluminium body and fanless design
• Suitable for film production, broadcast, live streaming, studio and multi-camera applications

Probably the Most Versatile Camera
You might not have seen the Z CAM E2 at these venues, but you've likely watched the stunning images captured by it.

IP Streaming is the Future
Z CAM supports a number of streaming protocols. Easily accessible through the built-in web client.

Compact & Robust
Compact form factor.
Full metal body construction.

Durability & Reliability
Both the Z CAM E2 and the Z CAM E2 Mark II series are engineered for sustained, long-term recording and streaming.
Fanless design. No active cooling.

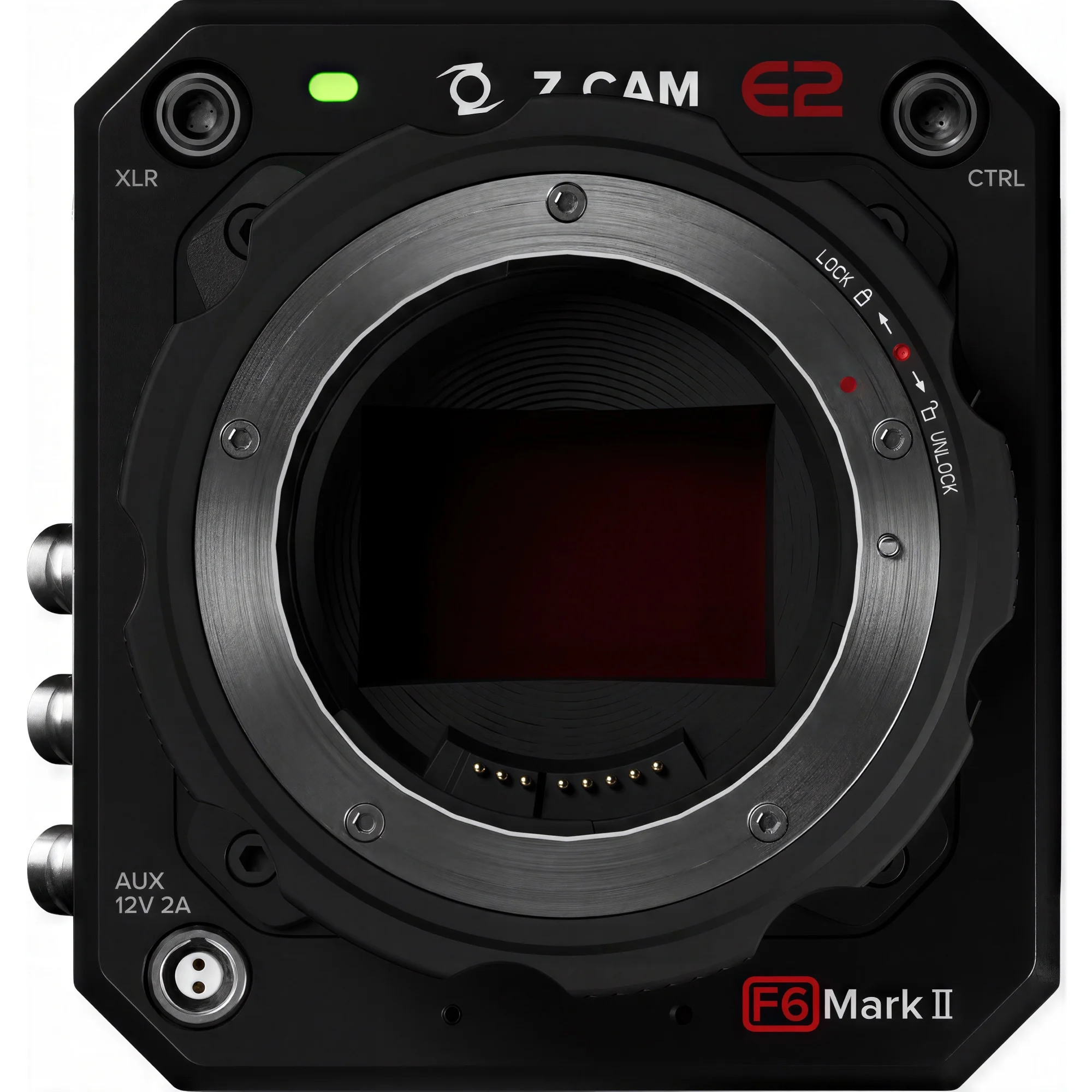

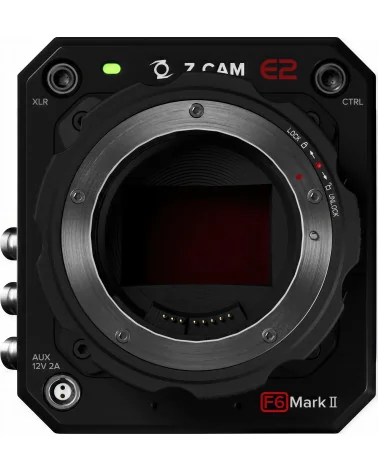

Interchangeable Mounts
Z CAM E2-F6 Mark II : EF Mount (Active Lock)

Optional Z CAM Interchangeable lens mount:
Z CAM PL Mount (Active Lock)
Z CAM LPL Mount (Active Lock)
Z CAM M Mount (Active Lock)

Stunning Image Quality
Go-to camera for many big film and documentary productions.
Entrusted by many well-known DOPs and Directors.
Qualified as A camera.
Perfect for B camera.

Technical Specifications

Camera
Sensor Type: Full Frame CMOS Sensor
Sensor Size: 35.9 x 24.0 mm (Diagonal 43.3mm)
Effective Pixels: 24.63M
Dynamic Range: 15 stops
Lens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone: Built-in Stereo Microphone

Recording
Resolution & Max Frame Rate:
30fps max @ Open Gate (6064x4040)
48fps max @ C6K (6064x3196)
60fps max @ 6K 2.4:1 (6064x2560 )
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5376x4032)
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4848x4040)
60fps max @ 5K (4800x2700)
50fps max @ 4K 4:3 (4096x3072)*
30fps max @ C4K 3:2 (4096x2732)
90fps max @ C4K (4096x2160) *
120fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4K 6:5 (4080x3400)
90fps max @ 4K (3840x2160)
170fps max @ S16 16:9 (2112x1188)
170fps max @ 1080P (1920x1080)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.
Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 2500
Shutter: "Shutter Speed: Auto, Manual (1”~ 1/8000”) , Shutter Angle: Auto, Manual (1° ~ 360°)"
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF / AF / CAF
Image: Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config: Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code: Current Time / Manual Input / External Input

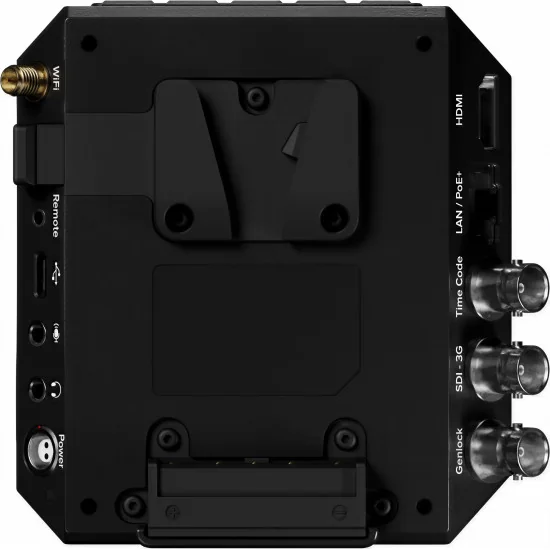

Connectivity
HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI: 3G-SDI
Timecode In: LTC Timecode Input via BNC
Genlock: BB/Tri-Level Genlock Input via BNC
USB: USB 3.0 Type C for camera control & data transfer only
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external antenna port
CTRL: Serial port
Ethernet: Gigabit Ethernet port

Power
Battery: Mini V-Lock 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
Power Consumption: 50W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminum Alloy
Weight - Camera (w/o Lens): 1.21kg (with EF mount)
Weight - Full Package: 1.55kg
Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch

Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C
