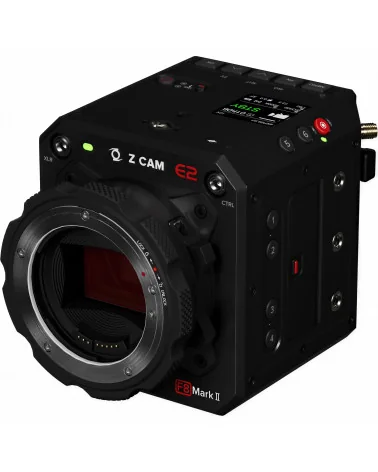

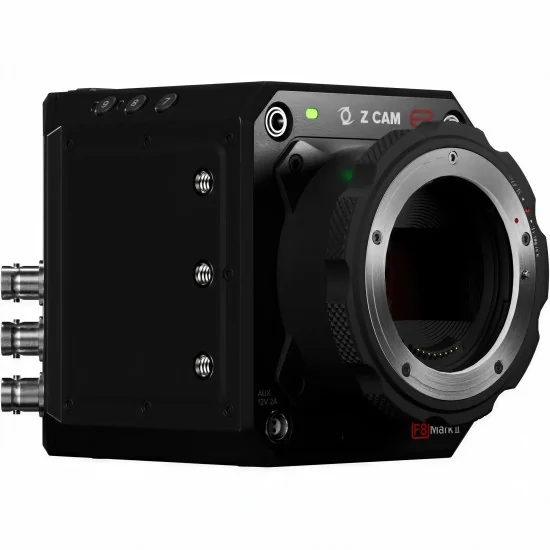

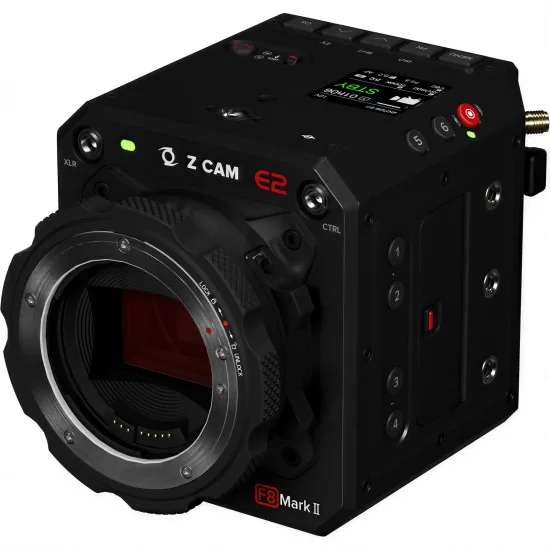

Probably the Most Versatile Camera
You might not have seen the Z CAM E2 at these venues, but you've likely watched the stunning images captured by it.

10-bit NDI
Stunning color. Ultra-low latency. Redefining professional networked workflows.

Multiple Camera Synchronization
Z CAM has been widely adopted in many multiple camera applications worldwide due to its high sync precision, open API and reliability.

12-Axis Color Correction
Precisely controls image saturation and hue, achieving consistent color matching across multiple cameras, optimized skin tones, and cinematic color expression.

IP Streaming is the Future
Z CAM supports a number of streaming protocols. Easily accessible through the built-in web client.

Technical Specifications

Camera
Sensor Type: Full Frame CMOS Sensor
Sensor Size: Diagonal 43.3mm
Effective Pixels: 61.17 MP
Dynamic Range: 14 stops

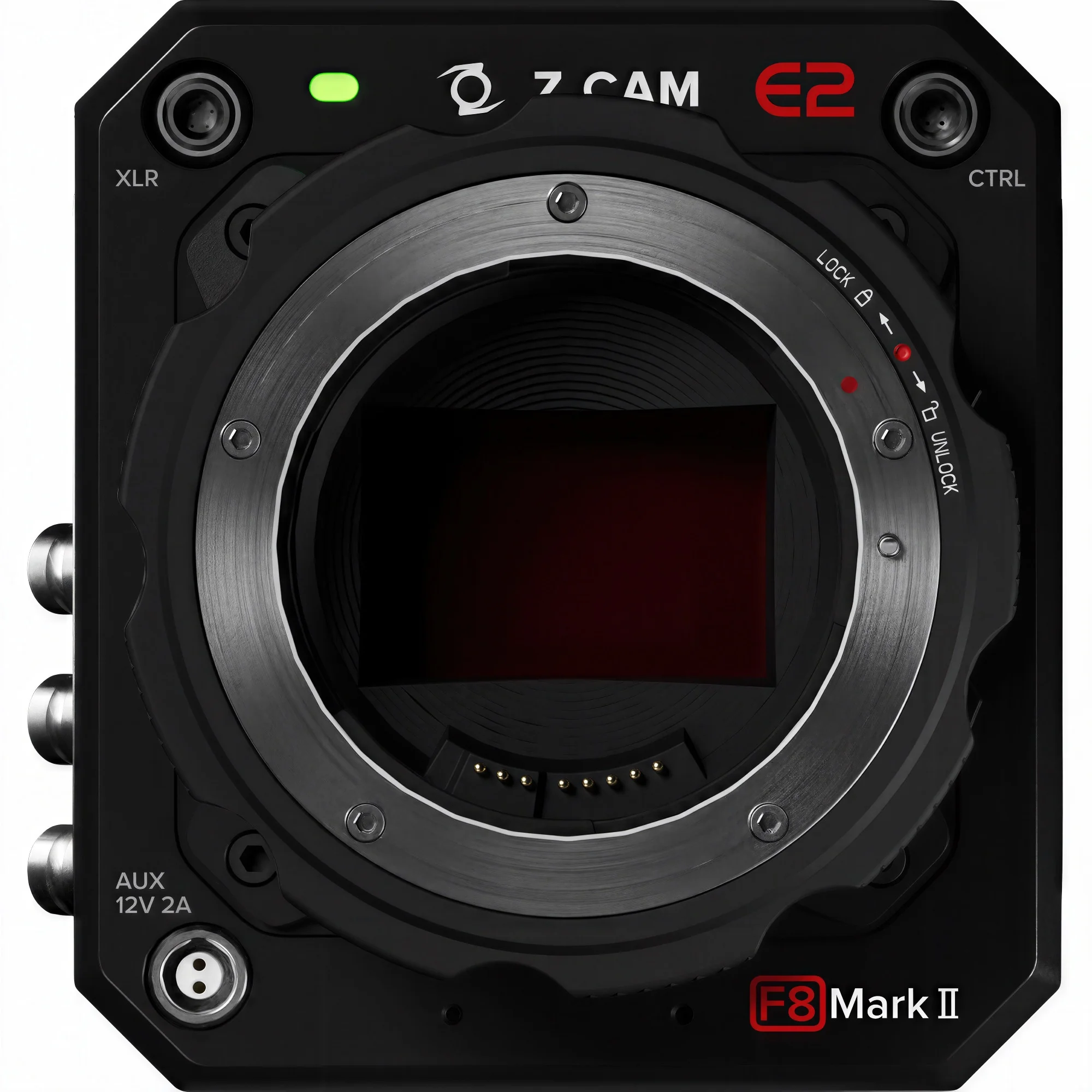

Lens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone: Built-in Stereo Microphone

Recording
Resolution & Max Frame Rate
8K 2.4:1 (8192x3456) @30fps max
8K UHD (7680x4320) @30fps max
6K DCI (6144x3240) @30fps max*
6K UHD (5760x3240) @30fps max*
4K UHD (3840x2160) @ 60fps max*
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode

Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 1250
Shutter: Shutter Speed: Auto, Manual (1s ~ 1/10000s) , Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF / AF / CAF
Image: Sharpness / Noise Reduction / Dynamic Range Optimizer / Brightness / Contrast / Saturation / Hue / Gamma / Matrix / 12-Axis Color
Image Config: Rec.709 / Z-Log2 / Flat / Concert / Vivid 0 / Vivid 1 / Vivid 2 / HLG / Gamma
Time Code: Current Time / Manual Input / External Input

Storage
Storage Media: CF Express Type B
File System: exFAT

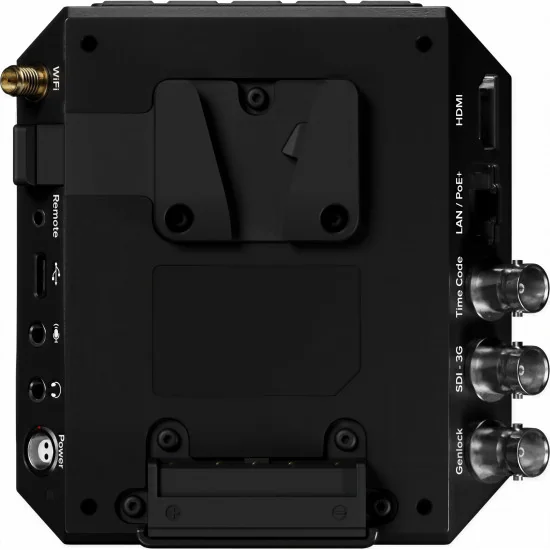

Connectivity
HDMI: HDMI 2.0 Type A (video output up to 4K DCI 60p, 10-bit 4:2:2)
SDI: 3G-SDI
Time Code: LTC Timecode Input via BNC
Genlock: BB/Tri-Level Genlock Input via BNC (E1906N w/o Genlock Input)
USB: USB 3.0 Type C for camera control & data transfer only
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external antenna port
CTRL: Serial port
Ethernet: Gigabit Ethernet port

Power
Battery: Mini V-Lock 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
Power Consumption: 18W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminum Alloy
Weight - Camera: 1.21kg (w/ EF mount)
Weight - Package: 1.55kg
Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (w/ EF mount)
Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch

Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C
