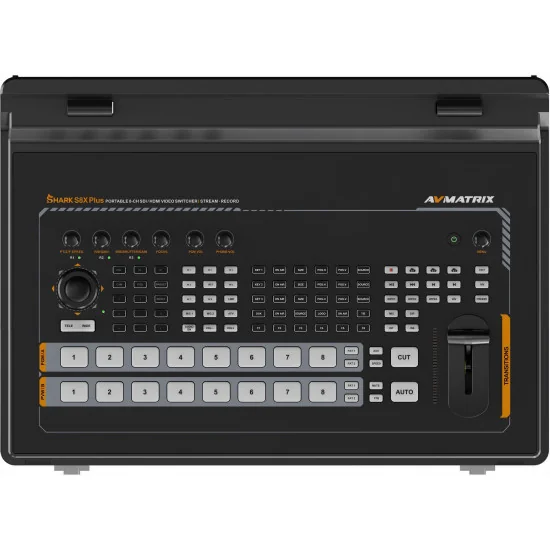

17.3" 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER

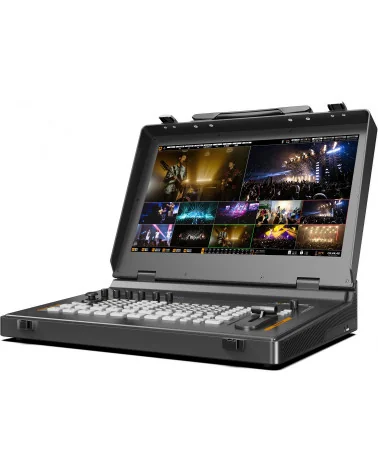

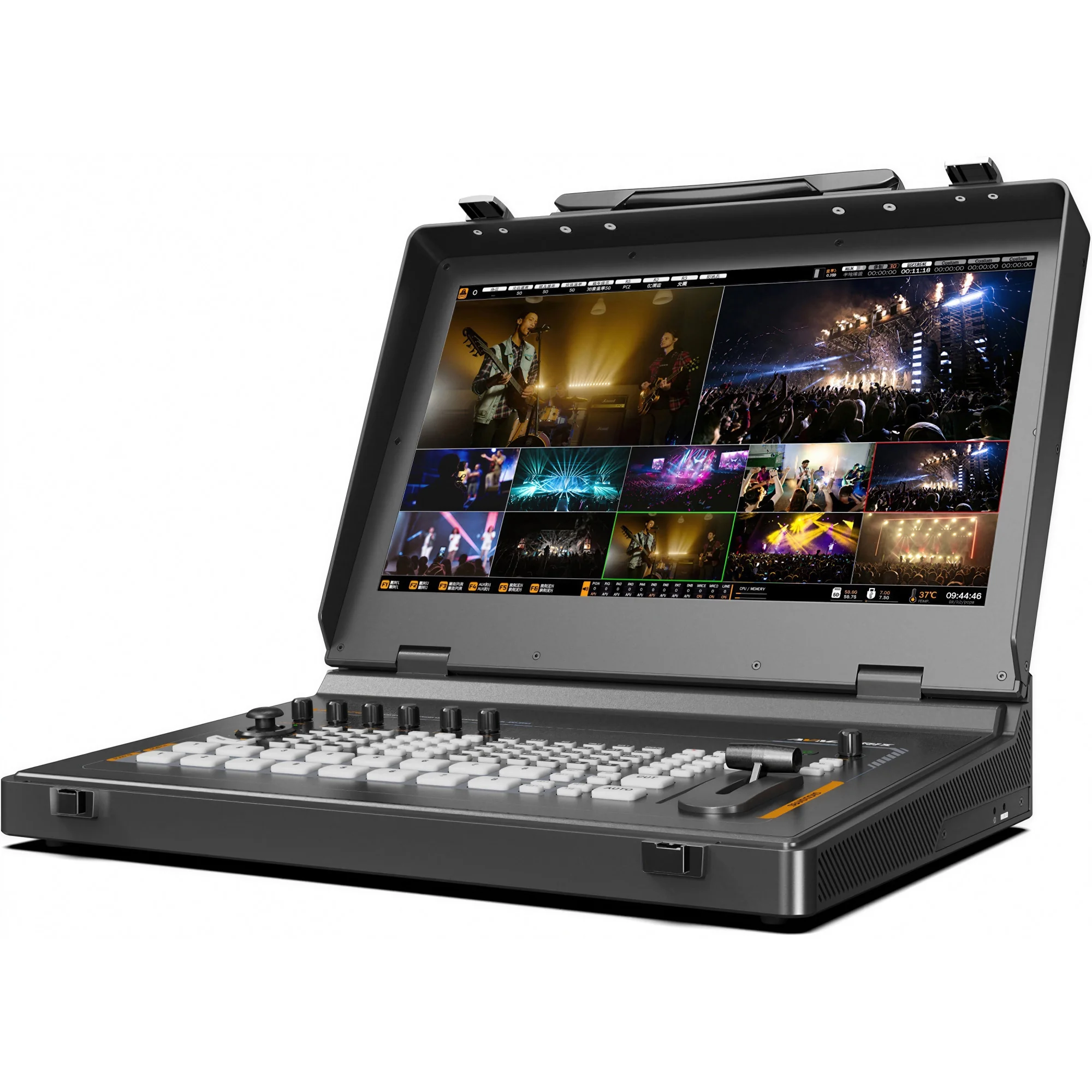

A built-in 17.3-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, audio settings, PTZ camera settings, FN key configurations, etc.

Versatile Inputs and Outputs
This switcher supports 8 inputs (6 SDI, 2 SDI/HDMI), one REF input and 7 flexible outputs (2 HDMI, 4 SDI, 1 multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.

Professional XLR Audio and 48V Phantom Power
The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. User can configurate AFV, audio mixing and 500ms audio delay, making it ideal for professional productions.

Advanced Keyer Functions
The switcher integrates 3 powerful upstream keys for users to set if freely to PIP, LUMA Key, Chroma Key freely and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or menu knob.

Build-in Recording
This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, and SATA, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.

USB Capture For Streaming
The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms such as OBS, MIX, ZOOM, Teams, Skype and VLC, it is compatible with Windows, Linux, and Mac.

Live Stream Via LAN Port The LAN port supports
IP streaming transmission through the RTMP, SRT, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

Streamline Your Production with Macro
Users can execute recorded macros to replay a series actions with a single click, streamlining complex operations and boosting live production efficiency and professionalism.

AUX Expansion Input
The switcher provides a powerful expansion input which is compatible with media players, UVC devices, streaming, offering flexible signal selection and enhanced content options.

SPECIFICATIONS

CONNECTIONS
Video In: 3G-SD|×8, 4K HDMI×2, BNC Refx1, AUX×1, USB-A(UVC)×1
Video Out: HDMI(A/B, PGM)×2, SDI(A/B, PGM)x4, HDM|(Multiview)×1, USB-C(UVC)×1
Audio In: XLR/TRS×2, +48V phantom power, 3.5mm TRS(Line)x1
Audio Out: XLR× 2, 3.5mm TRS(Line)x1, 3.5mm TRS(Earphone)×1
Reference In: BNC Inx1, BNC Outx1; Tri-Sync or Black Burst.
Network Port: LAN×1 (Stream, PC control, PTZ control, Upgrade)
USB Port: USB type-Cx1(For Capture), USB type-Ax2 (For USB CAM, Record, Configuration/Media Import/Export)
Tally Port: DB-26×1
Serial Port: RS232/RS422/RS485x1, PTZ camera control
Record Port: USB disk slotx1, SD card slot×1, 2.5-inch SATA slotx1

STANDARDS
SDI Inputs: 1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50, 525 i59.94
HDMI Inputs: 4K 60/50/30, 2K 60/50/30
1080p 60/59.94/50/30/29.97/25/24/23.98
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50, 480p 60/59.94
SDI Outputs: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59 94/50
HDMI Outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
Video Sampling: SDI: YUV 4:2:2 10bit: HDMI: YUV. RGB full, RGB limit
Color Space: SDI&HDMI: Rec 709, Rec 601

STREAM & RECORD
USB Capture Out Sream: YUY2, NV12, RGB32, Up to 1080p60(200Mbps), Supports OS: Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), Mac OS(10.8 and above), Software compatibility: OBS studio, Skype, ZOOM, Teams, Youtube Live, etc.
Record:
Bite rate: Up to 32Mbps
Storage format: USB disk, SD card, SATA(FAT32/exFAT/NTFS/ext4)
File format: MP4/TS, Up to 1080p60(32Mbps)
Rate control: CBR/VBR
Protocol:
Push Stream: RTMP(S). SRT
Pull Stream: RTSP, HTTP
PTZ control: Visca, Onvif. Pelco D/P.

MEDIA
Media Format: Video: MP4, TS, Image: JPG, PNG, BMP, JPEG, Max 1920×1080 pixels, Logo: JPG, PNG, BMP, JPEG, Max 650x650 pixels
Aux In: Media player, USB(UVC) in, Pull stream

FEATURES
Display: 17.3 inch FHD LCD display
Macro: 20, Support record and playback
Keys: Up to 6 overlay, Adjustable size and position
1. Upstream Keyx3: Chroma Key/Luma Key/PIP
2. Downstream Keyx1: DSK x1
3. Logo ×1
Audio Mixer: Up to 10 channel audio mixer (Videox8+XLR/TRS×2)

POWER & OTHERS
Power: Wide Voltage Support: 9V - 24V; Working: DC 15V, 50W max
Temperature: Working: - 20°C~50°C, Storage: -30°C~70°C
Dimension(LWD): 433×307x75.5mm
Weight: Net: 5500g; Gross: 6680g
