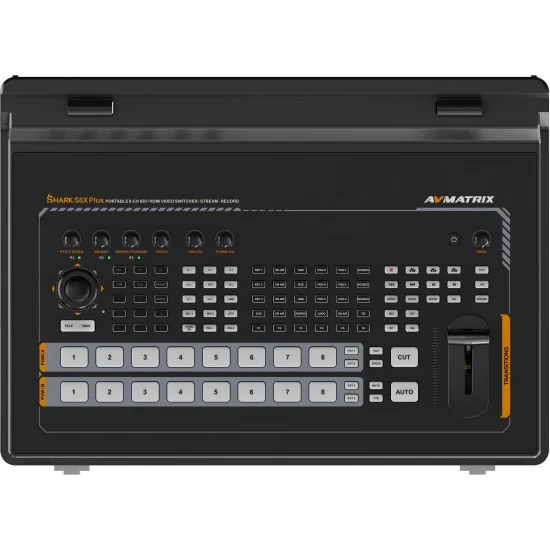

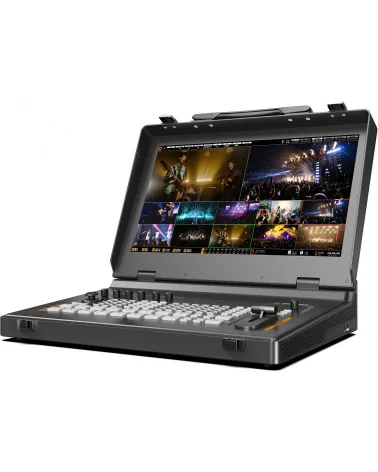

Packing a small control room into a single chassis, the AVMATRIX SHARK S8X Plus folds an 8-channel switcher, live recorder, IP streamer and 17.3-inch FHD IPS monitor into one portable unit. The screen drives a true multiview with PVW, PGM, audio meters and menu overlays, so a solo operator on a corporate stage or touring concert can cut the show without chaining extra rack monitors. Six 3G-SDI inputs plus two HDMI 2.0 ports that accept up to 4K sources cover broadcast cameras, DSLRs, PTZ heads and laptop feeds on the same desk, while a BNC reference input keeps every source genlocked alongside graphics playout or external routers.
Routing stays serious on the output side: two HDMI PGM ports (A/B), four 3G-SDI PGM ports (A/B) and a dedicated HDMI multiview feed push independent signals to FOH screens, IMAG walls and a director's confidence monitor. A USB-C UVC output turns the mixer into a webcam for Zoom, Teams, vMix or OBS at 1080p60 (200 Mbps), and the RJ45 gigabit port carries RTMP, RTMPS and SRT streaming straight to YouTube, Twitch, Facebook Live or a private CDN without an external encoder. Onboard recording captures 1080p60 at 32 Mbps to SD card, USB drive or SATA SSD, useful for church services that need archive copies the moment the event ends.
Composition tools echo a larger studio desk: three upstream keyers handle PIP, Chroma Key and LUMA Key, up to six overlay layers stack logos and lower-thirds, and 20 macro slots record and replay button sequences for recurring sports or talk-show cues. Audio gets the same treatment — two XLR/TRS combo inputs with switchable 48V phantom power, a 10-channel mixer with SDI/HDMI de-embedding, plus mini-jack and USB audio. Integrated PTZ control over VISCA, VISCA over IP, PELCO-D/P and ONVIF drives pan, tilt, focus, white balance and presets on up to eight cameras.
Built for field and studio duty alike, the SHARK S8X Plus accepts wide-range 9–24 V DC at a 50 W maximum, running from V-mount plates, AC bricks or a mobile rig between −20°C and 50°C. With tally via RJ45 and a responsive hardware panel, it slots into ENG crews, OB trucks, esports vans, streaming studios and houses of worship chasing one case for the whole video chain.
Packing a small control room into a single chassis, the AVMATRIX SHARK S8X Plus folds an 8-channel switcher, live recorder, IP streamer and 17.3-inch FHD IPS monitor into one portable unit. The screen drives a true multiview with PVW, PGM, audio meters and menu overlays, so a solo operator on a corporate stage or touring concert can cut the show without chaining extra rack monitors. Six 3G-SDI inputs plus two HDMI 2.0 ports that accept up to 4K sources cover broadcast cameras, DSLRs, PTZ heads and laptop feeds on the same desk, while a BNC reference input keeps every source genlocked alongside graphics playout or external routers.
Routing stays serious on the output side: two HDMI PGM ports (A/B), four 3G-SDI PGM ports (A/B) and a dedicated HDMI multiview feed push independent signals to FOH screens, IMAG walls and a director's confidence monitor. A USB-C UVC output turns the mixer into a webcam for Zoom, Teams, vMix or OBS at 1080p60 (200 Mbps), and the RJ45 gigabit port carries RTMP, RTMPS and SRT streaming straight to YouTube, Twitch, Facebook Live or a private CDN without an external encoder. Onboard recording captures 1080p60 at 32 Mbps to SD card, USB drive or SATA SSD, useful for church services that need archive copies the moment the event ends.
Composition tools echo a larger studio desk: three upstream keyers handle PIP, Chroma Key and LUMA Key, up to six overlay layers stack logos and lower-thirds, and 20 macro slots record and replay button sequences for recurring sports or talk-show cues. Audio gets the same treatment — two XLR/TRS combo inputs with switchable 48V phantom power, a 10-channel mixer with SDI/HDMI de-embedding, plus mini-jack and USB audio. Integrated PTZ control over VISCA, VISCA over IP, PELCO-D/P and ONVIF drives pan, tilt, focus, white balance and presets on up to eight cameras.
Built for field and studio duty alike, the SHARK S8X Plus accepts wide-range 9–24 V DC at a 50 W maximum, running from V-mount plates, AC bricks or a mobile rig between −20°C and 50°C. With tally via RJ45 and a responsive hardware panel, it slots into ENG crews, OB trucks, esports vans, streaming studios and houses of worship chasing one case for the whole video chain.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
17.3" 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER

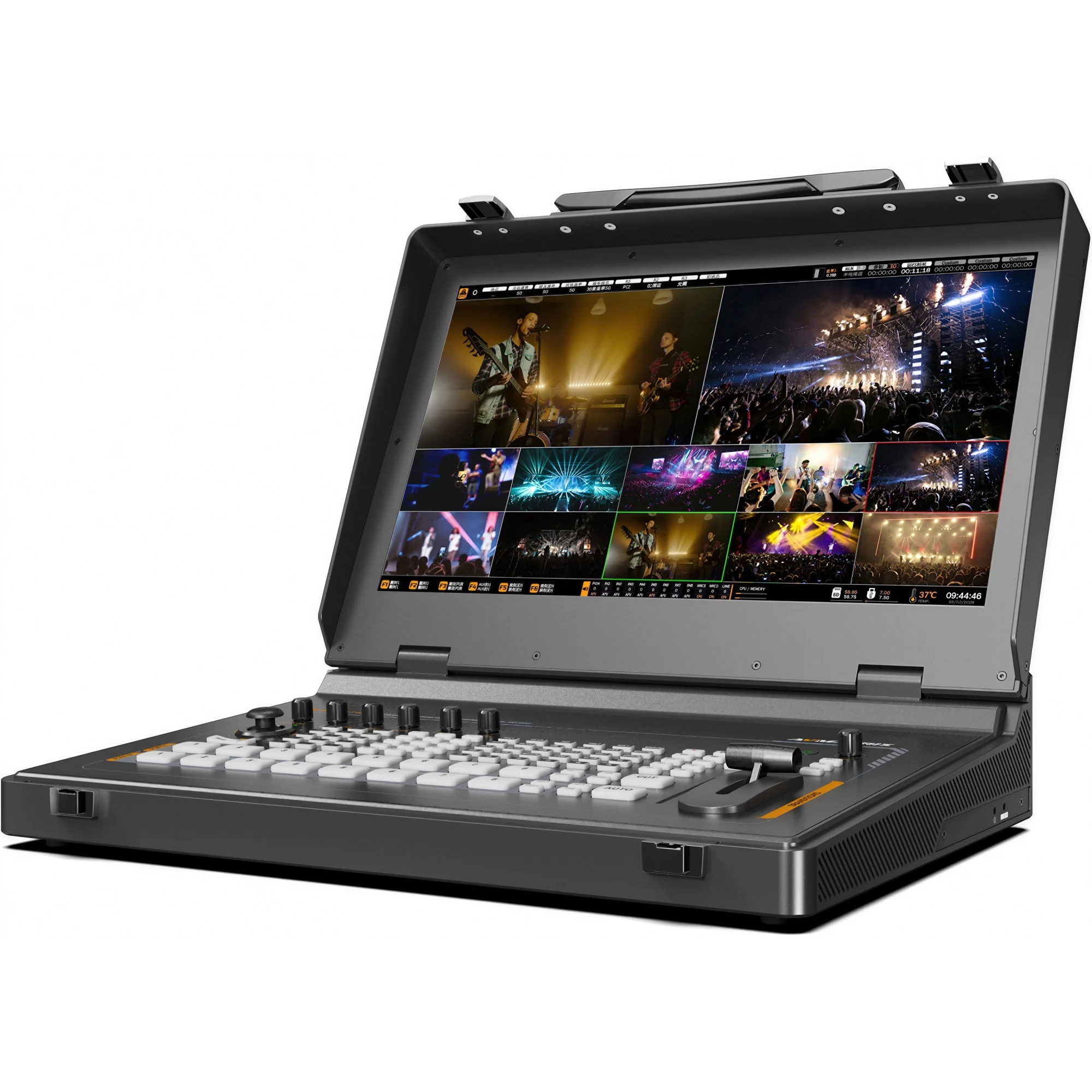

A built-in 17.3-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, audio settings, PTZ camera settings, FN key configurations, etc.
Versatile Inputs and Outputs
This switcher supports 8 inputs (6 SDI, 2 SDI/HDMI), one REF input and 7 flexible outputs (2 HDMI, 4 SDI, 1 multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.
Professional XLR Audio and 48V Phantom Power
The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. User can configurate AFV, audio mixing and 500ms audio delay, making it ideal for professional productions.
Advanced Keyer Functions
The switcher integrates 3 powerful upstream keys for users to set if freely to PIP, LUMA Key, Chroma Key freely and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or menu knob.
Build-in Recording
This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, and SATA, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.
USB Capture For Streaming
The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms such as OBS, MIX, ZOOM, Teams, Skype and VLC, it is compatible with Windows, Linux, and Mac.
Live Stream Via LAN Port The LAN port supports
IP streaming transmission through the RTMP, SRT, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.
Streamline Your Production with Macro
Users can execute recorded macros to replay a series actions with a single click, streamlining complex operations and boosting live production efficiency and professionalism.
AUX Expansion Input
The switcher provides a powerful expansion input which is compatible with media players, UVC devices, streaming, offering flexible signal selection and enhanced content options.
SPECIFICATIONS
CONNECTIONS
Video In: 3G-SD|×8, 4K HDMI×2, BNC Refx1, AUX×1, USB-A(UVC)×1
Video Out: HDMI(A/B, PGM)×2, SDI(A/B, PGM)x4, HDM|(Multiview)×1, USB-C(UVC)×1
Audio In: XLR/TRS×2, +48V phantom power, 3.5mm TRS(Line)x1
Audio Out: XLR× 2, 3.5mm TRS(Line)x1, 3.5mm TRS(Earphone)×1
Reference In: BNC Inx1, BNC Outx1; Tri-Sync or Black Burst.
Network Port: LAN×1 (Stream, PC control, PTZ control, Upgrade)
USB Port: USB type-Cx1(For Capture), USB type-Ax2 (For USB CAM, Record, Configuration/Media Import/Export)
Tally Port: DB-26×1
Serial Port: RS232/RS422/RS485x1, PTZ camera control
Record Port: USB disk slotx1, SD card slot×1, 2.5-inch SATA slotx1
STANDARDS
SDI Inputs: 1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50, 525 i59.94
HDMI Inputs: 4K 60/50/30, 2K 60/50/30
1080p 60/59.94/50/30/29.97/25/24/23.98
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50, 480p 60/59.94
SDI Outputs: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59 94/50
HDMI Outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
Video Sampling: SDI: YUV 4:2:2 10bit: HDMI: YUV. RGB full, RGB limit
Color Space: SDI&HDMI: Rec 709, Rec 601
STREAM & RECORD
USB Capture Out Sream: YUY2, NV12, RGB32, Up to 1080p60(200Mbps), Supports OS: Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), Mac OS(10.8 and above), Software compatibility: OBS studio, Skype, ZOOM, Teams, Youtube Live, etc.
Record:
Bite rate: Up to 32Mbps
Storage format: USB disk, SD card, SATA(FAT32/exFAT/NTFS/ext4)
File format: MP4/TS, Up to 1080p60(32Mbps)
Rate control: CBR/VBR
Protocol:
Push Stream: RTMP(S). SRT
Pull Stream: RTSP, HTTP
PTZ control: Visca, Onvif. Pelco D/P.
MEDIA
Media Format: Video: MP4, TS, Image: JPG, PNG, BMP, JPEG, Max 1920×1080 pixels, Logo: JPG, PNG, BMP, JPEG, Max 650x650 pixels
Aux In: Media player, USB(UVC) in, Pull stream
FEATURES
Display: 17.3 inch FHD LCD display
Macro: 20, Support record and playback
Keys: Up to 6 overlay, Adjustable size and position
1. Upstream Keyx3: Chroma Key/Luma Key/PIP
2. Downstream Keyx1: DSK x1
3. Logo ×1
Audio Mixer: Up to 10 channel audio mixer (Videox8+XLR/TRS×2)
POWER & OTHERS
Power: Wide Voltage Support: 9V - 24V; Working: DC 15V, 50W max
Temperature: Working: - 20°C~50°C, Storage: -30°C~70°C
Dimension(LWD): 433×307x75.5mm
Weight: Net: 5500g; Gross: 6680g
