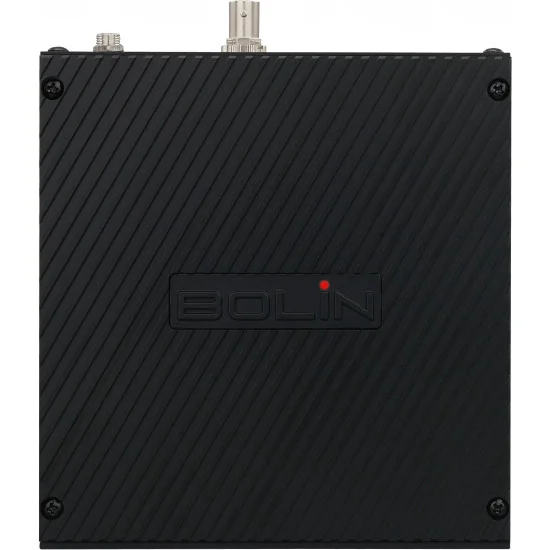

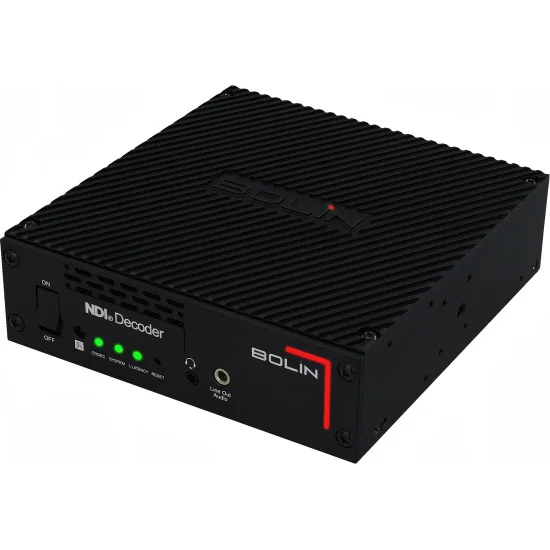

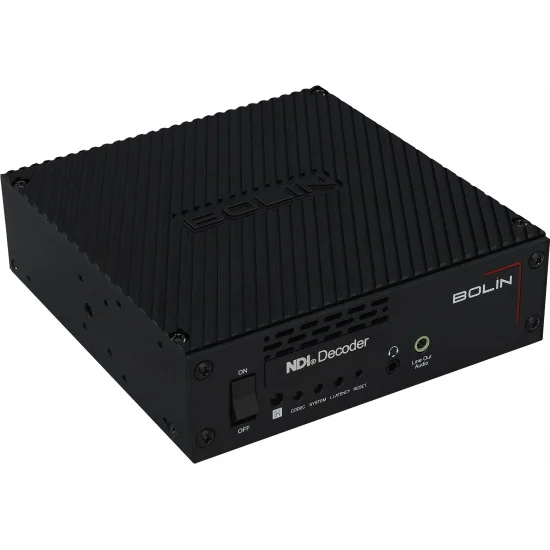

EG40N 4K60 NDI Decoder
The Bolin EG40N is a certified NDI High Bandwidth and NDI HX3 IP decoder, designed to convert high-quality IP video streams into baseband video output for broadcast, live production, and ProAV applications. Built to support the latest NDI 6 standards, the EG40N receives a single NDI video flow over a network and outputs up to 4K60 video with embedded audio through HDMI 2.0 and 12G-SDI simultaneously.

As a certified NDI device, the EG40N ensures full compatibility with all certified NDI-enabled video and audio sources, delivering low-latency, high-fidelity video with precise color accuracy. A built-in scaler enables real-time upscaling and downscaling, ensuring optimal resolution across different workflows. The EG40N also supports NDI Embedded Bridge, allowing cross-network video routing for remote production and distributed broadcast environments.

Beyond NDI, the EG40N functions as a versatile IP decoder, supporting RTSP, RTMP, SRT, and MPEG-TS to bring in additional IP video sources for flexible content delivery. While it decodes a single channel at a time, it can store up to 64 preset sources, allowing users to quickly switch between multiple feeds as needed. Its compact design and PoE support make it ideal for control rooms, live events, and permanent installations, offering a reliable and cost-effective solution for professional IP video distribution.

Bolin PTZ Camera & Decoder with NDI Embedded Bridge
"NDI Bridge revolutionizes remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location."

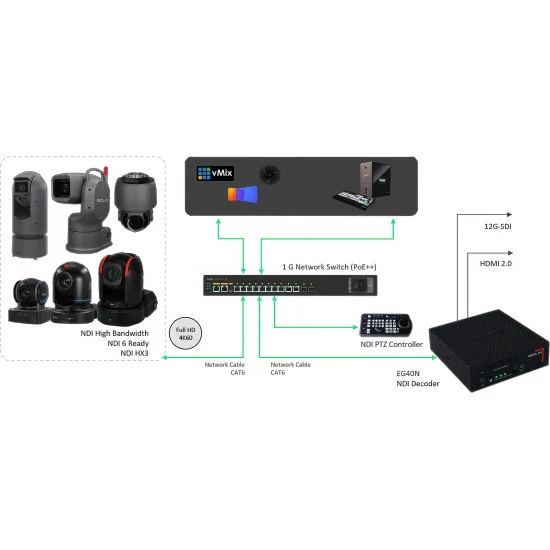

With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups required and configurations can easily be done ahead of time for plug and play operation in the field.

Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.

"It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe."

NDAA Section 889 Statement of Compliance
Bolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.

SPECIFICATION

ECOSYSTEM DETAILS
AV over IP Ecosystem: NDI
Certification: NDI Certified; NDI 6
Featured: NDI High Bandwidth; NDI HX3; NDI Embedded Bridge

CONNECTIVITY
Encoder/Decoder: Decoder
Input: IP Only
Output: Simultaneous HDMI 2.0, 12G-SDI
Video Resolutions: 3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080P @120/60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i @60/59.94/50 1280 x 720P @60/59.94/50/30/29.97/25
IP Input
Codec: SpeedHQ; H.264 (AVC); H.265 (HEVC), Hardware FPGA Based
Supported IP Resolutions: 3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98 1280 x 720P @60/59.94/50/30/29.97/25
Frame Rates: 23.98, 24, 25, 30, 29.97, 50, 59.94, 60
Streaming Protocols: NDI High Bandwidth; NDI HX3; NDI HX2; NDI Embedded Bridge, RTP (Unicast or Multicast); RTMP; RTMPS; MPEG-2 TS over UDP; MPEG-2 TS over RTP; SRT (Caller, Listener)
Gradual Decoding Refresh (GDR): Yes; Will auto-activate when GDR frames are detected in input stream
Number of Streams: Single Stream Decode; Preset up to 200 sources
Latency (Results may vary depending on network configuration and management settings): As low as 3 frames/ 50ms - Dependent on Encode Settings; NDI Certified - <100 ms
Bandwidth (Results may vary depending on network configuration and management settings): 4kp60 4:2:2/12bit; 250Mbps; 1080p60 4:2:2/12bit; 80 110Mbps
HDMI Output
Format: HDMI 2.0
Supported Resolutions: 3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080P @120/60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i @60/59.94/50 1280 x 720P @60/59.94/50/30/29.97/25
Frame Rates (Hz): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60,120
Scaling: Yes; Downscaling and Upscaling, Scaling up to 4K60
Color Space: 4K60: RGB 8bit, YUV444 8bit, YUV422 10bit 4K30 & below: RGB 8bit, YUV444 8bit, YUV422 10bit
SDI Output
Format: 12G-SDI
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE2082‑1(12Gb/s) with SMPTE352 SDI Metadata Supported
Supported Resolutions: 3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i @60/59.94/50 1280 x 720P @60/59.94/50/30/29.97/25
Frame Rates (Hz): 23.98, 24, 25, 29.97, 30, 50, 59.97, 60
Scaling: Yes; Downscaling and Upscaling, Scaling up to 4K60
Color Space: YUV422 10bit
Connector: Standard/75 Ω
Audio
Codec: AAC-LC, MPEG-2
S/N Ratio: ≥85dB
THD+N: ≤0.05%
Audio Noise (RMS): ≤-90dB
Bit Depth: Sample Rate: 48KHz/44.1KHz, 24bit, 64-256Kbps selectable
Audio Output
HDMI Embedded Audio: Stereo - 2 Channel
SDI Embedded Audio: Stereo - 2 Channel
Line Out Connection: 3.5mm Analog Line Out
Format: PCM
Mic/Headset: Inactive

NETWORK
Connection: Network RJ45, 100/1000BASE-T Ethernet
POE: IEEE 802.3at Type 3 Class 4 Compliant 1000BASE-T Ethernet
IR Passthrough: Yes; Transmit PTZ Controls via IR Receiver
IP Protocols: HTTP; IGMP v1/v2; DHCP; SSH; 802.1X Authentication

CONTROL AND MANAGEMENT
Access: WebUI; Bolin API
Firmware Upgrade: Via WebUI
System Reset: Web UI; Physical Button on Decoder

POWER AND PHYSICAL
Power Consumption: 13W
Power: PoE+, IEEE 802.3at Type 3 class 4 compliant
Power Adaptor: 12V DC, 4A
Power Adaptor: 5.5mm×2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter

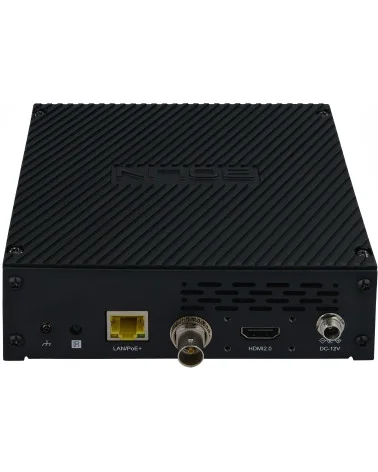

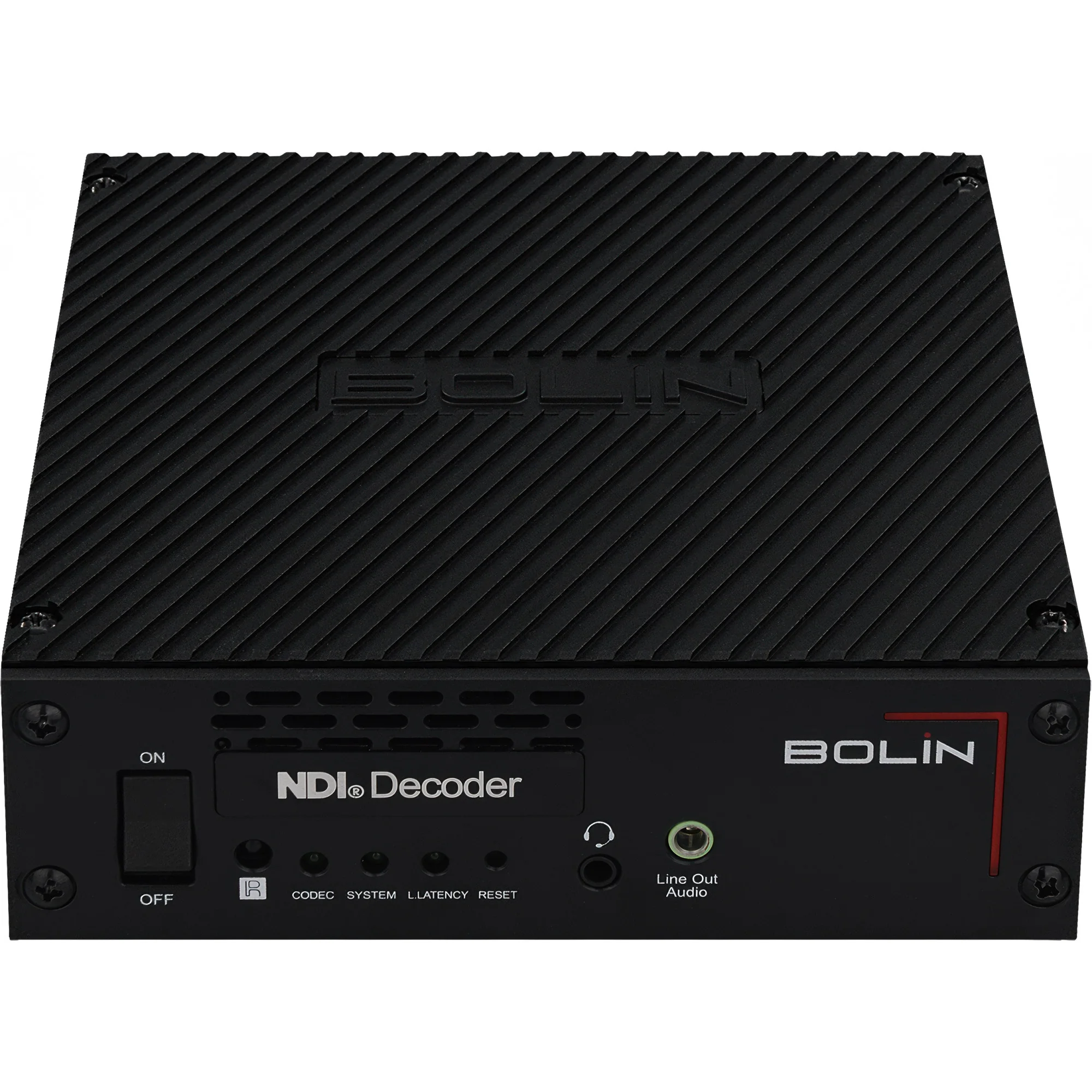

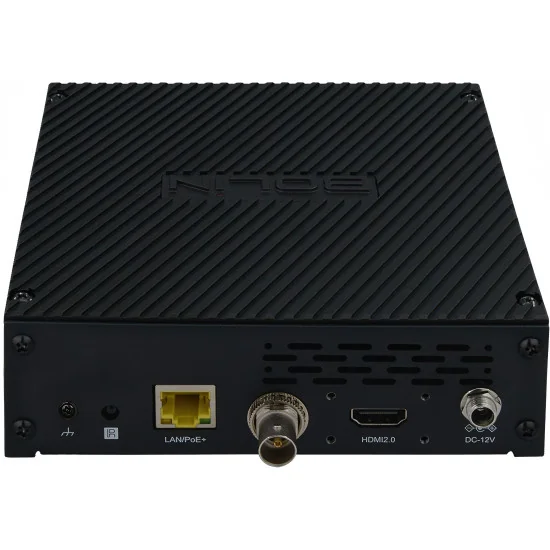

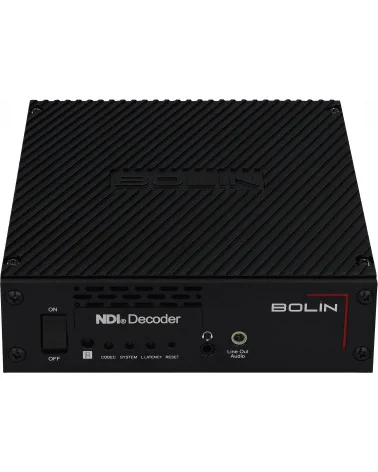

Interface: HDMI 2.0 ; 12G-SDI , 12V DC Power Input; , Power Switch; Reset Button; RJ45 (LAN/PoE+); IR Receiver (Front & Back); 3.5mm Comms; 3.5mm Line out; LED Indicator Lights (Power, Codec, System, Low Latency)
Storage Temperature: -40° to 60° C
Operating Temperature: 0° to 50° C
Humidity: 10% to 90% (non-condensing)
Heat Dissipation: Cooling fan, 3 Level - Automatically adjust the fan speed according to the temperature
Acoustic Noise: NC35 or less, variable with cooling fan speed adjustment
Dimension: 142*150*44mm (LxDxH), 142*150*50.5mm(with feet mats)
Net Weight: 1.05kg (2.31lb)
Chassis: Metal, black finish, heat dissipation surface, fan cooled; vented front and rear
Included: HDMI cable secure mount, Base mount
Optional: 19" Single-rack mount, 19" Tri-rack mount, Din rail mount, Surface mount
Size of Screw Hole for Tripod: 1/4”
What's Included: Decoder; IR Remote Controller; Power Adapter (US, EU, UK)
