SDI cameras can also live stream directly to content delivery networks such as Facebook and YouTube.

Discreet Mounting Options
Mount your PTZ camera above, below or beside the action to capture the ideal view every time.
Wall Mounts
Ceiling Mounts
Pole Mounts
Outdoor Enclosures

Build your PTZ Camera System
Our SDI line includes some of the most popular camera models we’ve ever made. With game-changing optics and high-quality video outputs, video professionals can create innovative custom systems to uniquely suit their needs. Our multiple video outputs and control methods accommodate the growing demands of modern video production.

KEY FEATURES
• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG streaming over RJ-45 LAN port
• HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
• PoE (Power over Ethernet) or 12VDC
• RTMP & RTSP IP streaming
• 5-year warranty
• Photobooth capable

WHAT’S IN THE BOX

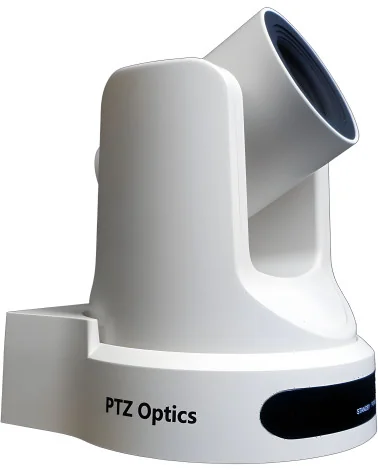

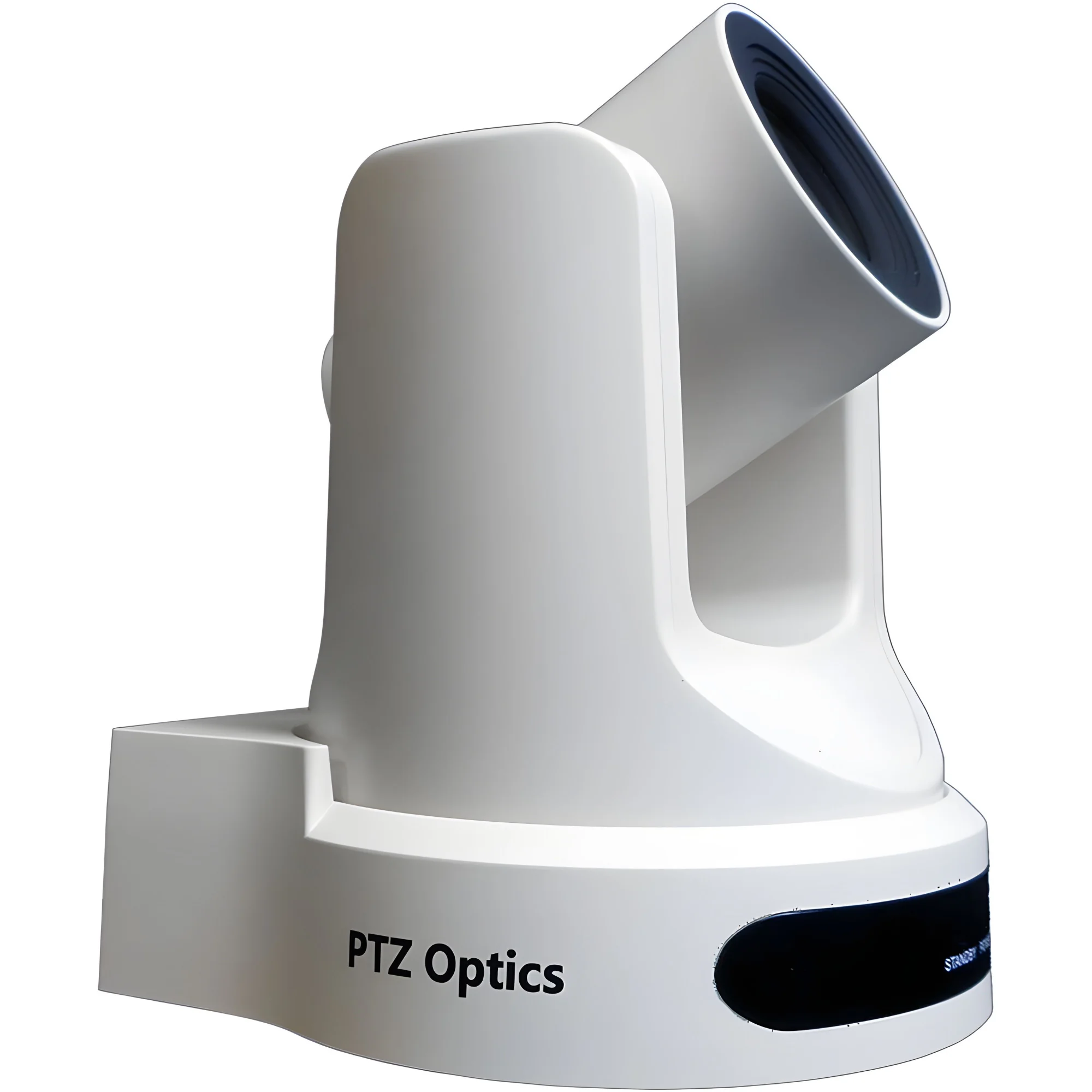

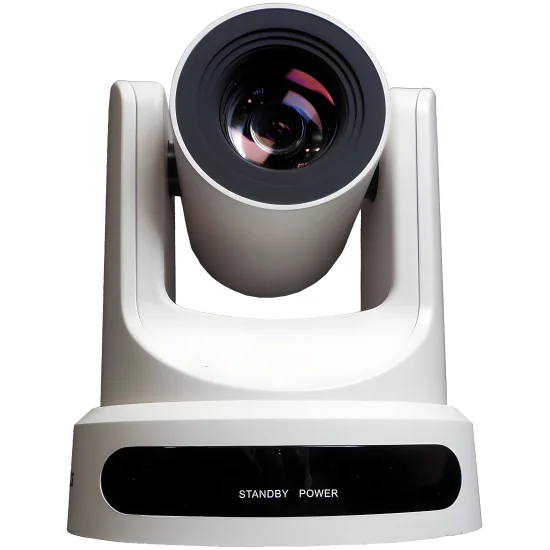

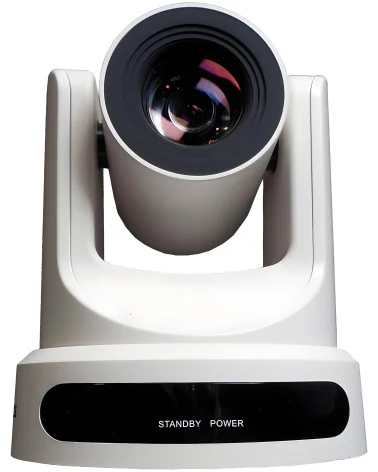

20X Zoom 3G-SDI Camera
Power Adapter + Cord
IR Remote Control
RS-232C Cable
Quick Start Guide
(2) AAA Batteries

Camera & Lens
Video Sensor 1/2.7” CMOS, 2.12 Mega Pixels
Frame Rates 1080p-60/50/30/25, 1080i-60/50, 720p-60/50/30/25
Frame Rates (CVBS) 576i-30, 480i-30
Focal Length 20x, F4.42mm-88.5mm, F1.8-F2.8
Lens Zoom 20x
Field of View 60.7°
Min Lux 0.05 Lux (@F1.8, AGC ON)
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 3.36° (tele) to 60.7° (wide)
Vertical Angle of View 1.89° (tele) to 34.1°(wide)
Working Environment Indoor
Pan & Tilt Movement
Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
Presets 10 via IR (255 via Serial or IP)

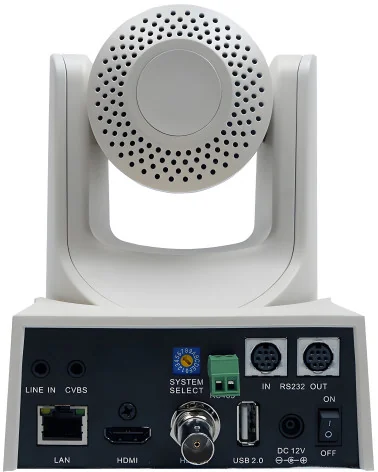

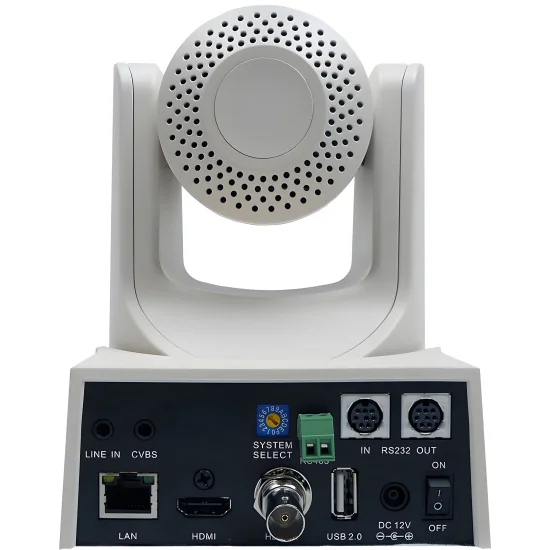

Rear Board Connectors
Video Output HDMI, 3G-SDI, IP Streaming, CVBS
Network Interface RJ45
Audio Interface Line In, 3.5mm (HDMI & IP Stream Only)
Communication RS-232, RS485, PELCO-D/P
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
3G-SDI Interface BNC – 75 Ohm, Female
USB 2.0 Interface Future Use
Electrical Index
Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC) or PoE 802.3af
Physical Specifications
Dimensions (mm) 142W x 164H x 169D (198H max w/ Tilt)
Box Dimensions 9” x 9” x 10” | 229mm x 254mm x 229mm
Camera Weight 3.00 lbs. (1.36 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
