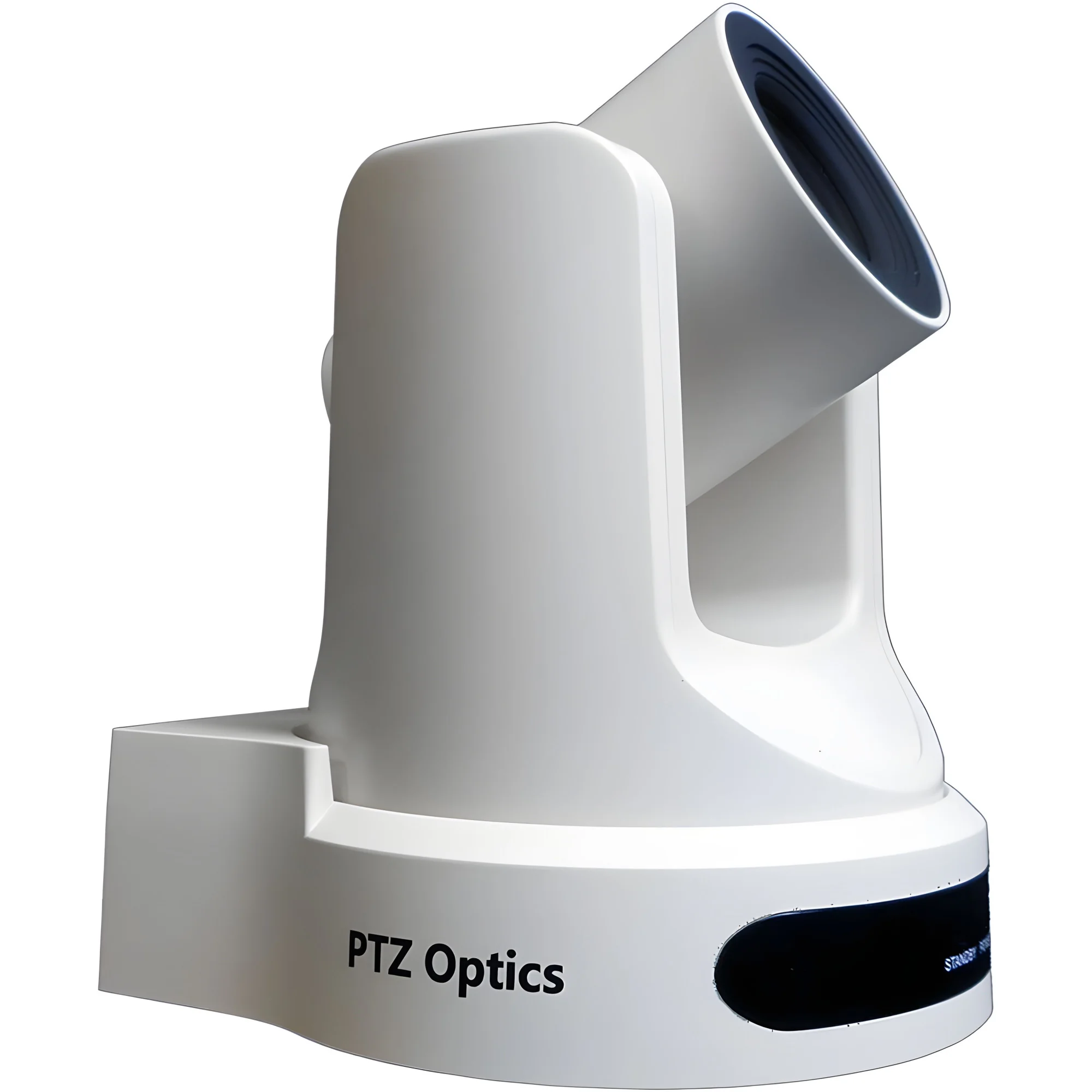

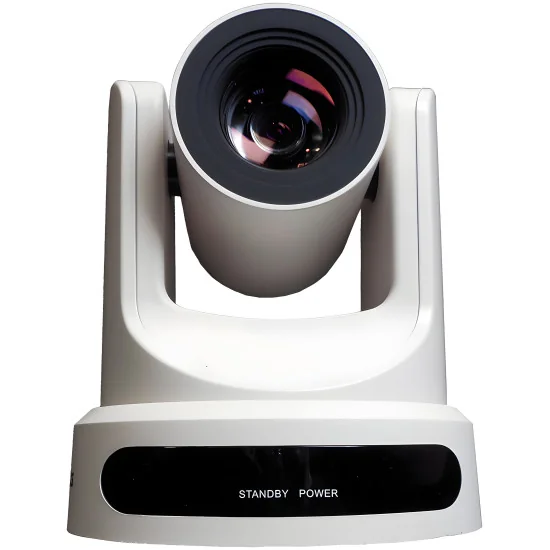

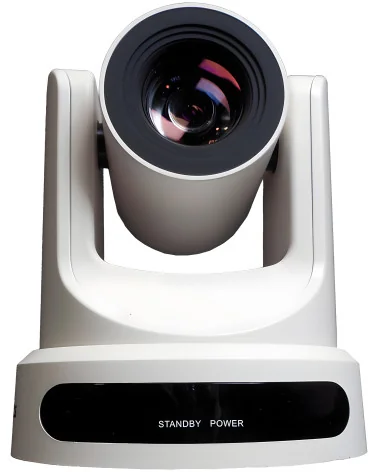

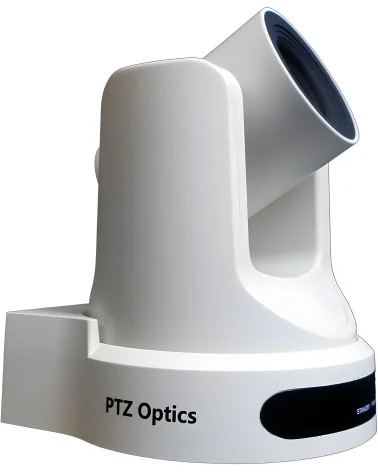

The PTZOptics 20X-SDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.
Versatile Control Options and Live Streaming Remote camera control options when and where you want them. Use PTZ controls built-in to your favorite video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster. Or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. Try our free IP control application for Mac or PC, our open-source control software on GitHub, and our OBS plugin.
SDI cameras can also live stream directly to content delivery networks such as Facebook and YouTube.
Discreet Mounting Options Mount your PTZ camera above, below or beside the action to capture the ideal view every time. Wall Mounts Ceiling Mounts Pole Mounts Outdoor Enclosures
Build your PTZ Camera System Our SDI line includes some of the most popular camera models we’ve ever made. With game-changing optics and high-quality video outputs, video professionals can create innovative custom systems to uniquely suit their needs. Our multiple video outputs and control methods accommodate the growing demands of modern video production.
KEY FEATURES • 60.7 degree wide-angle lens. • High performance in low light scenarios with Wide Dynamic Range. • Full 1920x1080p HD Resolutions up to 60 frames per second. • 2D and 3D noise reduction with our latest “low noise CMOS sensor”. • RS232 & RS485 (Serial), and IP (LAN/WAN) control • H.264, H.265, & MJPEG streaming over RJ-45 LAN port • HDMI, 3G-SDI, & IP streaming (all 3 simultaneously) • PoE (Power over Ethernet) or 12VDC • RTMP & RTSP IP streaming • 5-year warranty • Photobooth capable
WHAT’S IN THE BOX 20X Zoom 3G-SDI Camera Power Adapter + Cord IR Remote Control RS-232C Cable Quick Start Guide (2) AAA Batteries

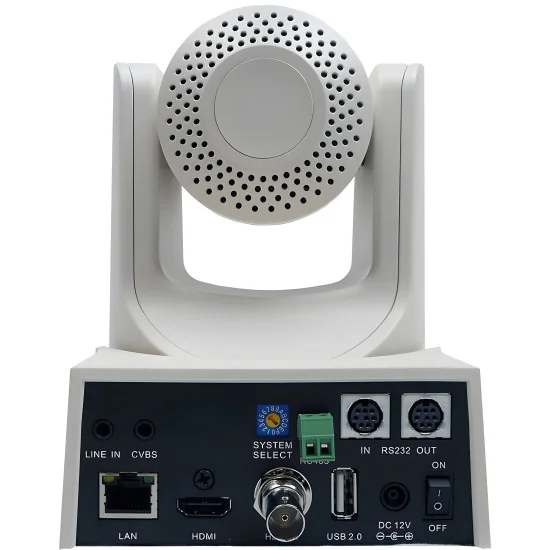

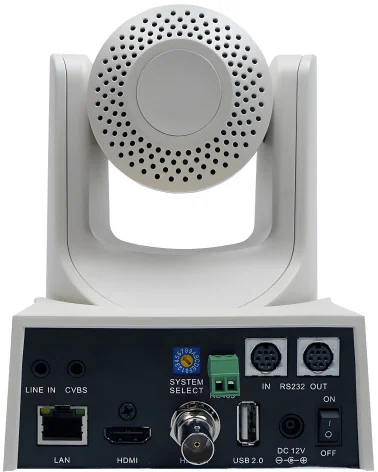

Camera & Lens Video Sensor 1/2.7” CMOS, 2.12 Mega Pixels Frame Rates 1080p-60/50/30/25, 1080i-60/50, 720p-60/50/30/25 Frame Rates (CVBS) 576i-30, 480i-30 Focal Length 20x, F4.42mm-88.5mm, F1.8-F2.8 Lens Zoom 20x Field of View 60.7° Min Lux 0.05 Lux (@F1.8, AGC ON) Shutter Speed 1/30s - 1/10000s SNR ≥55dB Vertical Flip & Mirror Supported Horizontal Angle of View 3.36° (tele) to 60.7° (wide) Vertical Angle of View 1.89° (tele) to 34.1°(wide) Working Environment Indoor Pan & Tilt Movement Pan Movement ±170° Tilt Rotation Up: 90°, Down: 30° Presets 10 via IR (255 via Serial or IP) Rear Board Connectors Video Output HDMI, 3G-SDI, IP Streaming, CVBS Network Interface RJ45 Audio Interface Line In, 3.5mm (HDMI & IP Stream Only) Communication RS-232, RS485, PELCO-D/P Baud Rate 2400/4800/9600 bits Power Supply JEITA type Power Adapter (DC IN 12V) 3G-SDI Interface BNC – 75 Ohm, Female USB 2.0 Interface Future Use Electrical Index Power Supply 12W (Max) Input Voltage 12V DC (10.8 - 13.0V DC) or PoE 802.3af Physical Specifications Dimensions (mm) 142W x 164H x 169D (198H max w/ Tilt) Box Dimensions 9” x 9” x 10” | 229mm x 254mm x 229mm Camera Weight 3.00 lbs. (1.36 kg) Boxed Weight 5.4 lbs. (2.45 kg)
