A New Standard for PTZ Cameras
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator.

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. The Move 4K’s auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Move 4K can track subjects up to 300 feet away.In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Discreet Mounting Options
Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

PTZOptics Move 4K series has the following mounts:
Wall Mounts
Ceiling Mounts
Pole Mounts
Outdoor Enclosures

Take Control Your Way
Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

Free Software for PTZOptics Camera Users
Invigorate your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer. Create stunning graphics and data visualizations in minutes with this easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network. To apply for your free 6-month license or for more information on Titler Live 5 Present, visit ptzoptics.com/newbluefx.

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Key Features:
• UltraHD 4K (3840x2160p) video resolutions up to 60 FPS
• Built-in auto-tracking capabilities
• 30X optical zoom lens with a 59.2° horizontal field of view
• High performance in low light scenarios with Wide Dynamic Range
• 3D noise reduction with our latest “low noise CMOS sensor”
• Serial (RS232 & RS485) & IP control (LAN/WAN)
• H.264, H.265, & MJPEG video compression when IP streaming
• USB 2.0, HDMI 2.0 / 3G-SDI, NDI®|HX 3 / IP streaming (SRT, RTSP, RTMP)
• PoE (Power over Ethernet) or 12VDC power supply
• Built in tally light
• Photobooth capable
• 5-year warranty

What’s in the Box:
• Camera
• AC Power Supply
• USB A-A Cable
• RS232 Cable
• Quick Start Guide
• IR Remote
• 2 AA Batteries

PTZOptics Move 4K PT30X-4K-WH-G3 specifications :
Video Sensor: 1/1.8 inch, CMOS, Effective pixels: 8.42M
Lens: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Lens (35mm Equivalencies): 32mm ~ 825mm, F1.61 ~ F5.19
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Material Aluminum, Plastic
Color White
Dimensions (W x D x H) : 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
Weight : 4.41 lbs (2.0 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

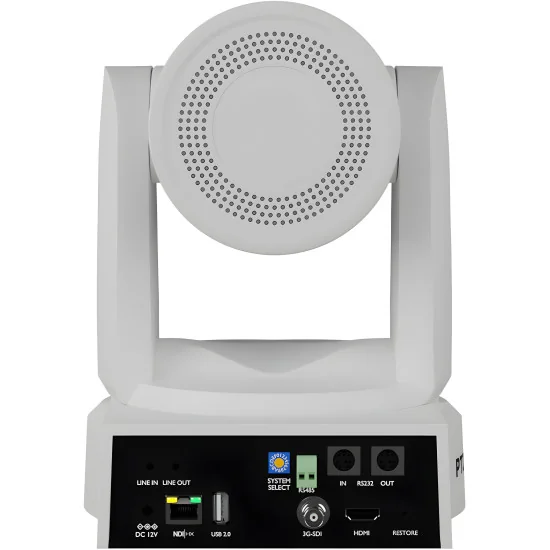

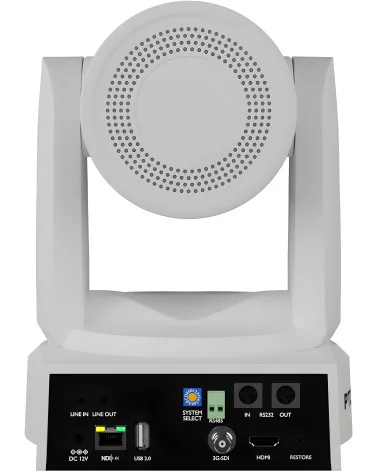

HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack JEITA type (DC IN 12V)
