Choosing the Best PTZ Camera for Different Applications

Pan-Tilt-Zoom (PTZ) cameras come in a wide range of models optimized for various uses. Selecting the best PTZ camera requires evaluating technical criteria like resolution, zoom capability, connectivity, and control options to match your specific application. Below we outline key selection factors and recommend PTZ camera solutions for broadcast studios, corporate conferencing, live events, and streaming/webcasts.

Which PTZ Camera to Choose? (Key Selection Criteria)

When choosing a PTZ camera, consider the following core specifications and features to ensure it meets your needs:

• Resolution & Frame Rate: Determine if you need 4K UHD or if 1080p HD is sufficient. Higher resolution cameras (e.g. 2160p at 30/60 fps) offer crisper image detail and future-proofing for broadcasts, while 1080p 60fps models are often adequate for live streaming . Aim for at least 1080p@30fps for professional-quality video, as lower resolutions will be noticeably inferior .

• Optical Zoom & Field of View: Optical zoom ranges typically span 10x up to 30x on PTZ cameras . A higher zoom (20x–30x) is crucial for large rooms or auditoriums, allowing tight shots from the back of a venue. For instance, a 30x lens can capture a head-and-shoulders shot from ~70 feet (21 m) away . Consider your mounting distance and required field of view when selecting zoom level.

• Connectivity (Video Outputs): Check the output interfaces to ensure compatibility with your workflow. SDI (e.g. 3G-SDI) outputs uncompressed video over coax up to 100m, ideal for broadcast setups . HDMI outputs are common for local A/V connection, though cable length is limited (use extenders beyond ~15m) . IP streaming via Ethernet is increasingly popular – many PTZs support network video protocols like NDI®, RTSP, and SRT for sending video over LAN or internet with minimal cabling . NDI-enabled cameras can carry power, control, and video over a single network cable (PoE) . USB output is another option on some models, allowing plug-and-play use as a webcam for computers. Often, professional PTZ cameras provide multiple outputs simultaneously (SDI, HDMI, IP, USB) for maximum flexibility .

• Control Mechanisms: PTZ cameras can be controlled via IP, serial, or IR. An IR remote (line-of-sight) comes standard for basic control of pan/tilt/zoom and presets . For more precise or multi-camera control, serial control (RS-232/RS-485 using VISCA or Pelco protocols) allows joystick controllers to daisy-chain cameras at short range. IP control is the most versatile: an IP-based joystick or software can operate cameras over the network, enabling long-range control of many units from a single station . Network control also includes web interfaces for configuration. Choose a camera that supports the control method your setup requires (e.g. VISCA over IP for integration with modern controllers).

Other features to note include low-light performance (sensor size and aperture), autofocus quality, and any special functions like auto-tracking or built-in streaming encoder. By matching these criteria to your application, you can narrow down the best PTZ options for your needs.

Which PTZ Camera for TV/Broadcast Applications?

Broadcast and television studios demand top-tier image quality, low latency, and seamless integration into professional workflows. Key factors include high resolution sensors (often 4K), robust connectivity (SDI, NDI, genlock, XLR audio inputs), and precise remote control. Many broadcast PTZ cameras use larger image sensors for better dynamic range and low-light performance, and support broadcast-frame rates (e.g. 1080p60, 1080i) and tally lights for on-air indication . Below are leading PTZ models suited for TV and live broadcast production:

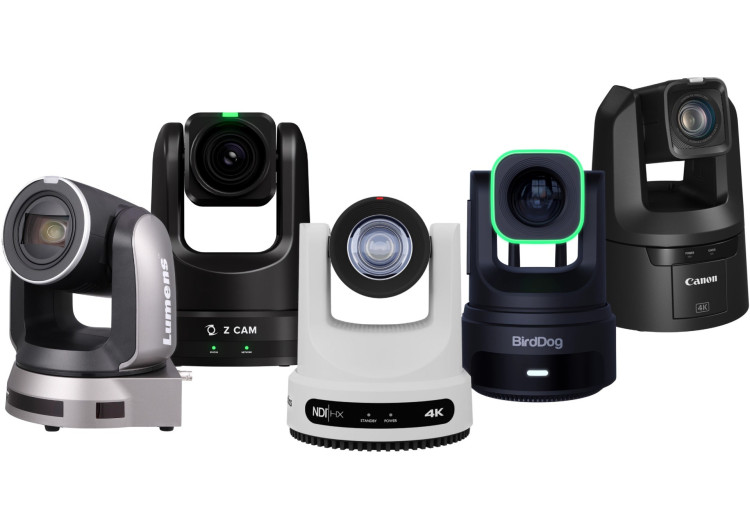

• PTZOptics Move 4K 20X – A high-performance PTZ offering 4K output at 60fps and a 20× optical zoom. It features a wide field of view and even includes auto-tracking capabilities to lock onto talent, keeping subjects in focus as they move . This camera delivers smooth 60p video and is ideal for professional studios or sports broadcasts that require both detail and motion handling.

• Lumens VC-A71P – A 4K 60fps PTZ with a 30x optical zoom and broadcast-grade outputs including 12G-SDI, HDMI, Ethernet, and USB 3.0 . It’s designed for studio and live event production, with a large 1/1.8″ sensor for excellent image quality even in low light . The VC-A71P supports IP control and has a tally light, making it an ideal 4K camera for broadcast studios and even virtual reality setups .

• BirdDog P400 – A high-end PTZ camera featuring an 8.5MP Sony CMOS sensor and a fast f/2.0 lens with 20x optical zoom . The BirdDog P400 can output up to 4K @ 30fps and uses BirdDog’s NDI implementation for low-latency full-bandwidth NDI video. It also provides simultaneous 6G-SDI, HDMI, and NDI outputs for flexibility . This makes it easy to integrate into traditional SDI broadcast workflows while also supporting IP production. The P400’s image quality and zoom make it well-suited for broadcast studios and live sports capture where detail and minimal latency are critical.

• Canon CR-N500 – Canon’s professional PTZ with a 1.0-inch CMOS sensor and DIGIC DV6 processor, delivering superb image quality in UHD 4K at up to 30p (and 1080p60) . The large sensor yields better depth of field control and low-light sensitivity, approaching broadcast cinema camera performance. The CR-N500 offers a 15x zoom lens (73° wide to ~5° telephoto) and Canon’s renowned Dual Pixel autofocus for fast, accurate focusing. It outputs HDMI, 3G-SDI, and IP (including NDI|HX support) and can be remote-controlled via IP, serial (VISCA), or IR. This model integrates smoothly into professional broadcast setups and multi-camera productions, providing the color science and reliability Canon is known for.

• Z CAM E2Z+ – An emerging PTZ camera that bridges cinema-quality imaging and broadcast. It features a large 1.13″ sensor capable of 4K 60p video, leveraging Z CAM’s cinema camera color science in a PTZ form factor . The E2Z+ is praised for its image quality and includes fast phase-detect autofocus (PDAF) to track moving subjects . It carries an 18x optical zoom lens to cover wide and tele shots with a single camera . For connectivity, it provides 3G-SDI and HDMI outputs and supports standard VISCA control. This PTZ is aimed at professional productions that require broadcast-grade video with a cinematic look, offering a fresh option for studios and live events seeking top image fidelity.

Broadcast-focused PTZ cameras generally prioritize minimal latency transport. Many support uncompressed SDI for virtually zero latency monitoring, and IP protocols like NDI|HX3 or SRT for efficient low-latency streaming. NewTek’s latest NDI|HX3, for example, enables high-quality network video with minimal latency and lower bandwidth usage than previous versions . In a live TV environment, these cameras can be mixed with traditional cameras seamlessly – they offer genlock sync on some models, and remote control interfaces that integrate with broadcast switchers and controllers. The result is that modern PTZ cameras from brands like PTZOptics, Lumens, BirdDog, Canon, and Z CAM can deliver true broadcast-quality video  while allowing producers to automate or remotely operate shots that would be difficult or costly to man with a camera operator.

Which PTZ Camera for Corporate Use?

For conference rooms, corporate studios, and webinars, the ideal PTZ camera emphasizes ease of use, integration with PC-based meeting software, and features that enhance communication. Corporate AV setups often prefer USB connectivity for plug-and-play simplicity, as well as auto-tracking to follow presenters during meetings or training sessions. Key considerations for corporate PTZ cameras include: quick setup, compatibility with platforms like Microsoft Teams, Zoom, WebEx, and minimal need for dedicated operators.

Many PTZ cameras designed for corporate or education use offer a USB 3.0 output in addition to HDMI/IP, effectively functioning as high-quality webcams. This means they can connect directly to a computer and be recognized by conferencing software without special drivers. For example, some models can output simultaneously via USB (to a Teams/Zoom PC) and Ethernet (for streaming/monitoring), providing flexibility . Plug-and-play UVC support ensures seamless integration with common video conferencing apps.

Another popular feature is auto-tracking. Auto-tracking PTZ cameras use built-in AI to automatically follow the active speaker or presenter. This is invaluable in corporate boardrooms, classrooms, or lecture halls – the camera can keep a roaming presenter in frame without needing a dedicated operator . For instance, the HuddleCamHD SimplTrack2 (by PTZOptics) is a 1080p camera that continuously tracks a speaker, maintaining a tight shot and panning/tilting as they move . This creates a more engaging view for remote viewers, versus a static wide shot, and it operates entirely autonomously. Auto-tracking PTZ cameras have proven useful in business meetings, allowing dynamic recordings without hiring a camera person .

Ease of use is crucial in corporate environments. Many companies opt for user-friendly PTZ models like the Logitech Rally or AVER CAM series, which come with IR remotes and straightforward setup for conference rooms. These cameras often feature wide-angle lenses (to capture everyone at a table) and preset positions to quickly switch views (e.g., one preset zoomed on the presenter, another on the whiteboard). Some corporate PTZ solutions can also integrate with room control systems or Zoom Rooms setups for a streamlined user experience.

In terms of performance, a 10x–20x zoom range is typically sufficient for meeting rooms. Resolution of 1080p is common, though 4K PTZ cameras are entering the market for enterprises that want extra clarity or to enable digital zoom (ePTZ) in large 4K frames. Low-light sensitivity might be less of a concern in well-lit conference spaces, but good autofocus and smooth pan/tilt motion are still important to avoid jarring video during meetings.

As an example of a corporate-focused PTZ, the Z CAM P2 is a 4K camera that includes an NDI|HX3 interface and auto-tracking, and is explicitly advertised for use in conference rooms and remote meetings via Teams or Zoom . It allows a single camera to cover a boardroom, track the active speaker, and feed the video directly into a Zoom call or live stream. This kind of all-in-one capability (tracking + streaming) is increasingly sought after for corporate AV.

When choosing a PTZ for corporate use, look for terms like “video conferencing PTZ” or “USB PTZ camera”. These models will prioritize features that make them easy to deploy in meeting spaces: driverless USB connectivity, presets for different room views, and often a smaller form factor or attractive design that blends into an office. With the right camera, companies can achieve broadcast-quality video in their virtual meetings and webinars, enhancing professionalism without complicated gear.

Which PTZ Camera for Live Events?

Live events – such as concerts, conferences, sports games, and theater productions – benefit greatly from PTZ cameras due to their flexibility and remote operation. In these environments, operators often need to manage multiple cameras to capture various angles of a stage or venue. PTZ cameras are ideal for this because one operator can control several units from a central location, reducing the crew needed and cutting deployment costs . Here’s what to look for in PTZ cameras for large-scale or live event production:

• High Optical Zoom & Low-Light Performance: In a concert or conference hall, cameras may be positioned far from the action. A PTZ with 20x or 30x zoom allows tight close-ups of speakers or performers even from the back of the room. For example, a model like the Lumens VC-A71P can shoot wide angles and also deliver extreme close-ups with its 30x lens, ideal for capturing a performer’s expressions on a distant stage . Also consider sensor size and aperture – larger sensors (1/1.8″ or 1″) with fast lenses (f/1.8–2.8) will handle stage lighting and spotlights better, producing clear video in dim or changing light.

• Smooth and Fast PTZ Movement: Live events often require on-air camera moves (panning across a stage or tracking a moving subject). Look for cameras with robust pan/tilt motors that support high rotation speeds and acceleration. Professional PTZ models can have pan speeds of up to 300°/second, enabling them to rapidly reposition without noticeable lag . This is crucial if you need to, say, swing from one side of a stadium to the other between shots. Smooth motion and damping are also important so that any on-camera movements appear fluid for the audience.

• Preset Positions and Accuracy: PTZ cameras can store many preset angles. During a live show, an operator can recall presets to quickly cut between stage wide-shots, audience reactions, close-ups on the lead singer, etc. High-end PTZs recall presets with precision and repeatability, which is valuable for cueing exact shots multiple times (for instance, returning to a podium shot during a conference Q&A). Some cameras also support transition speeds or smoothing when recalling presets to avoid jarring cuts.

• Multiple Outputs & Live Integration: In event production, you might be feeding live IMAG (image magnification on big screens), a live stream, and a broadcast feed all at once. PTZ cameras that provide simultaneous outputs on SDI, HDMI, and IP streamline this process . For example, one output can go to a video switcher for IMAG, while another network feed can go into a streaming encoder. Genlock (synchronization) is a bonus feature on some event-focused PTZ models, ensuring the camera can sync its frame timing with other broadcast cameras, which is useful for large multi-camera mixes.

• Remote Control & Networking: In a large venue, running dedicated control cabling can be challenging. IP-controlled PTZ cameras shine here – they can be operated over a standard network. An IP joystick or software like vMix, OBS, or NewTek TriCaster can control all cameras from the production desk . PTZOptics notes that their cameras integrate with popular production software and mixers from NewTek, Blackmagic, Roland, etc., allowing them to slot into complex event workflows easily . This network approach also enables using existing venue infrastructure (like a single CAT6 cable with PoE for each camera).

In practice, venues are using PTZ cameras for everything from live streaming church services to concert tours. Concert productions can involve many cameras and complex AV setups; PTZ cameras simplify these by offering quick setup, adaptable connectivity, and remote multi-cam control . They can be mounted discreetly on trusses, walls, or stages where a human cameraperson might be impractical, all while delivering angles that immerse the audience. With centralized control, a technical director can manage all PTZ feeds in real-time, coordinating with lighting and audio cues for a polished result .

For example, in a large conference or keynote event, you might deploy three PTZ cameras: one at the rear for wide crowd shots and zoom-ins on the presenter, one on the side for profile angles, and one on stage for sweeping audience pans. Each can be controlled by one operator, or even set to auto-track a presenter on stage if appropriate , dramatically reducing manpower. This setup yields a multi-camera production value with minimal crew, showcasing why PTZ cameras are a game-changer for live events and performances.

Which PTZ Camera for Streaming and Web Applications?

Content creators on YouTube, Twitch, and other streaming platforms have unique needs. They often operate in small studios or home setups, and may not have a dedicated production team. The best PTZ cameras for web streaming emphasize simplicity, direct streaming capabilities, and low latency to keep the stream in sync with live interactions. Here are some considerations and features for PTZs in streaming/web use:

• Direct Streaming (RTMP/RTSP): Many modern PTZ cameras can stream directly to the internet without needing a separate encoder or PC. They support protocols like RTMP for services like YouTube or Twitch . If a camera is RTMP-compatible, you can input your stream key and have the camera send the live feed straight to your streaming platform’s server . This is convenient for solo streamers or small venues (like churches) that want a one-stop solution . Some cameras even support RTMPS (for Facebook Live’s requirements) and SRT (Secure Reliable Transport) for stable, low-latency streams over the internet. Be sure to check that a PTZ’s web interface allows configuring these streaming outputs if you plan to use it as an all-in-one streamer.

• Computer Connectivity for OBS/Vmix: If you plan to use a software encoder like OBS or vMix, ensure the PTZ camera offers a streamer-friendly interface. USB 3.0 output is great because the camera will function as a plug-and-play webcam source. If not USB, an NDI|HX or RTSP feed over the local network can be added to OBS with minimal fuss. NDI|HX is efficient, using better compression to reduce bandwidth while maintaining quality, which lets you run multiple IP cameras without overloading your network . For example, JVC and Lumens 4K PTZ models with NDI|HX3 advertise the ability to send high-quality, low-latency video over IP that is ideal for streaming workflows . Alternatively, an HDMI output into a capture card is a reliable route if you prefer a direct wired signal into your streaming PC.

• Low Latency Performance: Interaction with viewers (such as responding to live comments) is easier with minimal delay. Using a PTZ via SDI or HDMI into a capture device will give near real-time video. Over IP, newer protocols help: NDI|HX3 and full NDI have latency in the tens of milliseconds on a LAN, which is virtually imperceptible, while standard RTSP might introduce a second or two of delay depending on buffering. The NewTek NDI|HX PTZ3 camera, for instance, uses NDI to send video with minimal latency and bandwidth impact , making it great for live streaming where timing is critical. If ultra-low latency is a priority (e.g. esports or interactive streams), consider running the camera in a high-framerate mode (60fps) and avoid heavy compression.

• Ease of Setup & Control: A streamer often wears many hats, so the camera should be easy to operate. PTZ cameras can usually be controlled via software, which means you can adjust angles through a web interface or an app while sitting at your computer. Some streamers set up preset angles (like “face cam,” “product close-up,” “wide room view”) and switch between them with hotkeys or an Elgato StreamDeck. Ensure the PTZ camera you choose has a decent control app or supports protocols that your switcher software can talk to. PTZOptics and other brands offer free control applications, and even integration with controllers like StreamDeck . This way, you can recall camera presets or even joystick-control the camera on the fly during a stream.

For example, a one-person YouTube studio might use a PTZ camera mounted on the wall. Through a single network cable (PoE), that camera can get power and send video to the streaming PC . The creator can then use OBS to bring in the camera’s feed (via NDI or capture card) and use an IP joystick or software to pan the camera between different areas of the room (demonstration table, whiteboard, etc.) during the live stream. The PTZ’s ability to quietly reframe shots replaces the need for multiple static webcams. If the camera supports true 1080p60 or 4K, the clarity will be maintained even when zoomed in, which is great for product demos or instructional streams.

Finally, consider audio if you plan to use the camera as a streaming encoder – some PTZ models have a 3.5mm audio input to embed a microphone’s audio into the IP stream . This can simplify your audio routing when streaming directly from the camera. Otherwise, you can sync an external mic via your streaming software.

In summary, the best PTZ cameras for streaming are those that combine high video quality with streaming-ready features: direct RTMP capability, low-latency IP output, and easy connectivity to your PC. They allow content creators to elevate their production quality (multiple angles, smooth motion, professional zoom) without needing a camera operator, all while keeping the tech hassle to a minimum. Whether you’re running a church live stream, a gaming channel, or a virtual event, a well-chosen PTZ camera can deliver a smooth, broadcast-style result that engages your online audience.
