BrightSign XT1145 | 8K Expanded I/O Digital Signage Player XT5 Series
€1,090.00
The BrightSign XT1145 is a robust digital signage player built for delivering 8K and 4K content with expanded I/O capabilities. Designed for...
BrightSign XT245 is an XT5 Series solid-state signage player for installations where 8K playback and deterministic uptime matter: control rooms, broadcast foyers, premium retail walls and corporate studios. The video engine handles single-stream 8K60p H.265 in 10-bit, plus dual 4K60 decode for layered compositions and picture-in-picture. Color pipelines cover HDR10/HLG with Rec.2020, while the browser stack supports HTML5/WebGL and OpenGL content for dashboards fed by live data.
On the output side, a single HDMI 2.1a port carries full-bandwidth 8K signage or non-standard aspect ratios for DVLED canvases and portrait arrays. The player supports 4K rotation, 8K full-resolution graphics mode, and professional media containers such as .ts, .mov, .mp4 and .mkv across H.265/H.264 workflows. Audio playback covers AAC/MP3/WAV with AC-3 pass-through, and HDMI-CEC control can be used to automate display power and input selection in unattended venues.
For local assets and resilient deployments, the platform pairs a optional 256GB PCIe NVMe M.2 SSD with a microSD slot for provisioning, logging or removable content drops. Gigabit Ethernet with PoE+ powers the player from network infrastructure and can simplify single-cable installs inside racks, kiosks and display mounts. When cabling is constrained, an M.2 E-Key bay supports optional Wi-Fi/Bluetooth modules with external antennas.
Integration points focus on AV automation: a 12-pin GPIO header for contact closures and LED control, 3.5 mm IR in/out, and a 3.5 mm combo analog/optical audio port. A real-time clock maintains schedules through power cycles, and front-panel status LEDs plus Service/Reset controls assist commissioning. Fleet operations stay consistent via BrightSignOS, brightAuthor:connected and bsn.Control, with optional bsn.Content or partner CMS workflows for multi-site playlists, approvals and monitoring.

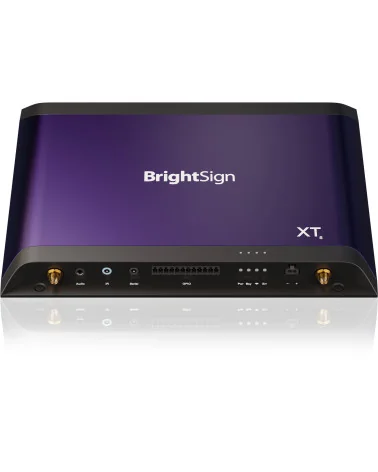

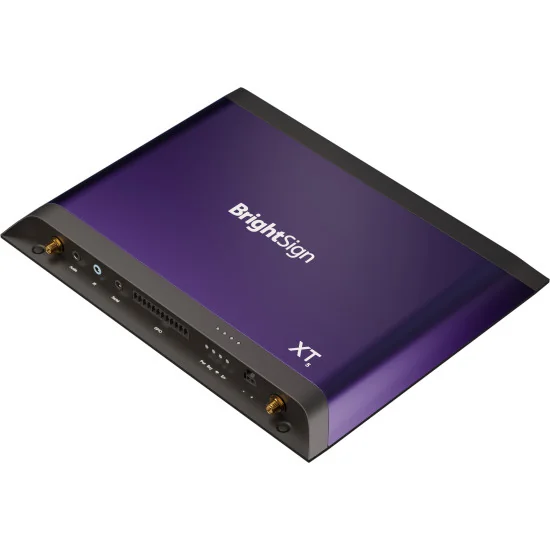

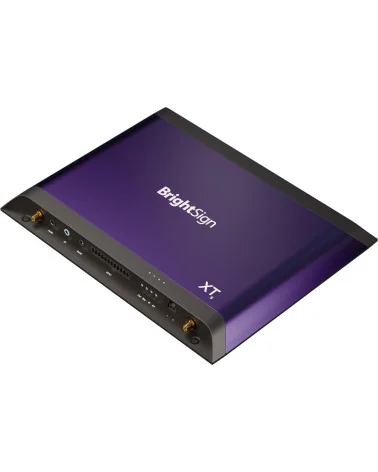

BrightSign XT245 8K Digital Signage Player
XT245
Price: €879.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
BrightSign XT245 is an XT5 Series solid-state signage player for installations where 8K playback and deterministic uptime matter: control rooms, broadcast foyers, premium retail walls and corporate studios. The video engine handles single-stream 8K60p H.265 in 10-bit, plus dual 4K60 decode for layered compositions and picture-in-picture. Color pipelines cover HDR10/HLG with Rec.2020, while the browser stack supports HTML5/WebGL and OpenGL content for dashboards fed by live data.
On the output side, a single HDMI 2.1a port carries full-bandwidth 8K signage or non-standard aspect ratios for DVLED canvases and portrait arrays. The player supports 4K rotation, 8K full-resolution graphics mode, and professional media containers such as .ts, .mov, .mp4 and .mkv across H.265/H.264 workflows. Audio playback covers AAC/MP3/WAV with AC-3 pass-through, and HDMI-CEC control can be used to automate display power and input selection in unattended venues.
For local assets and resilient deployments, the platform pairs a optional 256GB PCIe NVMe M.2 SSD with a microSD slot for provisioning, logging or removable content drops. Gigabit Ethernet with PoE+ powers the player from network infrastructure and can simplify single-cable installs inside racks, kiosks and display mounts. When cabling is constrained, an M.2 E-Key bay supports optional Wi-Fi/Bluetooth modules with external antennas.
Integration points focus on AV automation: a 12-pin GPIO header for contact closures and LED control, 3.5 mm IR in/out, and a 3.5 mm combo analog/optical audio port. A real-time clock maintains schedules through power cycles, and front-panel status LEDs plus Service/Reset controls assist commissioning. Fleet operations stay consistent via BrightSignOS, brightAuthor:connected and bsn.Control, with optional bsn.Content or partner CMS workflows for multi-site playlists, approvals and monitoring.
UE Shipping
We ship all over the European Union for €20, free shipping on orders over €1,000.
B2B Shop
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure checkout
Secure online payments via Stripe.
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
BRIGHTSIGN XT5 THE PERFECT COMBINATION OF POWER AND PERFORMANCE
BrightSign XT5 future proofs deployments with confidence by delivering power, performance, and flexibility to create captivating experiences. This product line consists of three ultra-thin models, all capable of playing the highest quality video up to 8K resolution and running sophisticated HTML motion graphics with roemarkable performance. XT5 offers the most extensive set of HDMI and connectivity ports. Its HDMI input option plays live TV or video from outside sources. Dual HDMI outputs can power two screens simultaneously for video walls or dual-screen signage applications. Streamline installations with Power over Ethernet (PoE+) and utilize a comprehensive set of I/Os for add-on devices and engagement.
Features
• Delivers the highest quality video in resolutions from 1080p to brilliant 8K60p 10-bit video
• Supports dual 4K video decoding to drive two screens at once
• Runs highly responsive motion graphics at high frame rates
• Offers a comprehensive set of connectivity options
• Ultra-thin design with anodized aluminum enclosure
• Runs BrightSignOSTM delivering security, reliability & longevity
Next-Gen Motion Graphics
Cutting-edge graphics capabilities.
Powers sophisticated WebGL, HTML, CSS and JavaScript graphics
Runs highly responsive motion graphics at high frame rates
Supports responsive multi-touch, pinch, and zoom interactions
Optimized for ultra-smooth 3D motion graphics and data visualizations
High Quality Video
Runs brilliant full resolution graphics and video from 1080p to 8K video
Supports a broad range of unique and customizable resolutions at various frame rates
Delivers industry-best 60p, 10-bit decoding
Optimized storage with cutting-edge video codecs
Connect & Create
Creates immersive and powerful experiences at scale.
Offers BrightSign’s most expansive set of connectivity options yet
Streamlined deployments with Gigabit speed PoE+
Control live TV with an HDMI In port
The XT5 Lineup
BrightSign XT5 future proofs deployments with confidence by delivering power, performance, and flexibility to create captivating experiences. This product line consists of three ultra-thin models, all capable of playing the highest quality video up to 8K resolution and running sophisticated HTML motion graphics with remarkable performance. XT5 offers the most extensive set of HDMI and connectivity ports. Its HDMI input option plays live TV or video from outside sources. Dual HDMI outputs can power two screens simultaneously for video walls or dual-screen signage applications. Streamline installations with Power over Ethernet (PoE+) and utilize a comprehensive set of I/Os for add-on devices and engagement. BrightSign XT5’s versatility and power guarantees exceptional signage experiences for years to come.
MODEL XT245 Standard I/O
VIDEO & HTML5 ENGINES
HTML5 performance level: Executive, Runs powerful 3D WebGL motion graphics
8K60p 10-bit video decoding
Single 4K60p 10-bit video decoding
4K video rotation
Full HD video decoding
Dual Full HD video decoding
Full HD video rotation
Full HD images & graphics
MEDIA FORMATS
8K video codecs: H.265
8K Video Containers: .ts, .mov, .mp4, .mkv
4K Video codecs: H.265 and H.264
4K Video Containers: .ts, .mov, .mp4, .mkv
Full HD Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2
Full HD Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts
8K Video Resolutions: 7680x43 20x23.97/24/25/29.97/30/50/ 59.94/60p
4K Video Resolutions: 4096x21 60x23.97/24/25/29.97/30/50/ 59.94/60p 3840x2160x23.97/24/25/29.97/ 30/50/59.94/60p
Full HD Resolutions: 1920x1080x23.97/24/25/29.97/ 30/50/59.94/60p
Supports additional & customizable resolutions: includes unique, non-standard aspect ratios at various frame rates
Images: BMP, JPEG, PNG
Audio: MP2, MP3, AAC and WAV (AC3 is passed through)
HTML5: .html, Chromium- based, CSS, JavaScript, WebGL
HARDWARE INTERFACES
HDMI 1 Output: 1 X (HDMI 2.1a)
Ethernet X (Gigabit with PoE+)
GPIO: 12-pin Phoenix Connector with 8 bi-directional Ports
IR: 3.5mm In / Out
Audio: 3.5mm Output (Analog or SPDIF)
Primary storage: External microSD card slot
Optional storage: M.2 PCIe Interface for NVME SSD Storage
Optional Wi-Fi/Bluetooth: E Key M.2 Interface for WD-105 module
Status LEDs
Reset & Service Buttons
Real Time Clock with 14-day life
Locking Power Connector
ACCESSORIES
MicroSD Class 10 Cards (various capacities)
WD-105 Dual Antenna Wireless/Bluetooth Module
SOFTWARE & SERVICES
BrightSign OS
Free BrightAuthor:connected or BrightAuthor software
Free Control Cloud
Subscription-based BSN.cloud (Optional)
BrightSign Mobile Service (Optional)
MISCELLANEOUS
Anodized aluminum enclosure for extended operating temperatures
Dimensions (W x D x H) 238.62 x 185.90 x 19.19 mm
Player weight 0.63 kg
Power 12V / 3A
Multi-Country Power & Regulatory Approvals
Built-in Wall Mounting Brackets
XT245
5 Items
Data sheet
- Video Output
- HDMI
- Max Output Resolution
- 8K (7680 × 4320) 50/60 fps
- Network Connection
- Ethernet
- PoE Technology
- Yes
- Features
- 4K 10-bit
4K Video Rotation
8K 10-bit
CSS
HTML5
JavaScript
Video Wall Support
WebGL
Specific References
- ean13
- 854529008265
- mpn
- XT245
