RGBlink Mini-ISO

    MINI-ISO
    Price: €575.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

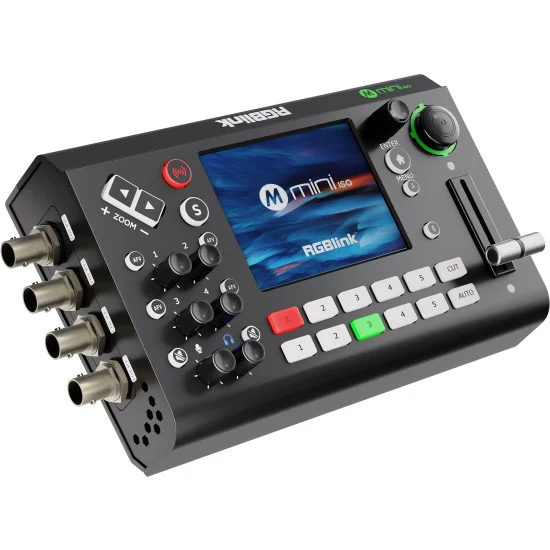

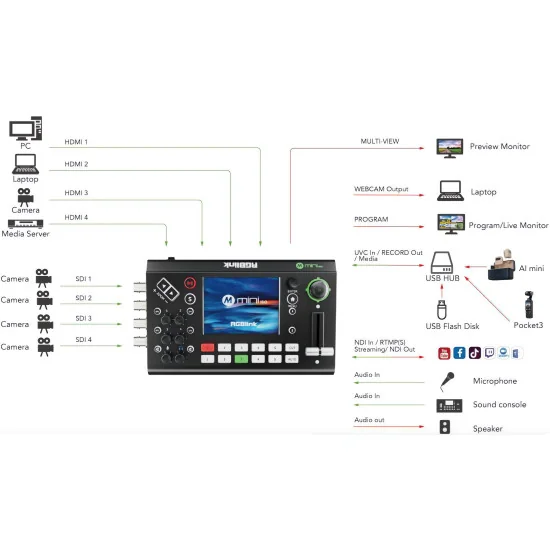

    RGBlink Mini-ISO is a 10-channel streaming switcher for multi-camera production. Four HDMI 2.0 4K60 inputs and four 3G-SDI inputs accept signals from cameras and graphics systems; an additional UVC and NDI input complete the matrix. Two HDMI outputs feed multiview, program or test pattern, while the USB UVC port enumerates as a webcam up to 1080p60. A 3.5-inch (8.9 cm) TFT touch screen provides source thumbnails and menu access, with five-way joystick/toggle for CUT/AUTO and WIPE. Onboard tools include dynamic output control and a test-pattern generator for line-up.

    The internal processor offers PiP, chroma key (green or blue), luma key and 15 transition types with latency under 3 frames. Integrated PTZ control over IP (VISCA) stores/recalls presets. Audio mixing combines up to four embedded HDMI/SDI channels with two analog 3.5 mm inputs, delivering PCM 24-bit/48 kHz to the analog out. Separate USB-A ports handle recording and streaming: one-key MP4 capture to FAT32/exFAT media at up to 16 Mbps, and a dedicated UVC feed for the host computer. A USB-C PD 3.0 power input supports mobile rigs.

    Formats: SMPTE 720p, 1080i and 1080p standards, plus VESA computer signals up to 3840×2160p60 and 4096×2160p60 on HDMI; SDI accepts up to 1080p60. HDMI outputs run at 720p/1080p, and the UVC device streams at 720p60 or 1080p 24/25/30/50/60. Signal paths support RGB 8-bit, YCbCr 4:4:4 and YCbCr 4:2:2, HDCP 1.4 and USB 3.0 with low latency for stable interchange.

    Over IP, the RJ-45 port enables RTMP(S) publishing to as many as four platforms—including YouTube, Facebook and Twitch—plus TAO Cloud/XPOSE remote control. With precise switching, dependable multiview monitoring, integrated recording and streaming, the RGBlink Mini-ISO unifies fly-pack, studio and OB work in one compact console with professional interconnects. Built for long shows and fixed installs.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship all over the European Union for €20, free shipping on orders over €1,000.

    B2B Shop

    Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    The RGBLink Mini-ISO is a portable and versatile video switcher that combines quad SDI and HDMI inputs, real-time preview, PTZ camera control, and multi-platform streaming support for professional video production.

    The RGBLink Mini-ISO is an advanced yet compact video switcher designed for creators and professionals who need a powerful, portable solution for video production. Featuring quad SDI and HDMI 2.0 inputs, the Mini-ISO supports resolutions up to 4K@60, making it perfect for seamless integration of video feeds from PCs, cameras, and other sources.

    The 3.5-inch touch screen provides an intuitive interface for menu operation, signal preview, and real-time status monitoring. Dual HDMI 1.3 outputs allow for multi-view previews, program displays, or test pattern generation, ensuring comprehensive output options.

    With support for embedded audio mixing from four HDMI/SDI channels and two external channels, the Mini-ISO ensures professional-grade sound. Its USB 2.0 recording feature captures content in exFAT or FAT32 format with up to 16Mbps bitrate, while its USB webcam output makes streaming to platforms straightforward.

    The device supports 15 transition effects, AUTO and WIPE switch modes, and advanced Chroma Key and Luma Key options. For PTZ camera setups, the Mini-ISO offers precise control via its 5-direction joystick and IP VISCA protocol compatibility, complete with preset saving and one-click recall.

    The Mini-ISO integrates seamlessly with TAO Cloud for mobile and desktop control and supports RTMP(S) streaming to up to four platforms simultaneously. Its compact design makes it ideal for on-the-go productions, whether in the studio or on location.

    Key Features:
    - Versatile Inputs: Quad SDI and HDMI 2.0 inputs supporting up to 4K@60 resolutions.
    - Compact Design: Portable and easy to carry for flexible use in various environments.
    - User-Friendly Interface: 3.5-inch touch screen for easy operation, preview, and monitoring.
    - Dual HDMI Outputs: For multi-view previews, program displays, or test patterns.
    - Audio Mixing: 4-channel HDMI/SDI embedded audio plus 2 external audio channels.
    - USB Recording: One-key recording in exFAT or FAT32 format with up to 16Mbps bitrate.
    - PTZ Camera Control: Joystick and toggle for precise IP VISCA protocol control with presets.
    - Streaming Capability: RTMP(S) streaming to up to four platforms simultaneously.
    - Advanced Effects: 15 transitions, Chroma Key (green/blue), and Luma Key support.
    - Cloud Control: TAO Cloud integration for mobile and desktop management.

    Specification

    Connectors
    Input

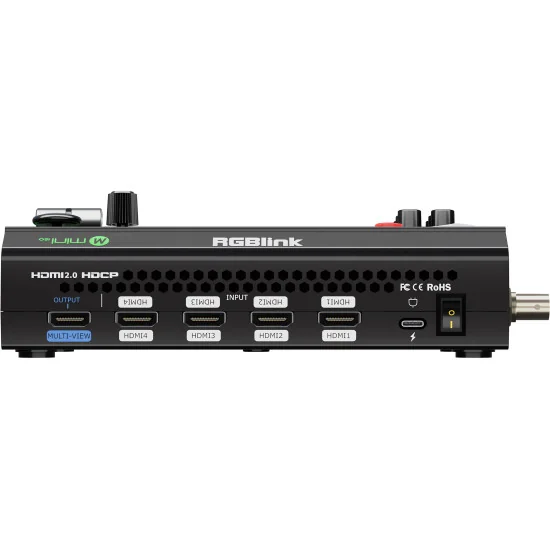

    HDMI 4K: 4×HDMI-A
    UVC (USB Cam): 1×USB-A (Record)

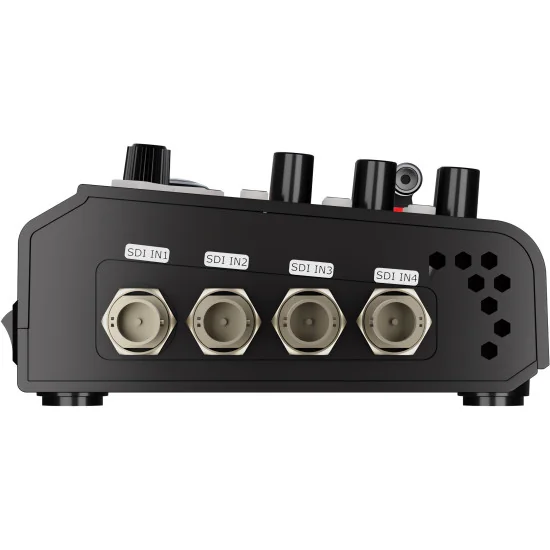

    SDI: 4×BNC
    Media: 1×USB-A (Record)
    NDI: 1×RJ45 (LAN)
    Output
    HDMI 2K: 2×HDMI-A

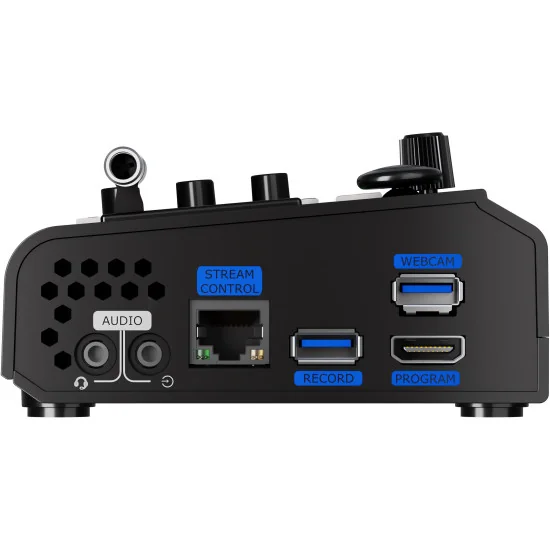

    USB (Record): 1×USB-A (Record)
    USB (Stream): 1×USB-A (Webcam)
    RTMP(s)/NDI: 1×RJ45 (LAN)
    Audio
    Embedded Audio Input: 4×HDMI-A
    External Digital Input: 1×USB-A (Record)
    External Analog Input: 2×3.5mm mini-Jack
    External Analog Ouput: 1×3.5mm mini-Jack
    Communication/Stream/Upgrade
    LAN: 1×RJ45
    Power
    Power Supply: 1×USB-C

    Performance
    Input Resolutions
    HDMI 2.0
    SMPTE: 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
    VESA: 1024×768p@60 | 1280×720p@60 | 1280×768p@60 | 1280×800p@60 | 1280×1024p@60 | 1360×768p@60 | 1366×768p@60 | 1440×900p@60 | 1600×1200p60 | 1680×1050p@60 | 1920×1080p@60 | 1920×1200p@60 | 3840×2160p@60 | 4096×2160p@60
    SDI: 720p@50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
    UVC: 1080p@60
    Output Resolutions
    HDMI 1.3: 1280×720p@50/60 | 1920×1080p@23.98/24/25/29.97/30/50/59.94/60
    USB: 1280×720p@60 | 1920×1080p@24/25/30/50/60
    Video Color Space: RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit
    Video Latency: <3 frames
    Audio
    Audio Format: PCM/2ch/24bit/48kHZ
    Sampling Rate: 48K
    Bitrate: 24bit
    Record/Storage
    Record Formats: MP4 (up to 16Mbps)
    Disk Formats: FAT32 | exFAT
    Supported Standards
    HDMI 2.0
    HDCP 1.4
    USB 3.0
    SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
    NDI: NDI | HX2

    Power
    Compatability: USB Power Delivery (PD) 3.0
    Supported Cables: Certified USB PD Aware
    Input Voltage: 12V/2.5A
    Maximum Power: 30W

    Environment
    Temperature: 0℃～60℃
    Humidity: 10%~85%

    Physical
    Net Weight: 0.60kg
    Packaged Weight: 1.38kg
    Net Dimension: 197mm × 113mm × 60mm
    Packaged Dimension: 255mm × 145mm × 85mm

    MINI-ISO
    9 Items

    Data sheet

    Video Input
    HDMI
    NDI
    SDI
    USB
    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    USB
    Audio Input
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    SDI Embedded
    USB
    Audio Output
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    USB
    Max Output Resolution
    1080p 50/60 fps
    Output colour sampling
    RGB 4:2:2 8-bit
    YUV/YCbCe/YPbPr 4:2:2 8-bit
    Built-in scaler
    No
    Control protocol for PTZ cameras
    VISCA IP
    Streaming protocols
    NDI®|HX2
    RTMPS
    Network Connection
    Ethernet
    Video input channels
    10
    USB video capture
    Yes
    Tally Light
    No
    Screen Size
    3.5"

    Specific References

    ean13
    6976965941082
    mpn
    230-0007-01-0
