RGBlink Mini-Edge-Lite consolidates 5-channel live switching, monitoring and streaming inside a portable PE flight case. A 14-inch Full HD TFT monitor delivers clear multiview, while a 5.5-inch LCD touchscreen accelerates menu access and layer control. Four HDMI 2.0 inputs accept signals up to 4K60 with HDCP 2.2, plus a fifth USB-C UVC input for webcams or RGBlink PTZ. Dual HDMI 1.3 outputs cover PGM, PVW and a 3840×1080/30 multiview option for two-monitor workflows; the UVC output feeds computers at 1080p60 for conferencing and capture.
Processing tools include multi-layer compositing with per-layer crop and scale, chroma key, 17 transition effects, graphics and logo insertion, and up to 10 scene presets with thumbnails. A five-direction joystick enables PTZ VISCA over IP control for four cameras. For distribution, the encoder streams via RTMP(S) to as many as four platforms simultaneously, and one-touch recording captures MP4 to exFAT media. Web control supports laptops and phones, and 5G/4G smartphone tethering extends connectivity on location.
Audio architecture covers eight sources: four embedded from HDMI and four external—XLR/6.35 mm mic with 48 V phantom, 6.35 mm line, Bluetooth, and USB-C digital audio. Mix to one or all program buses, apply per-channel delay (line in up to eight frames), and monitor on 6.35 mm and 3.5 mm outputs. Video sampling runs at 10-bit 4:4:4 with end-to-end latency under four frames. The cooling system sustains stable operation outdoors.
RGBlink Mini-Edge-Lite ingests up to 4096×2160/60 and standardizes outputs to 1080p over HDMI and UVC for CDN compatibility and venue displays. With clear I/O, logical workflow and tough PE housing, it serves corporate AV, education, worship, sports and mobile OB. One case functions as switcher, encoder, recorder, controller and multiview monitor for compact flypacks.
RGBlink Mini-Edge-Lite consolidates 5-channel live switching, monitoring and streaming inside a portable PE flight case. A 14-inch Full HD TFT monitor delivers clear multiview, while a 5.5-inch LCD touchscreen accelerates menu access and layer control. Four HDMI 2.0 inputs accept signals up to 4K60 with HDCP 2.2, plus a fifth USB-C UVC input for webcams or RGBlink PTZ. Dual HDMI 1.3 outputs cover PGM, PVW and a 3840×1080/30 multiview option for two-monitor workflows; the UVC output feeds computers at 1080p60 for conferencing and capture.
Processing tools include multi-layer compositing with per-layer crop and scale, chroma key, 17 transition effects, graphics and logo insertion, and up to 10 scene presets with thumbnails. A five-direction joystick enables PTZ VISCA over IP control for four cameras. For distribution, the encoder streams via RTMP(S) to as many as four platforms simultaneously, and one-touch recording captures MP4 to exFAT media. Web control supports laptops and phones, and 5G/4G smartphone tethering extends connectivity on location.
Audio architecture covers eight sources: four embedded from HDMI and four external—XLR/6.35 mm mic with 48 V phantom, 6.35 mm line, Bluetooth, and USB-C digital audio. Mix to one or all program buses, apply per-channel delay (line in up to eight frames), and monitor on 6.35 mm and 3.5 mm outputs. Video sampling runs at 10-bit 4:4:4 with end-to-end latency under four frames. The cooling system sustains stable operation outdoors.
RGBlink Mini-Edge-Lite ingests up to 4096×2160/60 and standardizes outputs to 1080p over HDMI and UVC for CDN compatibility and venue displays. With clear I/O, logical workflow and tough PE housing, it serves corporate AV, education, worship, sports and mobile OB. One case functions as switcher, encoder, recorder, controller and multiview monitor for compact flypacks.
We ship all over the European Union for €20, free shipping on orders over €1,000.
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop

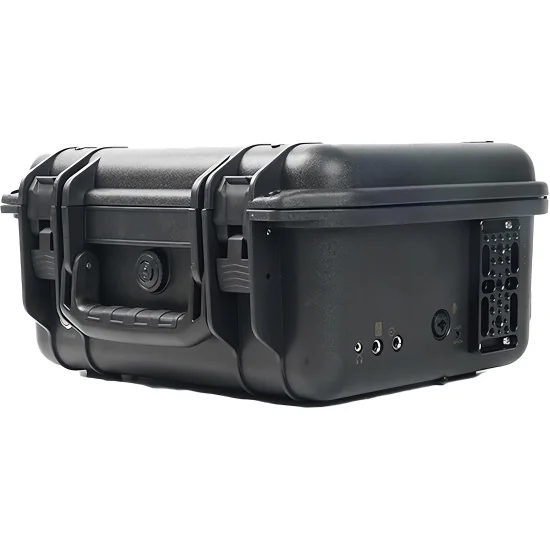

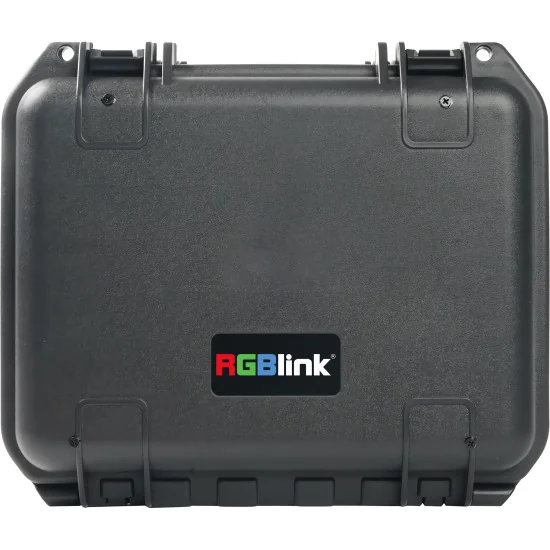

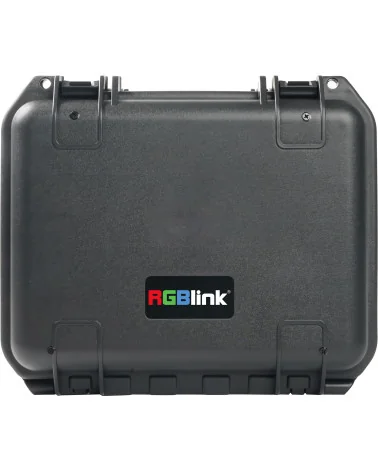

This Dedicated Portable Case made of high-strength PE material is equipped with a 14-inch TFT display and a switcher. Integrated audio and video switching, PTZ camera control, multi-view monitoring, and recording in one case, this portable and shock-resistant carry case is perfect for all sites, from music festival to lawn wedding, sports competition and other outdoor activities.
Key Features
- 14" HD TFT screen and 5.5" LCD screen for monitoring
- High strength PE flightcase features long-lasting durability
- Powerful air-cooling system designed for outdoor use
- One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
- Quad HDMI 2.0 inputs (HDCP), resolution up to 4K@60
- Dual audio out jacks for listening
- Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
- Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGM or AUX
- Support multi-layer overlay, layer scaling and cropping
- Eight audio inputs allow for output of mixed audio across one or all available channels
- Simultaneous streaming to 4 live streaming platforms via RTMP(S)
- Web control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
- 17 switching effect modes
- 5-direction joystick for controlling up to 4 PTZ cameras
- Support Chroma Key
- One-key recording. Recording capacity of hard drive is up to 2TB
- Save up to 10 scene presets and thumbnails for real-time full preview
- 5G/4G Smartphone Tethering for iOS and Android system
Technical data

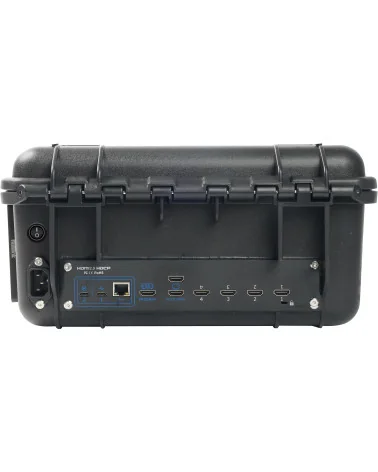

Connectors
Inputs
HDMI 4K: 4x HDMI-A
UVC (Webcam): 1x USB-C
Outputs
HDMI 2K: 2x HDMI-A
USB (recording): 1x USB-C
USB (Streaming): 1x USB-C
Audio
MIC IN: 1x 6,35 mm XLR + TS Klinke (48 V Phantomspeisung)
LINE IN: 1x 6,35 mm TRS-Klinke
OUT: 1x 6,35 mm TRS-Klinke, 1x 3,5 mm Mini-Klinke
Communication: LAN: 1x RJ45
Power: Power supply: 1x power socket, 1x power switch
Performance
Input resolution
HDMI:
1280x720@50 / 59,94 / 60 | 1024x768@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1200@60 | 1920x1080i@50 / 59,94 / 60 | 1920x1080p@23,98 / 24 / 25 / 29,97 / 30 / 50 / 59,94 / 60 | 3840x2160p@30 / 50 / 60 | 4096x2160@30 / 50 / 60
Output resolution
HDMI: 1280x720@50 / 60 | 1920x1080@60 | 3840x1080@30
USB (Webcam): 1920x1080@24 / 25 / 30 / 50 / 60
Video
Video formats: HDMI 2.0 | HDCP 2.2
Grayscale processing: 10 bit
Video-Sampling: 4:4:4 YUV
Video latency: < 4 Frames
Audio
Line In Delay: up to 8 frames
Audioformat:
HDMI: Linear PCM, 24 Bit / 48 kHz, 2-Ch
USB: Linear PCM, 16 Bit / 48 kHz, 2-Ch
Recording/Storage
Recording format: MP4
Hard drive format: FAT32 (≤ 32 GB) | exFAT (64 GB ~ 2 TB)
Supported standards
HDMI: 2.0
USB: 3.0
H.265: ITU-T H.265 / ISO / IEC 23008-2
Display
Screen size: 14"
Panel type: TFT
Frame size (L/R/U): 4,82 / 6,72 / 4,42
Resolution: 1920x1080 Pixel
Contrast ratio: typ.: 500 / min.: 350
Color range (Gamut): 45%
Brightness: 220 cd/m²
Viewing angle (U/D/R/L): 24° / 45° / 45° / 45°
Power
Power input: 110~240V
max. power: 36 In
Generally
Material: Polyethylene
Color: Black
Mass: 360 x 308 x 177 mm
Weight: 4 kg
