SWEDX Lamina Touch 32" Black SWLT-32K8-A2 | Digital Signage Totem Kiosk, 4K, HDMI, USB

    SWLT-32K8-A2
    Price: €959.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

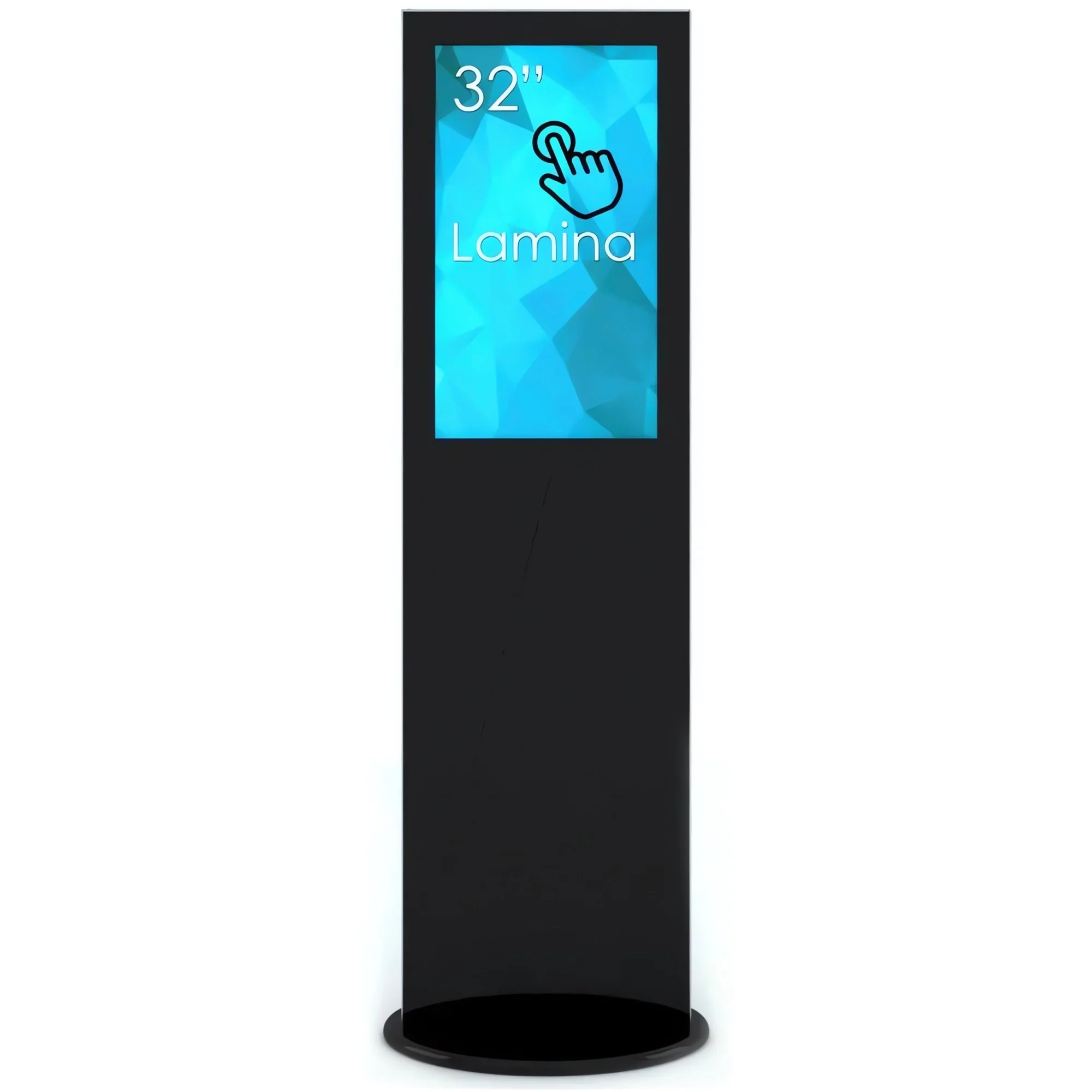

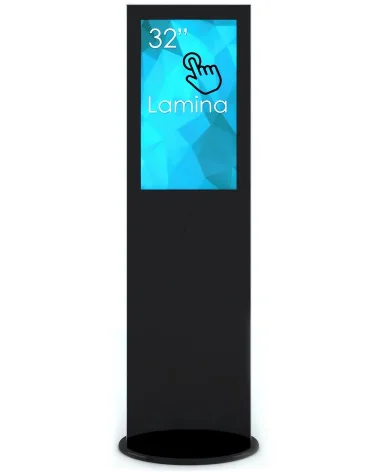

    The SWEDX Lamina Touch 32” Black SWLT-32K8-A2 is a freestanding digital signage kiosk featuring a 32-inch 4K UHD display with 10-point infrared touch technology. Its 3840 x 2160 resolution and 60Hz refresh rate deliver sharp, smooth visuals, ideal for interactive applications in retail, exhibitions, and public spaces. The display offers a brightness of 350 cd/m² and a contrast ratio of 3000:1, ensuring clear and vibrant images. Connectivity options include three HDMI 2.0 ports supporting 4K at 60Hz, two USB 2.0 ports, VGA, and component inputs, accommodating various media sources. The integrated USB media player allows for direct content playback and playlist creation, while the Smart HDMI feature manages power consumption based on signal activity. A lockable rear compartment provides secure space for additional hardware installations, such as digital signage players or mini PCs. The kiosk is compatible with multiple operating systems, including Windows, Linux, Mac OS, and Android, enhancing its versatility. Designed for continuous operation, the SWLT-32K8-A2 is an energy-efficient solution for dynamic, interactive digital signage needs.

    UE Shipping

    We ship all over the European Union for €20, free shipping on orders over €1,000.

    B2B Shop

    Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    The SWEDX Lamina SWLT-32K8-A2 stands as an elegant 4K freestanding display, equipped with 10 touch points, making it an ideal choice for points of sale in shopping centers, trade fairs, or retail environments. Its sleek design and interactive touch function enhance its appeal. This black model features a 32-inch 4K screen, and is outfitted with three HDMI 2.0 inputs supporting 4K resolution at a 60Hz refresh rate, perfect for ultra HD video, image, and animation playback. The unit's rear is designed with a lockable compartment, providing ample space for additional hardware like the digital signage player or a robust mini PC. The 4K display in this model includes a 10-point infrared touch functionality, enabling interactive user experiences.

    Users can also directly play content and set up playlists through its USB connection. An integrated timer automates the display's power, ensuring it turns on and off as needed and begins playing the chosen playlist. Additionally, Smart HDMI technology regulates power consumption based on HDMI signal activity. The SWLT-32K8-A2 is versatile, ideal for providing online customer assistance, digital shopping experiences in-store, or implementing interactive wayfinding systems. It's also suitable for use in bank reception areas, providing customers with interactive financial updates or showcasing new investment opportunities, a role increasingly filled by interactive displays instead of in-person advisors. With its 24/7 operational capability, the display offers continuous service, extending beyond regular business hours.

    Featuring a 4K resolution of 3840 x 2160 pixels and a brightness of 350 cd/m², the SWEDX Lamina SWLT-32K8-A2 ensures that your content is displayed in vivid UHD quality. The 5000:1 contrast ratio enhances image quality, enabling the display of finer details. The 4K resolution ensures superior image quality even from close range, far surpassing Full HD resolution capabilities. An anti-glare coating on the screen ensures content visibility in bright settings while reducing glare and light reflection.

    The display's 10-point touch is compatible with popular operating systems like Windows, Linux, Mac OS, and Android, connecting to a PC via USB 2.0. It utilizes infrared touch technology, where an invisible grid of infrared rays detects touch when interrupted by a finger or stylus. This IR touch screen is responsive to both finger and stylus inputs, protected by a 4 mm thick, 3H scratch-resistant glass. The unit includes two integrated 10-watt speakers for audio output. Multiple connectivity options like 3x HDMI and 1x VGA allow for the connection of various playback devices.

    At the rear, the unit features a secure, lockable door to protect the equipment, with space for installing digital signage players compatible with Windows or Android. This setup simplifies creating and automating photo and video playlists. Devices such as mini PCs or Android boxes can be connected to the SWLT-32K8-A2 via one of its USB ports. The unit's design is environmentally conscious, featuring an automatic on/off timer and Smart HDMI functionality, which enhances energy efficiency by adjusting to HDMI signal input. Additionally, the internal media player allows for USB-driven media playback, offering users the flexibility to schedule and customize content displays, like varying information for different times or days.

    LCD DISPLAY

    Model

    SWLT-32K8A1/A2

    Panel Type

    32" TFT UHD Panel

    Display size

    32"

    Backlight

    Edge-LED

    Refresh rate

    50/60Hz

    Aspect Ratio

    16:9

    Max. Resolution

    3840 x R.G.B x 2160

    HD Format

    Quad Full HD 3840x2160 pixels

    Output frame rate

    QFHD 50/60 Hz

    Contrast Ratio

    3000:1

    Brightness (cd/m2)

    350d/m2

    Display Color

    1,07G corlars (8-bit +FRC)

    Viewing Angle

    H:178o V:178o VA Technology

    Base Type

    Removable

    Accessories included

    Base,Remote,AC-Cable, Screw

    Remote Type

    2,4 GHz

    Remmote printed language

    English

    Remote Pairing

    Reciver key + 2 remote keys (ok+8)

    Display

    High color saturation

    NTSC 88%

    Sound System

    Stereo /Surround/ SRS TruSurround XT

    AUDIO

    Stereo system

    Stereo

    Audio Speaker

    10W X2

    CONNECTION

    CVBS +Audio R/L Input

    X 1

    Analog VGA

    X 1

    PC Stereo Input

    X 1

    HDMI 1 ARC

    X1

    HDMI 2

    X1

    HDMI 3 MHL

    X1

    YCbCr/YPbPr Input

    X1

    Coaxial Out

    X1

    USB 1

    X1

    USB 2

    X1

    On/OFF key

    X1

    Remote Pair Key

    X1

    Touch Screen USB

    X1

    Touch Screen

    USB Connection

    Yes

    Touch screen 6point

    Yes

    Touch screen 10 point

    Optional

    Touch Type

    Infrared

    Protective glas

    Yes

    Signal Mode

    CVBS +Audio R/L Input

    Pal/Secam/NTSC 1Vp-p@75ohm 500mVrms

    Analog VGA

    H:30-75KHz V:56-75Hz 0,7Vp-p@75ohm Max 1920x1080@60Hz

    PC Stereo Input

    500mVrms

    HDMI

    HDMI2,0/1,4b /HDCP 2,2/1,4 MHL 3,0/2,1 Compatible

    YCbCr/YPbPr Input:

    Y:1Vp-p@75ohm, PbPr: 0,7Vp-p@75ohm 500mVrms 480I/P, 576I/P, 720P,1080I/P

    USB 1

    2.0

    USB 2

    2.0

    POWER

    Valtage/Frequency

    AC Input 100~240V,50/60Hz

    Power Consumpiton

    Max 50 Watt

    Stand by Power consumption

    <0.5W

    Power Code

    TBD

    Power code mark

    TBD

    FEATURES

    Full HD Compitable

    480i/576i,480p/576p,720p/1080i /1080P 2160i/2160P

    HDMI Input

    480P,576P,720P,1080I,1080P /2160I /2160P

    HDMI 4k @50Hz / 60Hz

    Yes in All inputs

    3D Digital Comb Filter

    Yes

    3D Digital Noise Reduction

    Yes

    Sleep timer

    Yes

    Advanced Timer

    Yes

    Power on/off timer

    Yes

    Smart HDMI

    Yes

    Color temperature control

    Yes

    Picture Status Memory

    Yes

    Multi display mode

    Optional

    USB Media player

    Yes

    USB play list

    Yes

    USB Auto play mode Video

    Yes

    USB Auto play mode Photo

    Yes

    USB Simple mode

    Yes

    USB Play list mode

    Yes

    De-Interlace

    3D motion adaptive video

    OSD Language

    English, Swedish, Japan, German, Italy ,France, Chinese

    DIMENSION

    Outline Dimension (mm)

    1820x582x450

    Packing Size

    1950x670x160

    Gross wieght

    42KG

    Net wieght

    35KG

    Other packing

    Flight Case avalible (Optional)

    Operating Condtion

    Temperature

    Normal Condtion 20± 15°C

    Humidity

    Normal Condtion 55± 20%

    Operating Ambient Temp.

    0°C - 50°C

    Storage Temp.

    Min -20°C / Max +60°C

    Display Pattern

    continually changing pattern (Not staionary)

    Color

    Front Standard

    Glossy Black Code A2/ Glossy white Code A1

    Back Standard

    Black Code A2/ White Code A1

    Edge Standard

    Chrome

    Other colors

    Open request

    SWLT-32K8-A2

    Data sheet

    Video Input
    Component
    Composite CVBS
    HDMI
    USB
    VGA
    Screen Size
    32"
    Display Brightness
    350 nits
    Aspect Ratio
    16:9
    Screen Resolution
    3840x2160
    Refresh Rate
    60Hz
    Screen Type
    LCD TFT
    Backlight
    Edge-LED
    Backlight Rated Hours
    30000
    Touch Screen
    Yes
    Touch Screen Points
    10
    Touch Type
    Infrared
    Viewing Angle
    178/178
    Built-in Speaker
    Yes
    Touch USB Connection
    Yes
    USB Media Player
    Yes
    Supported OS
    Android
    Linux
    Mac OS
    Windows 8
    Windows 10
    Windows 2000
    Windows Vista
    Windows XP

    Specific References

    ean13
    7350019188316
    mpn
    SWLT-32K8-A2
