SWEDX Lamina 32" White SWL-32K8-A1 | Digital Signage Totem Kiosk, 4K, HDMI, USB

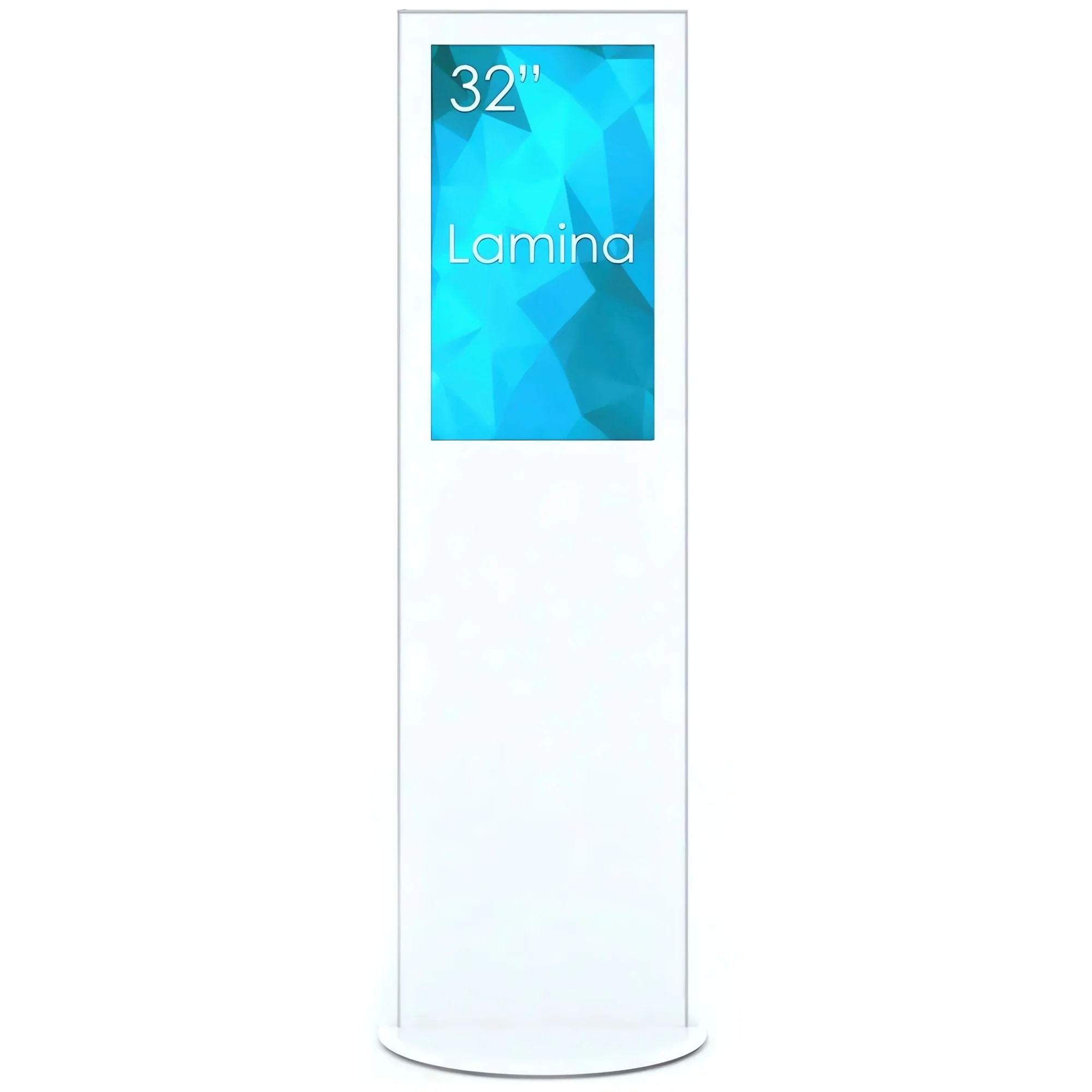

The SWEDX Lamina SWL-32K8-A1 is an elegantly designed free-standing 4K display unit. Featuring a pristine white finish, this advertising kiosk is equipped with a 32-inch display that offers 4K resolution. It includes three HDMI 2.0 inputs, each capable of supporting a 60Hz refresh rate, which is ideal for presenting Ultra HD videos, images, and animations in state-of-the-art quality. This model is a non-touch variant, making it a superb choice for businesses seeking to enhance their entrance areas, as well as for use in museums, retail settings, and public institutions. The SWEDX Lamina SWL-32K8-A1 can be operated in portrait mode, allowing content to be displayed in 4K resolution with a brightness of 350 cd/m².
Designed for continuous operation, the display can function 24/7, perfectly suiting environments like petrol stations that require around-the-clock use. The SWL-32K8-A1 is also an excellent fit for hotels, restaurants, and retail areas, particularly in locations with high foot traffic. Traditional static billboards, which display the same content continuously, often lose their appeal over time. In contrast, digital displays like the SWL-32K8-A1 offer the flexibility to update content regularly, keeping the interest of daily commuters and regular visitors alive by offering new visuals every day.
The SWEDX Lamina SWL-32K8-A1 advertising column boasts a 3840 x 2160 pixel resolution, ensuring that your advertising content is presented in exceptional UHD quality. The advantage of its 4K resolution lies in its ability to showcase images with enhanced detail and clarity. This superior image quality is even noticeable at close distances, surpassing what Full HD resolutions can achieve. A brightness of 350 cd/m² and a contrast ratio of 3000:1 contribute to an excellent visual experience. Additionally, the display's anti-glare coating ensures that the content remains visible and clear, even in brightly lit settings, by reducing reflections and light mirroring.
The back of the unit features a lockable door to secure your equipment. This space is designed to accommodate a variety of digital signage players compatible with either Windows or Android systems, facilitating easy setup and automatic playback of photo and video playlists. The SWL-32K8-A1 also includes two USB ports, allowing for the connection of devices such as mini PCs or Android boxes. Moreover, the unit is environmentally conscious, equipped with an automatic on/off timer and Smart HDMI technology, which intelligently regulates power usage based on HDMI signal activity. The internal media player allows for USB-driven media playback, giving users the ability to schedule and customize content displays, such as showing different information in the morning or on weekends.
LCD DISPLAY |
|
Model |
SWL-32K8A1/A2 |
Panel Type |
32" TFT UHD Panel |
Display size |
32" |
Backlight |
Edge-LED |
Refresh rate |
50/60Hz |
Aspect Ratio |
16:9 |
Max. Resolution |
3840 x R.G.B x 2160 |
HD Format |
Quad Full HD 3840x2160 pixels |
Output frame rate |
QFHD 50/60 Hz |
Contrast Ratio |
3000:1 |
Brightness (cd/m2) |
350d/m2 |
Display Color |
1,07G corlars (8-bit +FRC) |
Viewing Angle |
H:178o V:178o VA Technology |
Base Type |
Removable |
Accessories included |
Base,Remote,AC-Cable, Screw |
Remote Type |
2,4 GHz |
Remmote printed language |
English |
Remote Pairing |
Reciver key + 2 remote keys (ok+8) |
Display |
|
High color saturation |
NTSC 88% |
Sound System |
Stereo /Surround/ SRS TruSurround XT |
AUDIO |
|
Stereo system |
Stereo |
Audio Speaker |
10W X2 |
CONNECTION |
|
CVBS +Audio R/L Input |
X 1 |
Analog VGA |
X 1 |
PC Stereo Input |
X 1 |
HDMI 1 ARC |
X1 |
HDMI 2 |
X1 |
HDMI 3 MHL |
X1 |
YCbCr/YPbPr Input |
X1 |
Coaxial Out |
X1 |
USB 1 |
X1 |
USB 2 |
X1 |
On/OFF key |
X1 |
Remote Pair Key |
X1 |
Touch Screen USB |
No |
Touch Screen |
|
USB Connection |
- |
Touch screen 6point |
- |
Touch screen 10 point |
- |
Touch Type |
- |
Protective glas |
- |
Signal Mode |
|
CVBS +Audio R/L Input |
Pal/Secam/NTSC 1Vp-p@75ohm 500mVrms |
Analog VGA |
H:30-75KHz V:56-75Hz 0,7Vp-p@75ohm Max 1920x1080@60Hz |
PC Stereo Input |
500mVrms |
HDMI |
HDMI2,0/1,4b /HDCP 2,2/1,4 MHL 3,0/2,1 Compatible |
YCbCr/YPbPr Input: |
Y:1Vp-p@75ohm, PbPr: 0,7Vp-p@75ohm 500mVrms 480I/P, 576I/P, 720P,1080I/P |
USB 1 |
2.0 |
USB 2 |
2.0 |
POWER |
|
Valtage/Frequency |
AC Input 100~240V,50/60Hz |
Power Consumpiton |
Max 50 Watt |
Stand by Power consumption |
<0.5W |
Power Code |
TBD |
Power code mark |
TBD |
FEATURES |
|
Full HD Compitable |
480i/576i,480p/576p,720p/1080i /1080P 2160i/2160P |
HDMI Input |
480P,576P,720P,1080I,1080P /2160I /2160P |
HDMI 4k @50Hz / 60Hz |
Yes in All inputs |
3D Digital Comb Filter |
Yes |
3D Digital Noise Reduction |
Yes |
Sleep timer |
Yes |
Advanced Timer |
Yes |
Power on/off timer |
Yes |
Smart HDMI |
Yes |
Color temperature control |
Yes |
Picture Status Memory |
Yes |
Multi display mode |
Optional |
USB Media player |
Yes |
USB play list |
Yes |
USB Auto play mode Video |
Yes |
USB Auto play mode Photo |
Yes |
USB Simple mode |
Yes |
USB Play list mode |
Yes |
De-Interlace |
3D motion adaptive video |
OSD Language |
English, Swedish, Japan, German, Italy ,France, Chinese |
DIMENSION |
|
Outline Dimension (mm) |
1820x582x450 |
Packing Size |
1950x670x160 |
Gross wieght |
42KG |
Net wieght |
35KG |
Other packing |
Flight Case avalible (Optional) |
Operating Condtion |
|
Temperature |
Normal Condtion 20± 15°C |
Humidity |
Normal Condtion 55± 20% |
Operating Ambient Temp. |
0°C - 50°C |
Storage Temp. |
Min -20°C / Max +60°C |
Display Pattern |
continually changing pattern (Not staionary) |
Color |
|
Front Standard |
Glossy Black Code A2/ Glossy white Code A1 |
Back Standard |
Black Code A2/ White Code A1 |
Edge Standard |
Chrome |
Other colors |
Open request |
Data sheet
- Video Input
- Component
Composite CVBS
HDMI
USB
VGA - Screen Size
- 32"
- Display Brightness
- 350 nits
- Aspect Ratio
- 16:9
- Screen Resolution
- 3840x2160
- Refresh Rate
- 60Hz
- Screen Type
- LCD TFT
- Backlight
- Edge-LED
- Backlight Rated Hours
- 30000
- Touch Screen
- No
- Viewing Angle
- 178/178
- Built-in Speaker
- Yes
- USB Media Player
- Yes
- Supported OS
- Android
Linux
Mac OS
Windows 8
Windows 10
Windows 2000
Windows Vista
Windows XP
Specific References
- ean13
- 7350019188286
- mpn
- SWL-32K8-A1
