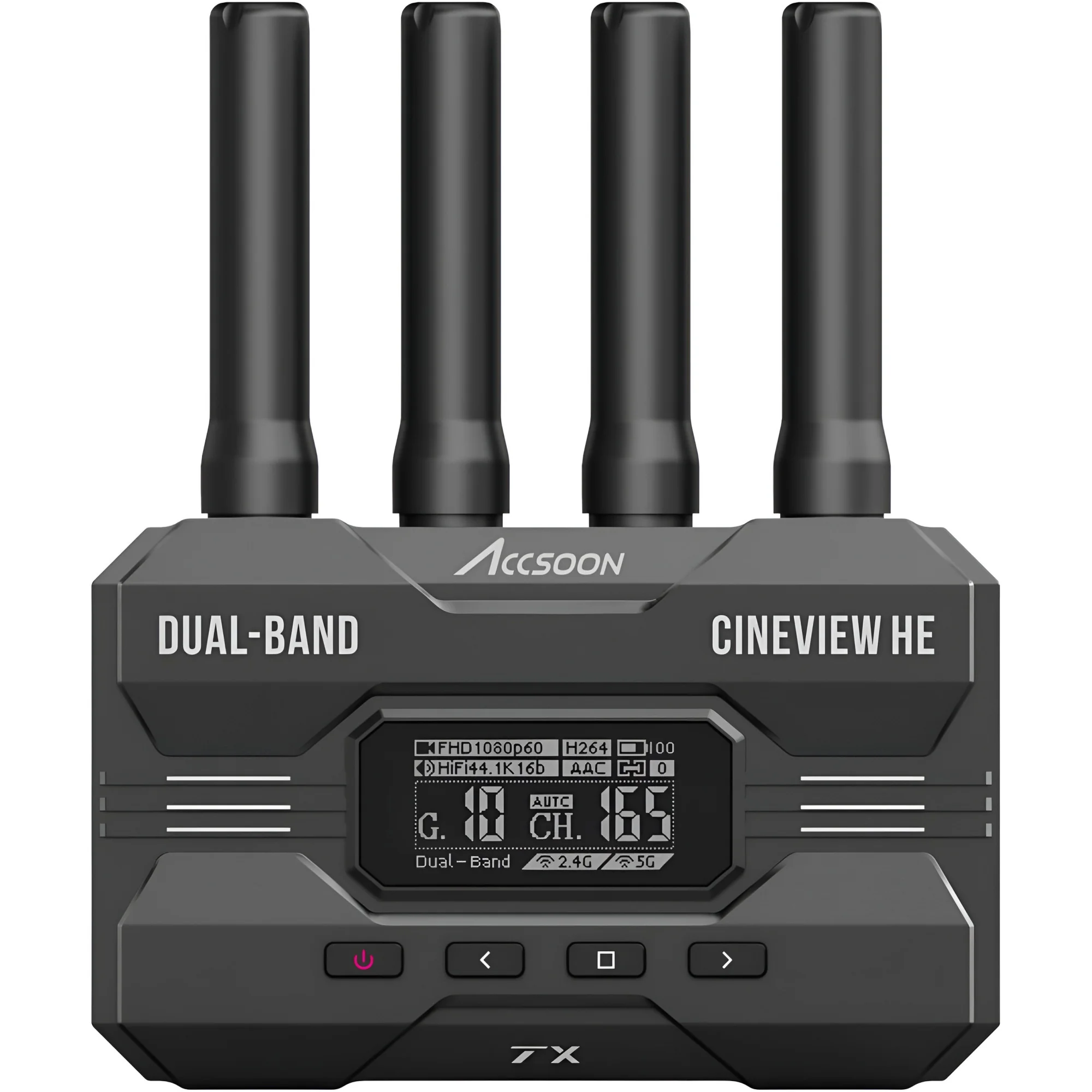

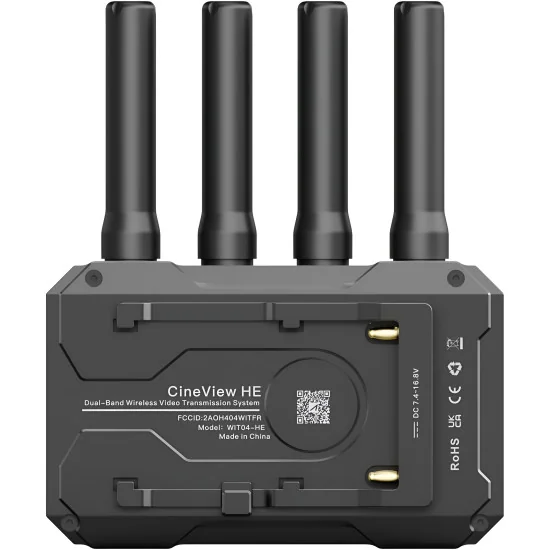

Accsoon CineView HE TX Wireless Video Transmitter

Accsoon CineView HE TX Wireless Video Transmitter

Name: Accsoon CineView HE TX Wireless Video Transmitter
Brand: Accsoon
SKU: ACC-WIT04-HE-TX
Price: 449.00 EUR
Availability: InStock

MPN: ACC-WIT04-HE-TX

Price: €449.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Accsoon CineView HE TX is a wireless HDMI video transmitter for monitoring and client preview when a long cable run is a problem. It uses 2.4 GHz + 5 GHz dual‑band transmission and is specified for up to 350 m line‑of‑sight, with stated end‑to‑end delay under 0.06 s (camera processing not included). Transmission power is specified at 17–20 dBm.

Connections are camera‑friendly: one full‑size HDMI input from the camera, and an HDMI loop‑out to a local monitor, recorder or EVF while the same feed goes wireless. The transmitter accepts and passes 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps (plus 720p), with embedded audio at 44.1/48 kHz, 16/24‑bit PCM. One TX can feed up to four endpoints in any mix—CineView HE receivers and mobile devices—so director, producer and script can watch the same frame without visiting video village. A cabled reference stays on the rig for take‑to‑take consistency.

RF handling is tuned for real locations: automatic channel selection at power‑up, group pairing via the rotary knob, and three data‑rate modes (High‑Quality / Normal / Speed) when you need to trade compression for timing. Wireless is based on Wi‑Fi 5 (802.11ac) dual‑band with MU‑MIMO support, using 20 channels across the 2.4 GHz and 5 GHz ranges. A 1.3‑inch OLED shows group, channel, input format and connected device count. Detachable antennas connect via RP‑SMA, and the transmitter can reset its Wi‑Fi network settings from the on‑device menu. In the monitoring app you can add zebra, false color, focus tools, .cube 3D LUT overlay, and reference recording for fast playback.

Power can come from a NP‑F (L‑series) battery, DC (7.4–16.8 V, centre‑positive barrel), or 5 V USB‑C (min. 2 A). Typical draw is about 4.5 W and the chassis runs fanless for quiet dialogue, rated for −10 to 40 °C. Use it on gimbals, car rigs and cranes, in studio galleries, or on live stages where a producer, stage manager or vision operator needs a stable preview. Add a CineView HE receiver when you need HDMI output at video village or UVC into a computer, and use app‑based RTMP streaming with a phone data connection when needed.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

It transmits HD video and HQ audio to up to 4 devices (its receiver, mobile phone, iPad, and even MacBook with the newest M1 chip) through Accsoon’s uniquely patent Dual-Band (2.4GHz + 5GHz) transmission technology. And its brand new USB-C port on the receiver will provides creators, live streamers, and podcasters with much more power to display their work or life through live streaming.

2.4GHz+5GHz Dual-Band Transmission Technology - State-of-the-art Dual-Band transmission technology
Developed by Accsoon engineers, CineView HE is equipped with Dual-Band transmission technology to bring industry-leading stability to the wireless video transmission system. Dual-Band transmission technology means you never have to worry about video or audio drop or switch signal issues again.

Designed for demanding photographers, experience smooth and stable shooting, and incredible anti-interference technology to get unparalleled shooting results.

1200ft/350m, 0.06s Control what you see within long-range & ultra-low latency
CineView HE enables users to experience the stability of transmitting images and audio smoothly over long distance, even the size of a football pitch, with a latency of less than 0.06s.

HDMI In & Loop-out Connect in multiple ways
CineView HE’s transmitter features one HDMI in and one HDMI loop-out, which can be connected to the camera and monitor, respectively. What’s more, HDMI loop-out has been upgraded to zero-latency lossless output.

Brand-new Feature: USB Video Class (UVC) Simplify your live streaming
CineView HE has added a brand-new feature on the receiver: UVC out. From the receiver to the computer, you can use a USB-C cable (user-provided) to transfer the footage received by the receiver to any third-party streaming platform on your computer for live streaming, such as OBS and YouTube, etc. No additional video capture devices needed, the new UVC feature is all you require to live streaming, anywhere and anytime.

1 TRANSMITTER FOR 4 DEVICES, MIX & MATCH MAKE MULTI-SCREEN REAL-TIME MONITORING MAINSTREAM
With CineView HE, you can transmit video and audio to up to 4 receivers (standard receiver and mobile devices, mix and match), to keep the whole crew in the loop.

Wireless Remote Monitoring App Accsoon Go Monitor your shot effortlessly
The Accsoon Go offers a huge range of monitoring features that can enhance your shooting workflow. Enjoy high-end monitoring features allowing you to take control of your production at capture with Accsoon Go.

Live-streaming RTMP streaming & remote monitoring from anywhere
Split Screen (only for iPad)
Monitor, record (with LUT), edit or view the script

No Fan Design Low power consumption and noise-free
CineView HE has a very low power consumption, a single NP-F970 battery can last you 12 hours. CineView HE also has no fan inside, ensuring zero fan noise and a complaint-free sound environment.

Automatic Channel Selection For FHD video & high-quality audio transmission
At power on, CineView HE will automatically select the best channel for audio and video transmission. The Dual-Band transmission technology will further improve CineView HE’s anti-interference capability to ensure that the high-quality audio and FHD video can be transmitted with nearly undetectable latency via its reliable dual-band transmission signals.

Projects Transmitter
Video Input HDMI
HDMI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI Output Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port 5.5mmx2.1mm center positive
DC Voltage 7.4~16.8V
Audio 44.1KHz/48KHz 16bit/24bit PCM
Latency <0.06s (Camera latency not included)
OLED Display 1.3inch
Transmission Power 17~20dBm
Transmission Range 350m
Power Consumption 4.5Watt (Typical)
Operating Environment Temperature -10~40℃
Dimensions 105mmx66mmx32mm (Antennas not included)
Weight 200g (Antennas included)
