Name: ARRI ARRIMAX 18/12 EB MAX Set HMI PAR with Ballast
Brand: ARRI
SKU: L0.0019667
Price: 39000.00 EUR
Availability: InStock

MPN: L0.0019667

Price: €39,000.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

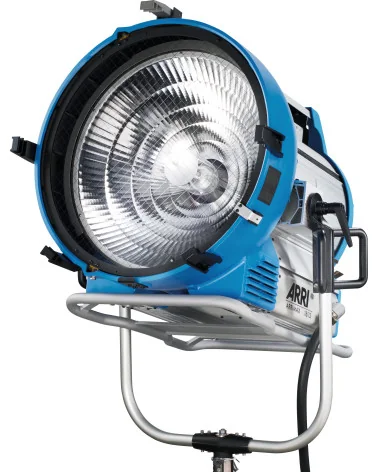

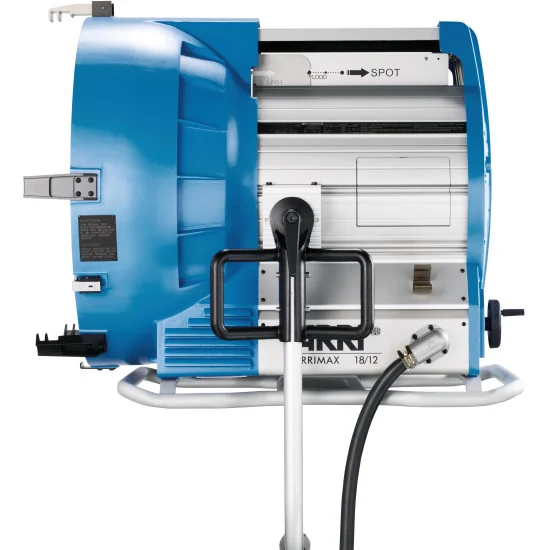

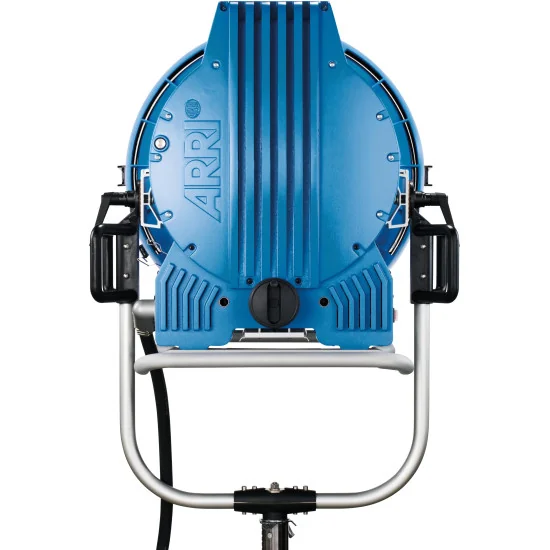

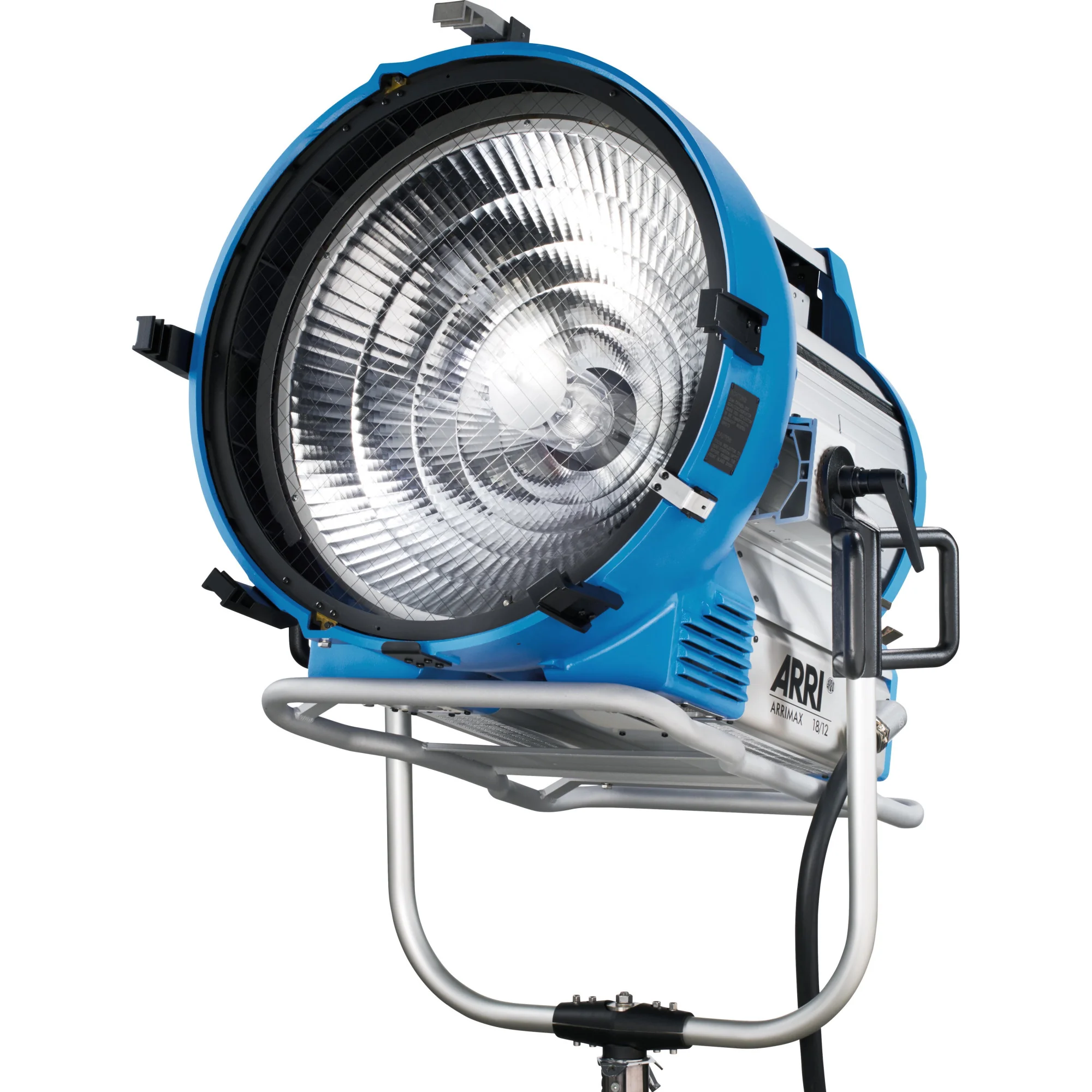

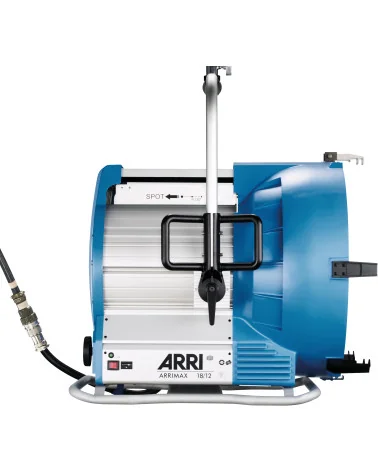

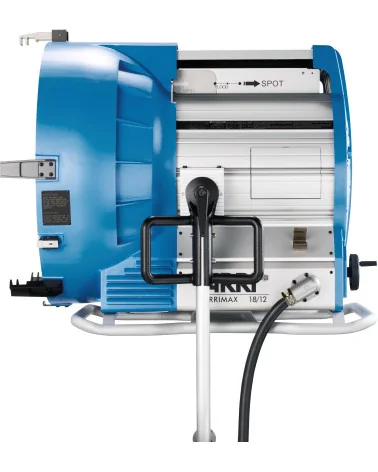

ARRI ARRIMAX 18/12 EB MAX Set couples the flagship open-face HMI daylight head with the EB MAX 12/18 ballast for crews who need one source that reads as a controllable “sun” on exterior nights, large interiors, stages and live-event keying. The facetted reflector uses lens-less MAX Technology: focus is continuous and cuttable, with a 15°–50° beam from the standard reflector. An optional spot reflector narrows coverage to 8°–15° for long throws; because the optical system avoids spread lenses, edges stay sharp for flags and cutters.

The lamphead accepts 12,000 W or 18,000 W single-ended metal-halide lamps and supports both GX38 / GX51 bases, keeping relamping logistics straightforward across mixed inventories. Correlated colour temperature sits around 5,600 K for camera-balanced daylight, the specified voltage range is 160–225 V (lamp-power dependent), and the housing carries an IP23 rating for demanding locations. Via ARRI ballast control, output trims from 50–100% help match exposure, and the fixture is rated as suitable for high-frame-rate imagery.

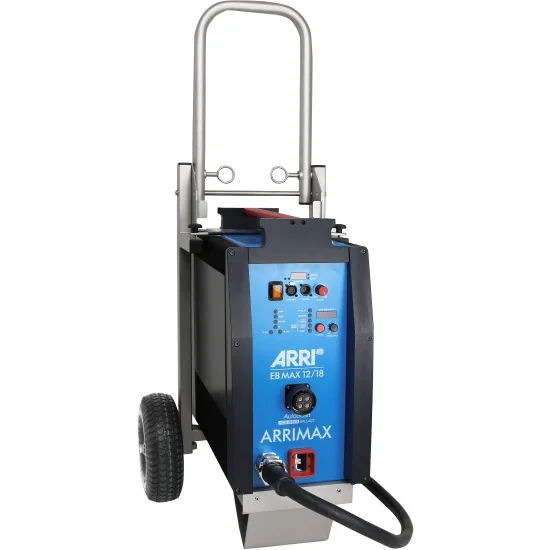

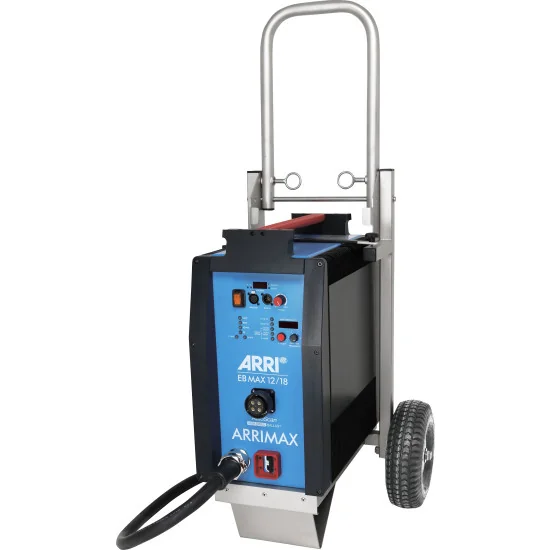

The included EB MAX 12/18 ballast targets set reliability and integration: ALF line filtering, DMX control compatibility and AutoScan support for stable operation when generators, distribution and mixed loads share the same power environment. This configuration fits high-output backlight on wide shots, long-throw highlights, daylight simulation through windows, chroma and virtual-production backgrounds, and broadcast stages where a single hard source must stay consistent across cues.

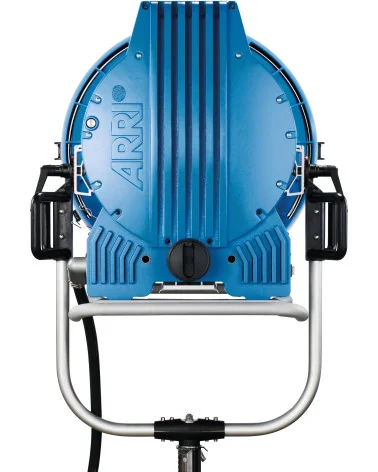

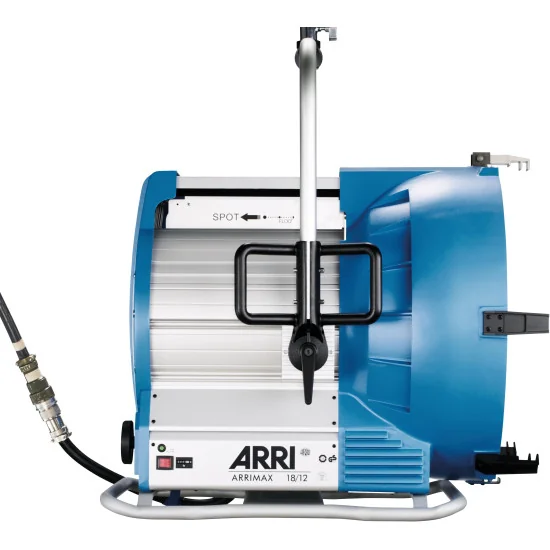

As a matched kit, the set includes the ARRIMAX 18/12 lamphead with 4-leaf barndoor, ballast and head-to-ballast cabling, so gaffers can land power, focus, cut and cue rapidly. Compatibility with the motorised yoke BigBee supports remote pan/tilt workflows, while the VEAM interface aligns with established ARRI daylight infrastructure from truck pack to rental prep.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

M-Series ARRIMAX 18/12 with MAX Technology - “The most powerful HMI light on the planet”

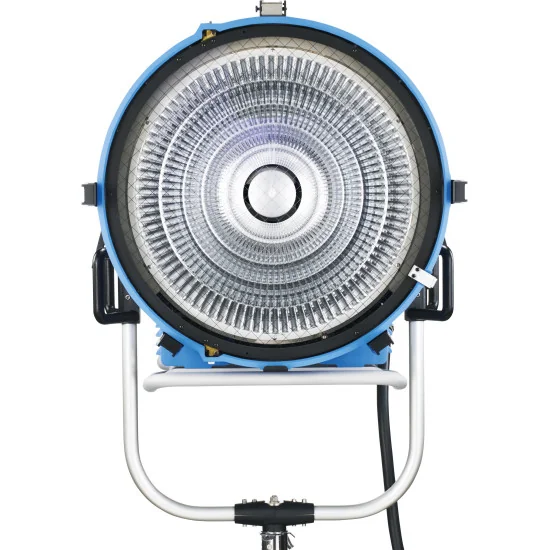

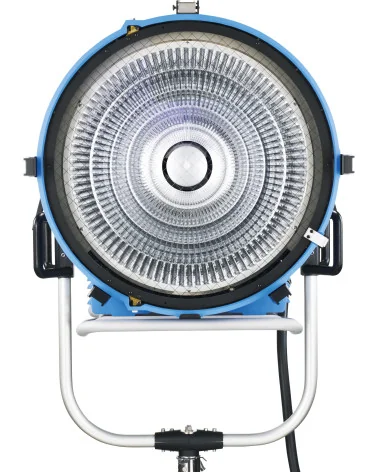

Lens-less system with MAX Technology - The Academy Awardwinning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

Safe and easy for both lamp type bases - 18 kW and 12 kW. 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.

The ARRIMAX 18/12 has a unique proven track record in numerous major feature film productions worldwide. Operated with the EB MAX 18/12 even worriless shootings for SFX, VFX, commercials, sports industrial applications, automotive component testing, ballistics or material testing are feasable.

The AutoScan technology supplies the lamp with a greatly raised 1,000 Hz square wave current and makes it easy to achieve high quality flicker free images even at frame rates of 1,000 fps and in many cases beyond even with a single source. Going along with the enormous light output the ARRIMAX 18/12 is part of an optimized lighting system in conjunction with the latest generation of electronic ballast and the specifically designed accessories, providing both versatility and maximum quality unreached.

Main Features
- Lens-less MAX Technology
- 15° to 50° continuous beam angle: standard reflector
- 8° to 15° beam angle: spot reflector
- Easy re-lamping
- ARRI Dual Pin Width support (GX51/GX38)
- Protection rating IP23
- Suitable for high frame rate images

PACKAGES: L0.0019667 ARRIMAX 18/12 EB MAX Set - Int. (VEAM)
1x L1.37950.B ARRIMAX 18/12, blue/silver
1x L2.0016748 EB MAX 12/18 with ALF, DMX, AutoScan
1x L2.71100.0 4-leaf barndoor (740 mm / 29.1")
1x L2.82294.0 Head-to-Ballast/Dimmer cable 12/18/24 kW, 15 m

Technical Specifications

M-Series ARRIMAX
Ident-No.: L1.37950.B
EB MAX Set*: L0.0019667
Basic Set*: L0.0019665
Basic Set “Spot“*: L0.0019664 incl. spot reflector
*Set including lamphead, ballast, cable, barndoor

Main Features
Type of Lamphead: Open Face
Reflector: MAX Technology Facetted Reflector
Wattage: 12,000 / 18,000 W
Lamp Base: GX51 / GX38
Lamp Type: Metal Halide 12,000 W, Metal Halide 18,000 W
UV Protection Glass Diameter: 630 mm / 19.7"

Technical Data of the Luminaire
Max. Operating Temperature: ta= 45° C / 113° F
Max. Surface Temperature: tc= max. 240° C / 464° F
Tolerable Inclination: max. 90° upwards / max. 75° downwards
Safe Distances: 15 m / 49 ft. to illuminated surface, 2 m / 6.6 ft. around the luminaire
Protective Class: I - Protective Earth
Protective Rate: IP23

Specifications
Dimensions (incl. flange) (H x W x L): 1,051 x 784 x 942 mm / 41.4 x 30.9 x 37.1"
Packed Size (H x W x L): 1,135 x 1,050 x 1,170 mm / 44.7 x 41.3 x 46.1"
Weight: approx. 70 kg (152.56 lbs)
Packed Weight: approx. 86 kg (188.94 lbs) incl. pallet
Accessories Diameter: 740 mm / 29.1"
Mounting: Spigot 28 mm / 1 1/8" (1.1")
Certification: CE, UKCA, CB, ENEC, cNRTLus

Photometric Data with 18,000 W Lamp
Distance: 15 m (49 ft.) [Output / Diameter]
Spot 15°: 55,300 lux (5,138 fc) / Ø 3.9 m (12.8")
Flood 50°: 5,700 lux ( 530 fc) / Ø 12.7 m (41.7")
Distance: 20 m (66 ft.) [Output / Diameter]
Spot 15°: 31,100 lux (2,889 fc) / Ø 5.3 m (17.4")
Flood 50°: 3,210 lux ( 298 fc) / Ø 17.0 m (55.8")
Distance: 30 m (99 ft.) [Output / Diameter]
Spot 15°: 13,800 lux (1,282 fc) / Ø 7.9 m (25.9")
Flood 50°: 1,420 lux ( 132 fc) / Ø 25.4 m (83.3")
