AVMATRIX Shark H4 Streaming Video Mixer

Name: AVMATRIX Shark H4 Streaming Video Mixer
Brand: AVMATRIX
SKU: SHARK H4
Price: 490.00 EUR
Availability: InStock

MPN: SHARK H4

Price: €490.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

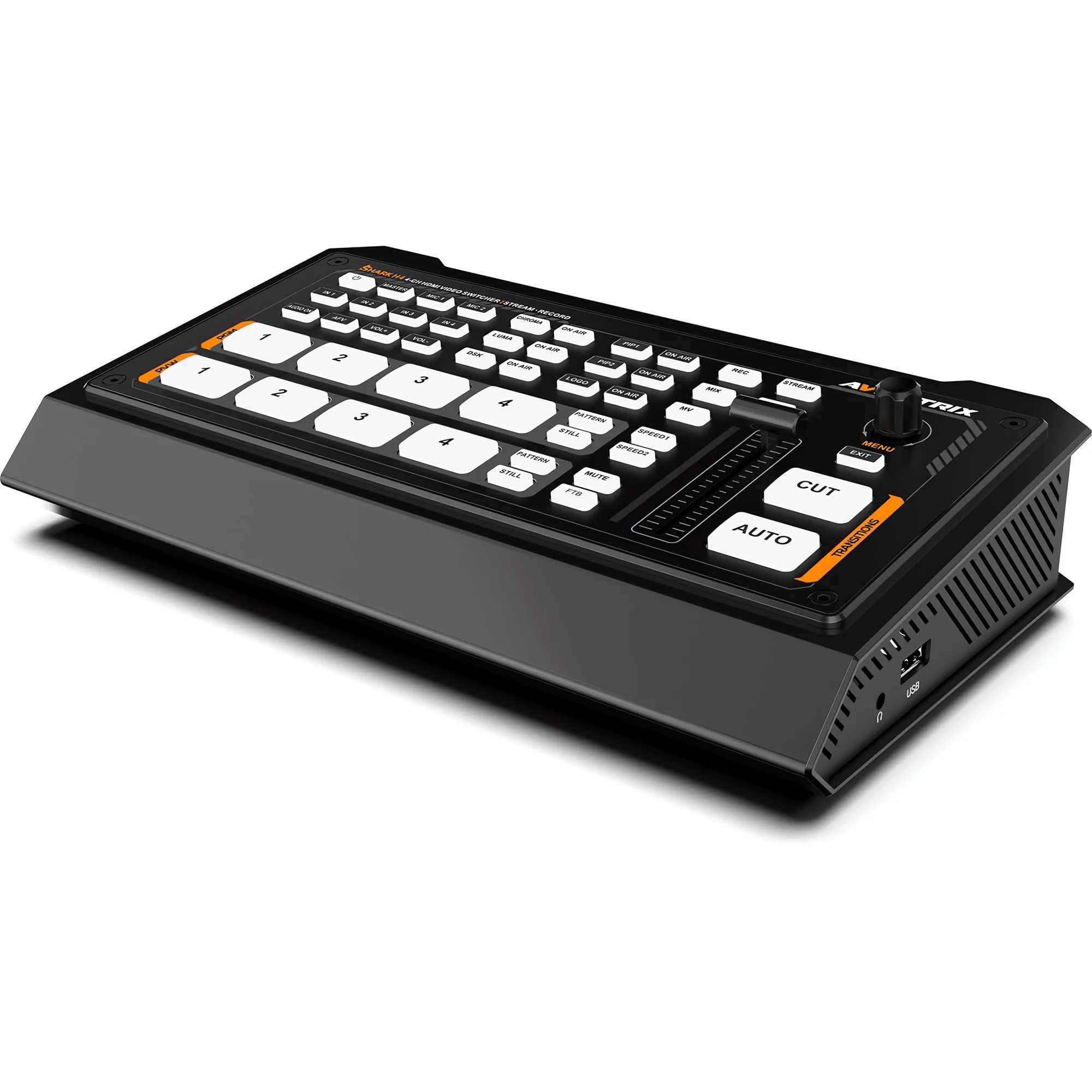

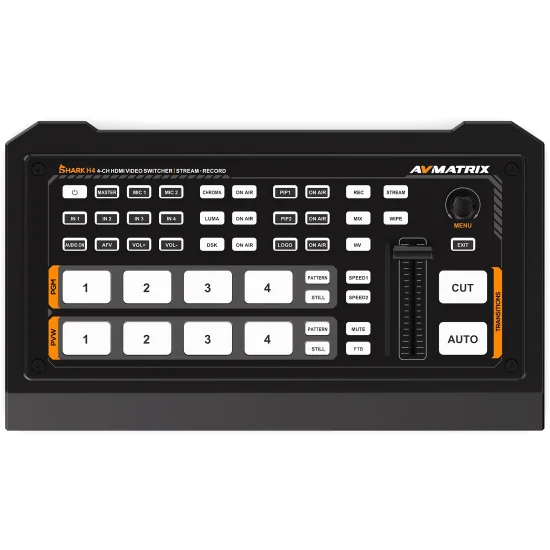

Four HDMI sources, one compact metal chassis, and a full broadcast-grade feature set — the AVMATRIX Shark H4 consolidates multi-camera switching, live streaming, and recording into a single portable unit that fits on a production desk or inside a flight case. Each of its four HDMI Type-A inputs auto-detects the incoming signal format, accepting everything from 480i up to 1080p at 60 fps, so cameras, playback laptops, and graphics workstations connect without manual format adjustments.

On the output side, two HDMI program outputs feed projection screens or recording decks simultaneously, while a dedicated HDMI multiview output displays all sources, preview, and program on a single monitor with two selectable layout styles. A USB Type-C port delivers a capture feed up to 1080p60 directly to a computer running OBS, vMix, Zoom, or Microsoft Teams, turning the Shark H4 into a high-quality webcam source for hybrid events and remote production. For direct-to-platform delivery, the RJ45 Ethernet port pushes an encoded stream via RTMP, RTMPS, or SRT at bitrates from 2 to 32 Mbps in CBR or VBR mode — no external encoder required. Local recording to SD card or USB disk runs in parallel, saving MP4 or TS files with configurable segment durations from 1 to 120 minutes, simplifying archive management after a church service, conference, or corporate town hall.

The switching engine offers T-Bar, auto, and cut transitions alongside 33 wipe patterns, mix, and DIP dissolves. An upstream keyer handles both luma key and chroma key compositing, plus two resizable PIP windows and a POP layout — useful for green-screen interviews or picture-in-picture commentary during esports broadcasts. A separate downstream keyer layers a DSK overlay and a logo (PNG, BMP, or JPG, up to 600 x 600 pixels) on top of the program output. The built-in audio mixer blends four HDMI-embedded channels with two external 3.5 mm stereo microphone or line-level inputs, and an adjustable delay of 0 to 500 ms helps synchronise lip-sync across sources. A DB-15 tally port with GPIO drives external tally lights so camera operators always know which feed is live. Running on 7 to 24 V DC with an operating range of −20 to 60 degrees Celsius, the AVMATRIX Shark H4 handles studio sessions and outdoor stages with equal confidence.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Shark H4 is a compact design 4-channel HDMI multi-format video switcher with metal housing. It supports various functions including LAN streaming, recording, video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library etc. Inputs support multi-format while output can be scaled and configured. Enjoy flexible live streaming and recording options with this unit. Stream directly over the Ethernet or USB, and record to USB disk or SD card, all at up to 1080P resolution and 32Mbps bitrate. Users can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choice.

Main Features
- 4 channel auto-detected HDMI inputs
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream via Ethernet
- USB disk/ SD card recording
- USB-C for capturing and streaming on PC
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key : DSK and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 4×HDMI embedded audio and 2-Ch MIC in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import and export
- Broadcast video monitoring, FTB/ MUTE/ STILL/ GPIO for tally

SPECIFICATION

CONNECTION
Video In: HDMI type-A ×4
Video Out; HDMI PGM × 2 , HDMI Multiview × 1 , USB Capture: USB type-C × 1 , Streaming: LAN× 1
Recording Port: SD card slot , USB port
Audio In: MIC/ Line level (3.5mm stereo audio) ×2
PC Control Port: LAN ×1
Media Library: USB type-A ×1 (USB disk port for image import and firmware upgrade)
Tally Port: DB-15 ×1
Power In: DC 12V ×1

STREAM&REC
Bitrate: 2M~32Mbps
Rate control: CBR/VBR
Control protocols: RTMP, RTMPS, SRT
REC SD card format: FAT32/exFAT/NTFS
REC U disk format: FAT32/exFAT/NTFS
REC File segment: 1/5/10/20/30/60/90/120mins

FUNCTIONS
Transitions: T-Bar/AUTO/CUT
Effects: Wipe (11×3 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
Layouts: 2 styles of Multiview layout (6 windows and status)
Keys: Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP , Downstream Key: DSK ×1/ Logo ×1
Audio Mixer: HDMI ×4 and MIC/ Line level ×2; Audio delay: 0-500ms
Media: Default image: 39 preset patterns , Local image: up to 16 imported images , Capture image: up to 16 captured images
Generators: Pattern generator ×1 , Color generators ×2

STANDARDS
HDMI In Format Support: 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 , 1080i 50/ 59.94/ 60 , 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98 , 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out: 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space: RGB/ YUV
USB Capture: Out Up to 1080p 60
Media Format: USB disk format support: FAT32, Ext3, Ext4, up to 256GB , Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga , Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga , Logo size support: 10×10 pixel to 600×600 pixel

OTHERS
Power: Wide voltage: 7~24V; Operating power:15.6W(12V 1.3A)
Dimension (LWD): 244.5 × 143.2 × 44.5mm
Weight: Net: 1009.5g, Gross: 1360g
Temperature: Working: -20℃~60℃, Storage: -30℃~70℃
Accessories: Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1
