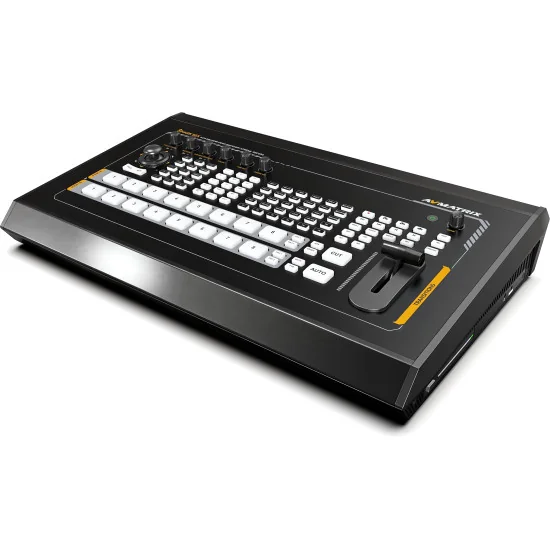

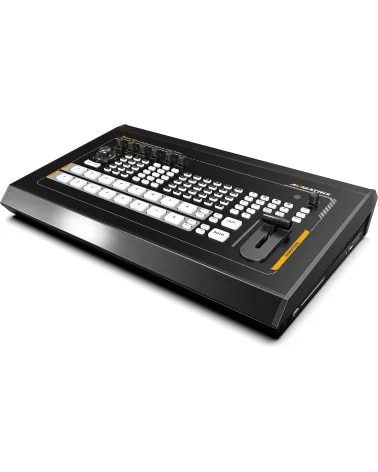

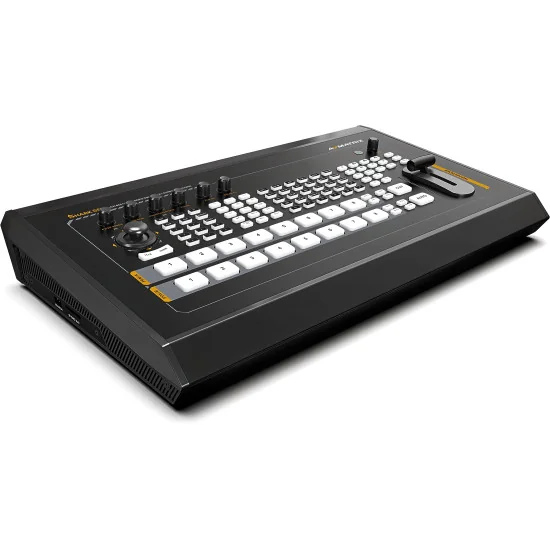

AVMATRIX SHARK S8X-NDI Video Streaming Mixer
SHARK S8X-NDI
Price: €1,529.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
AVMATRIX SHARK S8X-NDI is a portable 8-channel production switcher that consolidates multi-camera routing, monitoring and IP contribution in a single control surface. It ingests 8× 3G-SDI and 2× HDMI sources (up to 4K60 on HDMI), with REF in/out for tri-sync or black burst timing. SDI processing is specified as 10-bit 4:2:2; HDMI accepts RGB/YUV with selectable full/limited range. Program outputs are available as 2× HDMI PGM and 4× SDI PGM, plus an HDMI multiview output for PVW/PGM and source status. A USB-A UVC port can ingest a computer feed, and USB-C UVC provides capture output.
For network delivery, the LAN interface supports RTMP/RTMPS, SRT, RTSP and HTTP pull, while the NDI variant adds NDI|HX3 transport for reception and distribution inside NDI-based facilities. The routable AUX input can be assigned to media playback, a UVC camera or a network pull stream (including NDI), so adding remote guests, clip rolls, confidence feeds or a backup line does not consume camera inputs.
Look-building stays fast under pressure. Up to 6 overlay layers can be stacked, including 3 upstream keys that can be allocated to chroma key, luma key or PiP, plus DSK and a logo overlay with position/size control. Switching can be driven via T-bar, cut or auto transitions, and 20 macros store repeatable sequences. Audio covers 10-channel mixing with AFV, 2× XLR/TRS balanced inputs with +48 V phantom power, 3.5 mm line input, and up to 500 ms audio delay for lip-sync management.
Capture and archiving can stay on the switcher. Record 1080p60 to SD, USB storage or a SATA SSD in the 2.5-inch (63.5 mm) form factor, in MP4/TS at up to 32 Mb/s with CBR/VBR. The USB-C UVC output can also deliver RGB32/YUY2/NV12 up to 1080p60 to OBS Studio, vMix, Teams or Zoom. Add DB-26 tally and integrated PTZ control (VISCA, ONVIF, Pelco D/P and NDI) for corporate events, houses of worship, esports, lecture capture, webinar studios and flypack productions.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

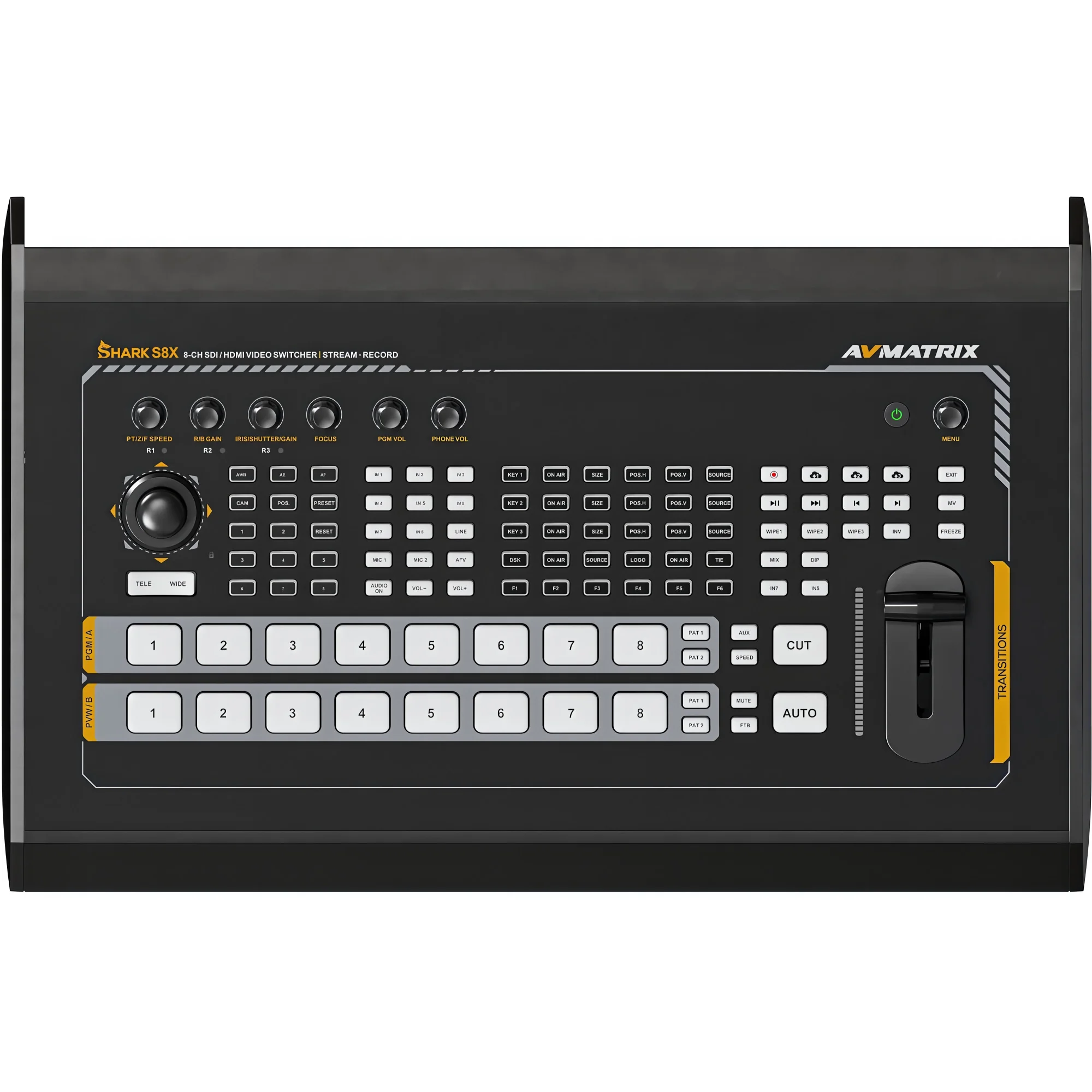

8CH SDI/ HDMI PORTABLE VIDEO SWITCHER
Revolutionize your live streaming with the Video Switcher, the all-in-one solution for live streamers.
Clear Multiview for Effortless Monitoring
The built-in clear multiview allows you to monitor every detial. From PVW and PGM to audio settings, PTZ camera settings, and FN key configurations, all information is displayed in a clear and organized layout.
Versatile Inputs and Outputs This switcher supports 8 inputs (6 SDI, 2 SDI/HDMI), one REF input and 7 flexible outputs (2 HDMI, 4 SDI, 1 multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.
Convenient PTZ Control
The switcher features a PTZ controller supporting pan, tilt, zoom, and gain via RS232/RS422/RS485 and LAN. It controls up to 8 IP cameras and supports VISCA, ONVIF, and NDI protocols. *NDI version for optional.
Advanced Keyer Functions
The switcher integrates 3 powerful upstream keys for users to set if freely to PIP, LUMA Key, Chro- ma Key freely and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or menu knob.
Build-in Recording
This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, and SATA, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.
Uncompressed USB Capture
The USB Type-C port functions can be used as a webcam, supporting uncompressed video and audio capture. It streams to various software and platforms including OBS, MIX, ZOOM, Teams, and VLC, and is compatible with Windows, Linux, and Mac systems. Capture Support RGB32, YUY2, NV12.
Live Stream Via LAN Port
The LAN port supports IP streaming transmission through the RTMP, SRT, NDI(Optional) protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.
Streamline Your Production with Macro
Users can execute recorded macros to replay a series actions with a single click, streamlining complex operations and boosting live production efficiency and professionalism.
AUX Expansion Input
The switcher provides a powerful expansion input which is compatible with media players, UVC devices, streaming, and NDI sources(Optional), offering flexible signal selection and enhanced content options
SPECIFICATIONS
CONNECTIONS
Video In: 3G-SDIx8, 4K HDMIx2, BNC Ref×1, AUX×1, USB-A(UVC)×1
Video Out Audio In: HDMI(A/B, PGM)×2, SDI(A/B, PGM)x4, HDM|(Multiview)×1, USB-C(UVC)×1
Audio Out: XLR/TRS×2, +48V phantom power, 3.5mm TRS(Line)x1
Reference In: BNC Inx1, BNC Outx1; Tri-Sync or Black Burst.
Network Port: LAN×1(Stream, PC control, PTZ control, Upgrade)
USB Port: USB type-Cx1(For Capture), USB type-Ax2(For USB CAM, Record, Configuration/Media Import/Export)
Tally Port: DB-26×1
Serial Port: RS232/RS422/RS485×1, PTZ camera control
Record Port: USB disk slot×1, SD card slotx1, 2.5-inch SATA slot×1
STANDARDS
SDI Inputs:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50, 525 i59.94
HDMI Inputs:
4K 60/50/30, 2K 60/50/30
1080p 60/59.94/50/30/29.97/25/24/23.98
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50, 480p 60/59.94
SDI Outputs:
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080i 60/59.94/50
HDMI Outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
Video Sampling: SDI: YUV 4:2:2 10bit; HDMI: YUV, RGB full, RGB limit
Color Space: SDI&HMI: Rec 709, Rec 601
STREAM & RECORD
USB Capture Out:
YUY2, NV12, RGB32, Up to 1080p60 (Max 200Mbps)
Supports OS: Windows 7/8/10/11, Linux(Kernel version 2.6.38 and above), Mac OS(10.8 and above)
Software compatibility: OBS studio, Skype, ZOOM, Teams, Youtube Live, etc.
Stream: Bite rate: Up to 32Mbps
Record:
Storage format: USB disk, SD card, SATA(FAT32/exFAT/NTFS/ext4)
File format: MP4/TS, Up to 1080p60(32Mbps)
Rate control: CBR/VBR
Protocol:
Push Stream: RTMP(S), SRT, NDI|HX2(Optional)
Pull Stream: RTSP, HTTP, ND IHX3(Optional)
PTZ control: Visca, Onvif, Pelco D/P, NDI(Optional)
MEDIA
Media Format:
Video: MP4, TS
Image: JPG, PNG, BMP, JPEG, Max 1920×1080 pixels
Logo: JPG, PNG, BMP, JPEG, Max 650x650 pixels
Aux In: Media player, USBUVC) in, Pull stream, NDI stream(Optional)
FEATURES
Macro: 20, Support record and playback
Keys: Up to 6 overlay, Adjustable size and position
1. Upstream Keyx3: Chroma Key/Luma Key/PIP
2. Downstream Key×1: DSK ×1
3. Logo ×1
Audio Mixer: Up to 10 channel audio mixer(Videox8+XLR/TRS×2)
POWER & OTHERS
Power: Wide Voltage Support: 9V - 24V; Working: DC 15V, 50W max
Temperature: Working: -20°C~50°C, Storage: -30°C~70°C
Dimension(LWD): 440×281.5x65.1mm
Weight: Net: 3685g
SHARK S8X-NDI
4 Items
Data sheet
- Video Input
- HDMI
SDI
USB - Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- HDMI Embedded
Mini Jack 3.5mm
SDI Embedded
TRS Jack 6.3mm
USB
XLR - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Output colour sampling
- YUV/YCbCe/YPbPr 4:2:2 10-bit
- Built-in scaler
- No
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
PELCO-P
VISCA
VISCA IP - Streaming protocols
- NDI
NDI®|HX 3
RTMP
RTMPS
SRT - Network Connection
- Ethernet
- Video input channels
- 8
- USB video capture
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 6971118003525
- mpn
- SHARK S8X-NDI
