AVMATRIX SHARK S8X Plus-NDI Video Streaming Mixer

    SHARK S8X PLUS-NDI
    Price: €2,475.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

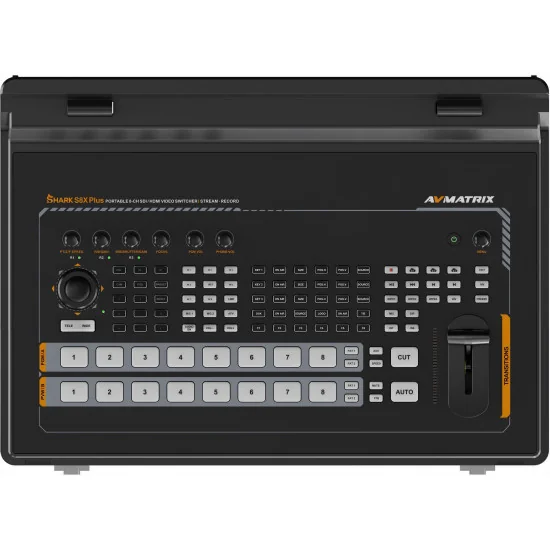

    Bringing eight camera feeds, an IP contribution layer and a full production monitor into one carry-on chassis, the AVMATRIX SHARK S8X Plus-NDI puts a broadcast-grade control surface in front of the operator without the flight-case tower that normally comes with it. A 17.3-inch FHD IPS display sits above the panel, showing multiview, PVW/PGM, audio meters, PTZ status and menu on one surface — immediate situational awareness for single-operator shows at conferences, festivals and sports venues.

    The input side accepts six 3G-SDI sources and two SDI/4K HDMI inputs, so broadcast cameras, mirrorless rigs, laptop graphics and gaming consoles share the same timeline. A BNC REF in/out carries tri-sync or black burst for genlocked multi-camera setups, while the routable AUX input accepts media playback, a UVC webcam, a network pull stream or NDI — handy for dropping remote guests, lower-third clips or backup feeds into the mix without burning a camera slot. On the output side, 2× HDMI PGM, 4× SDI PGM and an HDMI multiview leave room for in-ear confidence, IMAG screens, recorder feeds and FOH monitoring at once.

    Audio is a first-class citizen: two XLR/TRS combo inputs with switchable 48V phantom welcome condenser mics and line sources, feeding a 10-channel mixer alongside eight embedded video channels and a 3.5 mm stereo line. AFV routing, per-source gain and a 500 ms audio delay keep lips and sound locked when commentary is added downstream. For programme craft, three upstream keyers handle Chroma Key, Luma Key and PIP, joined by a DSK and a logo overlay, with T-bar, Auto or Cut transitions and 20 recallable macros to chain sequences on a single button.

    Distribution is where the NDI variant earns its letters. The LAN port pushes RTMP(S), SRT and NDI (including NDI|HX 3) straight to YouTube Live, Twitch, Facebook or a newsroom receiver — no external encoder in the signal chain. A USB-C UVC out hands 1080p60 to OBS, vMix, Zoom or Teams for hybrid webinars and corporate town halls, while onboard capture records MP4/TS at up to 32 Mbps onto SD, USB or a 2.5-inch SATA drive. PTZ control over VISCA, VISCA IP, ONVIF, Pelco D/P and NDI, plus a DB-26 tally port, round off a toolkit aimed at houses of worship, esports arenas, lecture capture and flypack broadcast crews.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    17.3" 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER

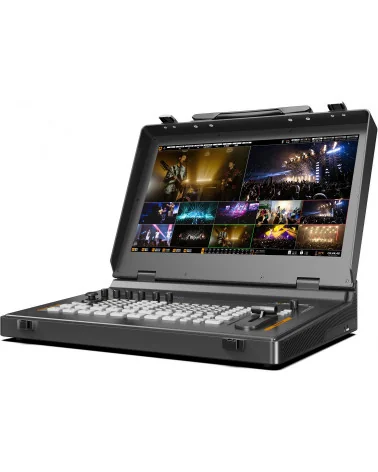

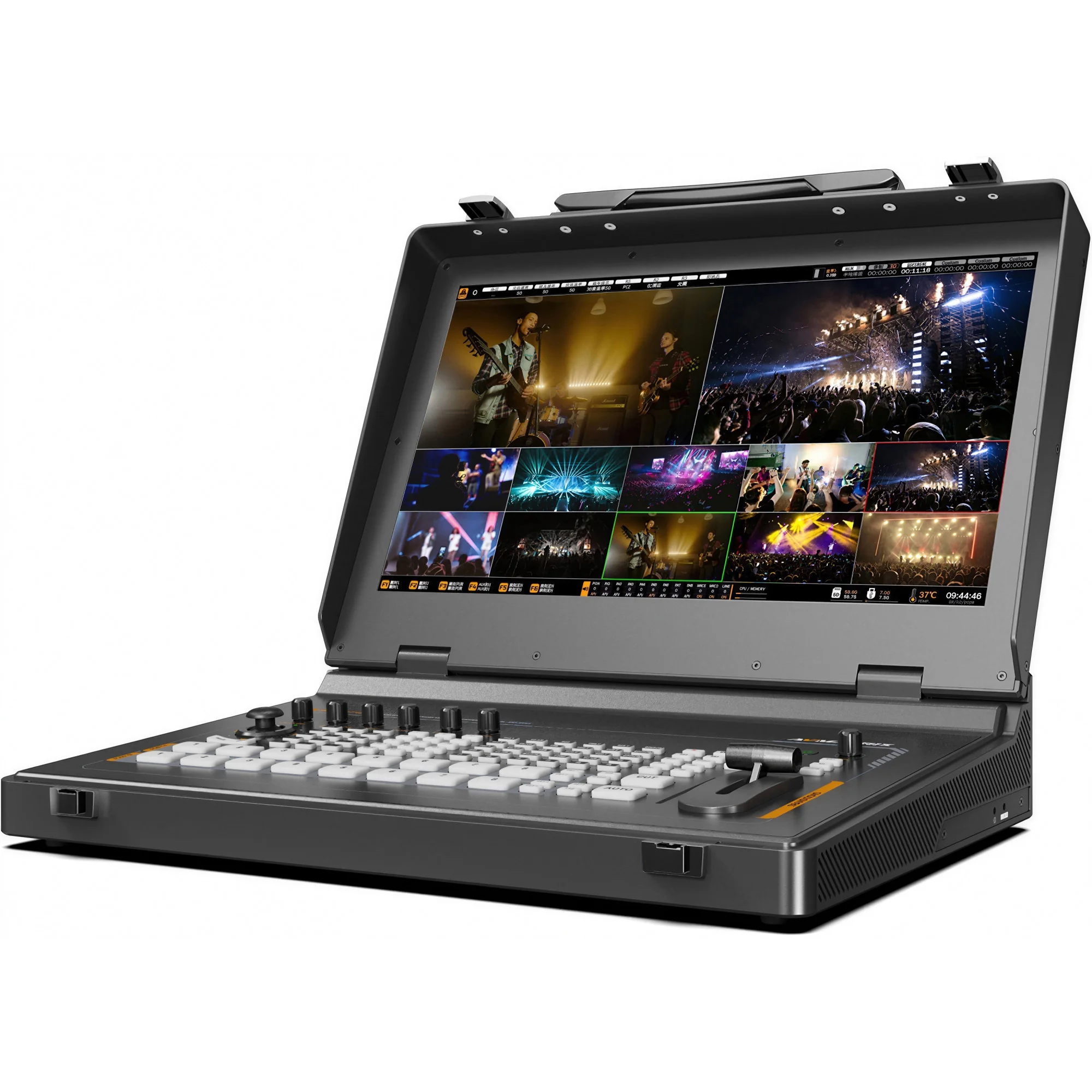

    A built-in 17.3-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, audio settings, PTZ camera settings, FN key configurations, etc.

    Versatile Inputs and Outputs
    This switcher supports 8 inputs (6 SDI, 2 SDI/HDMI), one REF input and 7 flexible outputs (2 HDMI, 4 SDI, 1 multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.

    Professional XLR Audio and 48V Phantom Power
    The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. User can configurate AFV, audio mixing and 500ms audio delay, making it ideal for professional productions.

    Advanced Keyer Functions
    The switcher integrates 3 powerful upstream keys for users to set if freely to PIP, LUMA Key, Chroma Key freely and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or menu knob.

    Build-in Recording
    This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, and SATA, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.

    USB Capture For Streaming
    The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms such as OBS, MIX, ZOOM, Teams, Skype and VLC, it is compatible with Windows, Linux, and Mac.

    Live Stream Via LAN Port The LAN port supports
    IP streaming transmission through the RTMP, SRT, NDI protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

    Streamline Your Production with Macro
    Users can execute recorded macros to replay a series actions with a single click, streamlining complex operations and boosting live production efficiency and professionalism.

    AUX Expansion Input
    The switcher provides a powerful expansion input which is compatible with media players, UVC devices, streaming, and NDI sources, offering flexible signal selection and enhanced content options.

    SPECIFICATIONS

    CONNECTIONS
    Video In: 3G-SD|×8, 4K HDMI×2, BNC Refx1, AUX×1, USB-A(UVC)×1
    Video Out: HDMI(A/B, PGM)×2, SDI(A/B, PGM)x4, HDM|(Multiview)×1, USB-C(UVC)×1
    Audio In: XLR/TRS×2, +48V phantom power, 3.5mm TRS(Line)x1
    Audio Out: XLR× 2, 3.5mm TRS(Line)x1, 3.5mm TRS(Earphone)×1
    Reference In: BNC Inx1, BNC Outx1; Tri-Sync or Black Burst.
    Network Port: LAN×1 (Stream, PC control, PTZ control, Upgrade)
    USB Port: USB type-Cx1(For Capture), USB type-Ax2 (For USB CAM, Record, Configuration/Media Import/Export)
    Tally Port: DB-26×1
    Serial Port: RS232/RS422/RS485x1, PTZ camera control
    Record Port: USB disk slotx1, SD card slot×1, 2.5-inch SATA slotx1

    STANDARDS
    SDI Inputs: 1080p 60/59.94/50/30/29.97/25/24/23.98
    1080psF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50, 525 i59.94
    HDMI Inputs: 4K 60/50/30, 2K 60/50/30
    1080p 60/59.94/50/30/29.97/25/24/23.98
    720p 60/59.94/50/30/29.97/25/24/23.98
    576p 50, 480p 60/59.94
    SDI Outputs: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59 94/50
    HDMI Outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
    Video Sampling: SDI: YUV 4:2:2 10bit: HDMI: YUV. RGB full, RGB limit
    Color Space: SDI&HDMI: Rec 709, Rec 601

    STREAM & RECORD
    USB Capture Out Sream: YUY2, NV12, RGB32, Up to 1080p60(200Mbps), Supports OS: Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), Mac OS(10.8 and above), Software compatibility: OBS studio, Skype, ZOOM, Teams, Youtube Live, etc.
    Record:
    Bite rate: Up to 32Mbps
    Storage format: USB disk, SD card, SATA(FAT32/exFAT/NTFS/ext4)
    File format: MP4/TS, Up to 1080p60(32Mbps)
    Rate control: CBR/VBR
    Protocol:
    Push Stream: RTMP(S). SRT. NDI
    Pull Stream: RTSP, HTTP, NDI
    PTZ control: Visca, Onvif. Pelco D/P. NDI

    MEDIA
    Media Format: Video: MP4, TS, Image: JPG, PNG, BMP, JPEG, Max 1920×1080 pixels, Logo: JPG, PNG, BMP, JPEG, Max 650x650 pixels
    Aux In: Media player, USB(UVC) in, Pull stream, NDI stream

    FEATURES
    Display: 17.3 inch FHD LCD display
    Macro: 20, Support record and playback
    Keys: Up to 6 overlay, Adjustable size and position
    1. Upstream Keyx3: Chroma Key/Luma Key/PIP
    2. Downstream Keyx1: DSK x1
    3. Logo ×1
    Audio Mixer: Up to 10 channel audio mixer (Videox8+XLR/TRS×2)

    POWER & OTHERS
    Power: Wide Voltage Support: 9V - 24V; Working: DC 15V, 50W max
    Temperature: Working: - 20°C~50°C, Storage: -30°C~70°C
    Dimension(LWD): 433×307x75.5mm
    Weight: Net: 5500g; Gross: 6680g

    SHARK S8X PLUS-NDI

    Data sheet

    Video Input
    HDMI
    SDI
    USB
    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    USB
    Audio Input
    HDMI Embedded
    Mini Jack 3.5mm
    SDI Embedded
    TRS Jack 6.3mm
    USB
    XLR
    Audio Output
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    SDI Embedded
    USB
    Max Output Resolution
    1080p 50/60 fps
    Output colour sampling
    YUV/YCbCe/YPbPr 4:2:2 10-bit
    Built-in scaler
    No
    Control protocol for PTZ cameras
    NDI
    ONVIF
    PELCO-D
    PELCO-P
    VISCA
    VISCA IP
    Streaming protocols
    NDI
    NDI®|HX 3
    RTMP
    RTMPS
    SRT
    Network Connection
    Ethernet
    Video input channels
    8
    USB video capture
    Yes
    Tally Light
    Yes
    Screen Size
    17.3"

    Specific References

    ean13
    6971118003136
    mpn
    SHARK S8X PLUS-NDI
