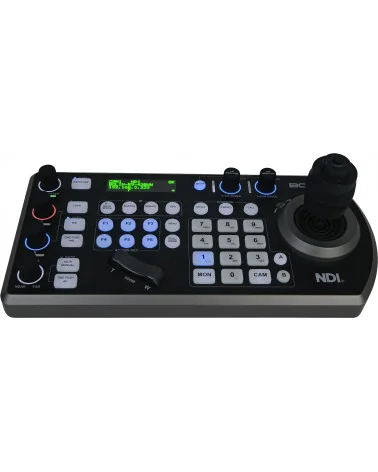

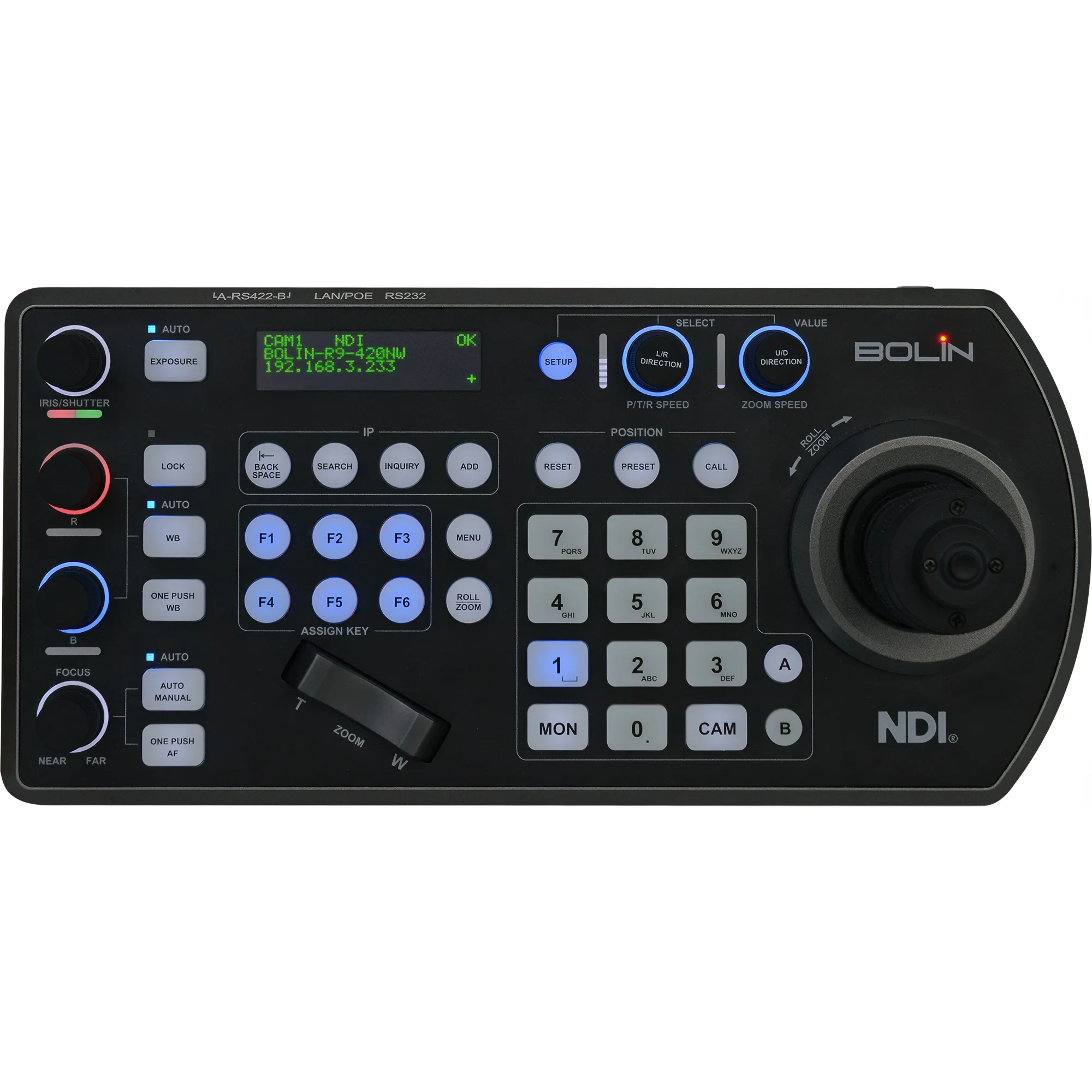

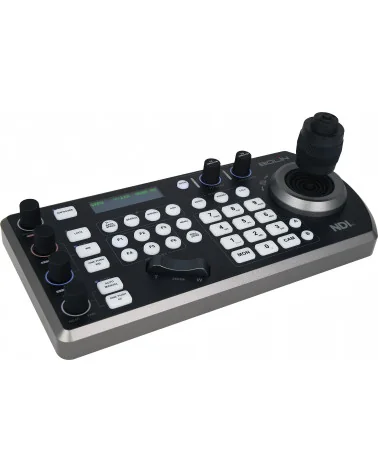

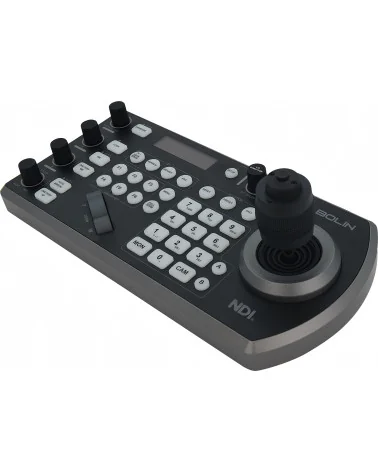

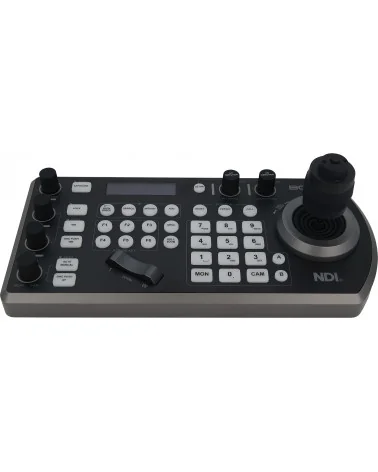

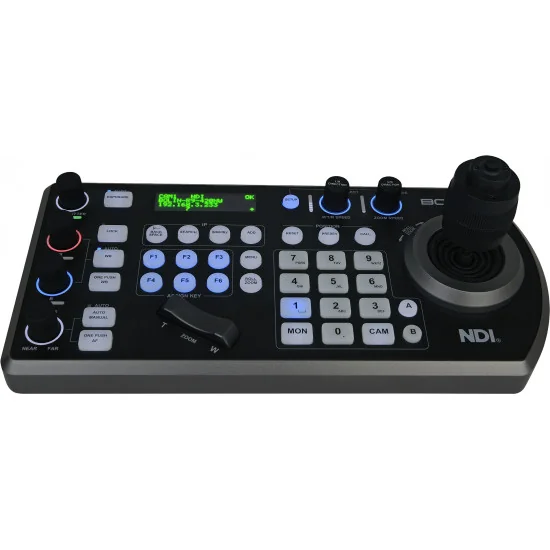

Newly upgraded Bolin’s KBD-1020N NDI PTZ Controller is ergonomically designed to make critical PTZ camera functions easy to find and use. Details like dedicated knobs for PTZ variable speed control and for fine control over iris/shutter, red and blue adjustment, and focus, with auto/manual toggle. It has illuminated push buttons for camera selection and a three-axis joystick for smooth, precise camera movements.

The KBD-1020N is a universal NDI PTZ controller capable of camera discovery and transmitting serial and IP network control commands including  serial Pelco P/D and VISCA as well as IP control protocols like  VISCA over IP, ONVIF and NDI simultaneously within the same network.

The power, flexibility, and intuitive, precise camera controls of the KBD-1020N make it an ideal partner for multiple PTZ camera setups in live NDI production environments such as broadcast studios, education and video conferencing spaces, concerts, and Houses of Worship.

PTZ Control in NDI Network and More
■ NDI certified, full functional NDI PTZ camera controller
■ Serial RS232/422/485 control and IP network control.
■ Cross Protocol Mix-control, Visca, Visca-Over-IP, Pelco P/D, Onvif IP, and NDI control.
■ Supports any brand of Visca Over IP cameras in one system.

Roll-Axis Control
■ Works with SD530, and EX1030 series Bolin Outdoor  PTZ Cameras
■ Roll-Axis Adjustment with using Seesaw
■ 1-15° horizontal adjustment capability allows to image to be leveled with the horizon and/or subject, or to capture unique angle

Improved, More Functional Web Interface
■ Search for cameras on the network, assign camera numbers, name cameras
■ Joystick Calibration
■ Assign Function Keys
■ Support for 255 VISCA Steps (Select Bolin Cameras)
■ Import/Export Configurations

Joystick Calibration by user
■ Designed to calibrate the keyboard for accurate key input recognition.
■ Ensure consistent and precise control with the  joystick calibration feature, allowing users to easily correct drift or accuracy issues for reliable PTZ operation

Features

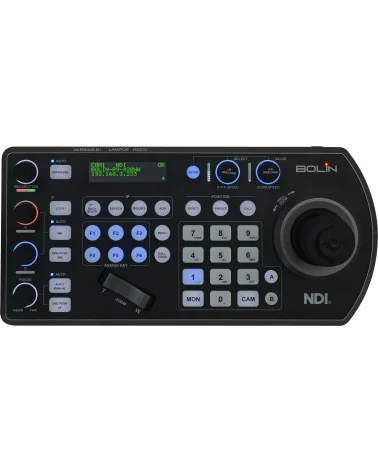

Quick Access Control
Delicate knobs for Quick Access features include the control of Exposure, Shutter Speed, Iris, Compensation, White Balance, Focus, PT Speed, Zoom Speed.

Selectable ASSIGN Items
ASSIGN item is selectable, additional functions can be assigned to ASSIGN keys to have One-Key quick action of the camera’s Flicker, Status Display, AE level, SRZ, Tele Convert mode, Trace Memory, ND filter, Picture Profile settings, Rain wiper On/Off, Camera Power etc. Functionalities can be assigned. Available function depends on camera specification.

All About PTZ Control
■ Supports Bolin image rolling adjustment control
■ Pan, Tilt, Zoom 3-Way simultaneous joystick control
■ Supplementary seesaw lever zoom control
■ Instant variable speed adjustment for Pan/Tilt/Zoom
■ Trace Memory allows a sequence of camera moves to be stored and recalled whenever required.
■ Instant camera focusing by manually fine tuning and One Push focus.
■ Selectable Assign Keys for one-key quick action.

Keyboard and Camera Configuration Data Transferable via Software
Use IP software tool to modify and organize controller’s configuration, export/import existing PTZ camera registration data via IP network makes KBD-1020N controller configuration a breeze when you have multiple controllers to work in one system.

Image Parameter Control
Via Visca protocol, either serial Visca or Visca Over IP, the KBD-1020N has image color and exposure related settings - including black levels, white balance, auto/manual exposure level, iris, gain and shutter speed - can be adjusted directly without using the camera menus.

Web Interface and Software Configuration
KBD-1020N supports configuration import and export for multiple controller program duplication. Also use software configuration tool for keyboard programming upload.

Quick, Simple, Direct IP PTZ Camera Assignment and Use
IP control, without using PC, automatically search available IP cameras in the network. Assign IP addresses and IP camera registration easily.

Other than 12VDC power input, PoE(IEEE802.3at) supported for network control application. Even when use serial control, power can be provided over serial control cable to keep the keyboard back panel wire connection clean for moving the controller around.

Store and Recall Camera Presets
Camera presets with position, zoom and image parameter settings can be stored and recalled instantly via the numeric keypad.

Wide Range Power Voltage Tolerance 6V – 48V
It provides longer distance power run, and it is suitable for vehicle or moving platform use, such as broadcast vehicle, mobile equipment cart, etc.

Switch Video Router
Camera and Monitor Switching via Video Router. KBD-1020N is compatible with Black Magic SDI video router, to switch cameras and monitors via the router with PTZ camera control switching simultaneously. More supported compatible video routers will be added.

Always Up To Date
Firmware upgrade via USB/IP to keep the performance of the controller up to date.

Allows different Brands Camera Visca Over IP Control in One System
Visca Over IP port used with the camera is different from different camera makers, KBD-1020N allows you to use any brand of Visca Over IP cameras in a same system together with no conflicts.

Specifications

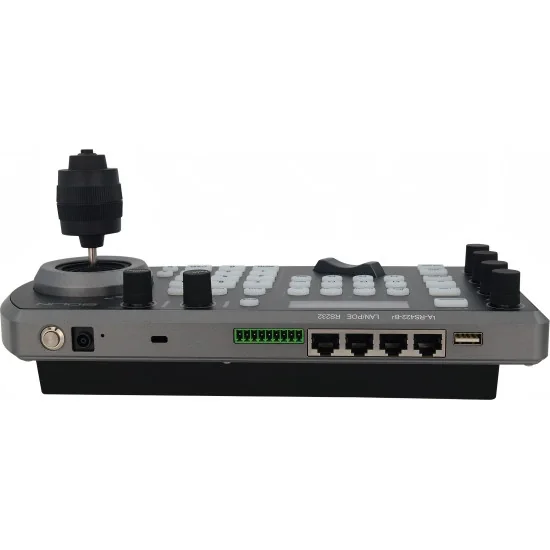

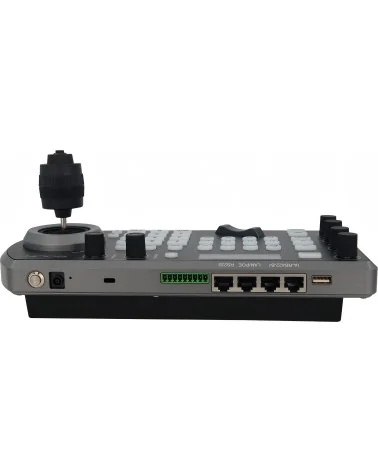

INPUT/OUTPUT CONNECTORS
Control Input/Output: RS232: RJ45 x1 RS422: RJ45 x2; LAN: RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected. Tally In/Contact Out*: 9pin x1; USB2.0*: Type A x1 (For Firmware Upgrade Only)
Control Signal Format: Baud Rate: 2400/4800/9600/19200/38400 (For RS232、RS422） VISCA over IP communication

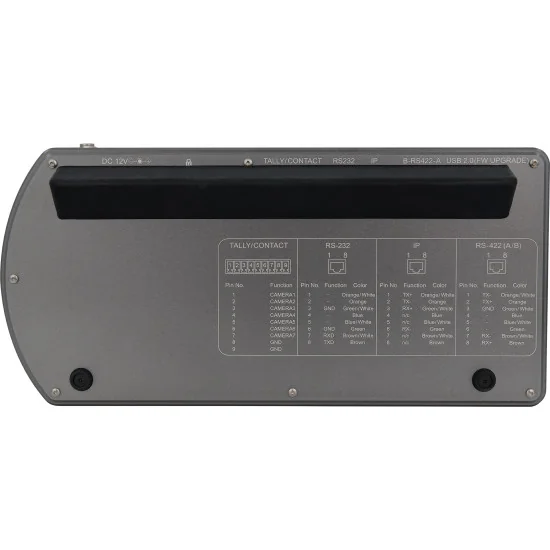

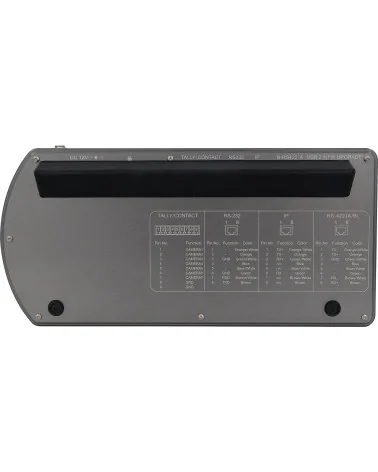

Power Connector: JEITA type 4 (12VDC), RJ45x1 for POE (IEEE 802.3af), RJ45x3 for Power Over Control
Firmware Upgrade: USB2.0: Type A x1, for FW Upgrade Only

USER INTERFACE
Joystick: 3-Way, Pan/Tilt/Zoom, Joystick Calibration by user
Display: LED Screen, LED Color Green
Speed Control: Yes, 2 Knobs (Pan/Tilt, Zoom)
Zoom Seesaw Lever: Yes, Zoom/Roll-Axis
Zoom Ring of Joystick: Yes
ASSIGN Button: Yes, 6
3-Way Simultaneously Control: Yes, Pan+Tilt+Zoom
Web Interface: Camera discovery on the network, assign camera numbers & names, Joystick Calibration, Assign Function Keys, Import/Export Configurations

CAMERA CONTROL

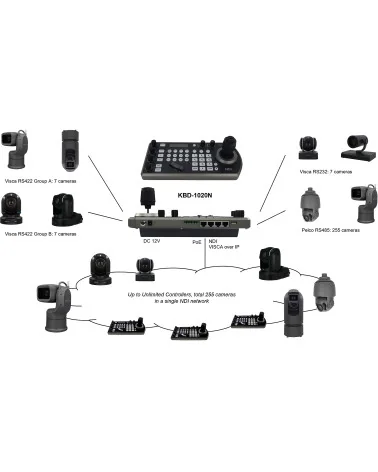

Maximum Camera Control: Allow to control up to total 255 cameras with combining multiple protocols use in a single system.
Maximum IP Connections: Onvif Only: 255; CGI: TBD, Onvif/VISCA Over IP Only: 255
Maximum Serial Connections: RS232: 7(VISCA), RS422: 2x7 (VISCA), RS485:255(Pelco P/D)
Control Protocol: Pelco P/D over RS485, Visca over RS232/RS422, Onvif, VISCA over IP, NDI
Max Controller Qty/System: 255 via IP control
Key/Button Illumination: Yes, multi-color LED indicators
Third-Party Device Support: Black Magic SDI router/switch, Control type: RS422, Control Method: Camera switching with PTZ control
Configuration File: Web software configuration, File of PTZ camera configuration and keyboard setting Export/Import via IP

BUTTONS/KNOBS
Exposure Model Selection: Yes, Button + Knob, Full Auto, Iris Priority, Shutter Priority, Manual Iris Gain, Manual Shutter Gain, Black Level.
OPW Auto Adjustment: Yes, Button
Roll/Zoom: Switch the Seesaw functionality between Rolling control and Zoom control
Display the Status of WB,Iris,Gain,Shutter,Focus: Yes
WB Model Selection: Yes, Button
R,B Gain Adjustment: Yes, Knob
Iris Value Adjustment: Yes, Knob
Shutter Speed Adjustment: Yes, Knob
Focus Model Selection: Yes, Button
One-Push Auto Focus: Yes, Button
Manual Focus: Yes, Knob

GENERAL
Power/Input & Voltage: Independent power input 12VDC voltage tolerance 5V～48V, POE(IP), Power using RS422/232 port via Junction Box included.
Current Consumption: 5W
Operation Temperature: 0°C～40°C，(32°F to 104°F )
Storage Temperature: -20°C～60°C，(-4°F to 140°F )
Dimensions: 278 mm x 132 mm x 99.5 mm (Without Base Bracket)
Weight: 1kg
Supplied accessories: Power Adapter and power core (110VAC~220VAC to 12VDC/2A) x1, Junction Box and Control Cable x 1, Magnetic Base Bracket x1, Tally Phoenix connectorX1
Optional accessories: RJ45 Adapter for RS232 + RJ45 Coupler, RJ45 Adapter for RS422 + RJ45 Coupler
Notes:
A: Available functions/specifications depend on camera specification
B: Functions may differ based on different version of the firmware.
C *:  USB2.0 for firmware upgrade only.
