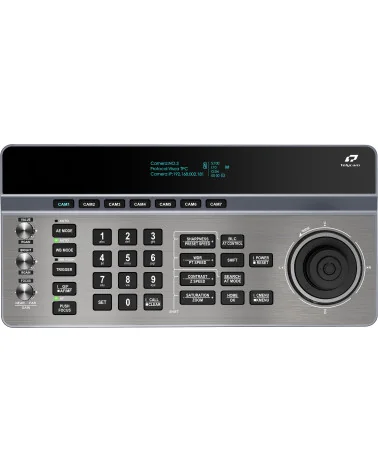

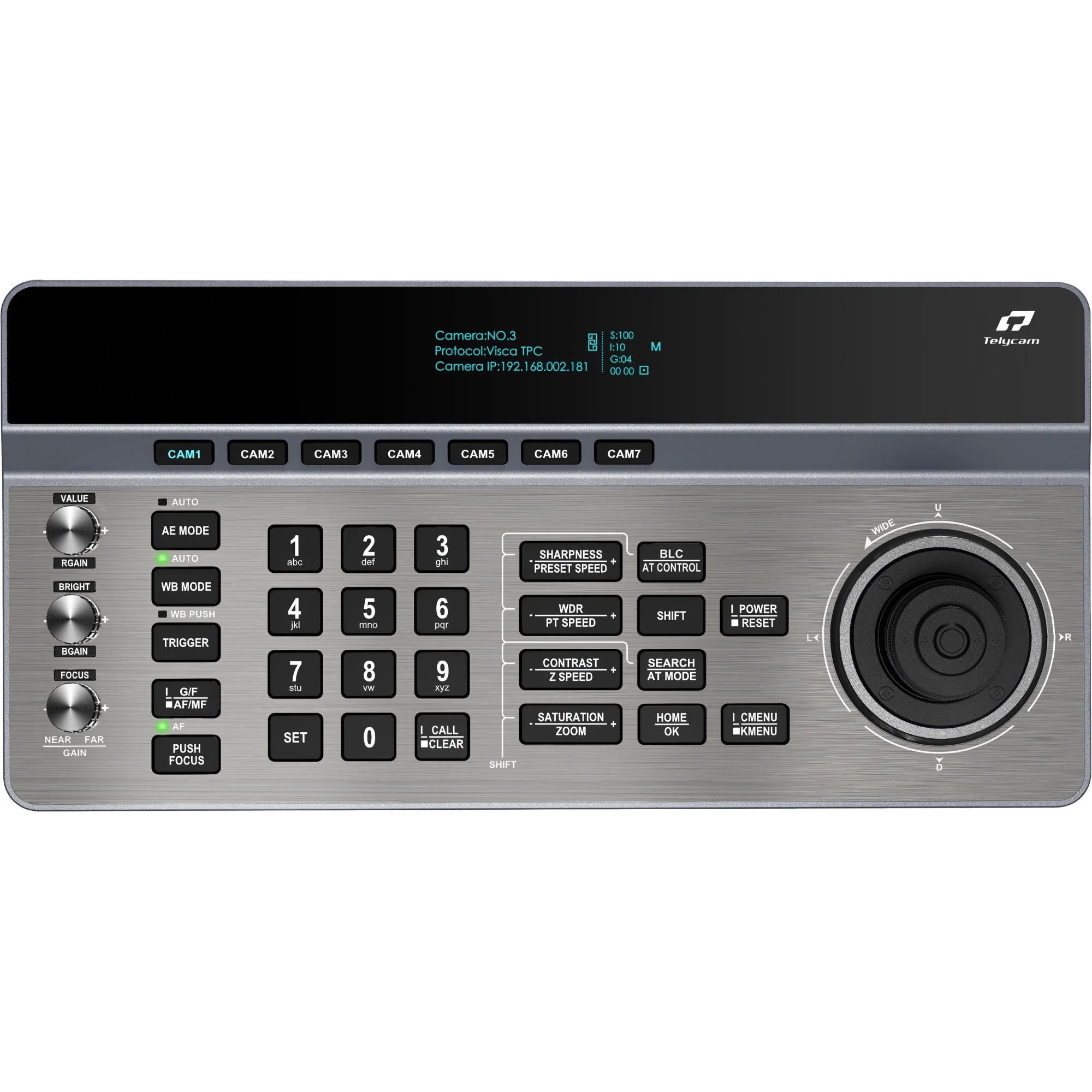

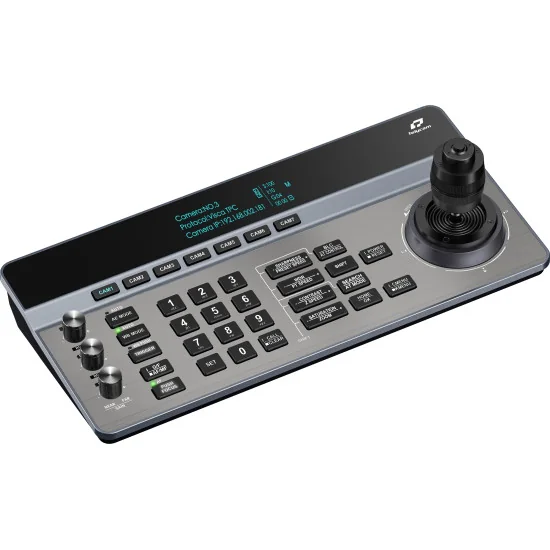

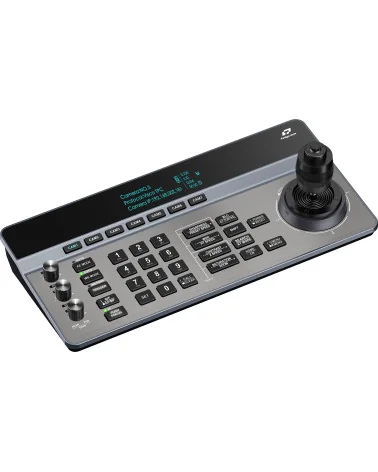

Telycam V-Joy+ AT SI is a professional PTZ keyboard for fast multi-camera operations. It merges IP and serial control in one surface: NDI|HX, VISCA over IP (TCP/UDP), ONVIF, and Pelco P/D across RJ45 with IEEE 802.3af PoE, plus RS-232, RS-422 and RS-485 on board. A responsive 4-axis joystick governs pan, tilt and zoom, while a press triggers instant auto-focus. A 3.12-inch OLED status display (256×64) shows protocol, IP, baud rate and camera state at a glance, so operators keep attention on the program feed, not the menu.
Workflow scale is covered: the panel switches between seven cameras via dedicated shortcuts and recalls up to 256 position presets per unit. Exposure, white balance and focus modes are accessible on direct keys; fine-tune from the knobs without diving through OSDs. Auto-tracking can be toggled from the keyboard, handing presenters or talent a stable framing with minimal operator load during conferences, worship, education and corporate studio streams.

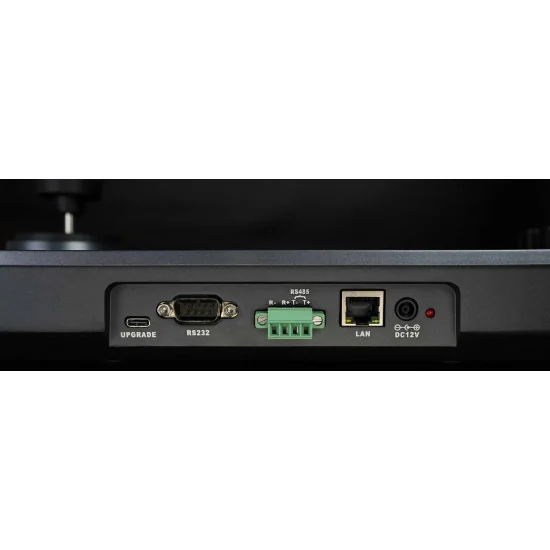

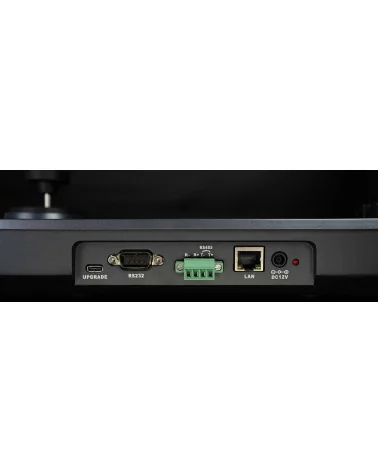

Connectivity is straightforward on mixed brands. Use VISCA Serial for legacy PTZ heads, VISCA over IP for modern rooms, or ONVIF when integrating broadcast control with security PTZ endpoints. RJ45 networking with PoE reduces cabling and enables single-cable desk deployments; a USB-C port is available for firmware servicing. The controller runs from 12 V / 1 A if external power is preferred.
Built for regular live work, the unit operates from −10 to 50 °C and 20–80%RH, stores safely at −20 to 60 °C, and weighs 1.05 kg. Footprint is 320.5 × 156.5 × 118 mm, leaving room on cramped benches beside switchers and audio. Choose Telycam V-Joy+ AT SI to standardise camera control in flypacks, fixed studios and OB carts where reliability, protocol flexibility and repeatable presets matter. The 3.12-inch (7.9 cm) OLED yields high contrast for status visibility under studio lighting. Storage humidity to 90%RH.
Telycam V-Joy+ AT SI is a professional PTZ keyboard for fast multi-camera operations. It merges IP and serial control in one surface: NDI|HX, VISCA over IP (TCP/UDP), ONVIF, and Pelco P/D across RJ45 with IEEE 802.3af PoE, plus RS-232, RS-422 and RS-485 on board. A responsive 4-axis joystick governs pan, tilt and zoom, while a press triggers instant auto-focus. A 3.12-inch OLED status display (256×64) shows protocol, IP, baud rate and camera state at a glance, so operators keep attention on the program feed, not the menu.
Workflow scale is covered: the panel switches between seven cameras via dedicated shortcuts and recalls up to 256 position presets per unit. Exposure, white balance and focus modes are accessible on direct keys; fine-tune from the knobs without diving through OSDs. Auto-tracking can be toggled from the keyboard, handing presenters or talent a stable framing with minimal operator load during conferences, worship, education and corporate studio streams.
Connectivity is straightforward on mixed brands. Use VISCA Serial for legacy PTZ heads, VISCA over IP for modern rooms, or ONVIF when integrating broadcast control with security PTZ endpoints. RJ45 networking with PoE reduces cabling and enables single-cable desk deployments; a USB-C port is available for firmware servicing. The controller runs from 12 V / 1 A if external power is preferred.
Built for regular live work, the unit operates from −10 to 50 °C and 20–80%RH, stores safely at −20 to 60 °C, and weighs 1.05 kg. Footprint is 320.5 × 156.5 × 118 mm, leaving room on cramped benches beside switchers and audio. Choose Telycam V-Joy+ AT SI to standardise camera control in flypacks, fixed studios and OB carts where reliability, protocol flexibility and repeatable presets matter. The 3.12-inch (7.9 cm) OLED yields high contrast for status visibility under studio lighting. Storage humidity to 90%RH.
We ship all over the European Union for €20, free shipping on orders over €1,000.
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Specifications
V-Joy+ AT - TLC-50TC(NDI)-AT
Control Ports: NDI®HX, RS232, RS422, RS485
Auto Tracking: Supported
RJ45: Ethernet port, POE(IEEE802.3af)
RS232: DB9 Male head
RS422: 3.81 Spacing terminal, T+, T-, R+, R-
RS485: 3.81 Spacing terminal, T+, T-
Control Protocols: NDI®HX, VISCA Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF
Upgrade Port: Type-C
LCD Screen: 3.12-inch OLED screen, blue light, 256×64 pixel
Working Power: 12V,1A
Working Temperature: -10℃~50℃
Working Humidity: 20%~80%
Storage Temperature: -20℃~60℃
Storage Humidity: ≤90%
Dimension: 320.5mmx156.5mmx118mm
Net Weight: 1.05kg
