Telycam V-Joy+ AT BK PTZ Camera Controller

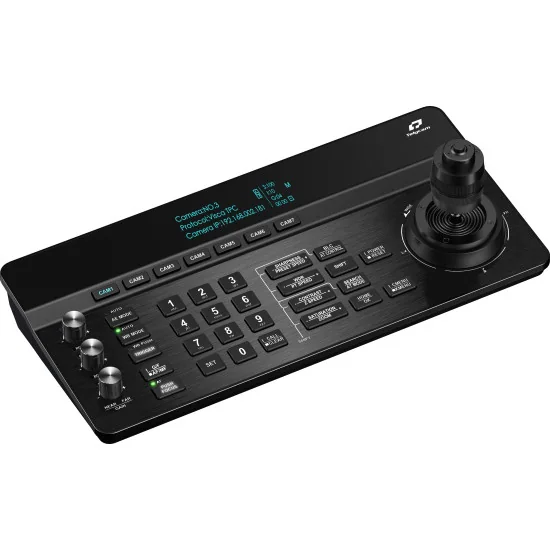

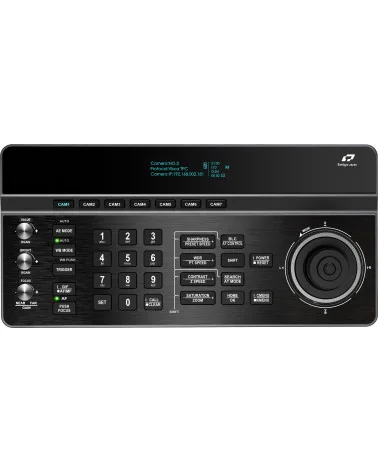

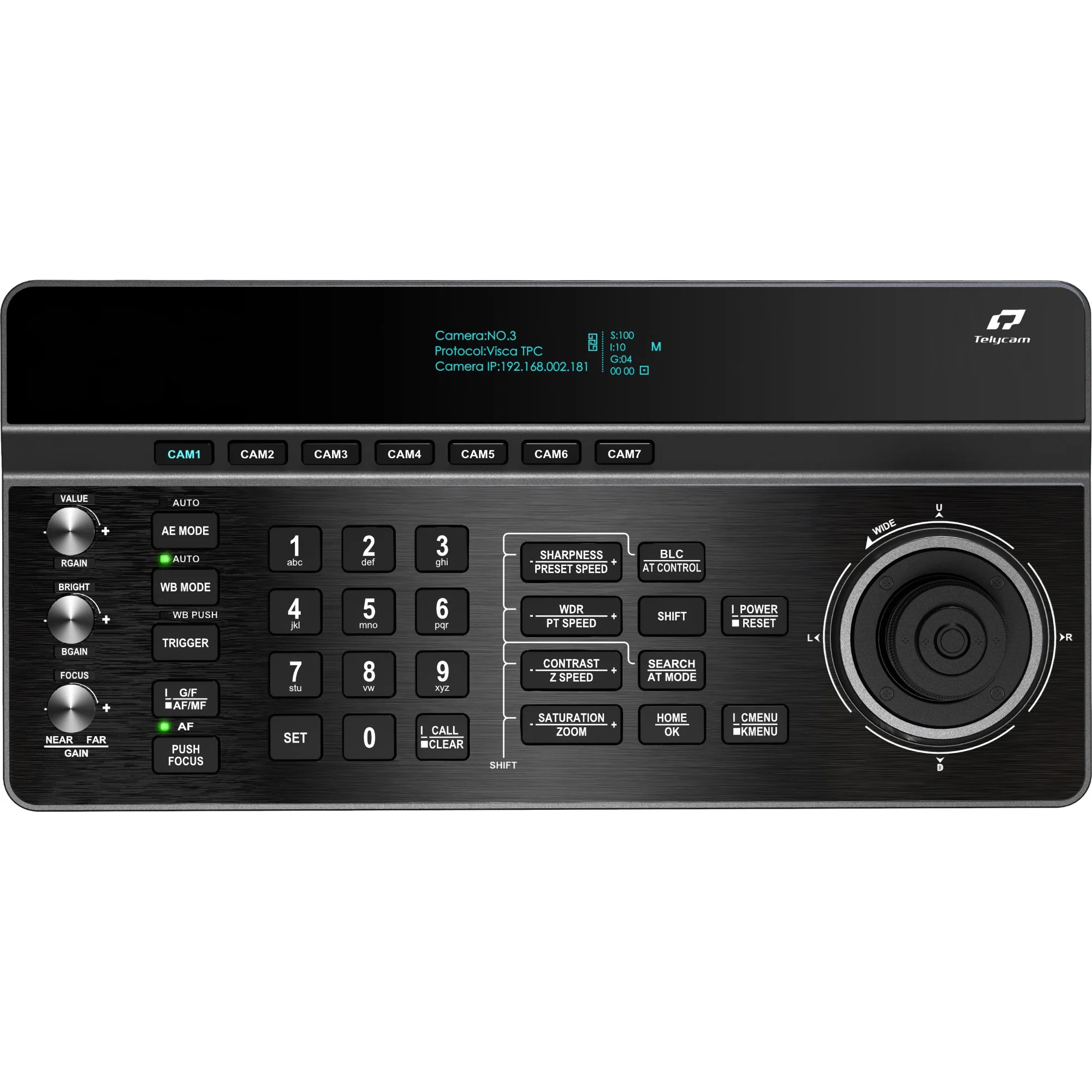

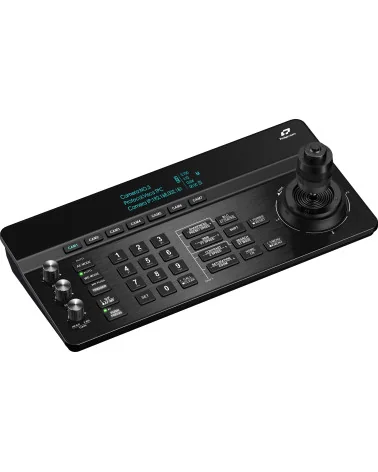

Telycam V-Joy+ AT BK is a professional PTZ camera controller built for control rooms, OB trucks and live streaming rigs. A bright 3.12-inch (79.2 mm) OLED presents camera, network and preset feedback clearly, while a 4D joystick delivers proportional pan/tilt/zoom and one-push auto focus. The interface groups AE/AF/AWB, presets and multi-function keys logically so operators can execute framing, focus and exposure changes without leaving program. The auto-tracking section goes further: toggle Tracking Switch, set Target Position, PT Limitation, Initial Position and Blackboard Area directly from the panel to govern subject capture during live moves.

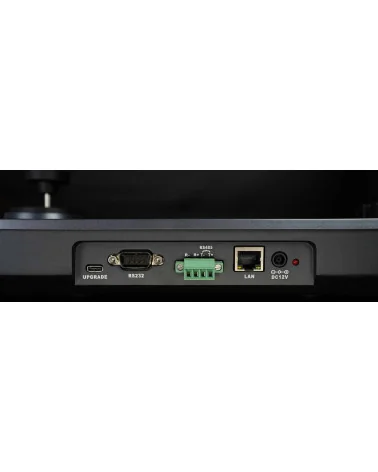

In mixed infrastructures the keyboard speaks the common control languages: NDI|HX, VISCA over IP (TCP/UDP), ONVIF, Serial VISCA and Pelco-D/P. Physical I/O covers RS-232 (DB-9), RS-422 and RS-485 3.81 mm terminal blocks, plus RJ-45 with PoE (IEEE 802.3af) for single-cable power and data to your network. A USB-C service port supports firmware tasks. This cross-protocol tool lets one operator steer diverse PTZ brands across IP or serial paths from a single surface.

Seven camera shortcut keys enable instant source hops, and up to 256 presets per camera accelerate complex cues. Smooth mechanical feel in the joystick yields repeatable, slow-creep motion for talent close-ups or rapid swings between stage zones. Numeric entry speeds parameter changes !!

For integration, operating range is −10 to 50 °C with 20–80% RH; storage −20 to 60 °C, ≤90% RH. The compact chassis measures 320.5 × 156.5 × 118 mm and weighs 1.05 kg, suiting console decks or rack-shelf placement. Choose Telycam V-Joy+ AT BK when a network-savvy PTZ keyboard with auto-tracking, multi-protocol IP/serial control and reliable PoE power is required for broadcast, corporate and education workflows.
