edelkrone Vertical Module v2

Name: edelkrone Vertical Module v2
Brand: edelkrone
SKU: EDVTX
Price: 649.00 EUR
Availability: InStock

MPN: EDVTX

Price: €649.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

In stock (Shipping 3-14 working days.)

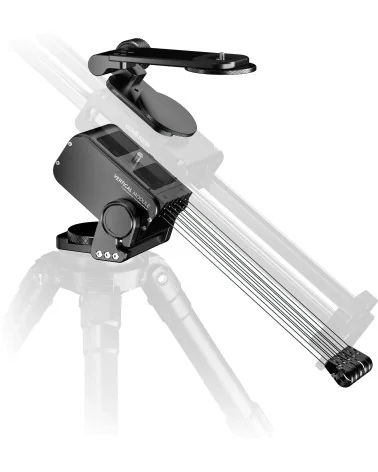

edelkrone Vertical Module v2 turns SliderPLUS v6 into a vertical-motion platform for moves that travel from floor level to subject height with the same controlled feel as a horizontal slide. Instead of counterweights, edelkrone uses a patented constant-tension spring architecture: five tension wires counterbalance the carriage so steep angles stay smooth and quiet for film sets, broadcast studios and live-stream rigs.

In a fully vertical configuration the module lifts a total camera setup of 5.2 kg. That rating accounts for a HeadPLUS v3 at 2.6 kg plus an additional 2.6 kg for camera body, lens, batteries and HeadPLUS accessories. Incline is indexed in 10° steps, with the spring box operating up to 110°, enabling true up/down travel, steep diagonals and repeatable reveal moves while preserving SliderPLUS v6’s double-distance slide behavior. Each tension wire is rated at 2.4–3.0 kg (depending on applied tension), so balancing can be tuned to the payload.

Mounting stays within standard on-set hardware: the spring box sits between tripod and slider via 3/8" interfaces, while the supplied L-Bracket provides a rigid camera platform with a 1/4" mounting point. v2 introduces reinforced rosette joints to prevent loosening or play over long shooting days, larger tightening knobs for quick angle changes, a larger L-Bracket to maintain HeadPLUS clearance at aggressive tilts, and faster switching thanks to spring-loaded mounting slots on SliderPLUS v6.

Vertical Module v2 fits workflows that depend on repeatability: time-lapse and stop-motion at non-horizontal angles, vertical product cinematography for e-commerce, food and beauty tabletop work, architectural detail moves, and silent motion during live shows. Pair it with Slide Module v2/v3 for motorized vertical slides, and power the system through Power Module with a stationary external battery to keep onboard batteries off the moving carriage and reserve lifting capacity for the camera package.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Vertical Module v2

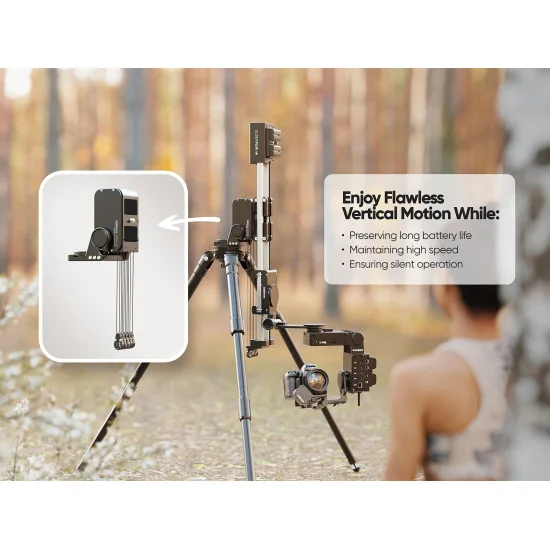

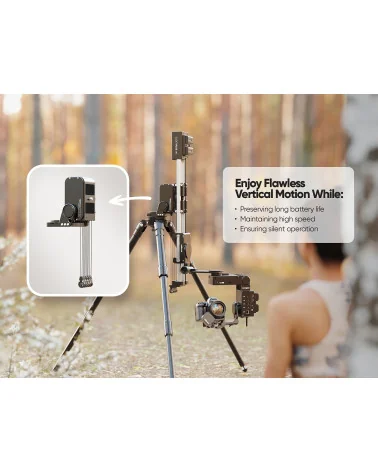

Take all your slide movements to the steepest vertical angles, without sacrificing speed, silent operation or long battery life. Make your shots instantly one level higher. A vertical motion solution in true edelkrone style — unconventional, yet surprisingly advantageous.

Patented Tension Wire Advantage
The idea of using a tension wire to achieve vertical motion that is quiet, fast, power-efficient, and portable is a patented and uniquely edelkrone approach.

Other solutions typically require stronger motors, larger batteries, and result in noisier operation. Without compromising on any of these factors, we introduced our own distinctive method to cinematography — elevating SliderPLUS, already one of the most efficient tools in filmmaking, to an entirely new level of capability.

Now with Vertical Module, we unlocked the full potential of SliderPLUS, making it the most talented slider on the market. We know that you will come up with brilliant new ways of using it.

Double Distance in Vertical
The Vertical Module lets you achieve the full range of motion without compromising SliderPLUS’s miraculous Double Distance feature. This allows you to capture highly dramatic shots that can move all the way down to ground level.

Time-lapse & Stop Motion Ready
Vertical Module enables SliderPLUS to capture stunning time-lapses at any slide angle.

Tech Specs

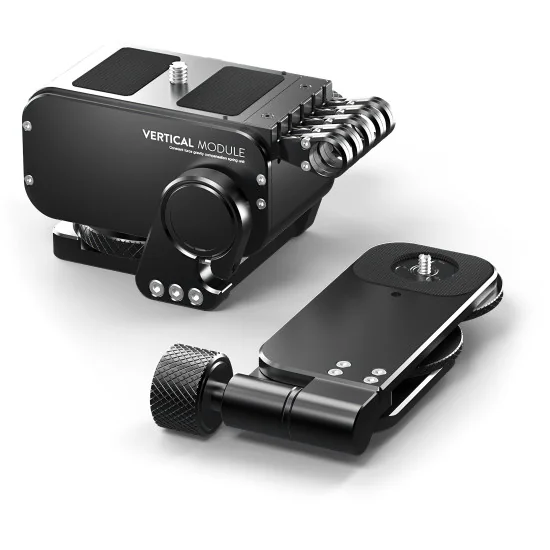

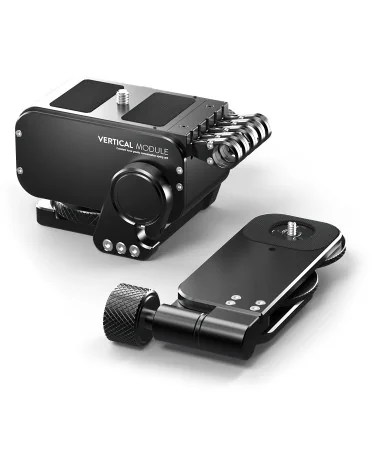

Box Content: Spring Box Unit, L Bracket
Carrying Capacity: With Vertical Module v2, the system can lift a total of 11.4 lb (5.2 kg) camera setup in a fully vertical setup.
This includes the 5.7 lb (2.6 kg) HeadPLUS v3 plus an additional 5.7 lb (2.6 kg) for your camera body, lens, batteries, and any HeadPLUS add-ons.

The edelkrone Power Module (sold separately) is highly recommended for vertical setups. It allows you to remove the batteries mounted on HeadPLUS or SliderPLUS—batteries that would otherwise consume part of the system’s lifting capacity.

Instead, you can power the entire system with a single external battery placed in a fixed position, not moving with the slider. This frees up valuable carrying capacity for your camera, lens, and HeadPLUS add-ons, enabling you to mount heavier gear and get the most out of your setup’s vertical motion range.

Weight: Spring Box Unit: 1623 grams, L Bracket: 672 grams

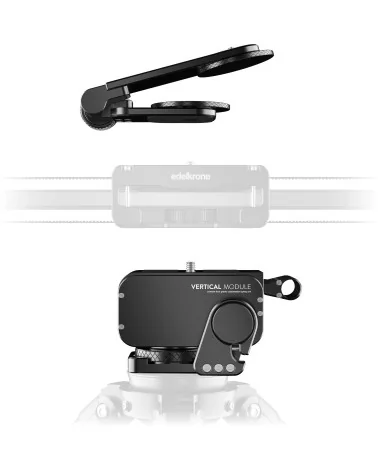

Top/Bottom Connections: The Tension Wire Box attaches to the 3/8” screw on your tripod, and SliderPLUS v6 attaches to the 3/8” screw on the Tension Wire Box. The L-Bracket mounts onto the 3/8” screw on SliderPLUS, and your camera setup attaches to the 1/4” screw on the L-Bracket.
Incline Limits: Incline can be adjusted every 10 degree steps. Both tension wire box and L bracket. Tension Wire box Unit max Incline 110 degrees.
Number of Tension Wires: 5
Tension Wire Strength: 2.4-3 kg each. (Depending on the amount of tension applied.)
